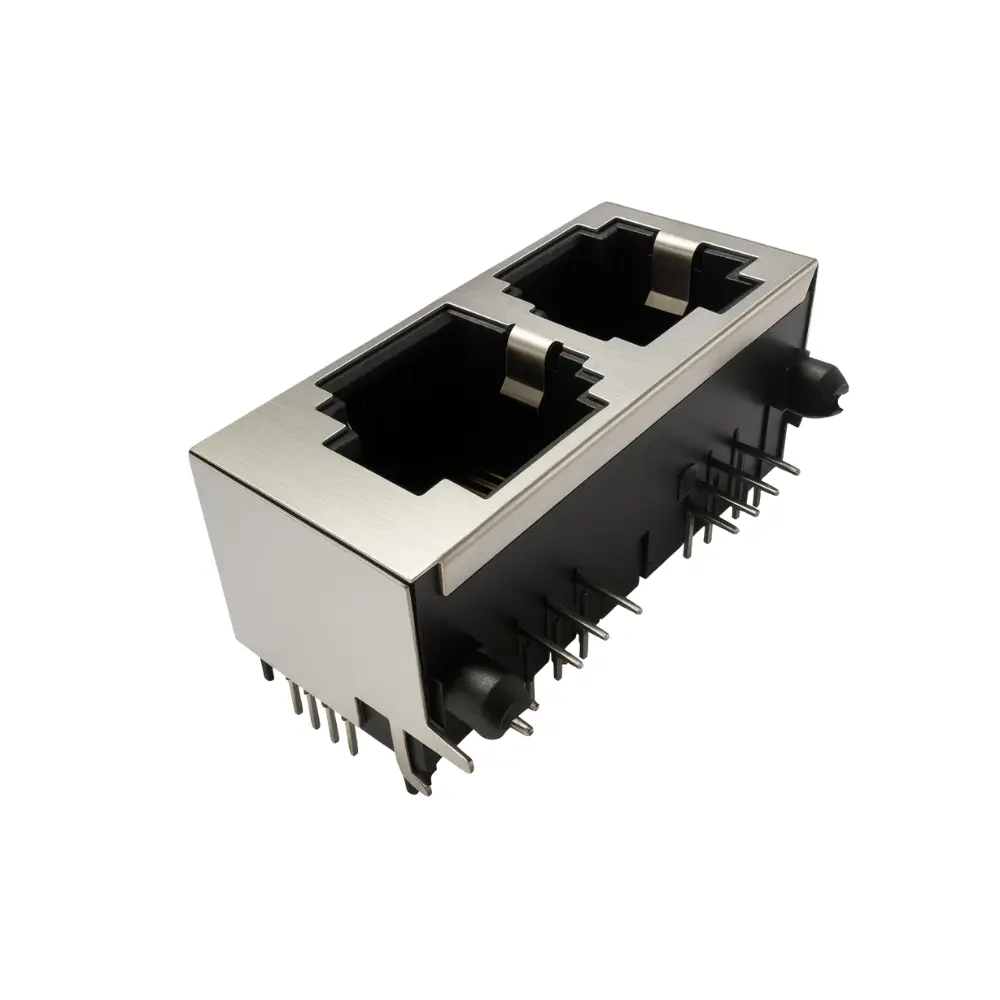

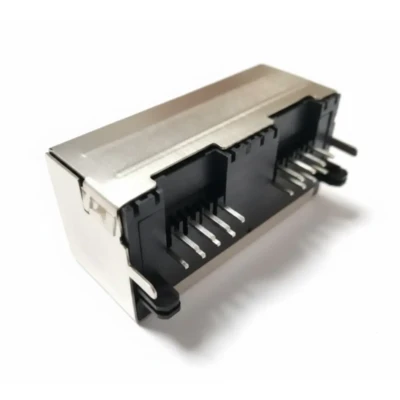

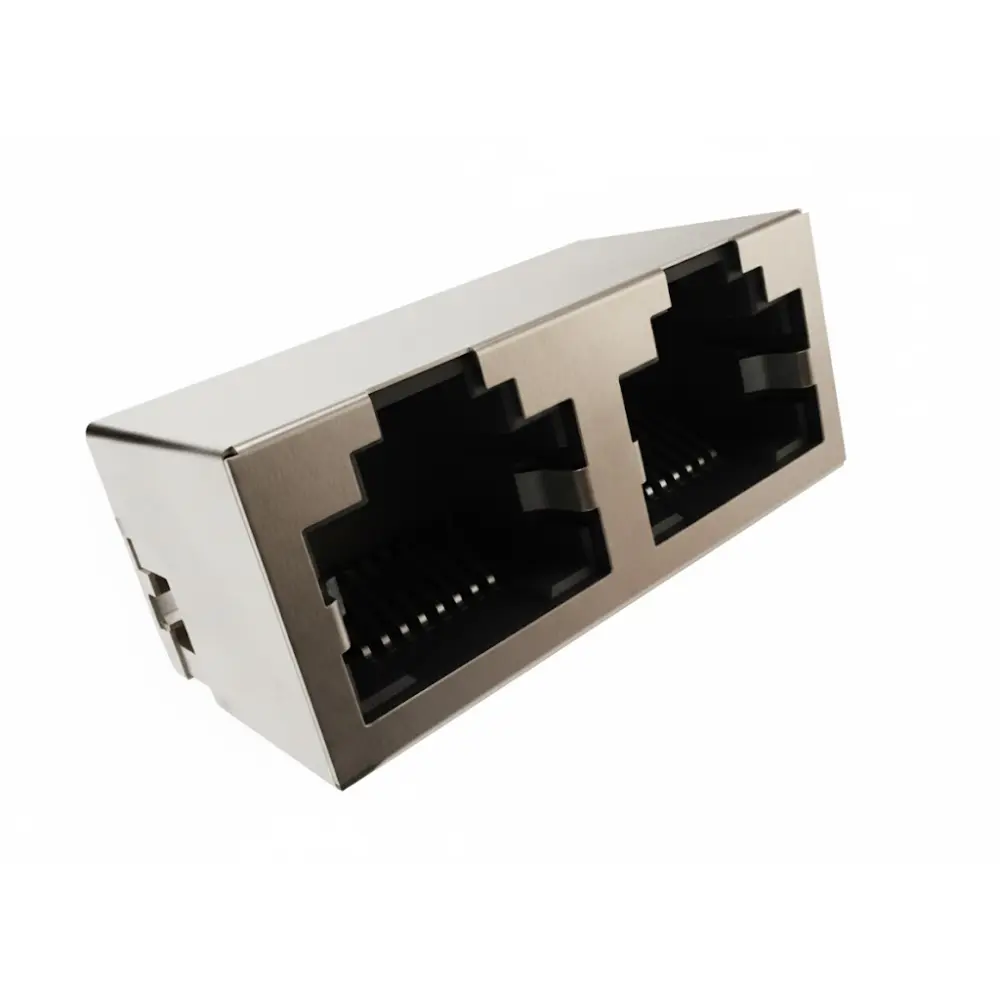

Modular RJ45 1×2 Tab-Up, DIP Shielded designed for through-hole DIP mounting. The connector features a 15.75mm port width and is shielded with nickel-plated copper alloy, offering excellent EMI performance.
Highlights: Dual-port 1×2 8P8C; tab-up; nickel-plated shield (copper-alloy, ~0.20 mm); PA46 UL94V-0 housing; phosphor-bronze Ø0.46 mm contacts; selectable Au (flash/3/6/15/30 µin); 1.02 mm pin pitch, 2.54 mm row; ≤20 mΩ contact R; ≥1000 MΩ insulation R; 1000 VAC withstand; –40~+85 °C; ≥750 cycles; RoHS.
Applications: Network switches and hubs, communication devices, control panels, and routers needing compact, shielded dual-port RJ45.
Modular RJ45 1×2 Tab-Up, DIP Shielded is a dual-port 8P8C connector for panels where the plug latch faces up. The drawing confirms a straight entry with a nickel-plated metal shield for EMI control.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00230-01TP-01 | Description | RJ45 Jack, 1×2, Shielded, W/O LED, 8P8C, DIP, Tab-Up, Right Angle. |
| Product Name | RJ45 2-Port Tab-Up Shielded | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 32.20 mm | Height | 13.10 mm |
| Length | 15.75 mm | Installed height | 14.70 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | PCB Retention | Yes | |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C × 2 | Lightpipes/LEDs | W/O LED |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×2 | Inverted / Top Latch | Yes |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 13.10 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Right Angle RJ45 Jack, Shielded RJ45 Connector, Multi-Port RJ45 Jack |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC RMS | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000 MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 50 Hz, 1 min | ||
