Modular RJ45 Connector 1×5 tab-up 8P8C, 1 DIP shielded is designed for through-hole DIP mounting. The unit offers robust EMI shielding using copper alloy/stainless steel plated with nickel.
Highlights: 1×5 8P8C; tab-up ; shielded nickel-plated alloy shell; PA46 UL94V-0 housing; phosphor-bronze Ø0.46 mm contacts; selectable Au (flash/3/6/15/30 µin); 1.27 mm DIP pitch; ≤50 mΩ contact R; ≥500 MΩ insulation R; 1000 VAC withstand; –40~+85 °C; ≥750 cycles; wave-solder 255–265 °C.
Applications: Network switches/routers, hubs, embedded Ethernet modules, high-port-density telecom and data-center gear.

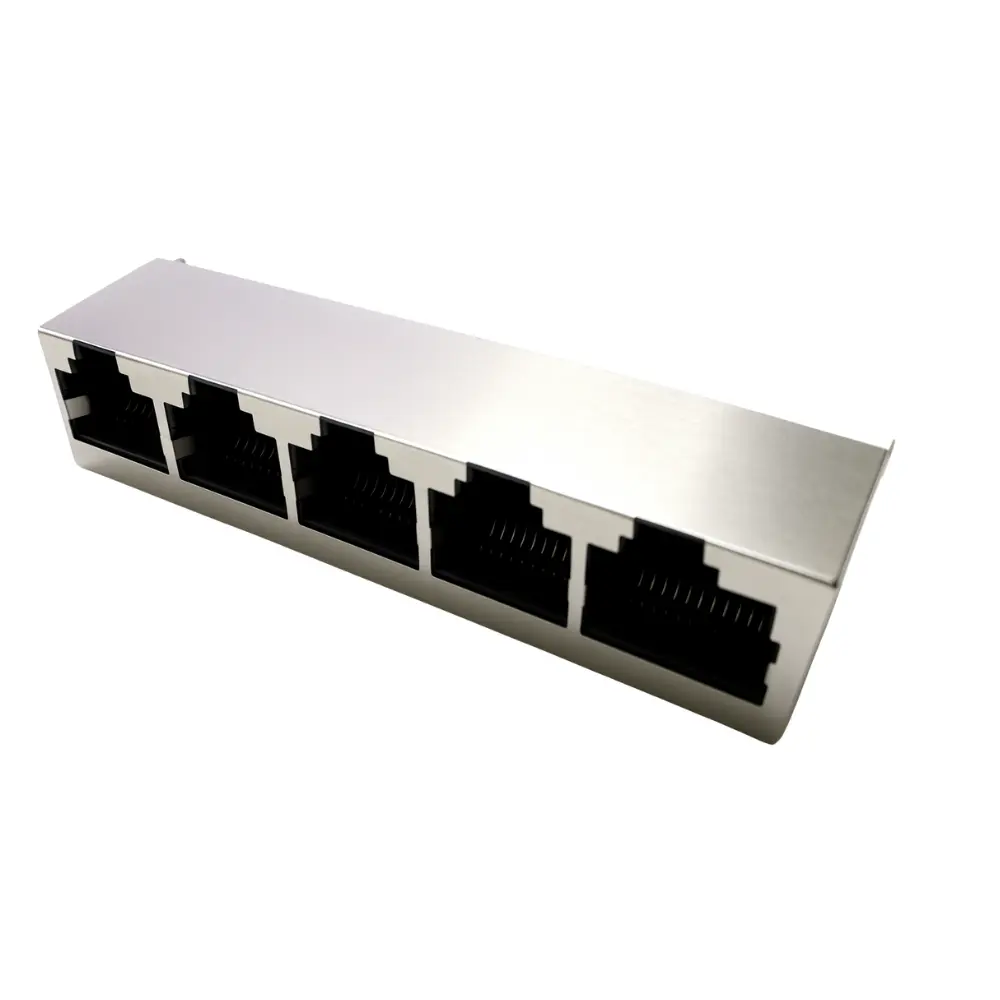

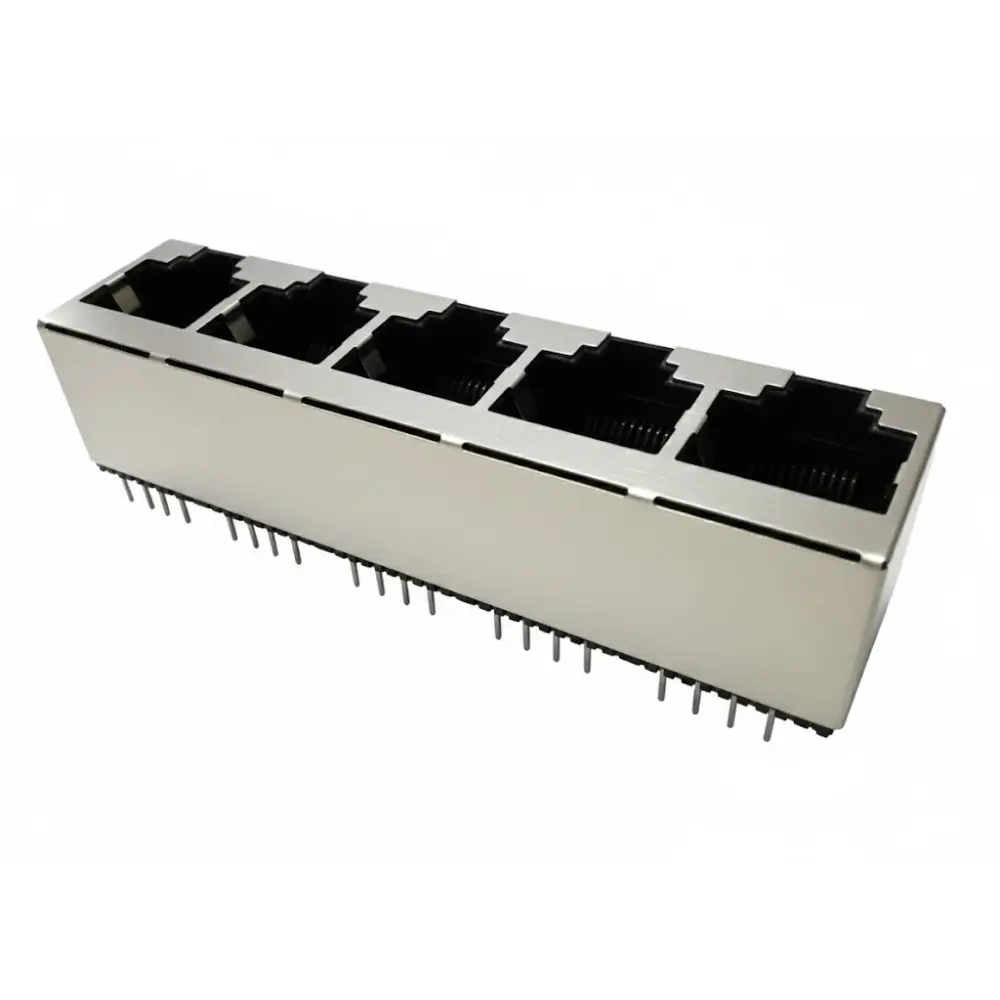

Modular RJ45 Connector 1×5 Tab-Up 8P8C, DIP Shielded combines five RJ45 ports into one rugged through-hole assembly for high-density Ethernet panels where the plug latch faces up.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00515-01TP-01 | Description | RJ45 Jack, 1×5 Port, Right Angle, Tab-Up, Shielded, Through-Hole, Without LED, with Automatic SMT Pick-up Cap |
| Product Name | RJ45 1×5 Port Tab-Up Shielded | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 69.60 mm | Height | 16.60 mm |
| Length | 15.60 mm | Installed height | 13.20 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | ≤30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Vertical |
| Positions / Loaded Contacts | 8P8C x5 | Lightpipes/LEDs | None |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×5 | Inverted / Top Latch | Yes |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 16.60 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Vertical RJ45 Jack, Shielded RJ45 Connector, Multi-Port RJ45 Jack |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC RMS | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500 MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 255–265°C |
| Dielectric Withstanding | 1000 VAC RMS, 50 Hz, 1 min | ||
