RCY Connector Manufacturer selection is an important part of sourcing compact wire-to-wire connectivity for OEM and ODM projects in 2026. Buyers are not only comparing price. They also need to confirm pitch, circuit count, wire range, crimp-terminal design, housing dimensions, mating structure, current requirement, production consistency, and long-term supply support.

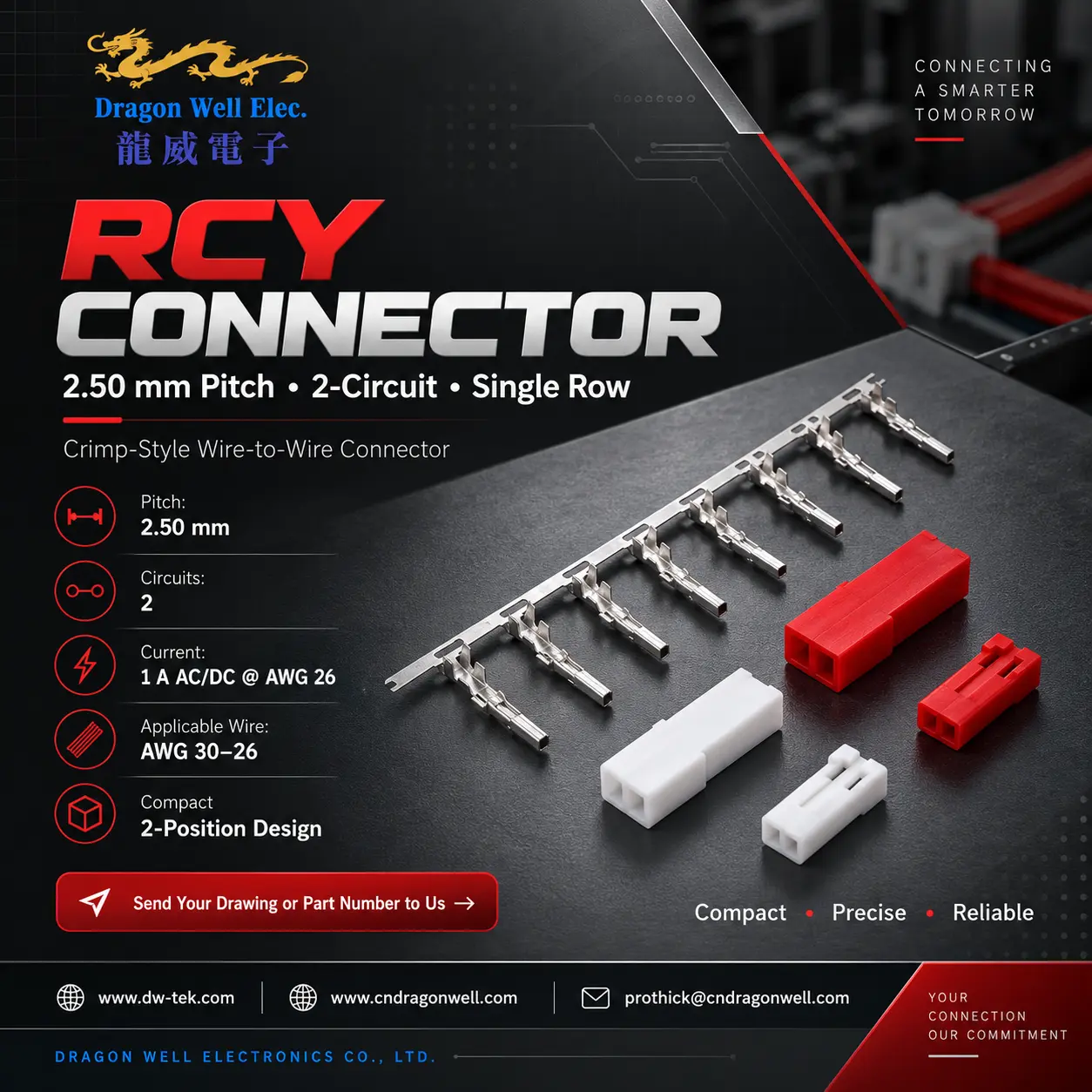

Dragon Well Electronics offers an RCY-style connector solution for projects that require a compact 2-position wire-to-wire connection. Based on the featured product image, the highlighted configuration uses a 2.50 mm pitch, 2 circuits, a single-row layout, and a crimp-style wire-to-wire design.
The image also specifies 1 A AC/DC at AWG 26 and an applicable wire range of AWG 30–26.
For any alternative-source project, these values should be checked against the exact approved drawing and the customer’s operating conditions before mass production. A similar appearance or matching pitch alone does not prove interchangeability.
What Is an RCY Connector?
An RCY connector is a compact crimp-style wire-to-wire connector used to create a detachable connection between two conductors or small cable assemblies.
A typical system uses mating housings and crimp terminals. The terminals are attached to conductors, inserted into their housings, and then joined through the mating interface.
This connector format is useful where designers need a small two-position connection without directly mounting the connection to a PCB. It can simplify assembly, servicing, cable routing, and modular wiring in suitable electronic products.
For technical reference, JST’s original RCY series is officially described as a 2.5 mm pitch, 2-circuit, single-row, crimp-style wire-to-wire connector. Its published specifications should be treated as specifications for the JST series rather than automatically applied to alternative products.
Why an RCY Connector Manufacturer Matters in 2026
Choosing an RCY Connector Manufacturer involves more than finding a visually similar housing.
In mass production, small differences in terminal position, cavity shape, locking features, polarization, insulation support, mating depth, or housing dimensions can affect assembly and performance.
A qualified RCY Connector Manufacturer should be able to review the customer’s current part number, drawing, wire requirement, application, and expected quantity before recommending a solution.
This drawing-first process helps purchasing and engineering teams determine whether an alternative is appropriate for the actual design.
For 2026 sourcing, this is especially useful for OEM and ODM teams that want another supply option, project-specific connector review, or support for cable and terminal matching.
Dragon Well RCY Connector Specifications
The featured Dragon Well promotional image identifies the following configuration:
| Specification | Dragon Well Featured Configuration |
|---|---|
| Pitch | 2.50 mm |
| Circuits | 2 |
| Row Configuration | Single Row |
| Connection Type | Crimp-Style Wire-to-Wire |
| Current | 1 A AC/DC @ AWG 26 |
| Applicable Wire | AWG 30–26 |
| Design | Compact 2-Position |
These are the specifications presented in the supplied image. The production drawing and exact selected part should remain the final technical references for an actual order.
7 Powerful Benefits of Choosing Dragon Well as an RCY Connector Manufacturer
1. Compact 2.50 mm Pitch
The featured design uses a 2.50 mm pitch, helping it fit applications where internal wiring space is limited.A compact interface can be useful in electronic assemblies where a larger connector would occupy unnecessary room.When comparing an alternative, engineers should still verify overall housing dimensions rather than relying only on nominal pitch.
2. Simple 2-Circuit Design
The connector uses two circuits in a single-row arrangement.This straightforward configuration can suit projects that need a compact two-wire connection. A two-position layout can also simplify harness routing and assembly when an application only requires two conductors.
3. Crimp-Style Wire-to-Wire Connection
As an RCY Connector Manufacturer, Dragon Well presents the featured product as a crimp-style wire-to-wire solution.Crimp termination can support efficient cable-harness production when the correct wire, terminal, tooling, stripping length, and crimp process are used.Production teams should verify conductor crimp quality, insulation support, terminal retention, and related process requirements according to the approved drawing and assembly procedure.
4. AWG 30–26 Wire Range in the Featured Version
The Dragon Well image identifies AWG 30–26 as the applicable wire range for this configuration, with 1 A AC/DC at AWG 26.This specification should be treated as part-specific.If a project uses another conductor size, insulation diameter, or current level, the buyer should request confirmation before ordering.This is also an important reason not to copy specifications from another manufacturer’s RCY datasheet. JST’s official RCY family, for example, publishes a different conductor range and current ratings.
5. Compact 2-Position Housing
The small housing format is useful when designers need a removable connection while minimizing occupied space.
Depending on the final project requirements, this type of connection may be considered for compact electronics, control modules, sensors, lighting equipment, appliances, and cable-harness assemblies.
Application suitability should always be checked against the approved electrical and mechanical requirements.
6. Alternative Sourcing Support
An RCY Connector Manufacturer can provide additional value when a company needs an alternative-source review rather than simply purchasing an existing catalog component.The Dragon Well promotional image specifically asks customers to send a drawing or part number for evaluation.
This approach is more reliable than selecting an alternative from appearance alone.
A proper sourcing process can follow:
Existing Part Number → Drawing Review → Specification Comparison → Sample Evaluation → Mating Verification → Testing → Approval → Production
7. OEM and ODM Project Evaluation
For OEM and ODM programs, connector selection can influence cable assemblies, tooling, sourcing, assembly efficiency, and long-term production.
Dragon Well describes itself as a connector manufacturer integrating mold development, manufacturing, and sales, which supports its role in connector development and alternative sourcing projects.
The most useful RFQ package includes the existing connector part number, drawings, wire specification, electrical requirements, application details, mating information, and expected quantity.
Common Applications for a Compact RCY Connector
A compact two-position wire-to-wire connector may be considered for products that require detachable internal wiring.
Potential application areas include sensors, actuators, LED and lighting assemblies, consumer electronics, home appliances, compact controllers, small industrial equipment, and cable-harness subassemblies.
JST also identifies sensors and actuators among example applications for its original RCY connector family.
However, the suitability of the featured Dragon Well connector should be determined from its own approved specification.
An RCY Connector Manufacturer should review factors such as electrical load, operating environment, available space, conductor requirements, mechanical conditions, and applicable product standards before recommending a final part.
How to Compare an RCY Connector Alternative
When comparing an alternative connector, begin with the mechanical drawing.
Check pitch, total length, width, height, cavity geometry, polarization, retention features, terminal position, and mating depth.Next, compare the wire and electrical requirements. Confirm conductor size, insulation dimensions, current requirement, voltage requirement, and environmental conditions defined by the project.Then review the crimp system.
The terminal must be appropriate for the selected conductor, and the tooling must create a repeatable crimp. Sample cable assemblies should be inspected and evaluated before production approval.Finally, verify the complete mating interface.
Two connectors can share the same nominal pitch while having different terminal or housing geometry. That is why an RCY Connector Manufacturer should not describe a component as a guaranteed drop-in replacement until the relevant dimensions and project requirements have been checked.
Why Drawing Verification Matters for an RCY Connector Manufacturer
Drawing verification is one of the most important stages of alternative connector sourcing.
It provides a common technical reference for the buyer, supplier, engineering team, and production department.For a Dragon Well RCY-style project, customers should compare the existing component with the proposed alternative and approve the final drawing before mass-production decisions are made.
A professional RCY Connector Manufacturer can use this information to reduce the risk of selecting a connector that appears similar but does not match the required assembly.
Why Work with Dragon Well Electronics?
Dragon Well Electronics’ official company information describes the business as a technology-driven connector manufacturer integrating mold development, manufacturing, and sales. Its portfolio covers multiple connector categories and alternative connector solutions.
For an RCY-style project, customers can begin by providing an existing connector, drawing, or part number for evaluation.
The featured Dragon Well configuration emphasizes:
- 2.50 mm pitch
- 2 circuits
- single-row design
- crimp-style wire-to-wire connection
- 1 A AC/DC at AWG 26
- AWG 30–26 applicable wire
- compact 2-position construction
The approved Dragon Well drawing should remain the final technical reference for the actual selected part.
Order and RFQ
Looking for an RCY Connector Manufacturer for a 2026 project, alternative-source program, cable harness, or compact 2.50 mm wire-to-wire connection?
Send your current part number or drawing together with the required wire gauge, circuit count, electrical requirements, mating information, application, and estimated quantity.
Dragon Well Electronics can review your project requirements and evaluate an appropriate connector solution.
