$39.00
Space-Saving 1×4 (4-Port) Design
Robust Through-Hole Mounting
Right-Angle (R/A) Orientation
Standard 8P8C Configuration
Unshielded Configuration support reduce material cost
Compact 13.4mm height ideal for low-profile designs
Gold-plated contacts for enhanced conductivity
Suitable for wave soldering and automated assembly

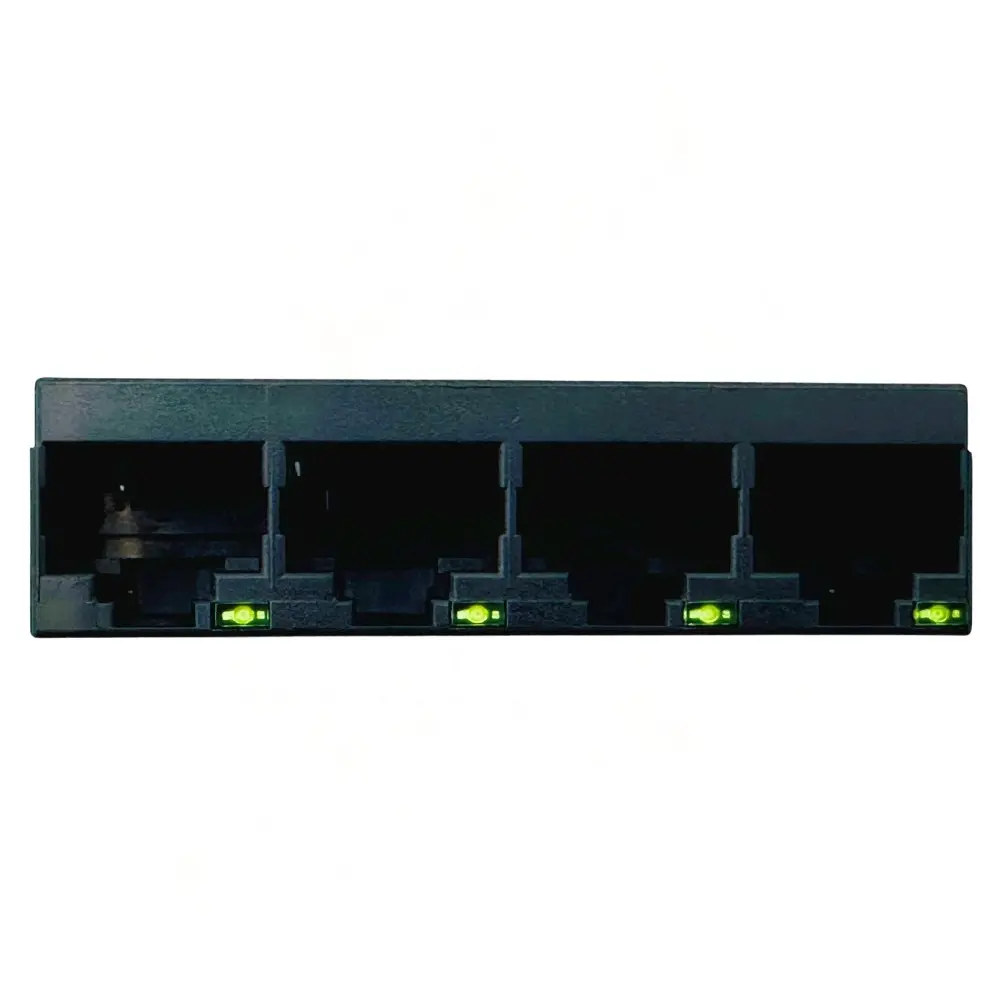

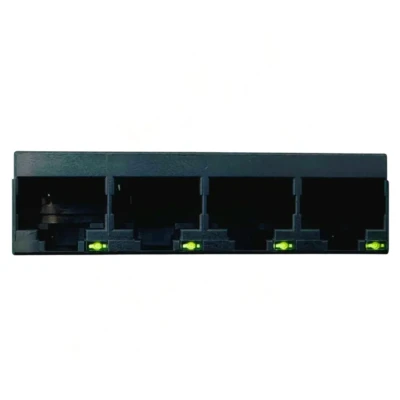

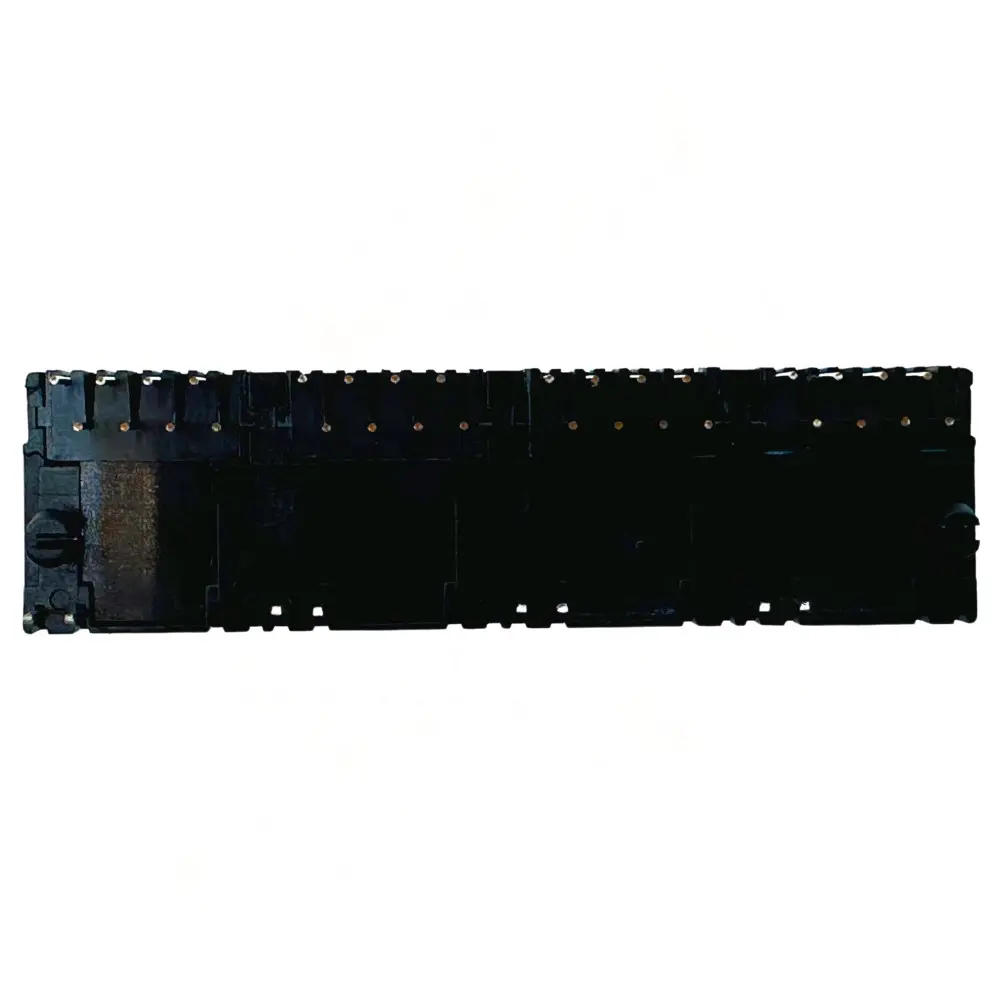

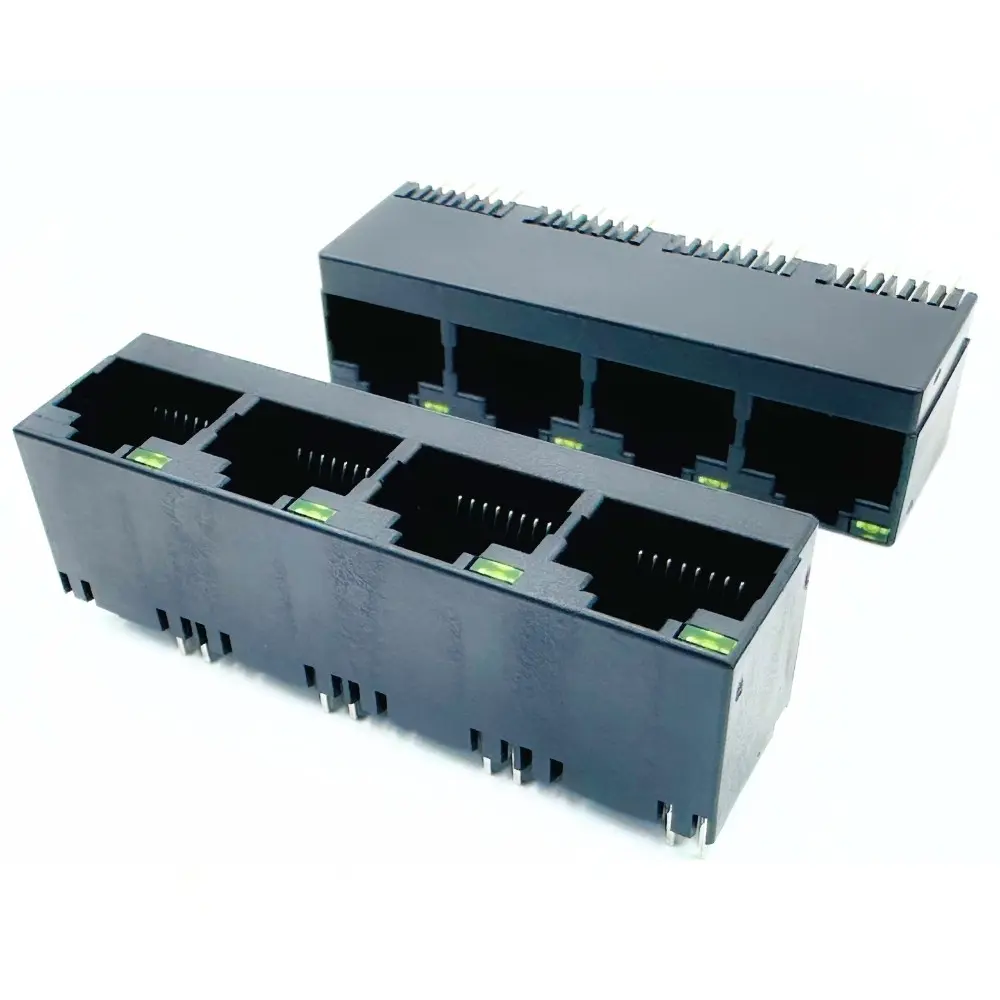

Introducing the RJ45 Jack 1×4 (4-Port) – your ultimate solution for reliable and efficient networking. Designed with precision and durability in mind, this connector is perfect for a variety of applications ranging from home networks to professional setups. Offering a reliable connection for multiple devices, the RJ45 Jack ensures that you maintain high-speed data transfer without interruption.
The RJ45 Jack 1×4 features an unshielded design that provides excellent performance with minimal signal loss, making it ideal for environments where electromagnetic interference (EMI) is not a concern. The thru-hole mounting and right-angle (R/A) configuration make installation straightforward, fitting seamlessly into your existing systems. With four ports available, this jack allows multiple devices to connect effortlessly, optimizing your workspace without the clutter of excessive cabling.
Constructed for longevity, the RJ45 Jack is built to withstand the rigors of daily use while maintaining optimal connectivity. Its tab-up design offers easy access for most standard Ethernet cables. Whether you’re upgrading your home office or setting up a robust network for a small business, this product combines durability with cost-effectiveness, ensuring you get the best value for your money.
Choosing the RJ45 Jack 1×4 means investing in a solid and functional component that enhances your network’s performance. With its user-friendly design and dependable build, this jack is a must-have for anyone looking to streamline their networking experience.
The RJ45 Jack 1×4 (4-Port) is designed to provide a reliable and efficient networking solution for various applications. Whether you are setting up a home network or working on a larger-scale professional installation, this component ensures consistent connectivity with its robust design and user-friendly features. Built with quality in mind, this unshielded, thru-hole jack guarantees reliable data transmission without the interference that can plague lesser options.
This 4-port RJ45 jack is equipped with tab-up configuration allowing for easy handling and installation in tight spaces. Its right-angle (R/A) design facilitates a compact setup, making it an excellent choice for patch panels, wall plates, or networking devices. Designed to meet industry standards, this product is compatible with various networks, ensuring you can integrate it seamlessly into your existing infrastructure.
Crafted for longevity and durability, the RJ45 Jack 1×4 (4-Port) features a tough exterior that withstands the rigors of regular use. The thru-hole mounting style allows for secure and straightforward installation, making it suitable for both professional electricians and DIY enthusiasts. Whether expanding your LAN setup or creating a new one, the ease of use associated with this jack will streamline your networking projects, granting you more time to focus on what matters.
In addition to its ease of installation, this jack promotes efficient signal routing and minimizes data loss, ensuring your network operates at optimal performance levels. Whatever your networking requirements, the RJ45 Jack 1×4 (4-Port) delivers reliability without compromise.
| Basic Information | |||
| Field | Value | Field | Value |
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00415-XXTP-01 | Description | RJ45 connector, 4 ports, 8P8C, Right angle, low profile, W/O shield, W/O LED, Latch-up |
| Product Name | RJ45 1×4 8P Tap Up | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 58.53 mm | Height | 13.10 mm |
| Length | 15.20 mm | Installed height | 14.7 mm |
| Material (Metal surface contact area top layer) | Gold Flash | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | < 30 N | Retention Strength | 50N for 60s±5s |
| Customs tariff number | 85366930 | Country of origin | CN |
| Product Properties / Physical | |||
| Field | Value | Field | Value |
| Color – Housing | Black | Orientation 方向 | Right angle |
| Positions / Loaded Contacts | 8P8C × 4 | Lightpipes/LEDs | No |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×4 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | Nylon (PA46) |
| Jack Height | 13.10 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | – |
| PCB Thickness – Recommended | 1.6 mm | Key Words | RJ45 Connector, Modular Jack, DIP Type RJ45 Connector, Vertical RJ45 Jack, Multi-Port RJ45 Jack, RJ45 PCB Connector |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Up |
| Electrical | |||
| Field | Value | Field | Value |
| Current – Maximum per Contact | 0.5A Max | Grounding to Panel | No |
| Grounding to PCB | Yes | Shielded | No |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍c₎ | 260°C |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
