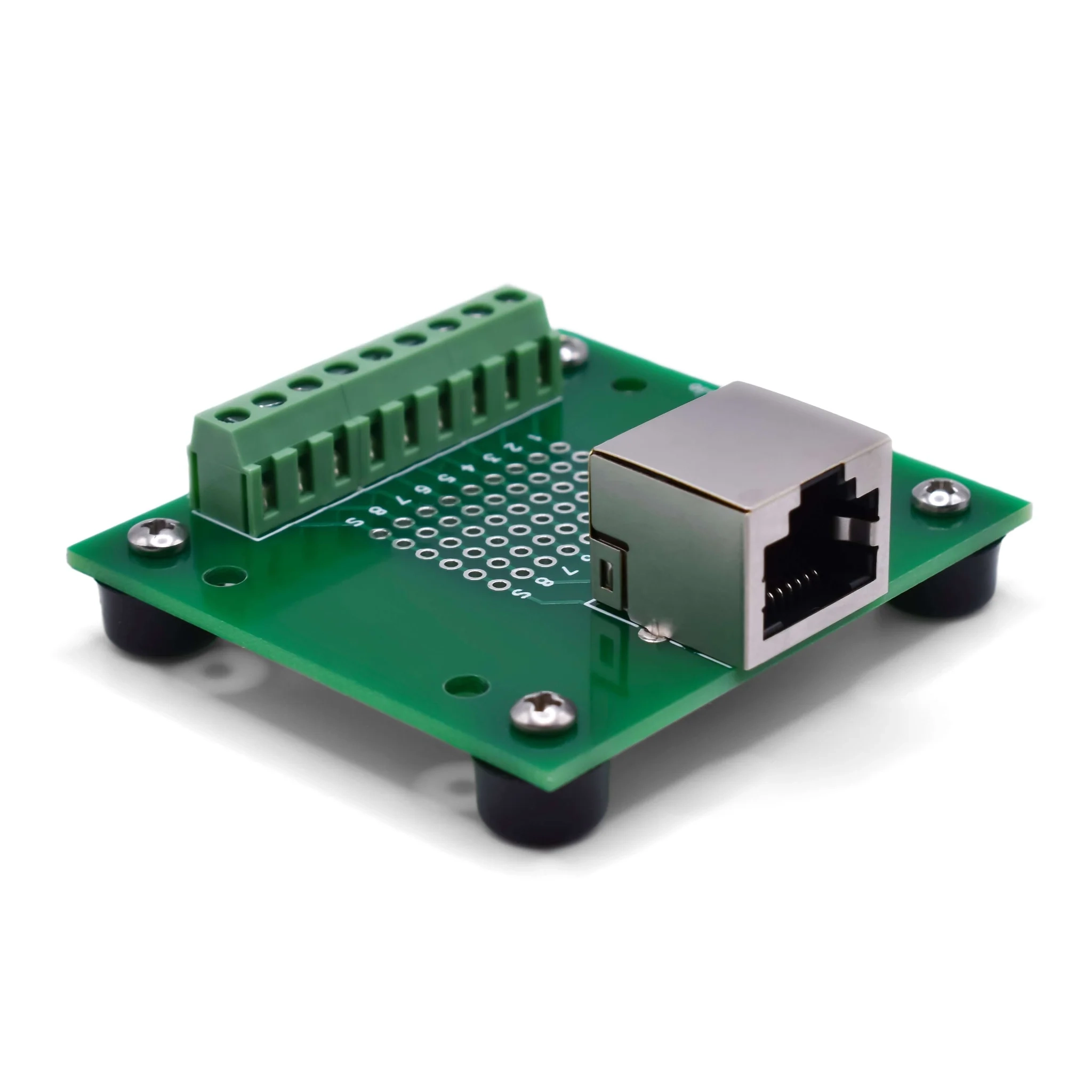

Selecting the Right PCB Mount RJ45 Connector

Precise connection: How to define your design success with RJ45 connector installed on PCB

In an age of seamless connectivity, the naive RJ45 connector is a key bridge between innovation and reliability. At Dragon Well Electronics, we spent 18 years perfecting these small, critical components, recognizing that the choice of PCB Mount RJ45 is more than technology, it is a strategic decision that shapes performance, durability, and even the reputation of your brand.

Why “Correct” Connectors matter more than ever

The PCB Mount RJ45 is rarely a star in product design conferences, but it is often a point of failure in a rough environment or high-speed application. Mismatched connectors can be degraded to signal loss, EMI interference, or catastrophic field failure.

Consider it: While a stylish and edgy audience needs a perfect look (think seamless equipment or luxury car interior), engineers know that true elegance lies in components like the RJ45, but is indispensable. The similarities are astonishing: Just like custom footwear balanced aesthetics and structural integrity, the right RJ45 also aligns electrical performance with mechanical elasticity.

Select the framework: Beyond the data table

(1) Speed requirements

Not all RJ45s are equal. Since the application now requires multiple gabit speeds, your connector must be consistent with the target bandwidth:

• • CAT5E (1 Gbps): Enough for basic IoT devices

• • CAT6/6A (10 Gbps): Crucial to industrial automation, 8K streaming media

• • CAT7/8 (40 Gbps+): Data center, AR/VR system required

Key Insights: Higher categories require tighter pair isolation. Find internal crosstalk barriers and verify compliance with IEC 60603-7 standards.

(2) Power transmission: POE factor

Power-Over-Ethernet (POE) converts RJ45 from data carrier to energy conduit. For POE++ (90W) applications:

• • Priority to connectors with 1.5A/pin

• • Confirm that the temperature rise remains below 30°C under full load

• • Gold-plated contacts (≥0.76μm thickness) prevent refraction corrosion

Example: Our collaboration with robot manufacturers shows that disassembly of RJ45 failed at 60W load due to contact oxidation, an expensive supervision that can be prevented by industrial-grade gold plating.

(3) Armor design required for hostile environment

Whether embedded in the navigation system of a luxury yacht or a sensor deployed in the desert, the resilience of the environment is not transmitted. Main things to note:

• • IP67 Sealing: Crucial for automotive/marine use

• • shield: S/FTP (Shielded Foil Twisted Pair) Connector Beats EMI in Motorsport Electronics

• • Vibration resistance: Looking for integrated PCB latch (test to 15G vibration)

Expert tip: The automotive customers we serve need to verify this through the USCAR-2 protocol connector – for mission-critical design.

Invisible Excellence: Luxury Customers Teach Us About Connectors

High net worth consumers expect perfection – no buzzing headphones, no failed smart home systems. This requires the RJ45 connector to provide:

(1) Exquisite touch

this “Click” The well-designed RJ45 latch reflects the satisfaction of the luxury watch buckle. Such as:

• • Reinforced nylon latch survives over 5,000 mating cycles

• • Smooth insertion force (≤20N) prevents PCB strain

(2) Uncompromising miniaturization

Ultra-compact designs (e.g., Magjack style) enable stylish devices, but require expert implementation:

• • Ensure a storage area of <3 mm is used in RF-sensitive designs

• • Combined magnetic/connectors require impedance matching footprints

(3) Customization

Custom finishes seem extravagant until your connector clashes with the anodized aluminum chassis. We have developed:

• • Titanium or rose gold PVD coating contact

• • Customized branded shell (molded logo, unique colors)

Longjing Bad: Future Prevention of Connectivity

With over 400 R&D experts, we have gone beyond catalog products to solve emerging challenges:

• • AI-optimized design: Using machine learning to simulate the effect of thermal performance in high-density PCBs

• • Lead-free innovation: Halogen-free polymer survives 260°C reflux EU ROHS 3 compliance

• • Supply Chain Agility: 90% same-day shipping ensures 48 hours of prototype production worldwide

The Cost of Compromise: Real-world Courses

Telemedicine device manufacturers have selected consumer-grade RJ45 to save $0.12 per unit. After the TV show, it failed 22% in 6 months due to latch cracks during wired transactions. Redesign cost? $1.4 million – the initial 540x multiplier “Save.”

Your selection list

1. 1. Bandwidth: Matching cats and data + future requirements

1. 1. Durability: Verify mating cycles for real-world use

1. 1. Environment: Confirm IP rating and operating temperature range (Car -40°C to 125°C)

1. 1. Compliance: FCC, UL, Obtain guaranteed documentation

1. 1. Logistics: Supplier’s rapid design iteration capability

Final connection

Choosing PCB Mount RJ45 is not a product purchase, but a basis for trust between your product and its users. At Dragon Well Electronics, we design connectivity because we understand that in high-risk electronics, there are no trivial components, only standards are not compromised.

Designed for those who refuse to bend.

Dragon Well Electronics: 0.01mm tolerance meets 100% liability.
