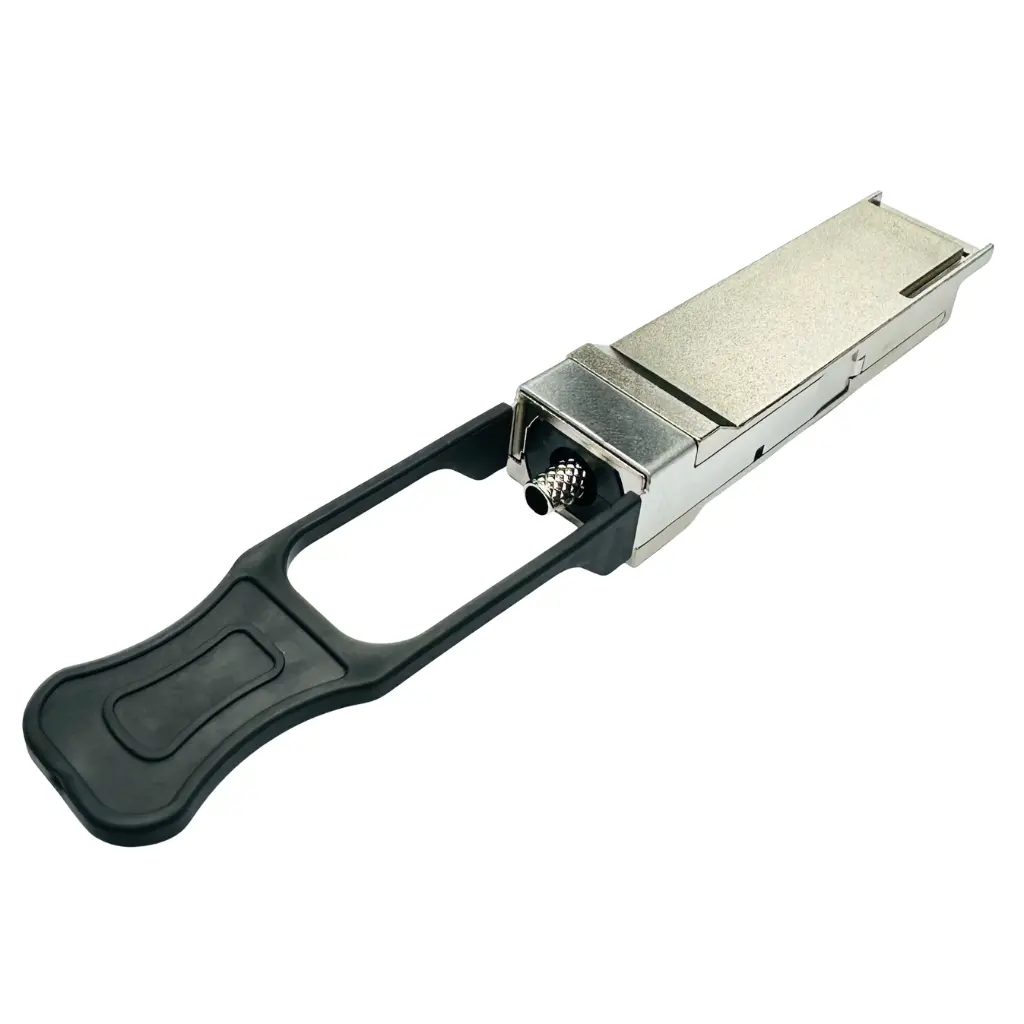

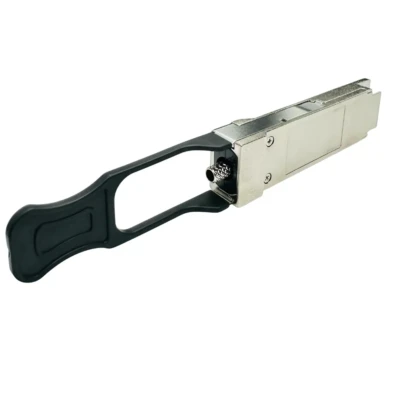

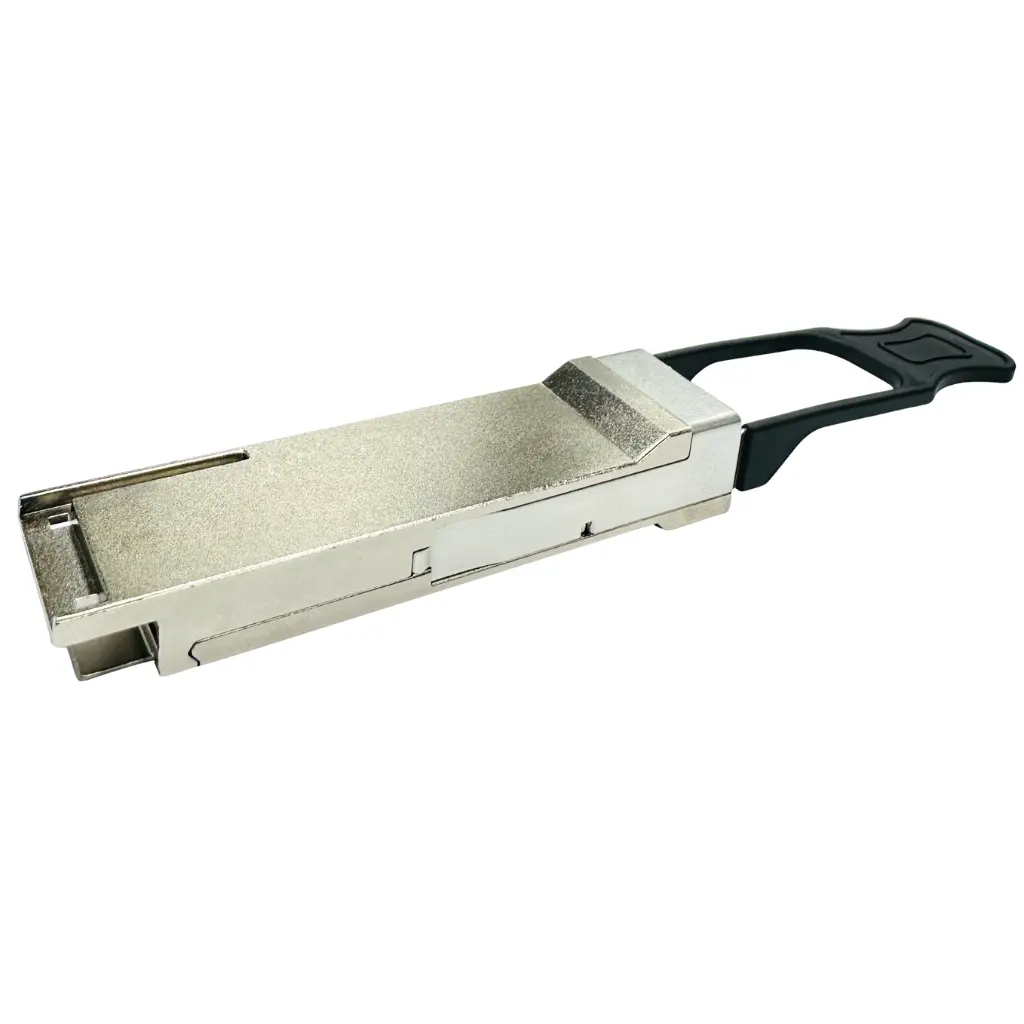

The SFP+ cage assembly with MPO port and pull link is a 1×1 zinc-based SFP+ housing that combines a matte nickel EMI shield, precision PEI1010 MPO port and TPV/SUS304 pull-link to deliver secure locking, easy hot-swapping and reliable fiber alignment for 10G/25G optical modules in data center and telecom systems.
Applications:
SFP+ optical modules with MPO interface
Fiber Channel and Ethernet switches
Data center transceiver housings and line cards
High-speed telecom and metro network equipment
Highlights:
SFP+ cage assembly with MPO port and pull link for high-density pluggable optics
Matte nickel-plated 3M zinc base and upper cover for strong EMI shielding
PEI1010 MPO port for accurate multi-fiber alignment and stable connectivity
TPV + SUS304 pull-link ensures secure locking and smooth module release
SUS304 screws and springs provide durable retention and grounding
RoHS, REACH SVHC and low-halogen compliant for carrier-grade deployments
SFP+ cage assembly with MPO port and pull link is a 1×1 SFP+ mechanical housing designed for high-speed optical transceiver applications in data center and telecom networks. This SFP+ cage assembly with MPO port and pull link combines a robust 3M zinc cage structure with precise fiber alignment to support 10G/25G SFP+ optical modules using MPO interfaces. The base and upper cover are matte nickel plated, providing strong EMI shielding and stable grounding performance at high data rates.
A dedicated black MPO port made from PEI1010 ensures accurate multi-fiber positioning and low-loss connection to trunk cables. The SFP+ cage assembly with MPO port and pull link integrates a TPV and SUS304 stainless-steel pull-link that delivers secure mechanical locking during operation while enabling smooth, tool-free extraction of the module for service. SUS304 screws and springs provide long-term structural reliability and consistent retention force, even under vibration and thermal cycling.
| GENERAL | |||
| Status | Active | Category | SFP Plug Assembly Kit with Pull-Link, MPO Port, Screws, Spring, and Dual Shell |
| Part Number | DW-SFP-0249-01 | Description | Complete mechanical SFP plug housing kit including MPO port interface |
| Application | Module-to-Board | Component Type | Mechanical Assembly Kit |
| Product Name | SFP Plug Assembly | Sealable | Yes |
| Keywords | SFP Optical module, External Connector, SFP Cage | Features | Integrated pull tab and MPO port with spring tension retention |
| Thermal Accessory Type Included | None | Lightpipe Style | Not Applicable |
| Number of Ports | 1 × 1 | ||
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| Not applicable (Mechanical Assembly Kit) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Full Metal Enclosure (Zinc alloy + SUS304) | Pluggable I/O Applications | SFP |
| Cage Material | 3# Zinc Alloy, SUS304, TPV, PEI1010 | Orientation | Horizontal |
| Packaging Type | Kit with multiple components | Termination Interface Style | Mechanical Mounting |
| Rear Legs | None | Circuit Application | Mechanical Retention Only |
| Thermal Height | N/A | Light Pipes per Port | 0 |
| Included Lightpipe | No | Tail Length | N/A |
| Heat Sink Compatible | No | PCB Thickness (Recommended) | N/A |
| Operating Temperature Range | 55~85°C (based on material spec) |
