$0.33

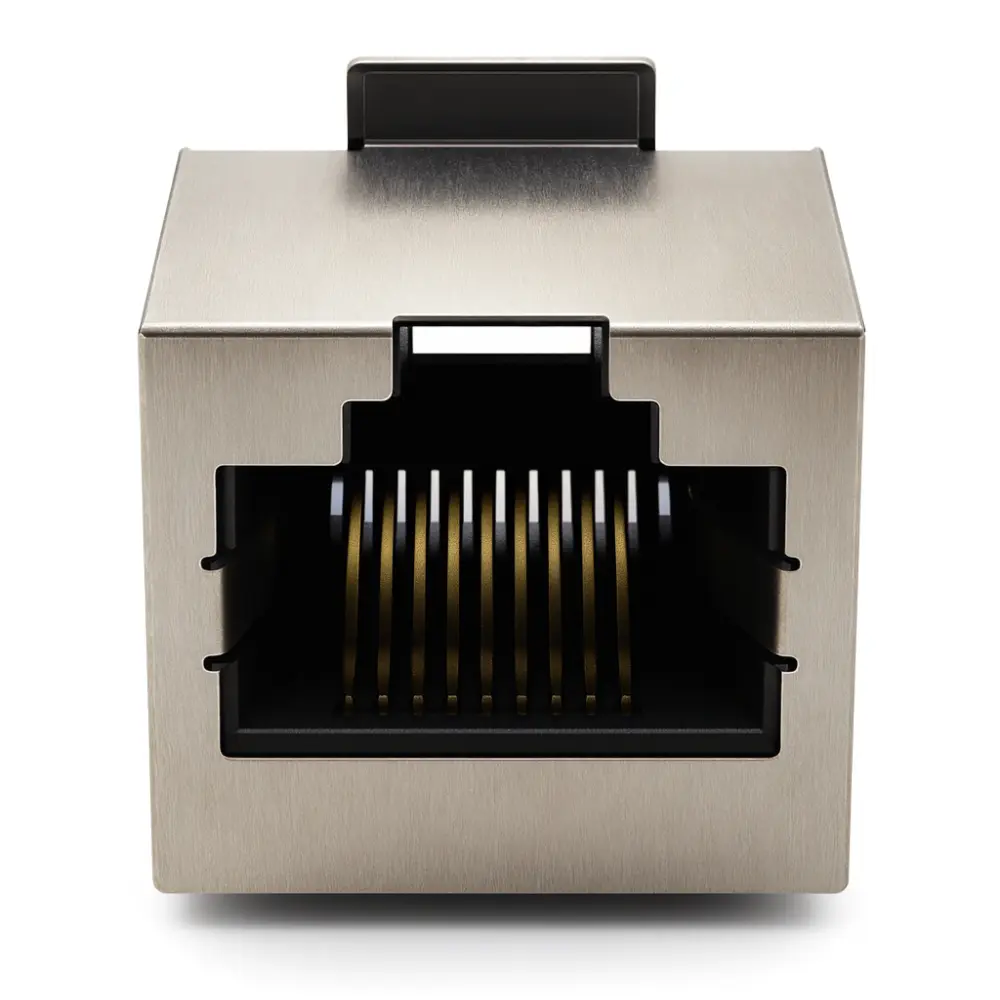

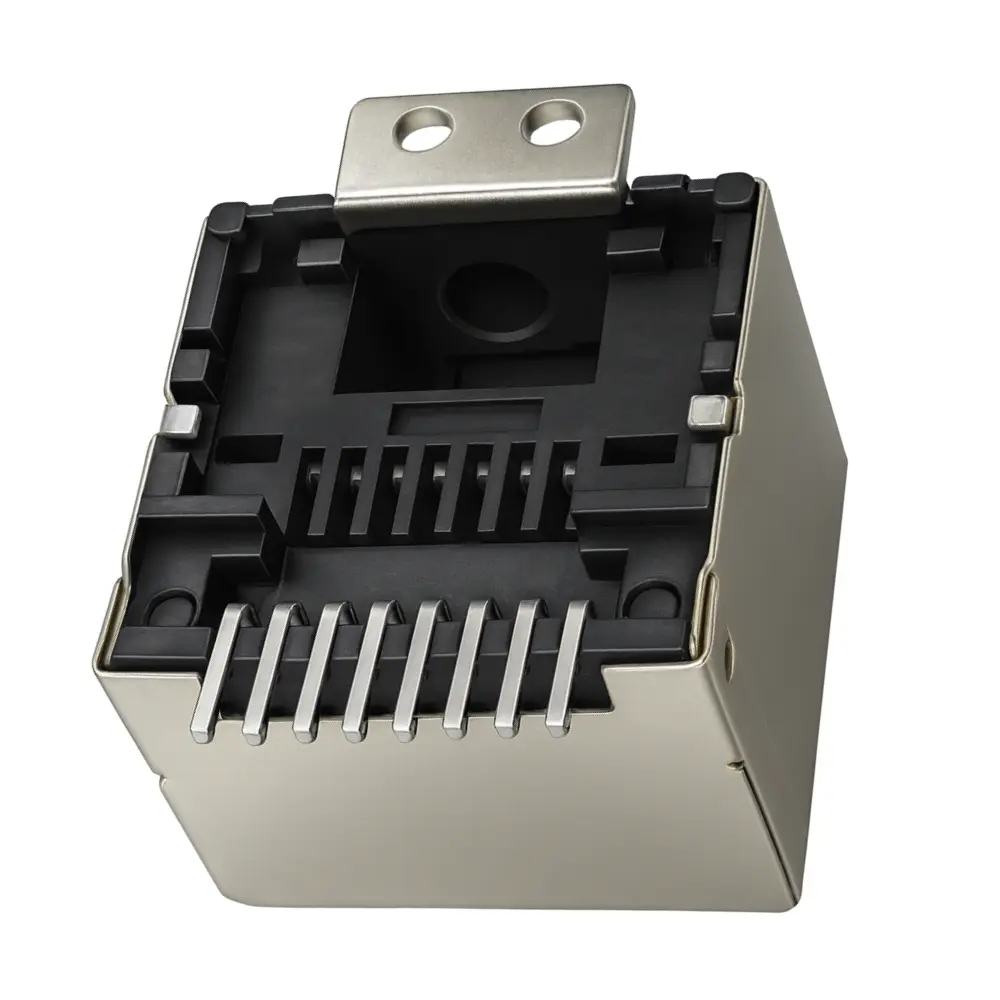

SMT TYPE RJ45 Jack 1 Port 8P8C Tab-Up 21.35mm with out LED indicators, 8P8C pin layout, through-hole DIP type. Vertical tab-up orientation with a compact footprint: 21.35mm length × 13.6mm height × 15.95mm width. Equipped with dual LEDs (green/yellow) for link/activity indication. Gold-plated phosphor bronze terminals provide reliable signal performance. Terminal pitch 2.54mm; supports wave soldering (max 260°C for 55s). Rated for 125V AC, insulation resistance ≥500MΩ, contact resistance ≤50mΩ. Mechanical durability: 750 cycles, operating temp: -40°C to +85°C.
Product Highlights: Built-in magnetic components simplify PCB design.
Integrated LEDs indicate network status clearly.
Suitable for wave soldering with high-temp durability.
Compact design supports space-saving layouts.
Gold-plated contacts ensure stable transmission.
Application: Networking equipment, routers, telecom switches, IP cameras, industrial control systems, and PoE devices.

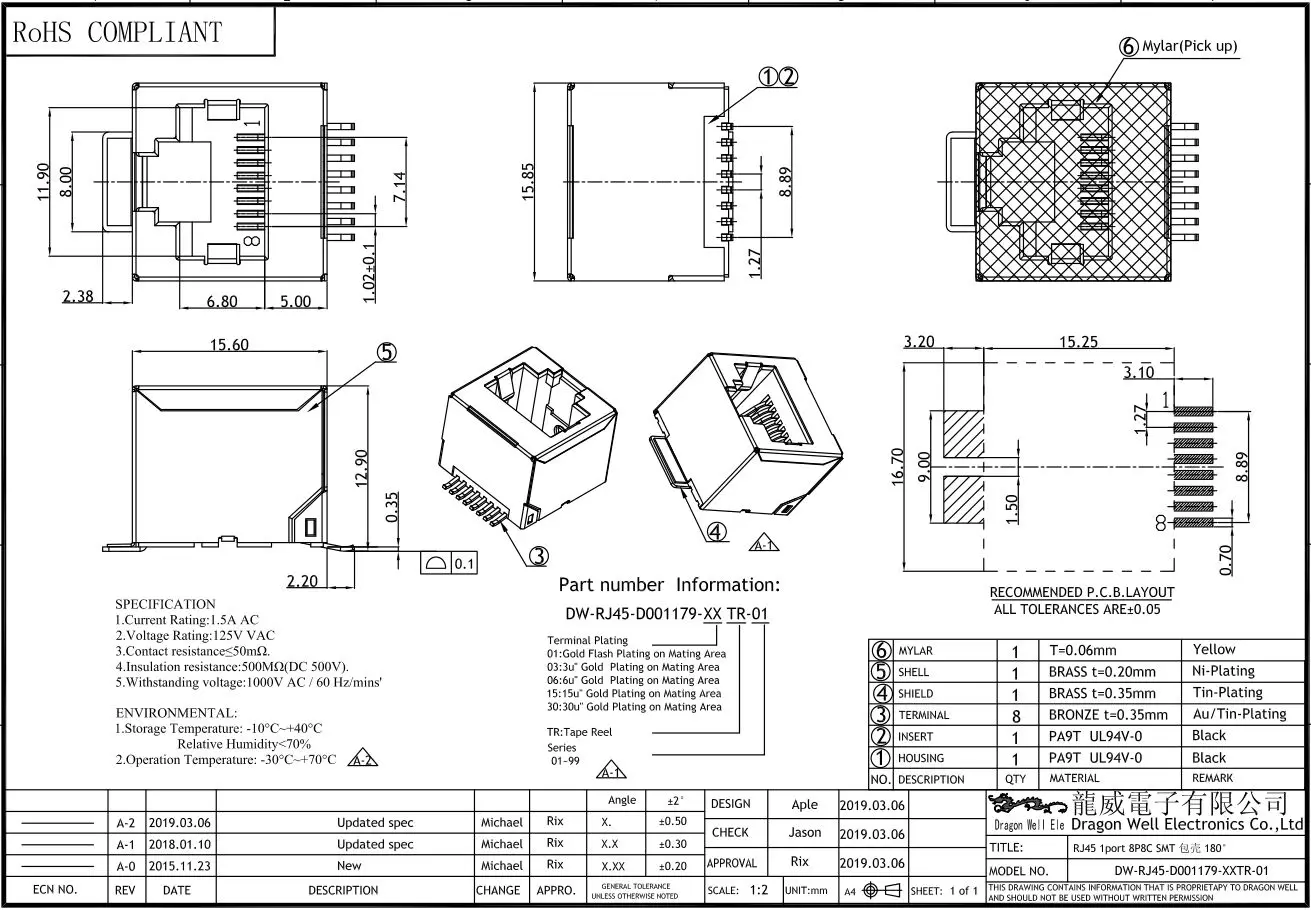

SMT TYPE RJ45 Jack, Modular RJ45 Jack 1 Port 8P8C Tab-Up 21.35mm
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D001179-01TR-01 | Description | Modular Jack, Vertical, Low Profile, Shielded, Top Entry, Surface Mount, 8P8C, Tape Reel |
| Product Name | Modular Jack 8/8 | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 15.85mm | Height | 12.90 mm |
| Length | 15.60 mm | Installed height | 13.90 mm |
| – | – | Data pin length | N/A |
| Material Metal surface contact area (top layer) | Gold | Material Metal surface contact area (middle layer) | Nickel |
| Material Metal surface soldering area (middle layer) | Nickel | Material Metal surface soldering area (top layer) | Gold |
| Insertion force per signal contact | < 20.00 N | Extraction force per signal contact | < 20 N |
| Customs tariff number | 85366930 | Country of origin | CN |
| Product Properties / Physical | |||
| Color-Housing | Black | – | – |
| Positions / Loaded Contacts | 8P8C | Orientation 朝向 | Vertical (Top Entry) |
| Packaging | Reel | Lightpipes/LEDs | None |
| Port Configuration | 1 x 1 | Termination Interface Style | Surface mount |
| Durability (mating cycles max) | 750 | Inverted / Top Latch | No |
| Flammability | 94V-0 | Material – Resin | High Temperature Thermoplastic |
| Jack Height | 12.90 mm | Material – Metal | Brass, Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02mm |
| PCB Thickness – Recommended | 1.57mm | Key Words | RJ5 Jack, Internet Jack, Modular Jack,PCB RJ45 Jack,RJ45 Connector,RJ45 Socket Connector,Vertical RJ45 Jack |
| Pitch – Termination Interface | 1.27mm | POE+ | None |
| EMI | None | Latch / Tab orientation | |
| Electrical | |||
| Current – Maximum per Contact | 1.5A | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC (RMS) | Operating Temperature | -0°C to +70°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -10°C to +40°C |
| Lead-Free Process Capability | Re-flow Soldering | Classification temperature Tc | 260 °C |
