$0.75

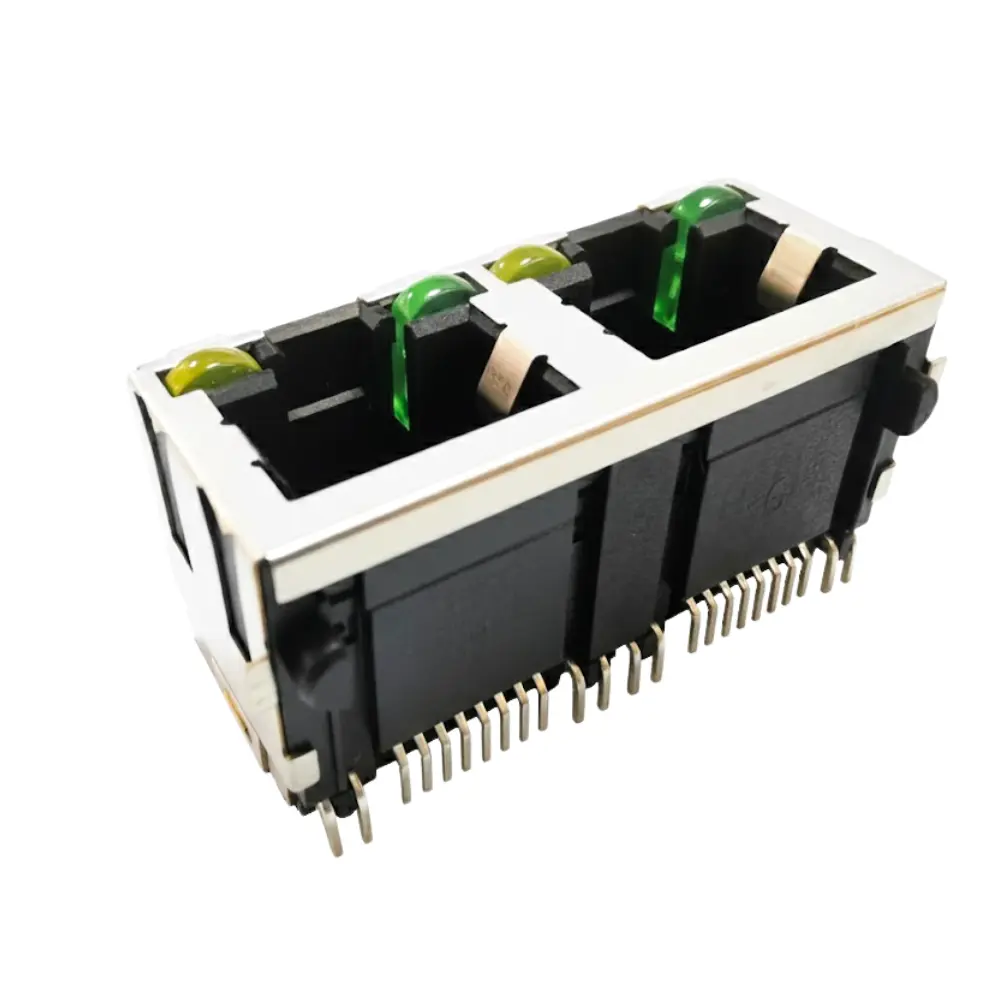

Dual-Port RJ45 connector 1×2 Tab-up with LED & EMI Shield optimized for through-hole DIP mounting. With a compact depth of 15.75mm and a pin pitch of 1.27mm, it is ideal for space-sensitive designs.
Highlights: Dual-port modular RJ45 jack with LED indicators, EMI shielded for signal integrity and reduced interference, Suitable for high-density networking applications, Compact footprint ideal for standard PCBs, RoHS compliant and customizable plating options.
Applications: Ethernet switches, routers, IP cameras, industrial controllers, and telecom systems, offers the perfect balance of reliability, compactness, and signal protection for modern network hardware.

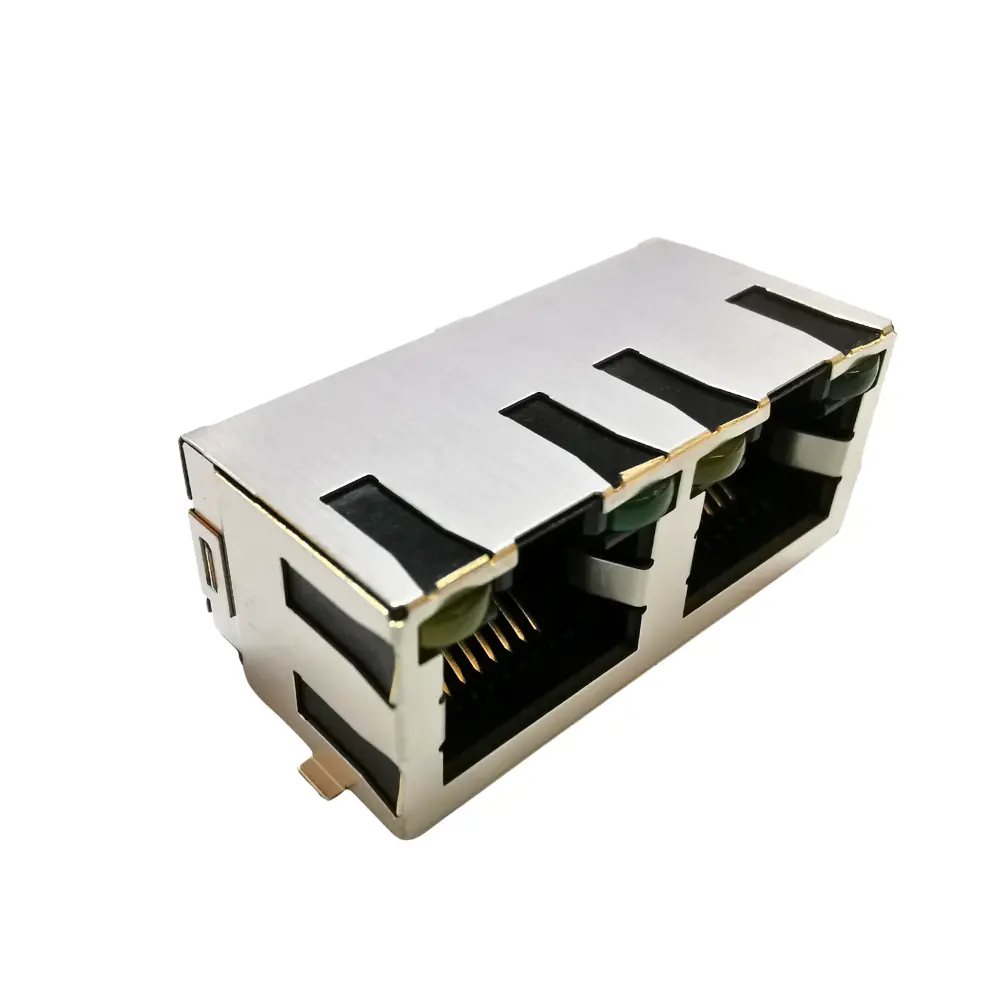

Dual-Port RJ45 connector 1×2 Tab-up with LED & EMI Shield is a compact, high-performance Ethernet interface designed for Surface mounting. Each of the two RJ45 ports is positioned in a tab-down configuration, allowing efficient vertical stacking on space-limited PCBs. With a compact depth of 15.75 mm and a 1.27 mm pin pitch, this connector is ideal for high-density networking equipment.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-S00281-01TR-03-2 | Description | RJ45 Jack, 1×2 port, with Shielded and EMI Tabs, with LED (Green/Yellow or Yellow/Green), 8P8C, SMT Type, Tab-Up |
| Product Name | RJ45 2-Port SMT EMI W/ LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 34.55 mm | Height | 13.50 mm |
| Length | 15.75 mm | Installed height | 15.10 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Tin |
| Material (Metal surface soldering area) | Tin | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation 方向 | Right angle |
| Positions / Loaded Contacts | 8P8C x2 | Lightpipes/LEDs | Yes (Left: LED-G, Right: LED-Y) |
| Packaging | Tape Reel | Termination Interface | SMT |
| Port Configuration | 1×2 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | LCP UL94V-0 |
| Jack Height | 13.50 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Bright Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Surface Mount RJ45 Connector, Shielded RJ45 Connector, Dual Port RJ45 Jack, RJ45 Connector with LED, EMI Protected RJ45 |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | reflow | Classification temperature, T₍C₎ | 260°C |
