$2.22

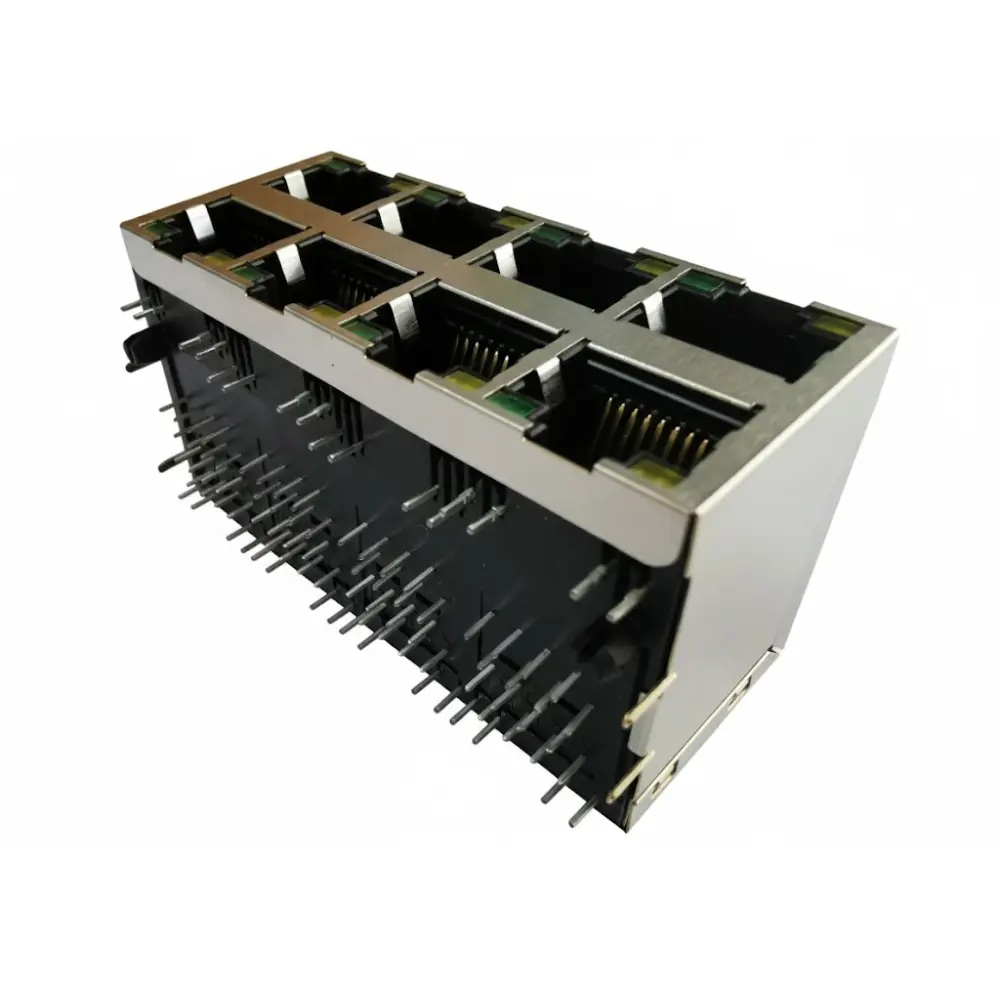

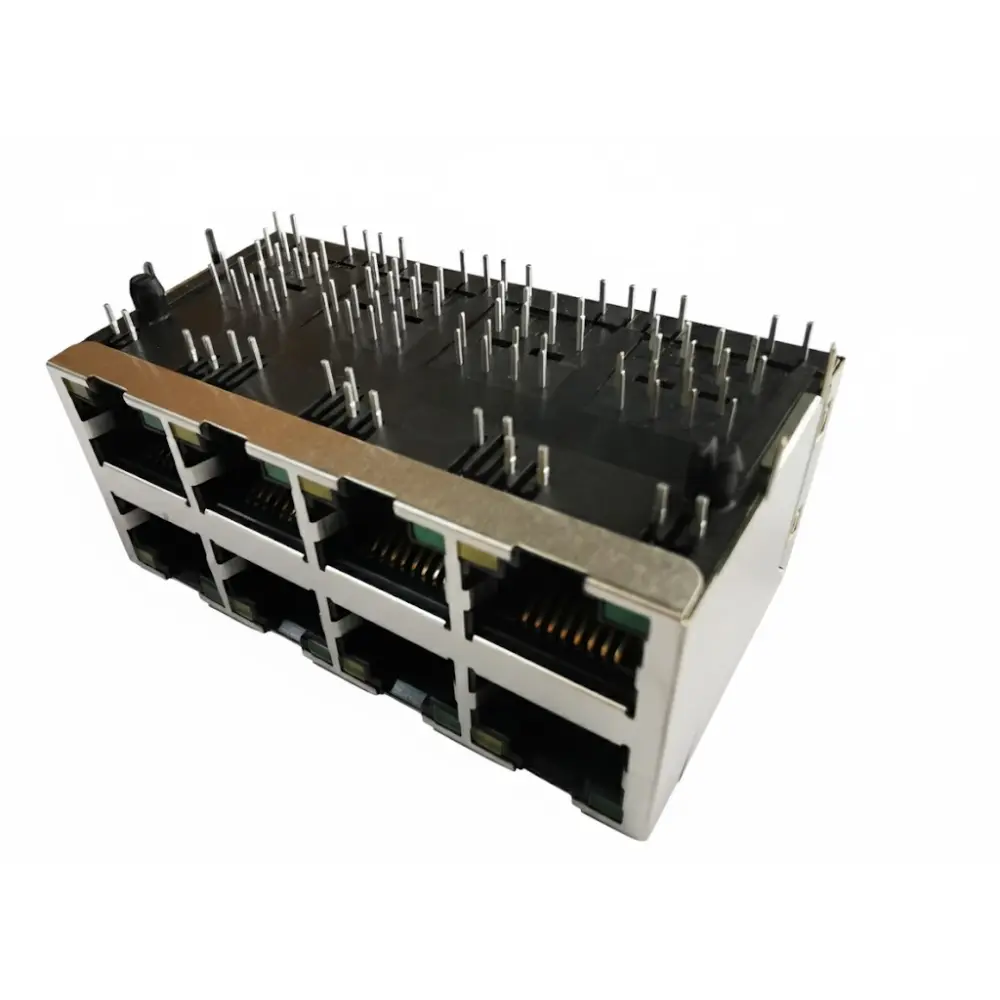

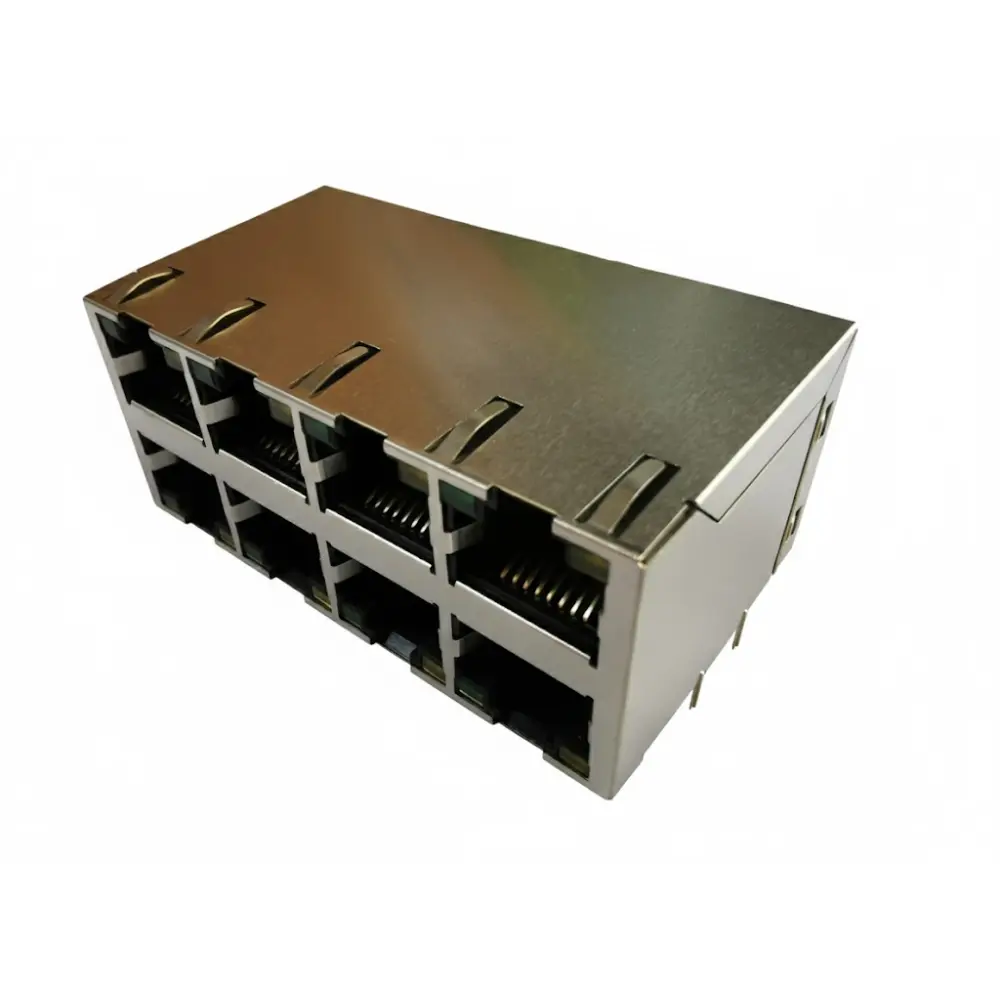

Stacked Quad-Port DIP Type Modular RJ45 Jack 2×4 Tab-Down with LED Designed in a tab-down configuration for through-hole DIP mounting, it fits tightly packed networking environments. The shell is made from C2680 brass with 0.20mm nickel plating for superior EMI protection.
Highlights : 8-port RJ45 jack with integrated LEDs, Space-saving dual-row (2×4) design,Full EMI shielding for stable performance,Compatible with FCC Part 68 modular plugs, Multiple plating options for durability and conductivity.
Applications : Ideal for Ethernet switches, routers, IP phones, telecom equipment, and networking hubs.
Stacked Quad-Port DIP Type Modular RJ45 Jack 2×4 Tab-Down with LED designed for through-hole (DIP) PCB mounting. Featuring eight shielded Ethernet ports with integrated bi-color LEDs (green and yellow), it provides a space-saving and robust interconnection solution for high-performance network devices.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00825-01TP-02 | Description | RJ45 Jack, 2×4 stacked port, with Shielded and EMI Tabs, with LED (Green/Yellow), 8P8C, Tab-Down, DIP Type |
| Product Name | RJ45 8-Port Shielded W/LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 59.22 mm | Height | 25.300 mm |
| Length | 32.50 mm | Installed height | 26.90 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation 方向 | Right Angle |
| Positions / Loaded Contacts | 8P8C x8 | Lightpipes/LEDs | Left LED: Green, Right LED: Yellow |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 2×4 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | Glass PA46 UL94V-0 insert glass- PBT Black UL94V-0 |
| Jack Height | 25.30 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Multi-Port RJ45 Jack, Through-Hole RJ45 Connector, Shielded RJ45 Connector, RJ45 with LED, Right Angle RJ45 Connector |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
