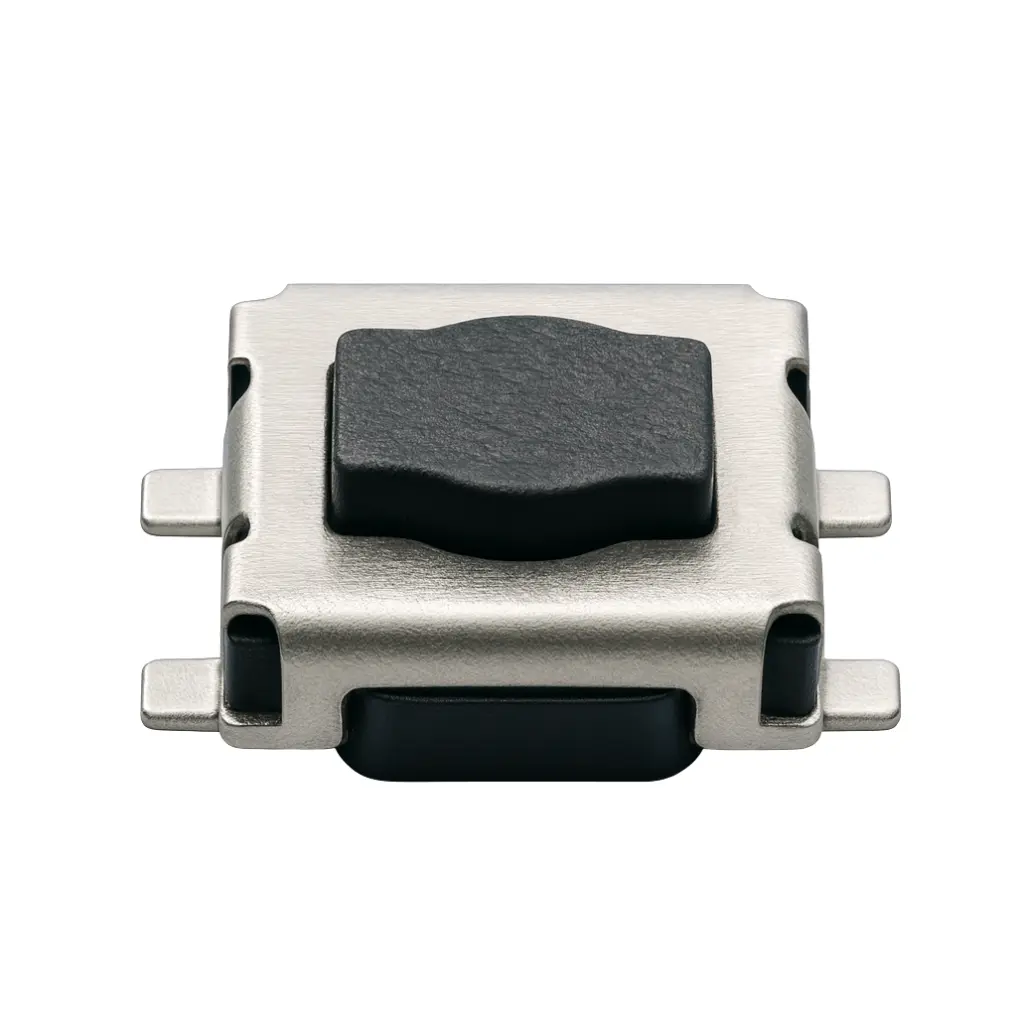

Tactile switch 3.5×4.6 SMD – Ultra-Slim Top-Actuated, 1.7 mm

Tactile switch 3.5×4.6 SMD – Ultra-Slim Top-Actuated, 1.7 mm –  delivers a sharp, repeatable click without consuming vertical space. The 1.7 mm profile clears tight bezels, while a rectangular four-pad land pattern (≈4.50 mm span, ≈2.20 mm row spacing) speeds routing and yields robust joints in reflow. A silver-plated stainless dome and LCP housing preserve low contact resistance through tens of thousands of actuations. With a firm 250 gf feel, 0.13 mm stroke, and 12 V/50 mA rating, it drops cleanly into wearables, sensors, and portable instruments where reliable, tactile confirmation improves the user experience.

Key Features at a Glance
3.5 × 4.6 mm footprint; 1.7 mm low profile
SPST-NO, top-actuated; 0.13 ± 0.10 mm travel, 250 ± 50 gf force
Electrical: 12 V / 50 mA, ≤100 mΩ contact, ≥100 MΩ insulation, 250 VAC/1 min withstand
PCB layout: four rectangular pads; ≈4.50 mm span, ≈2.20 mm row spacing, ~0.60 mm pad width
LCP plunger/base, stainless cover, SUS301 silver-plated dome
Tape-and-reel; RoHS compliant

Highlights
Ultra-slim switch with fast, precise click; durable silver dome system; footprint optimized for high-yield SMT and compact enclosures.

Applications
Wearables • Remote controls • IoT sensors • Handheld instruments • Medical/consumer keypads.
