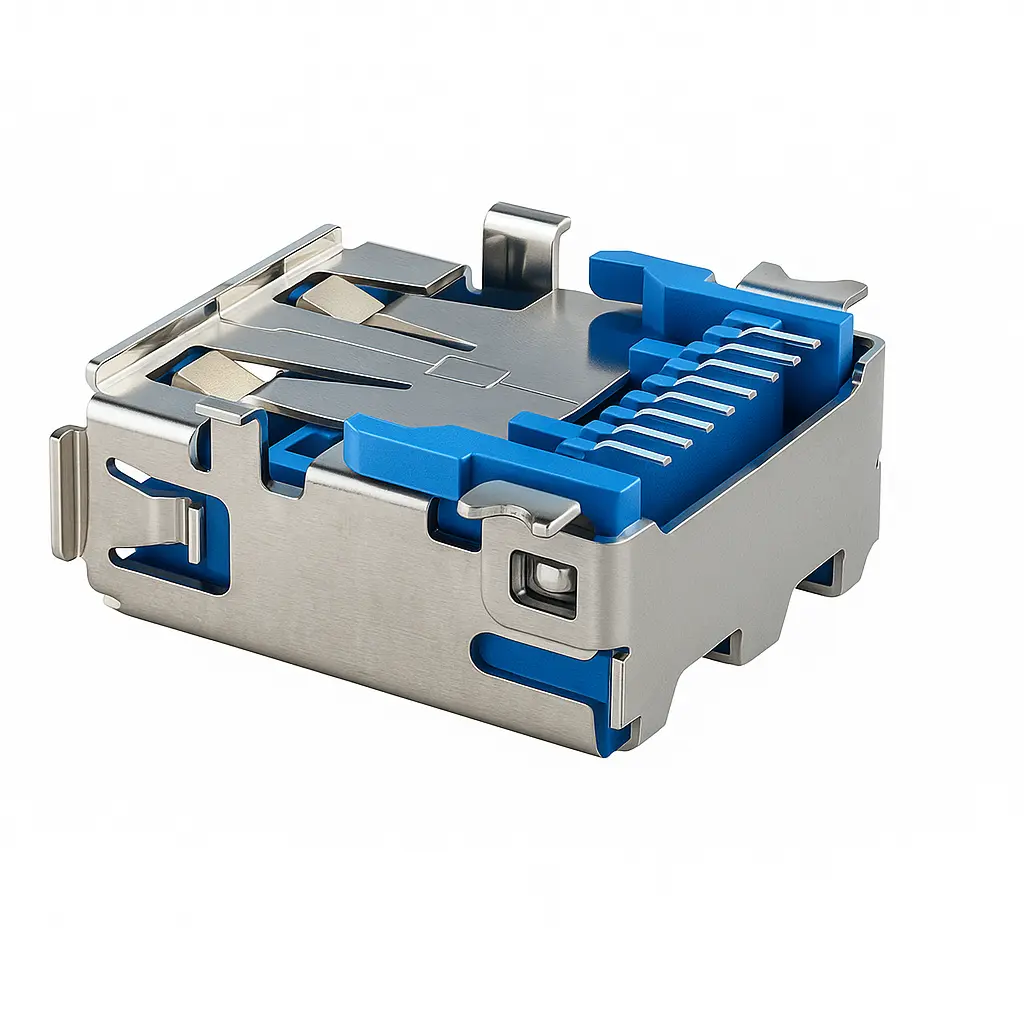

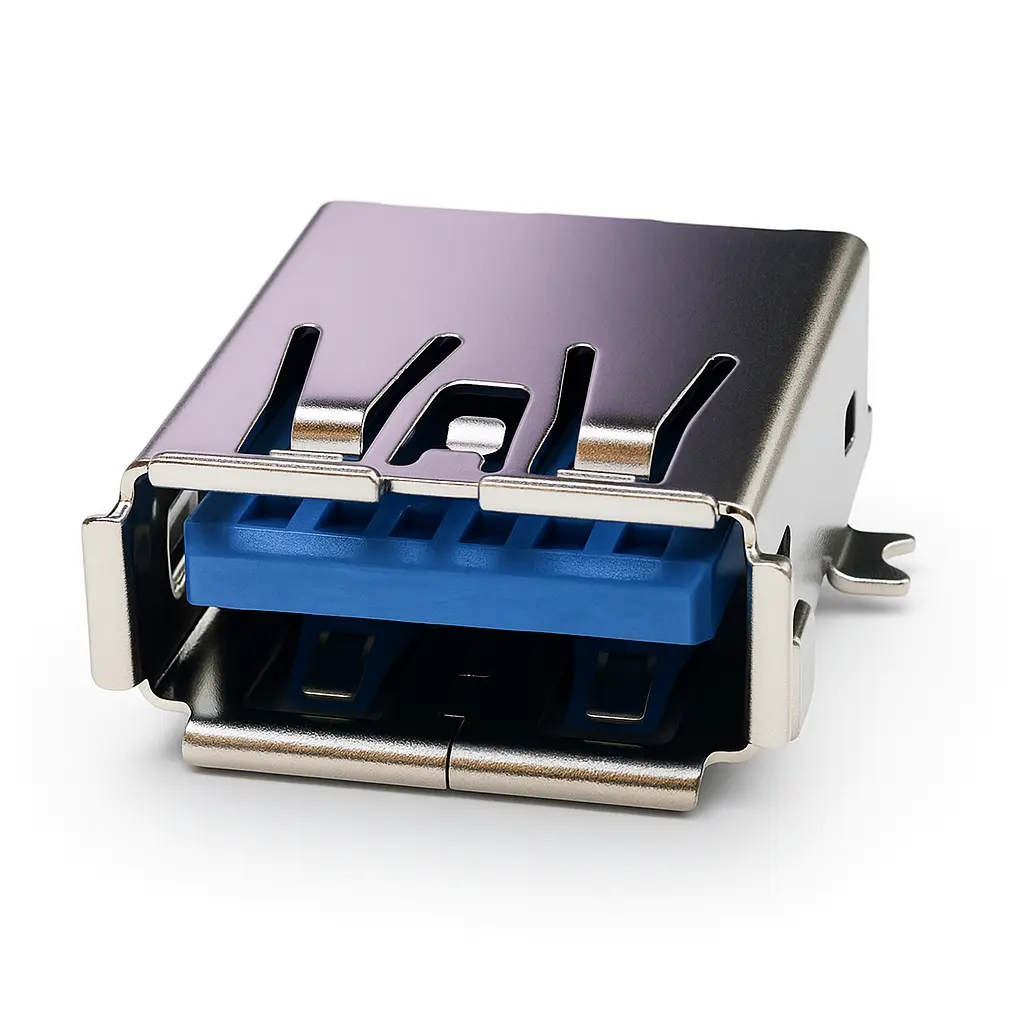

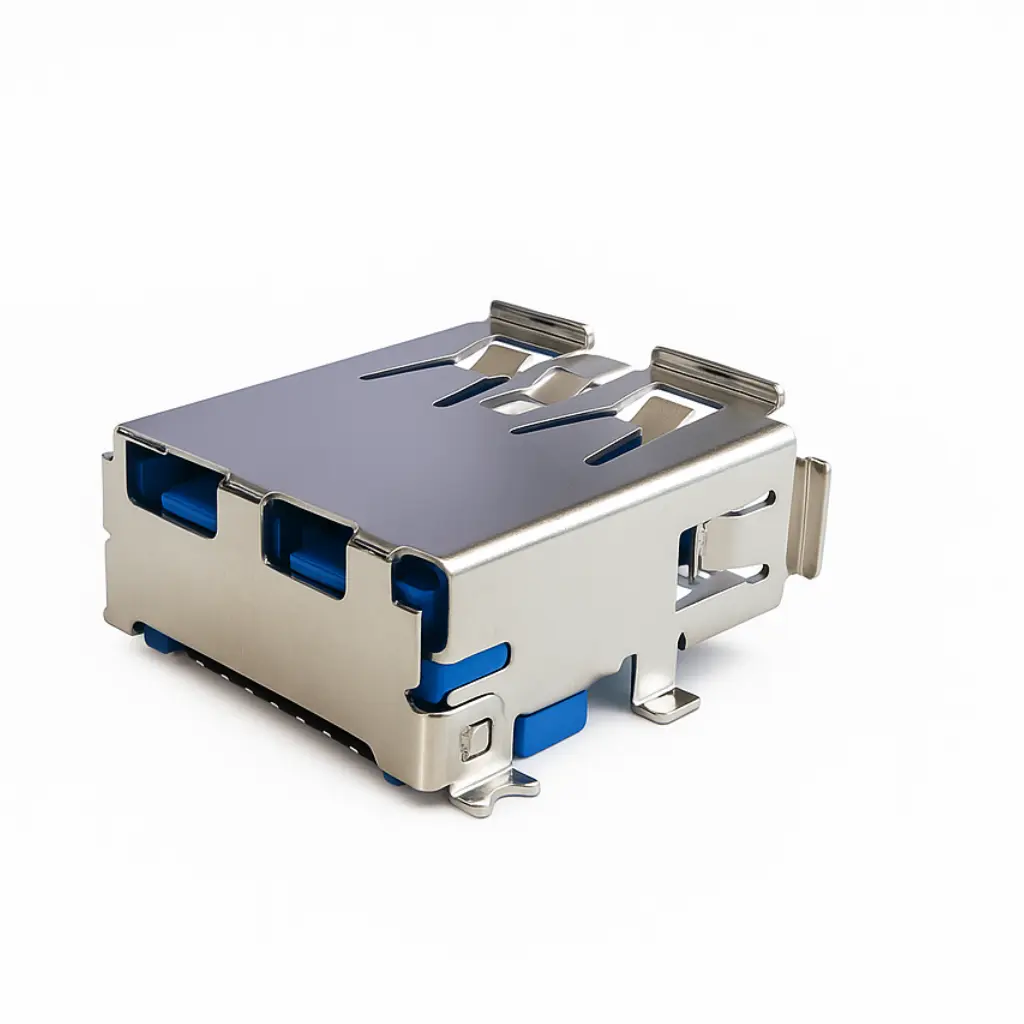

A space-saving stacked right-angle USB 3.0 Type-A jack combining SMT contacts with DIP shell stakes for strong retention. Short-body geometry fits tight bezels; gold-option contacts and a heavy nickel-plated brass shell keep resistance low for 5-Gb/s data. Rated 1.5 A, AC 100 V dielectric, ≥100 MΩ insulation, and ≥1200 mating cycles from –40 ~ +85 °C. A reliable twin-port solution for desktops, servers, hubs, storage and industrial controllers.
Key Features at a Glance
Stacked dual-port Type-A, right-angle SMT + DIP hybrid
Short-body form factor; dense front-panel fit
SuperSpeed USB 3.0 (5 Gb/s) 9-pin per port
Electrical: 1.5 A, AC 100 V/1 min, ≥100 MΩ, ≤30 mΩ
Mechanical: ≤3.75 kgf mate, ≥1.02 kgf unmate, ≥1200 cycles
Materials: LCP UL94V-0, Au-over-Ni contacts, Ni-plated brass shell
Operating –40 ~ +85 °C, RoHS/REACH compliant
Highlights
Space-efficient stacked design; robust board locks and shell stakes; optional gold on mating area; proven SuperSpeed signal integrity.
Applications
Desktop PCs • Servers • Data-storage systems • Network devices • Industrial equipment • USB hubs & peripherals.
USB 3.0 Type-A dual port connector in a stacked, right-angle package that saves front-panel space while delivering SuperSpeed performance and rugged retention. The short-body housing integrates SMT signal pins with through-hole shell stakes and board locks to keep the assembly fixed during wave/reflow and repeated use.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MU3-SA9028-09TR-01 | Description | USB 3.0 Type-AF Receptacle, 9PIN, Right Angle, DIP Mount |
| Application | Wire-to-Board /Cable-to-Board | Comments | Standard USB 3.0 A-Type socket, through-hole DIP |
| Component Type | Receptacle | Product Name | USB Type-A |
| USB Version | USB 3.0 | Type | Type-A |
| Keywords | USB 3.0 Connector, USB A Connector, USB Type-A Receptacle, DIP USB Connector, Right Angle USB, I/O Connector, Through-hole USB | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | 1.5A Max | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Brass shell with Nickel plating |
| Voltage – Maximum | 30V AC | Contact Resistance | 30mΩ Max |
| Insulation Resistance | 10MΩ Min | Dielectric Withstanding Voltage | 100V AC R.M.S. |
| 3. Physical | |||
| Circuits (Loaded) | 9 | Circuits (Maximum) | 9PIN |
| Color – Housing | Black | Durability (Mating Cycles Max) | 1,200 Cycles |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material – Contact | Bronze | Plating on soldering area | Tin (80μ” min on solder area) |
| Plating on contact area | Gold | Material – Housing | LCP UL94V-0 |
| Mounting Style | Right Angle DIP | Connector Mounting Type | Board Mount |
| Number of Rows | 2 | Net Weight | – |
| Packaging Type | Tape and Reel | Orientation | Horizontal (Right Angle) |
| PCB Retention | Yes | Vacuum Pick-up Cap | No |
| Polarized to Mating Part | Yes | Temperature Range – Operating | -40°C to +85°C |
| Waterproof / Dustproof | – | Number of Mount legs | 2 Shell Tabs |
| Pitch – Termination Interface | 1.00 mm | Ports | 1 |
| Termination Interface Style | Right Angle | PCB Thickness (Recommended) | 8mm |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ 260°C | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max | Time 25°C to Peak Temp | 8 minutes max |
| 5. Package Classification Reflow Temperature (TC) | |||
| PB-Free Thickness <1.6 mm | Volume <350mm³: 260°C | Volume 350–2000mm³: 260°C | Volume >2000mm³: 260°C |
| PB-Free Thickness 1.6–2.5 mm | Volume <350mm³: 260°C | Volume 350–2000mm³: 250°C | Volume >2000mm³: 245°C |
| PB-Free Thickness >2.5 mm | Volume <350mm³: 250°C | Volume 350–2000mm³: 245°C | Volume >2000mm³: 245°C |
| Lead-Free Process Type | Reflow | Reflow | Reflow |
