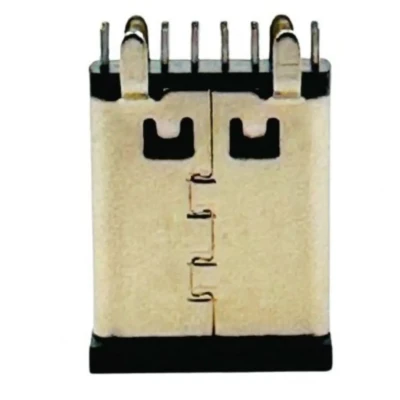

USB Type-C Connector 16Pin standard compliant with reversible plug design
16-pin configuration for full-featured USB-C functionality
Supports high-speed data and power delivery
Compact vertical structure saves board space
5000 mating cycles minimum for long-lasting durability
The USB Type-C 16-pin connector offers a versatile and reliable solution for compact electronic devices requiring both power delivery and high-speed data communication. With its vertical tab-up configuration designed for through-hole PCB mounting, this connector maintains a compact footprint while delivering exceptional performance. Ideal for smartphones, tablets, notebooks, power adapters, embedded systems, and IoT devices, this connector enhances your device’s functionality and efficiency.
Crafted from high-performance thermoplastic and featuring a stainless steel shell, our USB Type-C connector is built to withstand rigorous usage. The housing material is LCP UL94V-0 (Black), ensuring durability and resistance to environmental stressors. The copper alloy contact terminals, which are 0.30mm thick and gold plated, guarantee optimal conductivity and reliability. This attention to materials not only contributes to a long lifespan but also ensures that the connector meets stringent performance standards.
This USB Type-C connector is compliant with the USB Type-C standard, featuring a reversible plug design that simplifies connections. Its robust 16-pin configuration supports full-featured USB-C functionality, enabling high-speed data transfer and power delivery. With a minimum of 5000 mating cycles, you can trust that this connector will maintain its performance throughout its extensive lifespan, making it a perfect choice for both manufacturers and consumers looking for long-lasting solutions in portable electronics.
| General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MUB-CF016821-01TR-01 | Description | USB Type-C connector, 16PIN, Vertical Type, Height: 10.00mm, Through hole, Black Insulator |
| Application | Wire-to-Board / Cable-to-Board | Comments | IPX6 rated waterproof, suitable for harsh environments |
| Component Type | Receptacle | Product Name | USB Type-C Connector |
| USB Version | USB 2.0 Type-C | Type | Type-C |
| Keywords | USB Type-C Connector, TYPE-C USB Connector, Waterproof USB Type-C, Waterproof connector, Sealed Connector, I/O Connector, USB Connector | Circuit Application | Power & Signal |
| Electrical | |||
| Current – Maximum | 3.0A | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Full Shield |
| Voltage – Maximum | 30V | Contact Resistance | 30mΩ Max |
| Insulation Resistance | 100MΩ Min. | Dielectric Withstanding Voltage | 250V AC |
| Physical | |||
| Circuits (Loaded) | 16 | Circuits (Maximum) | 16P |
| Color-Housing | Black | Durability (Mating Cycles Max) | 5000 |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material – Contact | Copper Alloy | Plating on soldering area | Gold |
| Plating on contact area | Gold | Material – Housing | LCP UL94V-0 |
| Mounting Style | DIP (Through-Hole) | Connector Mounting Type | Board Mount |
| Number of Rows | 2 | Net Weight | – |
| Packaging Type | Tape and Reel | Orientation | Vertical |
| PCB Retention | Yes | Vacuum Pick-up Cap | Yes |
| Pitch – Termination Interface | 0.55 mm | Polarized to Mating Part | Yes |
| Ports | 1 | Temperature Range – Operating | -30°C to +80°C [ -22 – 176 °F ] |
| Termination Interface Style | Through-Hole | Waterproof / Dustproof | No |
| PCB Thickness (Recommended) | 8mm | Number of Mount legs | 4 |

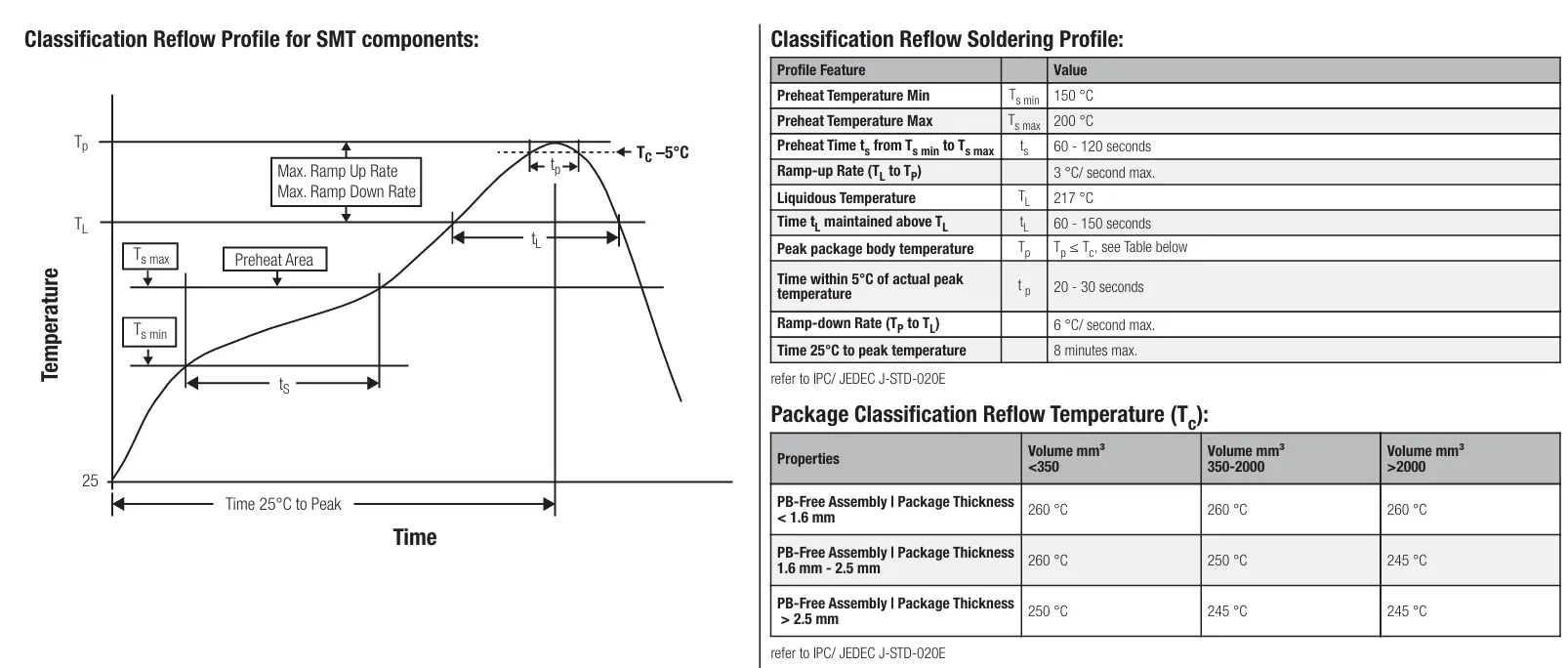

| Classification Reflow Soldering Profile | |||
| Profile Feature | Value | ||
| Preheat Temperature Min | Ts(min) = 150 °C | ||
| Preheat Temperature Max | Ts(max) = 200 °C | ||
| Preheat Time (from Ts(min) to Ts(max)) | ts = 60–120 seconds | ||
| Ramp-up Rate (Ts to Tp) | 3 °C/second max. | ||
| Liquidous Temperature | TL = 217 °C | ||
| Time tL maintained above TL | tL = 60–150 seconds | ||
| Peak Package Body Temperature | Tp ≤ TC (see table below) | ||
| Time within 5 °C of actual peak temperature (Tp) | tp = 20–30 seconds | ||
| Ramp-down Rate (Tp to TL) | 6 °C/second max. | ||
| Time 25 °C to Peak Temperature | 8 minutes max. | ||
| Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness < 1.6 mm | 260 °C | 260 °C | 260 °C |
| PB-Free Assembly — Package Thickness 1.6 mm–2.5 mm | 260 °C | 250 °C | 245 °C |
| PB-Free Assembly — Package Thickness > 2.5 mm | 250 °C | 245 °C | 245 °C |
