USB Type-C waterproof SMT connector with 24 pins and ear-mount side flanges for screw-down retention. Nickel-plated stainless shield, gold-over-nickel contacts, 5 A VBUS/GND, 10k-cycle durability, and −30 °C to +85 °C operation. Compact SMT pad layout with ground lugs and sealing hardware enables a rugged, waterproof USB-C I/O in space-constrained designs.
Key Features at a Glance
IP-style sealed USB-C receptacle, 24-pin, SMT + ear mounts
5 A VBUS/GND; ≤30 mΩ contact; ≥1000 MΩ insulation
500 VAC/1 min dielectric withstand; 10,000 mating cycles
Nickel-plated stainless shell; UL94V-0 housing; Au options to 30 µin
−30 °C…+85 °C operation; screw-down ears for robust retention
Highlights
Sealed USB-C • Ear-mount fixation • High-current VBUS • Gold-plated contacts • Nickel-plated stainless shield • Tape-and-reel SMT
Applications
Outdoor/industrial handhelds; rugged laptops/tablets; automotive/telematics; marine & medical electronics; kiosks/POS; gateways needing sealed USB-C power + data.

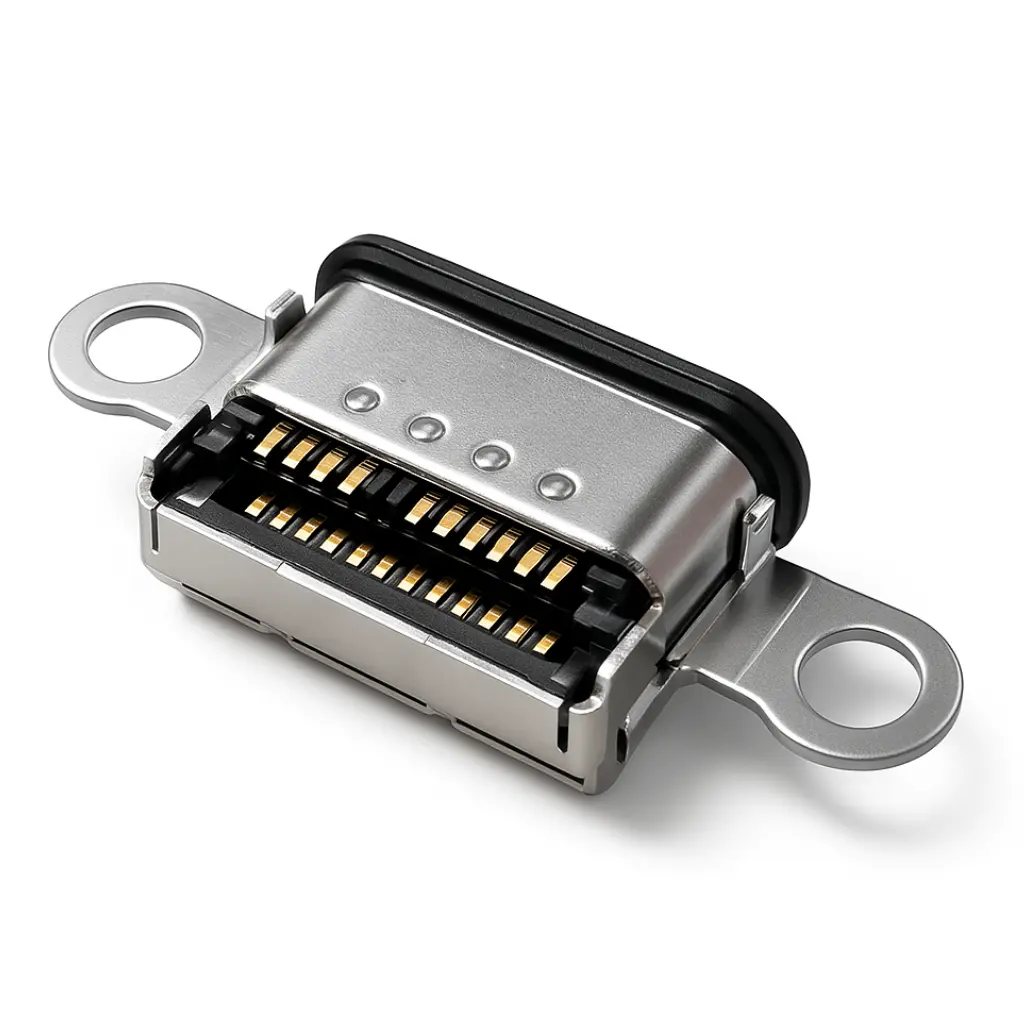

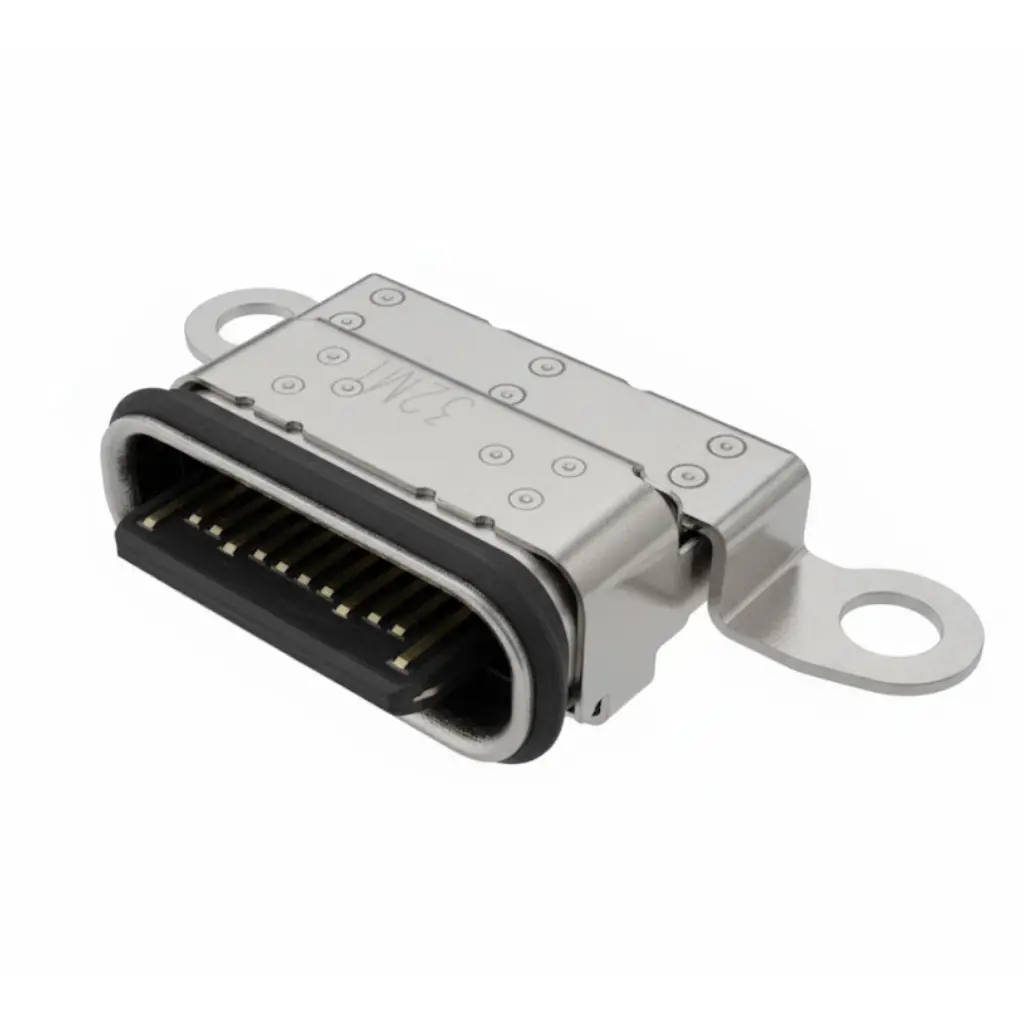

USB Type-C waterproof SMT connector is a sealed 24-pin receptacle engineered for harsh-environment power and data. The compact SMT footprint uses ear-mount flanges to screw down the shield, improving strain relief and panel/PCB retention.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MUB-CF024709-24TR-01 | Description | USB Type-C, Waterproof, 24Pin, SMT, Flanged Mounting, Dual Row |
| Application | Wire-to-Board / Panel Mount | Comments | IP68 Rated, Laser Welded Shield |
| Component Type | Receptacle | Product Name | USB Type-C |
| USB Version | USB 3.1 | Type | Type-C |
| Keywords | USB Type-C Connector, Waterproof USB Type-C, Sealed Connector, IP Rated Connector, Outdoor Connector, Industrial Waterproof Connector | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | 5A (VBUS & GND Contacts) | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Fully Enclosed Nickel Plated |
| Voltage – Maximum | 30V DC | Contact Resistance | 30mΩ Max (Initial), ±10mΩ (After Test) |
| Insulation Resistance | 100MΩ Min @ 100V AC | Dielectric Withstanding Voltage | 500V AC for 1 Minute |
| 3. Physical | |||
| Circuits (Loaded) | 24 | Circuits (Maximum) | 24P |
| Color – Housing | Black | Durability (Mating Cycles Max) | 10,000 |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material – Contact | Copper Alloy (with Au plating) | Plating on soldering area | Au / Ni Plated |
| Material – Housing | Thermoplastic UL94V-0 | Connector Mounting Type | SMT / Flange Mount |
| Mounting Style | SMT | Net Weight | – |
| Packaging Type | Tape and Reel | Orientation | Horizontal |
| PCB Retention | Yes | Vacuum Pick-up Cap | Yes |
| Polarized to Mating Part | Yes | Temperature Range – Operating | -30°C to +85°C |
| Waterproof / Dustproof | Yes (IP68) | Number of Mount legs | 4 |
| Pitch – Termination Interface | 0.50 mm | Ports | 1 |
| Termination Interface Style | Right Angle | PCB Thickness (Recommended) | 1.6mm |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ 260°C | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| 5. Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness < 1.6 mm | 260°C | 260°C | 260°C |
| PB-Free Assembly — Package Thickness 1.6–2.5 mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness > 2.5 mm | 250°C | 245°C | 245°C |
