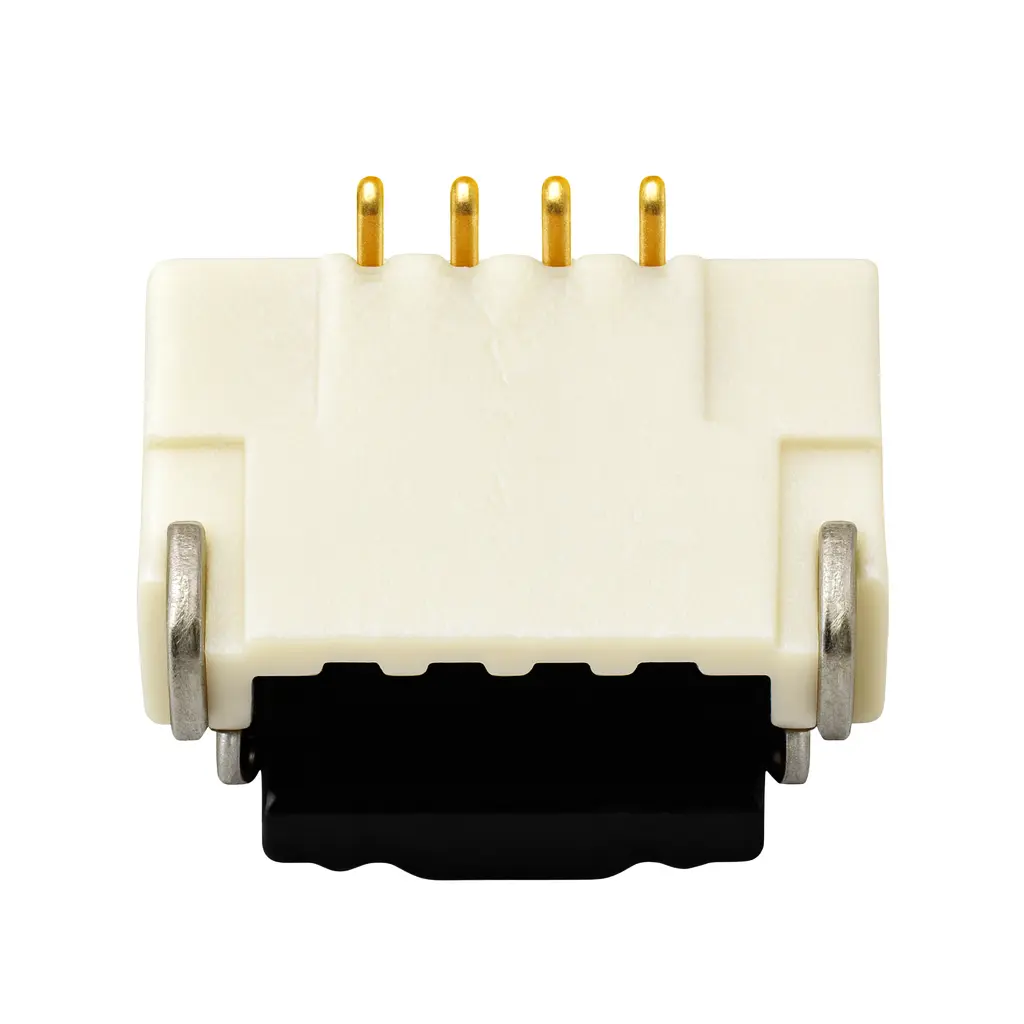

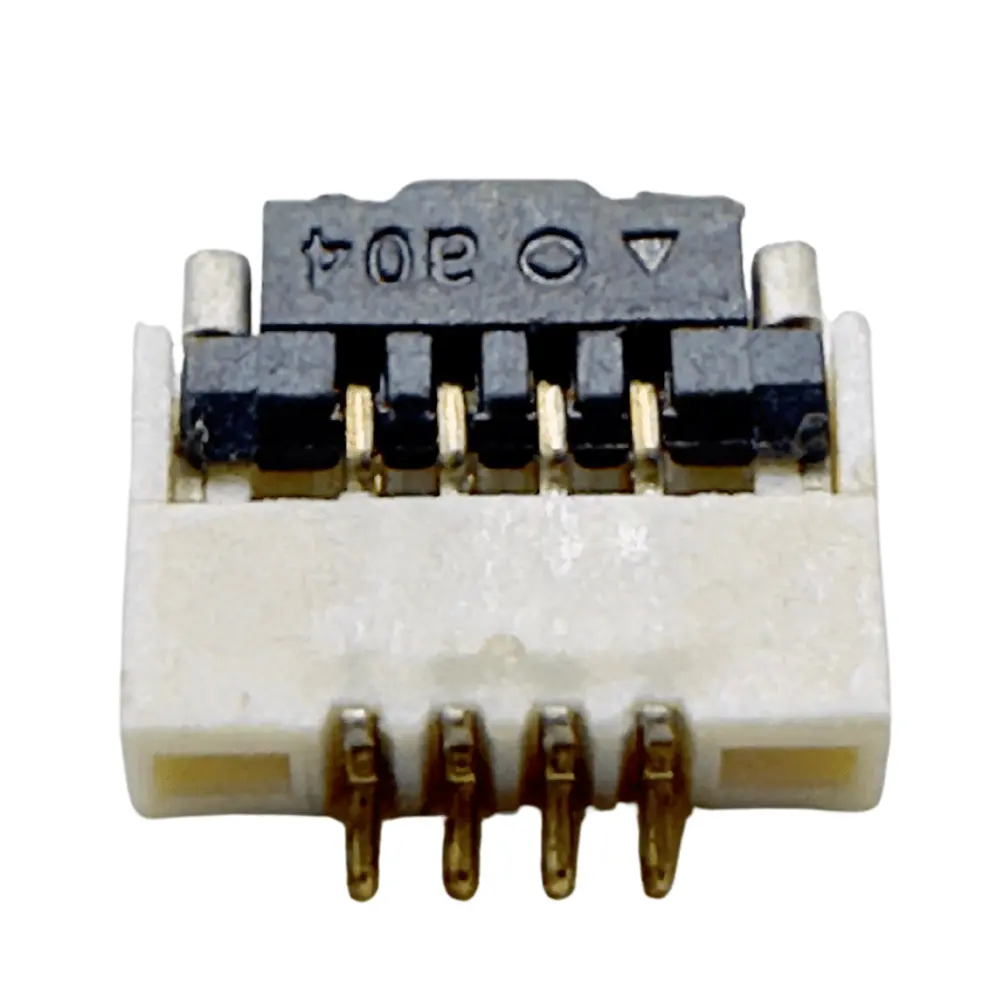

0.5mm FPC ZIF Connector Ultra-Slim Easy On, Right-Angle, 1.0mm mated height, Au-over-Ni contacts, tin-plated hold-downs, RoHS compliant; shared footprint spans multiple pin counts for space-constrained designs.
Key Features at a Glance:
Easy-on ZIF flip actuator; low insertion force, secure lock
Right-angle SMT, ultra-low 1.0 mm profile
0.50 mm fine pitch; pads 0.30 × ~1.04 mm with end hold-downs
Supports ~0.30 mm FPC thickness; insertion depth marked
Gold-over-nickel contacts; tin-plated fittings; UL94V-0 plastics
Tape-and-reel packaging; RoHS compliant
Highlights:
Slim stack height for tight enclosures, robust retention for field reliability, scalable footprint across pin counts, and assembly-friendly actuator for consistent seating.
Applications:
Displays, camera modules, touch panels, keypads, wearables, handheld SBC add-ons, IoT sensors, and compact industrial/medical instruments.
0.5mm FPC ZIF connector for compact PCB-to-flex interconnects where ultra-low profile and gentle cable handling are essential. This right-angle, surface-mount “easy-on” design uses a flip actuator that closes behind the cable to lock it securely with minimal insertion force, improving assembly yield and serviceability. The mated height is 1.0 mm, enabling dense layouts in handhelds, wearables, camera modules, and slim add-on boards.
| 1. General | ||||
| Status | Active | Category | FFC / FPC Connectors | |
| Series | DW-FPC-S05019304P-01TR-01 | Description | 0.50 mm Pitch, H = 1.00 mm, Easy-on FPC Connector | |
| UPC | — | Product Name | 0.50 mm Easy-on FPC, H=1.00 mm | |
| 2. Electrical | ||||
| Current – Maximum per Contact | -20 – 85 °C [ -4 – 185 °F ] | Voltage – Maximum | -20 – 85 °C [ -4 – 185 °F ] | |
| 3. Physical | ||||
| Actuator Type | Easy-on (flip-type) | Circuits (Loaded) | 04–50 (see table on drawing) | |
| Color – Resin | Housing: Natural; Actuator: Black | Contact Position | Not specified on drawing | |
| Durability (Mating Cycles) | _ | Mated Height | 1.00 mm | |
| Material – Metal | Terminal: Copper Alloy; Fitting: Copper Alloy | Material – Plating Mating | Per code: 01 Gold Flash / 03 3 µin Au / 06 6 µin Au / 15 15 µin Au / 30 30 µin Au / 31 Sn / 32 Ni | |
| Material – Plating Termination | Fitting: 80–160 µin Sn (lead-free) over 50–100 µin Ni | Material – Resin | High-temp Thermoplastic, UL94V-0 (Housing: Natural; Actuator: Black) | |
| Net Weight | — | Orientation | Right-angle / Horizontal, SMT | |
| Packaging Type | TR: Tape & Reel; TB: Tube package | PCB Locator | _ | |
| PCB Mounting | Surface-Mount (SMT) | PCB Retention | Yes – solder tabs (“Fitting”) | |
| Pitch – Mating Interface | 0.50 mm | Polarized to PCB | Yes (keyed housing) | |
| Stackable | _ | Applicable Cable Thickness | 0.30 ± 0.03 mm (per “Applicable FFC Spec”) | |
| Temperature Range – Operating | _ | |||
