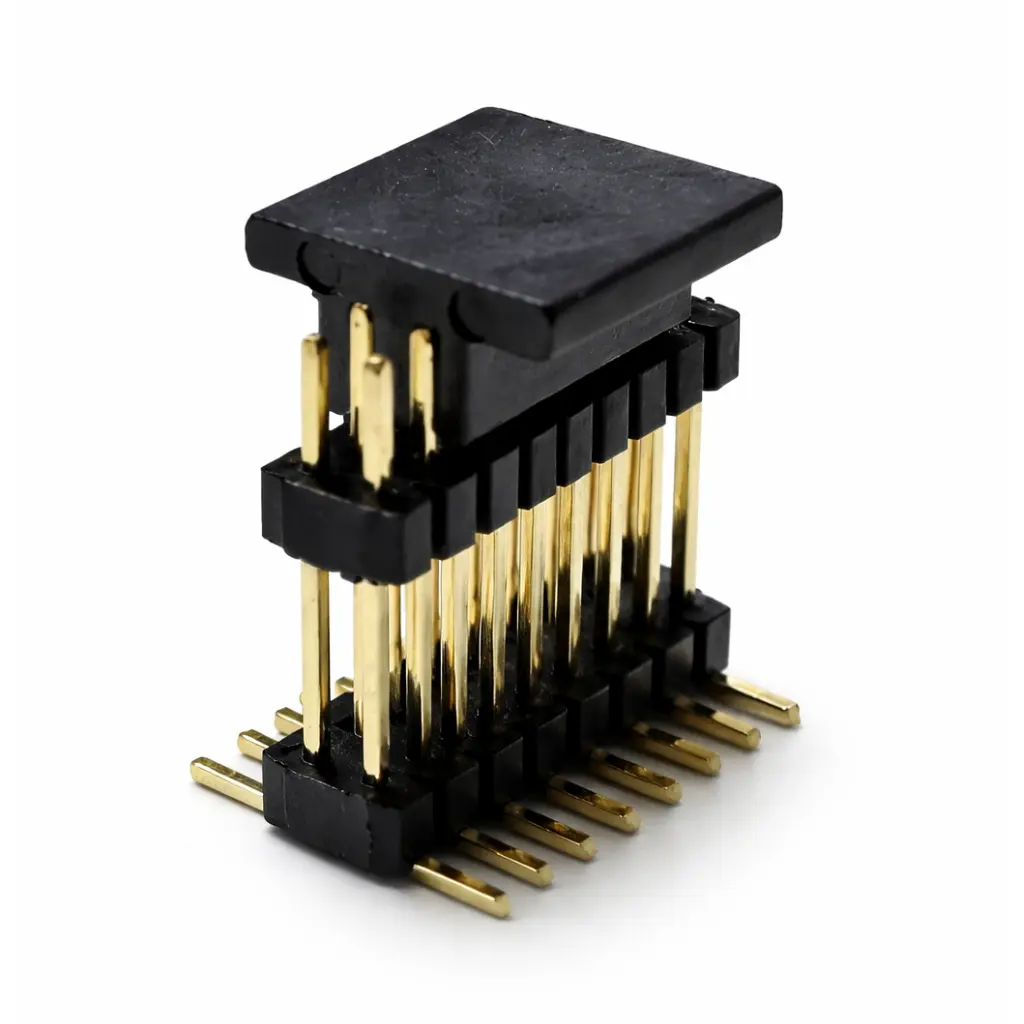

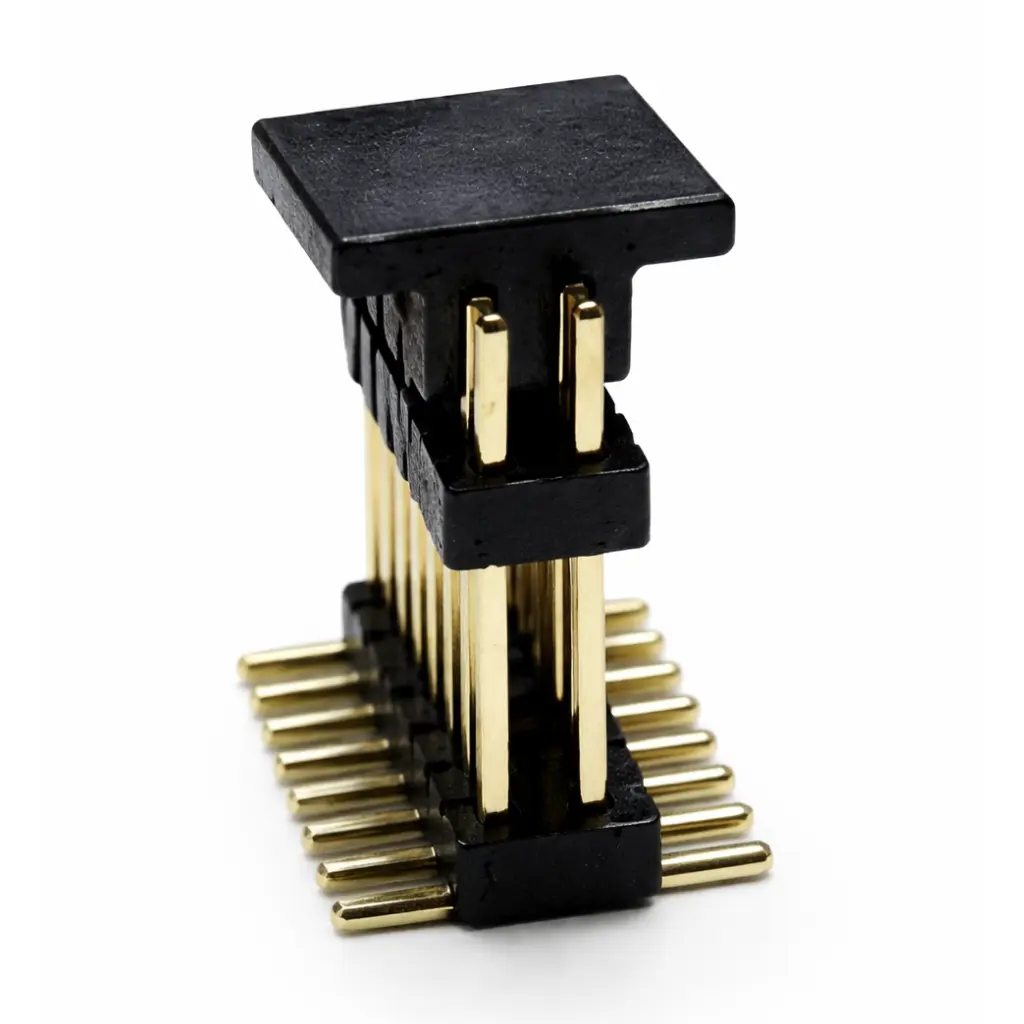

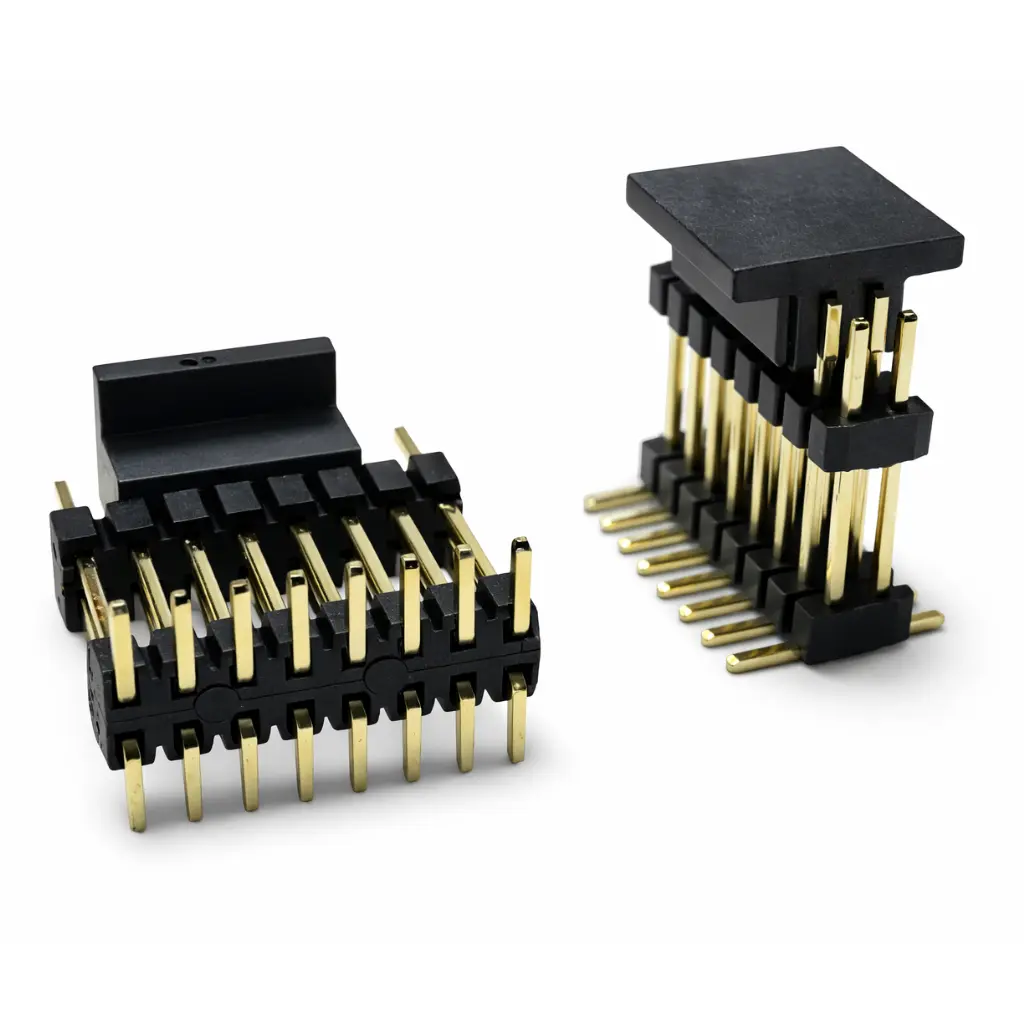

Designed for compact electronics where routing space is limited, this 1.0mm pitch SMT dual row pin header delivers a stable, high-density interface with 0.30mm square brass contacts and a UL94V-0 PA6T+30% insulator. The drawing specifies 5.45 ±0.25mm overall height, 2.30 ±0.10mm body width, and a black plastic cap that supports handling/pick-and-place during SMT processing. Electrical performance is specified at 0.75A, 30V, ≤20mΩ contact resistance, ≥1000MΩ insulation resistance, and 120V AC dielectric withstand. Built for harsh thermal conditions, it supports IR reflow 255–265°C (5–10s) and operates from -55°C to +125°C, with 500 mating cycles durability. Pin count (nP) and plating (XX) are configurable, and TR packaging supports volume production.
High-density board-to-board interconnects in communication devices
Embedded processors, industrial modules, and control boards
Compact IoT devices and portable electronics
SMT assemblies requiring high-temp reflow and automated placement
1.00mm pitch, dual-row SMT pin header for dense PCB layouts
0.30mm square pins (per drawing) for consistent mating alignment
Electrical: 0.75A, 30V, ≤20mΩ, ≥1000MΩ, 120V AC/1min
Materials: Brass contacts, PA6T+30% UL94V-0 insulator
Reliability: -55°C to +125°C, 500 cycles durability
SMT processing: IR reflow 255–265°C (5–10s)
Black plastic cap for handling/placement; TR (Tape & Reel) for automation
Plating selectable by -XX- code (gold options / Sn / Ni per drawing)
1.0mm pitch SMT dual row pin header with 0.30mm square pins for high-density board-to-board interconnects. Rated 0.75A / 30V, IR-reflow compatible, and supplied in Tape & Reel (TR) for automated assembly.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-210054WVnP-01TR-01 | Description | 1.00mm Pitch Pin Header, Dual Row, SMT, Vertical Type with Plastic Cap |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Pin Header, Dual Row Pin Header, SMT Pin Header, Straight Pin Header, PCB Mount Connector, Header Connector, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | 30V | Current Rating | 0.75A |
| Contact Resistance | ≤20mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | 120V AC for 1 min | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 54 |
| Circuits (Maximum) | Color – Housing | Black | |
| Durability (mating cycles max) | 500 | Flammability | UL 94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Gold Flash |
| Material – Plating Soldering Area | Gold Flash | Material – Resin | PA6T+30% (UL 94V-0) |
| Metal Shape & Form | Square Pin 0.30mm | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tape & Reel |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 1.00mm ±0.1 | Pitch – Mating Interface | 1.00mm |
| Plating min – Mating | ~0.10μm | Plating min – Termination | ~0.10μm |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Shrouded | No | Stackable | No |
| Operating Temperature | -55°C to +125°C | Termination Interface Style | Surface Mount (SMT) |
| Square Terminal Post & Tail Dimension | 0.30mm SQ | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | SMT |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | 1.00mm |
| Height of connector above PCB | 7.75mm | ||
| Solder Process Data | |||
| Max-Cycle | 1 | Max-Duration | 5~10 sec |
| Lead-Free Process Capability | IR Reflow | Max-Temp | 255~265°C ±15°C |
