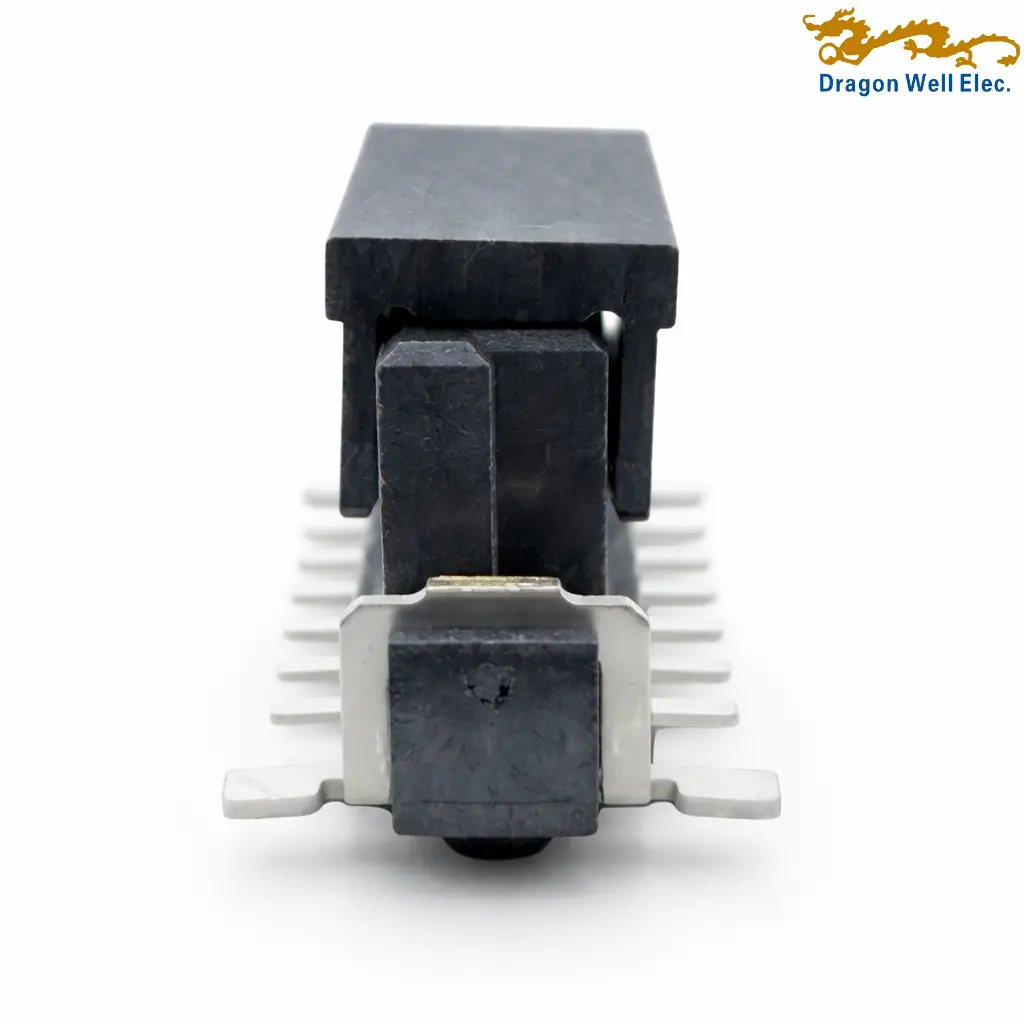

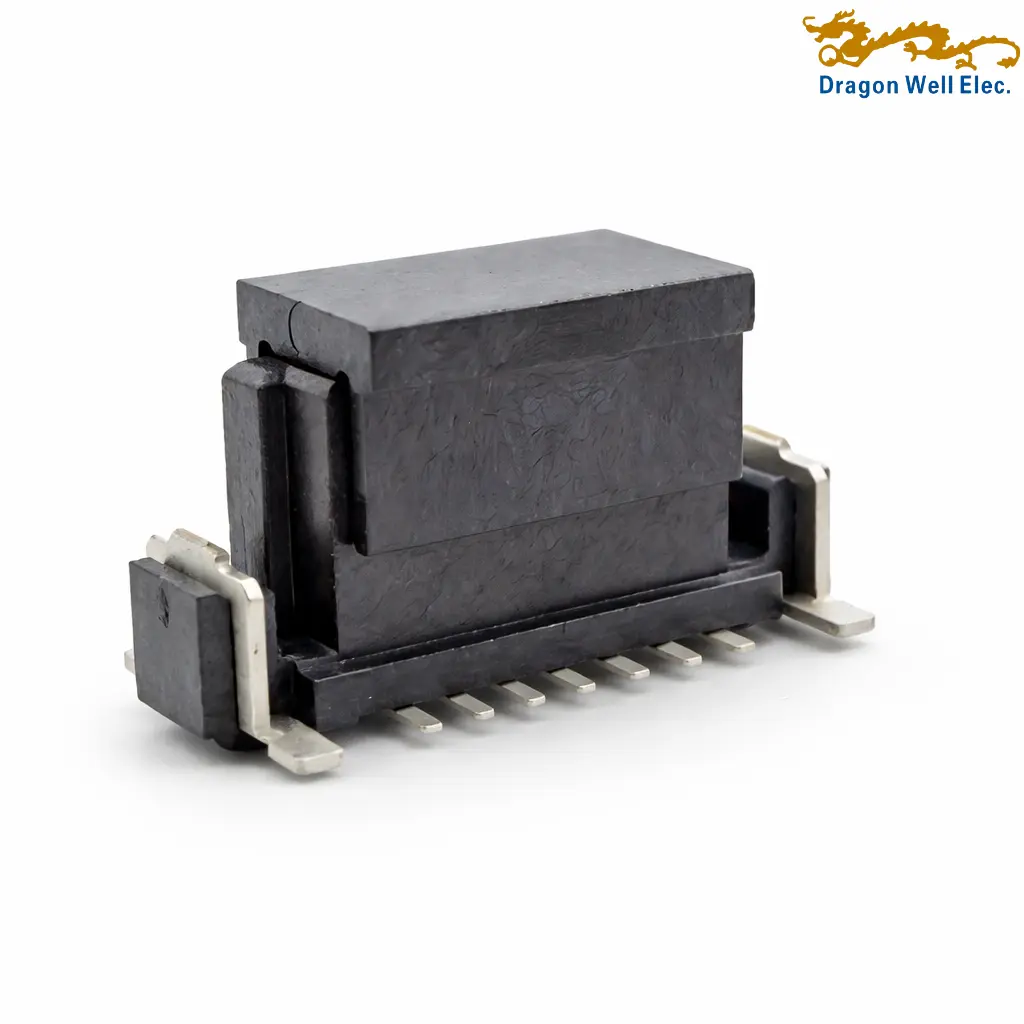

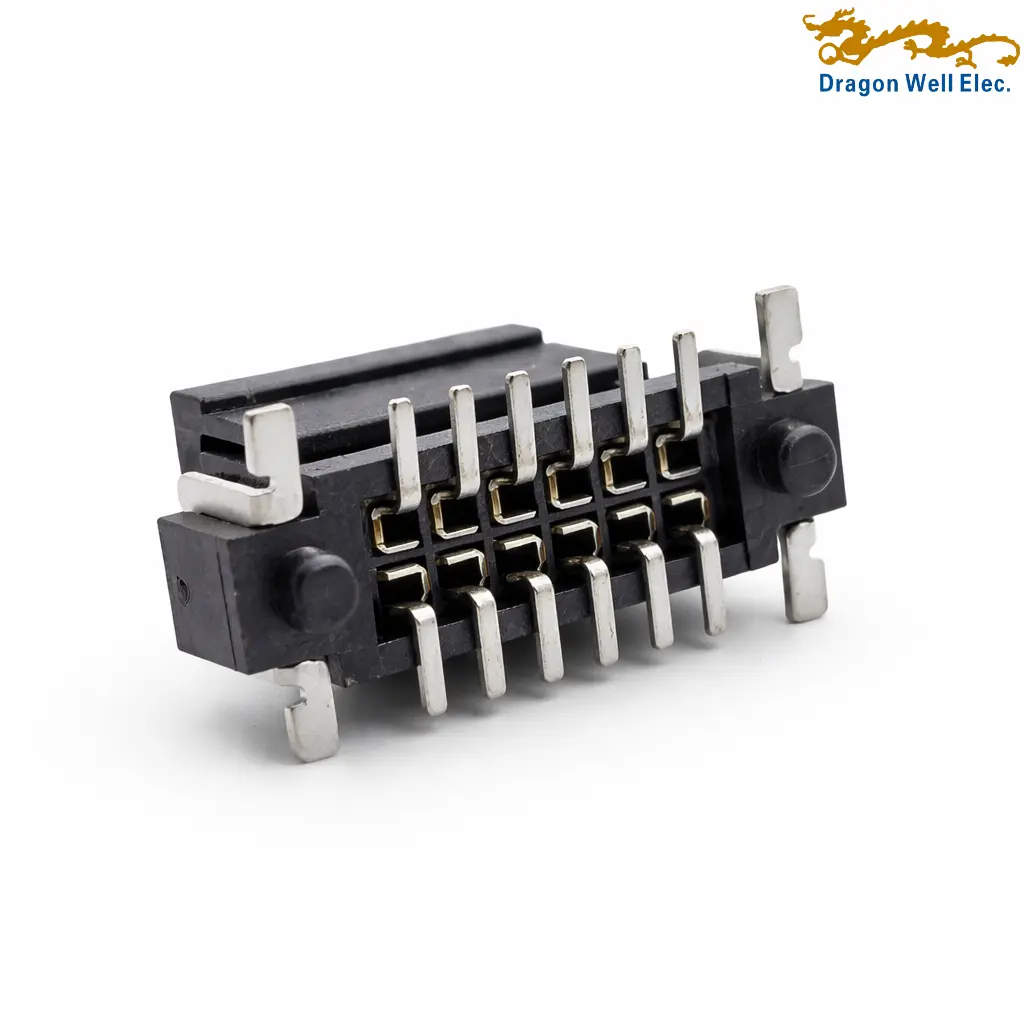

Compact 1.27mm dual row vertical SMT E-type female header with 6.20mm height, phosphor bronze contacts, and LCP UL94V0 housing for reliable fine-pitch PCB connection.
Product Applications
Board-to-board connection, wire-to-board assemblies, industrial control boards, embedded systems, communication modules, compact consumer electronics, signal transmission assemblies
Product Highlights
1.27mm pitch, dual row female header, vertical 180 degree orientation, SMT termination, E-type connector design, 6.20±0.15mm height, phosphor bronze contacts and tails, Sn and Au over Ni contact plating, Sn over Ni tail plating, LCP UL94V0 housing, 1.0A rated current, operating temperature -55°C to +125°C, available from 10 to 100 pins
1.27mm dual row vertical SMT E-type female header is designed for compact, reliable PCB interconnection in fine-pitch electronic assemblies. Based on the drawing, this connector is a dual row female header with 1.27mm pitch, vertical 180 degree orientation, and SMT termination. The title block identifies it as a 1.27mm E-type connector female with H6.20 profile, and the part number structure shows the vertical code as WV. The drawing also shows dual-row surface-mount pad layout, end locating post holes, and total pin options from 10 to 100 positions depending on the selected part number.
The drawing specifications list rated current at 1.0A, contact resistance at 25mΩ max, withstand voltage at 500V, insulation resistance at 1000MΩ min, and operating temperature from -55°C to +125°C. Contact material is phosphor bronze, tail material is phosphor bronze, contact plating is Sn and Au over Ni, and tail plating is Sn over Ni. The main body material is LCP UL94V0, and soldering temperature is 260°C ±5°C for 5 to 10 seconds. The drawing further shows key dimensions including 1.27mm pitch, 6.20±0.15mm height, 4.75mm side width reference, and 8.00mm center top feature reference.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2127593WVNP-XXTR-03 | Description | 1.27mm E-type Connector H6.20 Female |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Female Header, 1.27mm Pitch, Dual Row, Right Angle, Surface Mount, E-type Connector, PCB Mount Connector | Connector & Contact Terminates to | N/A |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 1.0A |
| Contact Resistance | 25mΩ Max | Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding Voltage | 500V | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | N/A |
| Circuits (Maximum) | 100 | Color – Housing | N/A |
| Durability (mating cycles max) | N/A | Flammability | UL94V0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Sn and Au over Ni |
| Material – Plating Soldering Area | Sn over Ni | Material – Resin | LCP UL94V0 |
| Metal Shape and Form | N/A | Number of Rows | 2 |
| Connector Orientation | Right Angle / 90° | Packaging Type | Tape Reel |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | N/A | Pitch – Mating Interface | 1.27mm |
| Plating min – Mating | N/A | Plating min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | Yes | Stackable | N/A |
| Operating Temperature | -55°C to +125°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | N/A | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting Type | SMT |
| PCB Thickness (Recommended) | N/A | Row-to-Row pitch | N/A |
| Height of connector above PCB | 6.20±0.15 | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 5~10 Second |
| Lead-Free Process Capability | N/A | Max-Temp | 260°C ±5°C |
