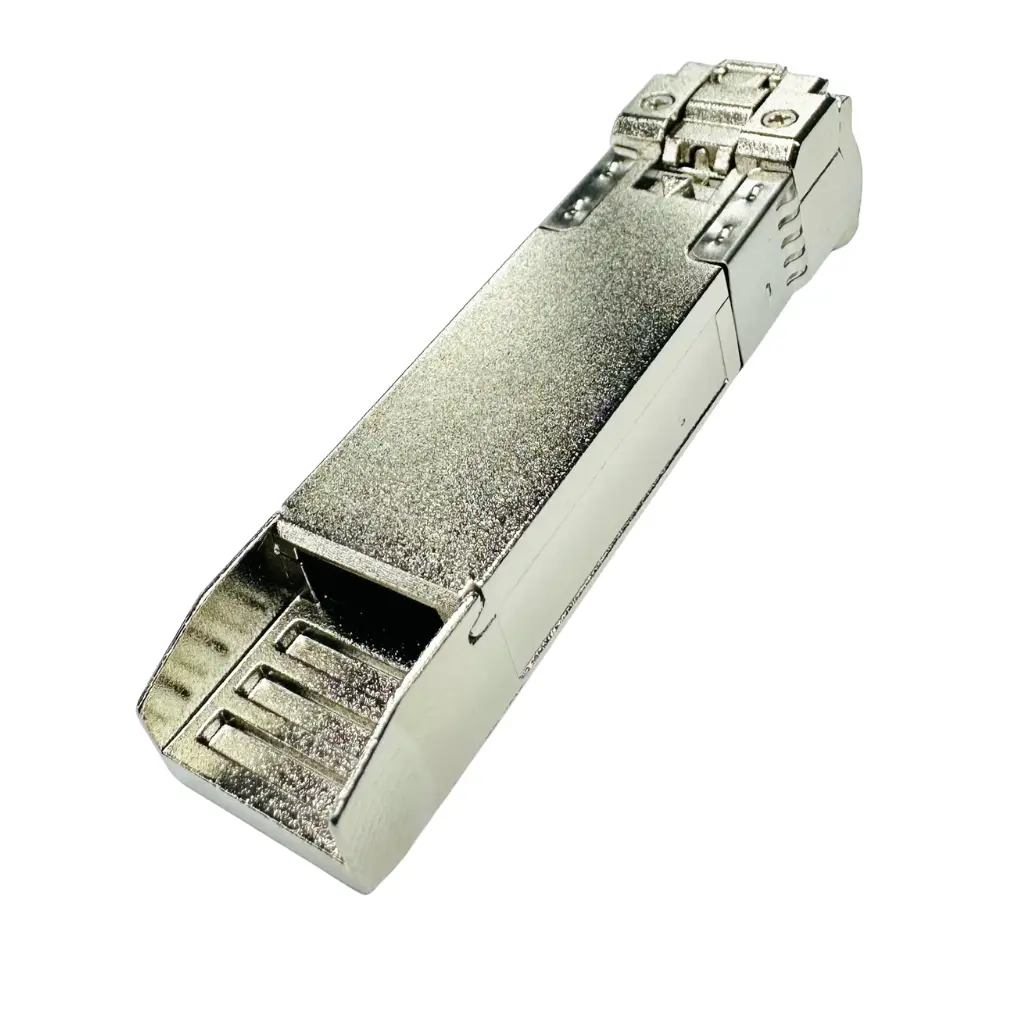

The 1×1 SFP+ cage kit with dual pull-link lock is a rugged single-port SFP+ cage assembly featuring a matte nickel zinc housing, dual stainless-steel pull-links, and PC alignment supports to ensure secure, EMI-shielded retention of hot-swappable SFP+ optical modules in high-speed telecom and data center equipment.
Applications:
High-speed SFP+ optical modules and cages
Ethernet routers, switches and NICs
Telecom transceiver interfaces and access platforms
Data center and cloud infrastructure systems
High-density network line cards and aggregation equipment
Highlights:
1×1 SFP+ cage kit with dual pull-link lock for enhanced retention and quick ejection
Matte nickel-plated 3M zinc upper cover and base for strong EMI protection
Dual SUS304 stainless-steel pull-links and internal spring for smooth, tool-free module removal
PC internal support and briquetting components (LR, RR, ER) for precise module alignment
Silicone rubber seal for vibration damping and dust resistance
Pre-assembled PCB interface for high-speed SFP+ signal connectivity
Meets EU RoHS, REACH SVHC and low-halogen environmental requirements
1×1 SFP+ cage kit with dual pull-link lock is a high-precision single-port SFP+ cage assembly designed for secure integration with hot-swappable SFP+ optical transceivers in high-speed telecom and networking systems. This 1×1 SFP+ cage kit with dual pull-link lock combines strong mechanical retention, reliable EMI shielding, and repeatable insertion cycles, making it ideal for dense line cards, routers and switches operating at 10G and beyond.
| GENERAL | |||
| Status | Active | Category | High-Speed EMI Cages |
| Part Number | DW-SFP-0099-01 | Description | SFP Cage Assembly Kit with Dual Pull-Links, PCB, Release Piece & Enhanced Locking Supports |
| Application | Module-to-Board | Component Type | Cage Assembly |
| Product Name | SFP Cage Assembly | Sealable | Yes |
| Keywords | SFP Cage, External Connector | Features | SFP cage with dual pull-tabs and SR/LR support blocks |
| Thermal Accessory Type Included | None | Lightpipe Style | Not Applicable |
| Number of Ports | 1 × 1 | ||
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| Not applicable (Mechanical Assembly Kit) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Full Metal Enclosure (Zinc alloy + SUS304) | Pluggable I/O Applications | SFP |
| Cage Material | 3# Zinc Alloy, SUS304 Steel, PC | Orientation | Horizontal |
| Packaging Type | Kit with multiple components | Termination Interface Style | Mechanical Mounting |
| Rear Legs | None | Thermal Solutions | None |
| Thermal Height | N/A | Circuit Application | Mechanical Retention Only |
| Included Lightpipe | No | Light Pipes per Port | 0 |
| Heat Sink Compatible | No | Tail Length | N/A |
| Operating Temperature Range | 55~85°C (based on material spec) | PCB Thickness (Recommended) | N/A |
