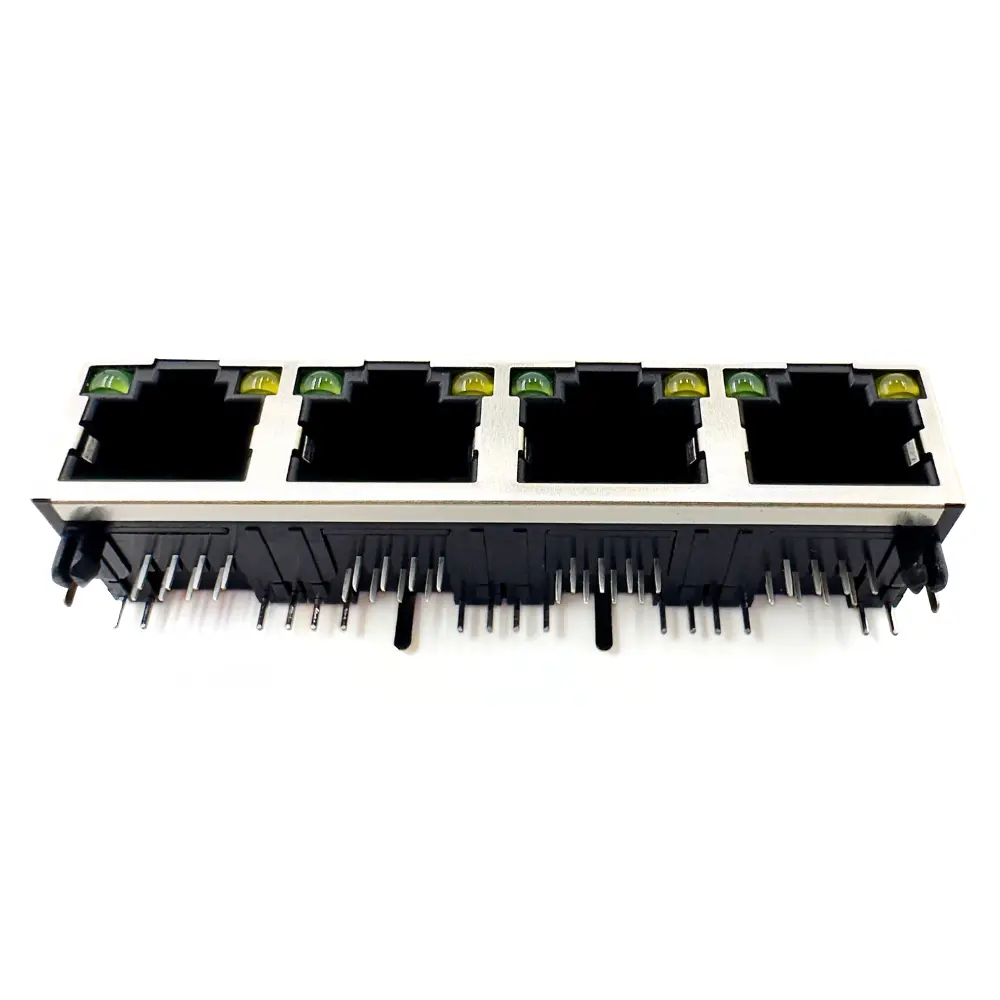

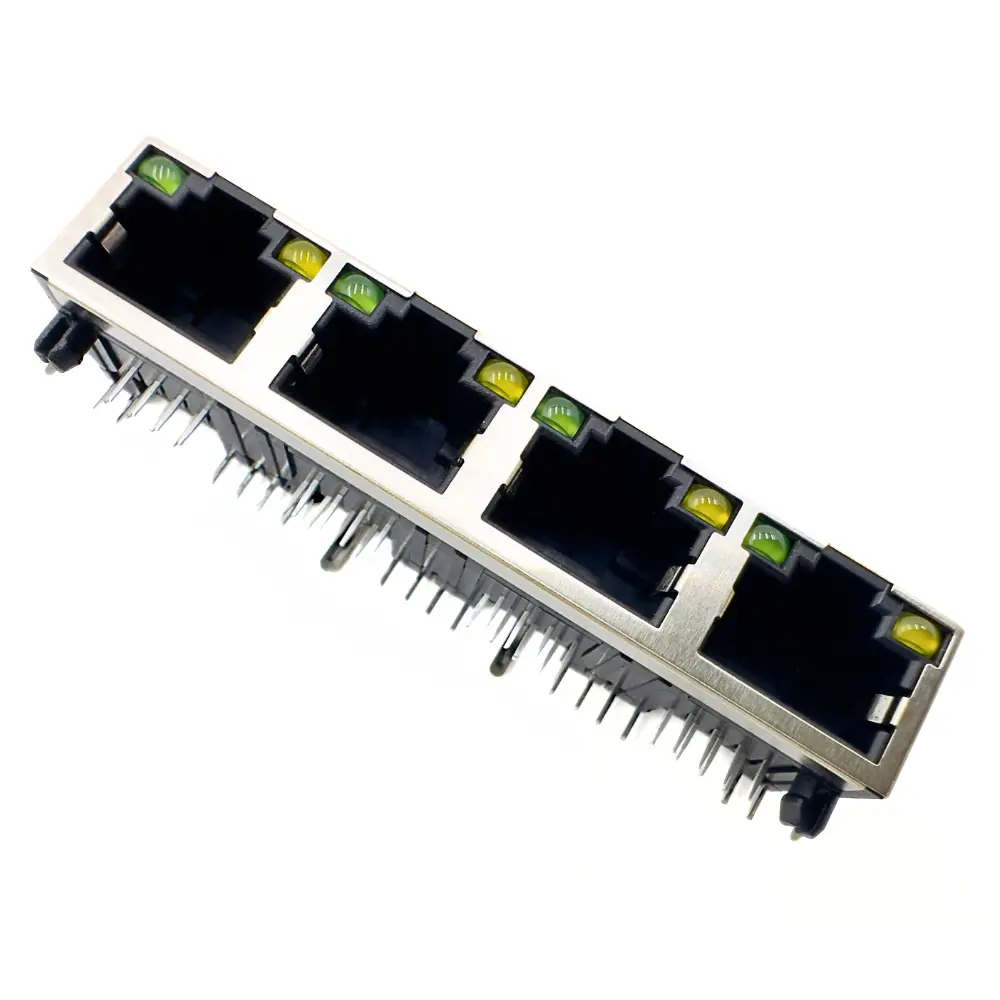

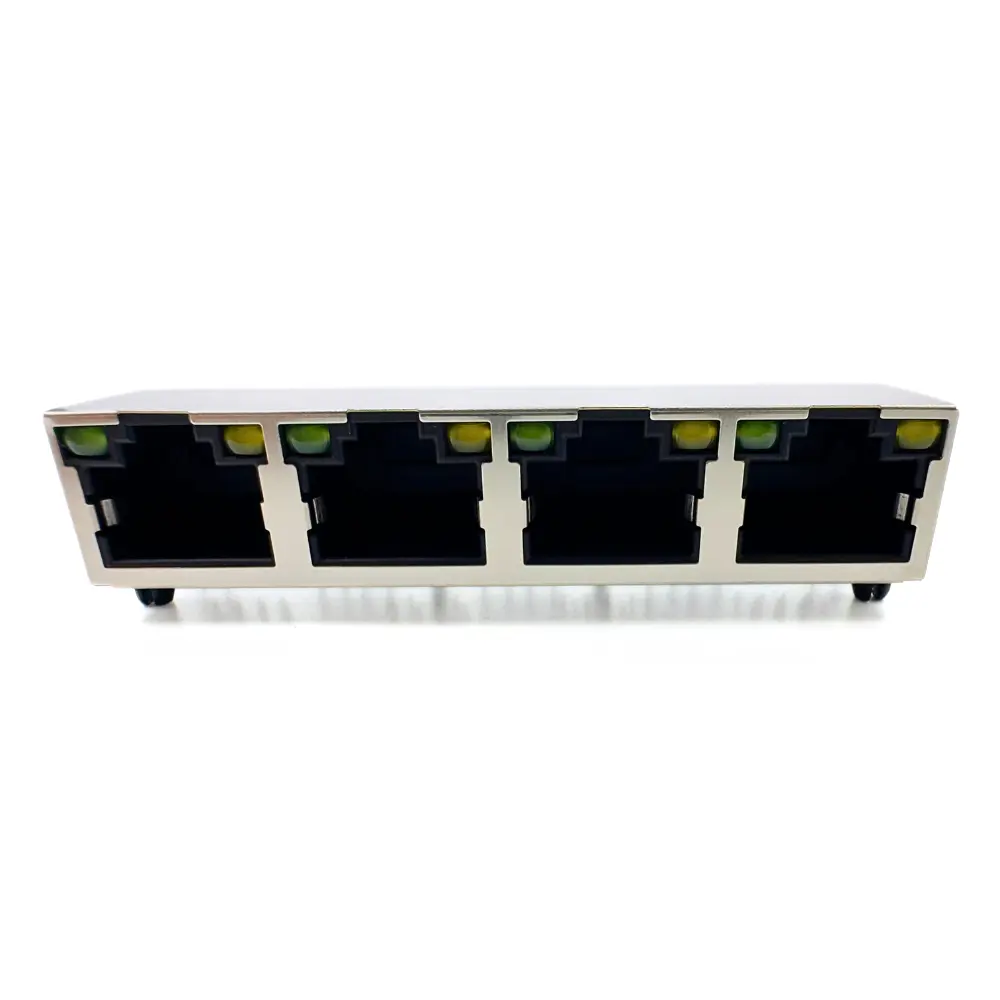

1×4 Multi-Port Modular Jack| Non-Magnetic,THT,Shielded,with LED | 8P8C Right Angle | Low profile
1×4 Multi-Port Modular Jack is a compact, non-magnetic solution for multi-port applications. Designed with four ports in a single housing, this through-hole (THT) Ethernet connector is ideal for network switches and servers where density is a priority.
Applications:
PPRODUCTS HIGHLIGHT:

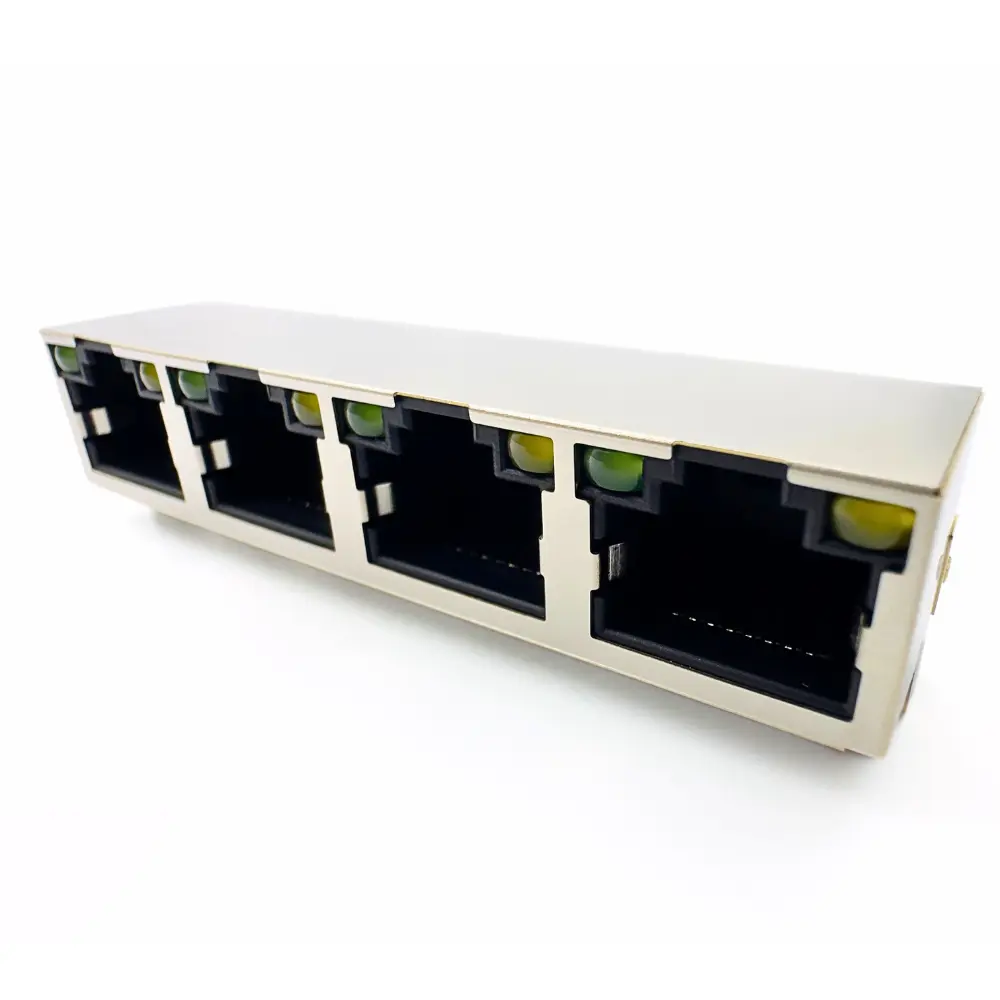

1×4 Multi-Port RJ45 Connectors | Non-Magnetic, THT, Shielded, with LED, 8P8 Right Angle, Low profile, 3U” Gold plating on mating aread
| 1. Basic Information | |||
| Status | Active | Category | RJ45 Jacks (Without Magnetics) Multi-Port (1×4 Port) |
| Part Number | DW-RJ45-D00436-03TP-05-2 | Description | RJ45 Jacks, 1×4 port, with Shield and LED, 8P8C, Right Angle, DIP |
| Product Name | Modular Jacks 1×4 Port with LED, Shielded, Low profile, Non-Magnetic & THT,Tab-Up | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | No |
| Type | Socket | Lead time | 25 |
| Width | 15.75 mm | Height | 13.10 mm |
| Length | 63.75 mm | Installed height | 13.10 mm |
| Material (Metal surface contact area top layer) | Gold / Au | Material (Metal surface contact area middle layer) | Nickel / Ni |
| Material (Metal surface soldering area) | Tin / Sn | Material (Metal surface soldering area Middle layer) | Nickel / Ni |
| Mating Force | 2.2 kgf max (insertion) | Retention Strength | 50N |
| Customs tariff number | 8536901100 | Country of origin | China |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle (Side Entry) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Green / Yellow |
| Packaging | Tray | Termination interface | Through Hole |
| Port Configuration | 1×4 | Material – Resin | PA46 UL94V-0 |
| Durability (mating cycles max) | 750 | Material – Metal | Shield: Copper alloy, T=0.20 mm; Terminal: Phosphor Bronze, T=0.35 mm |
| Material – Plating Termination | 3U” Gold | PCB Retention | 1 lb min (pre-solder) |
| Net Weight | Pitch – Mating Interface | 1.02 mm | |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 Jack, modular Jack, PCB Jack |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | 0 °C to +70 °C |
| Insulation resistance | ≥500 MΩ @ 500V DC | Storage Temperature | −40 °C to +85 °C |
| Lead-Free Process Capability | Wave | Classification temperature | −40 °C to +85 °C |
| Weight | 17 kg |
|---|---|
| Dimensions | 50 × 27 × 32 cm |
