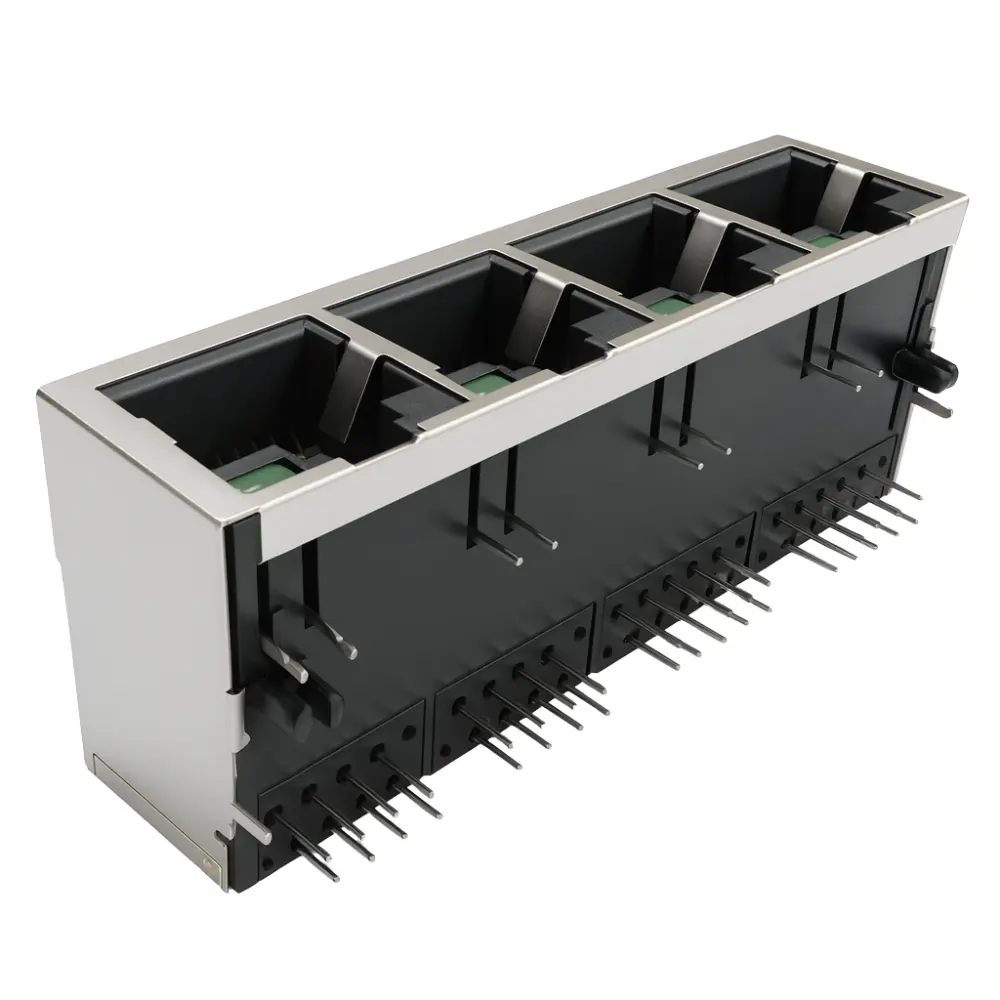

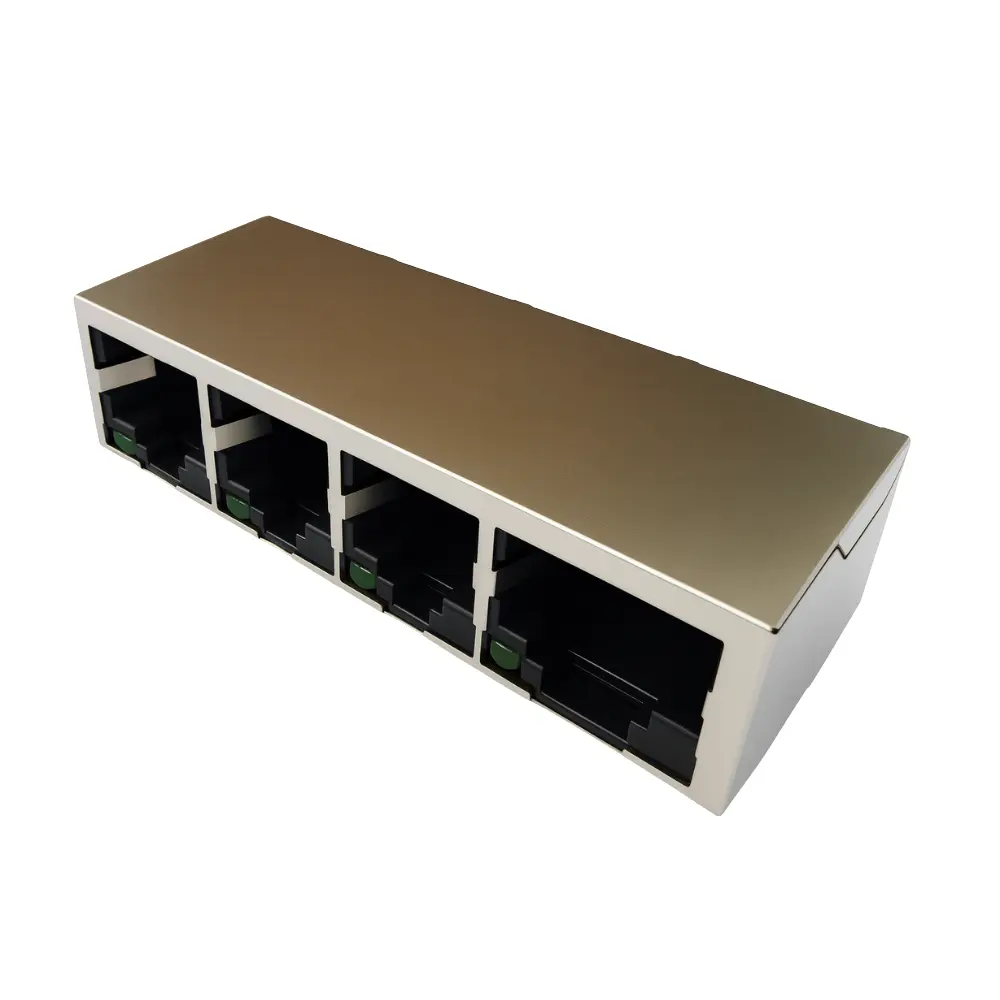

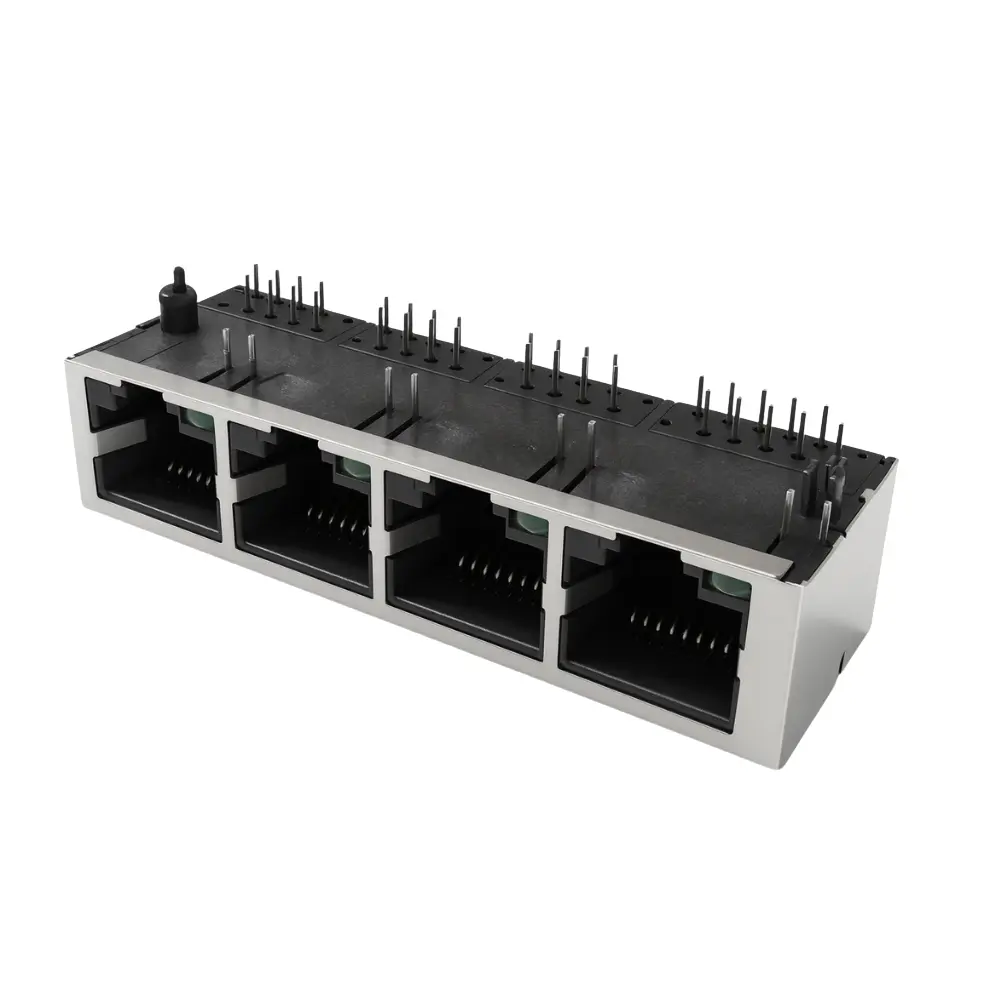

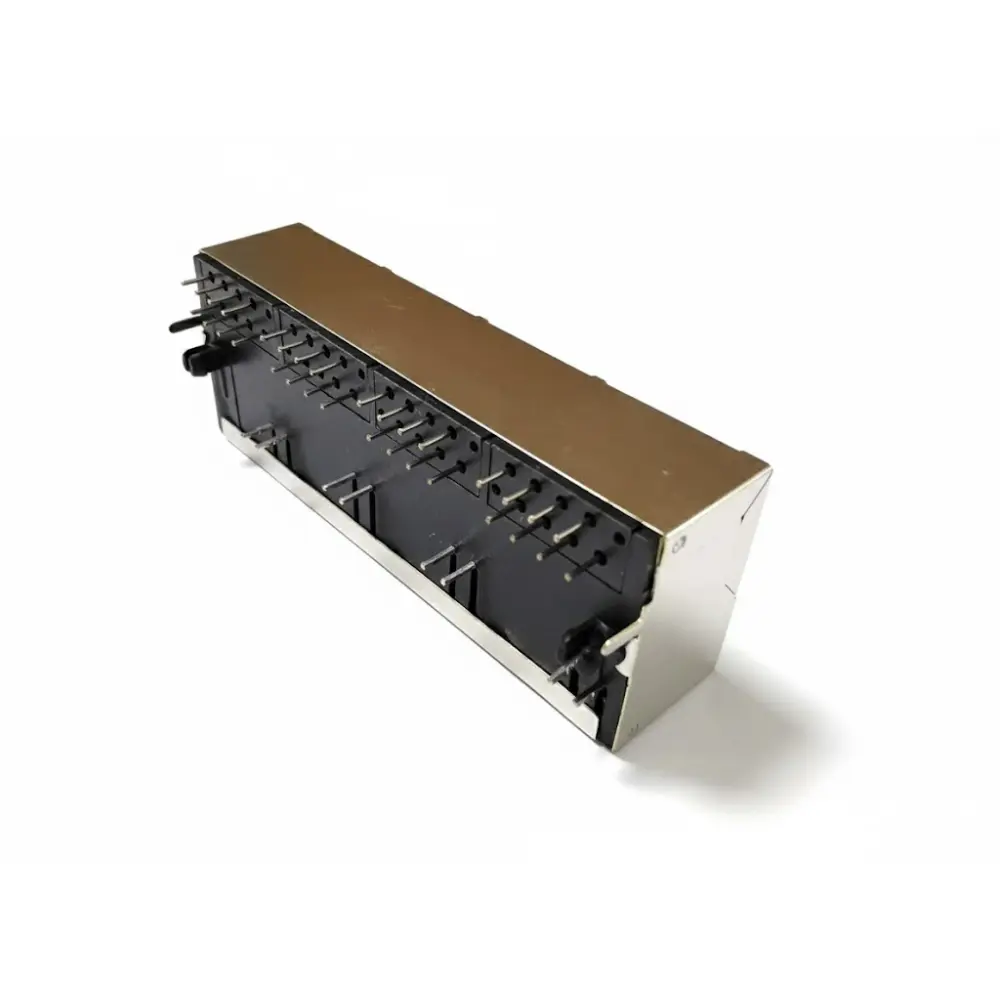

This 1×4 Port RJ45 connectors is the ideal solution for high-density networking applications. The compact, shielded design ensures maximum port density while providing essential protection against EMI. Featuring Through-Hole Technology (THT) for superior board retention and LED indicators for quick port status, this Tab-Down, non-magnetic connector is perfect for simplifying networking within large systems.
Applications:
Product Highlight:
1×4 Port RJ45 connectors | Shielded, THT, Tab-Down, with LEDs
Key Features at a Glance:
| 1. Basic Information | |||
| Status | Active | Category | RJ45 Jacks (Without Magnetics) RJ45 Jack Multi-Port (1×4 Port) |
| Part Number | DW-RJ45-114A0420 | Description | 1×4 Port RJ45 connectors Tab-Down Shielded, through-hole, with LED, without EMI Non-magnetics, 8P8C, compact size |
| Product Name | Modular Jack Right Angle (Side Entry) | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time (Days) | 15 |
| Width | 58.80 mm | Height | 13.50 mm |
| Length | 21.00 mm | Installed height | 13.50 mm |
| Material (Metal surface contact area top layer) | Gold / Au | Material (Metal surface contact area middle layer) | Nickel / Ni |
| Material (Metal surface soldering area Top Layer) | Gold / Au | Material (Metal surface soldering area middle layer) | Nickel / Ni |
| Material – Resin | PA46 UL94 V-0 | Material – Metal | Phosphor Bronze |
| Mating Force | 30N Max | PCB Retention | Yes |
| Customs tariff number | 8536901100 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle (Side Entry) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes |
| Packaging | Tray | Termination Interface | Through-Hole |
| Port Configuration | 1×4 | Latch / Tab orientation | Tab-Down |
| Durability (mating cycles max) | 750 | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Pitch – Termination Interface | 1.27 mm |
| Retention Strength | 50N for 60S | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Vertical RJ45 Jack, Shielded RJ45 Connector, Multi-Port RJ45 Jack, 1×4 Port RJ45 connectors |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
