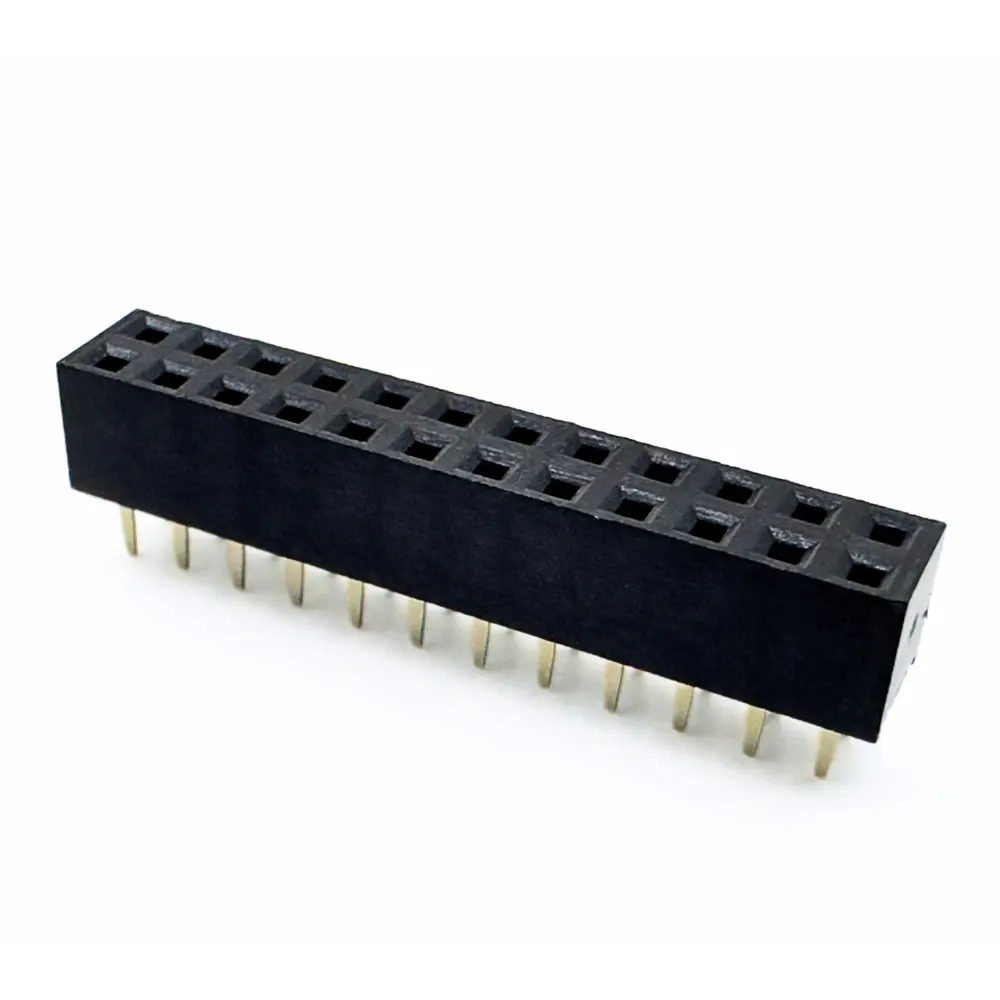

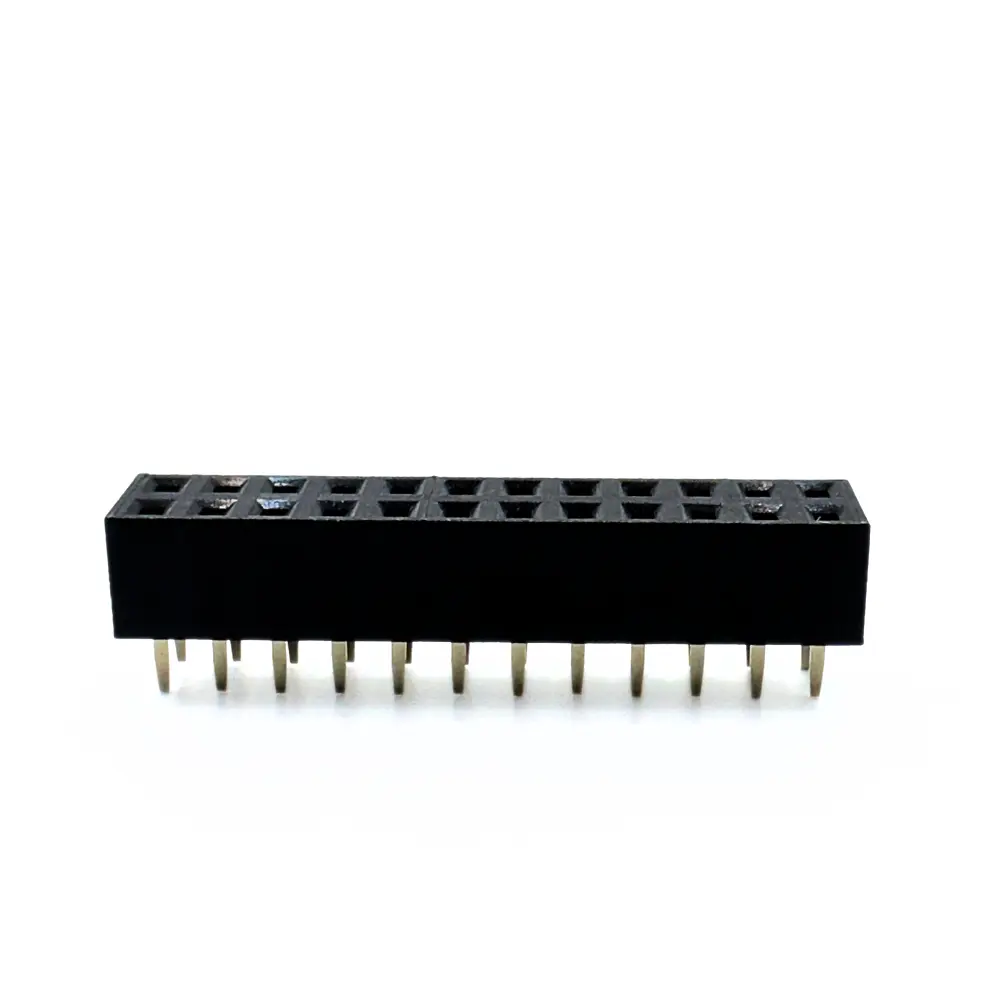

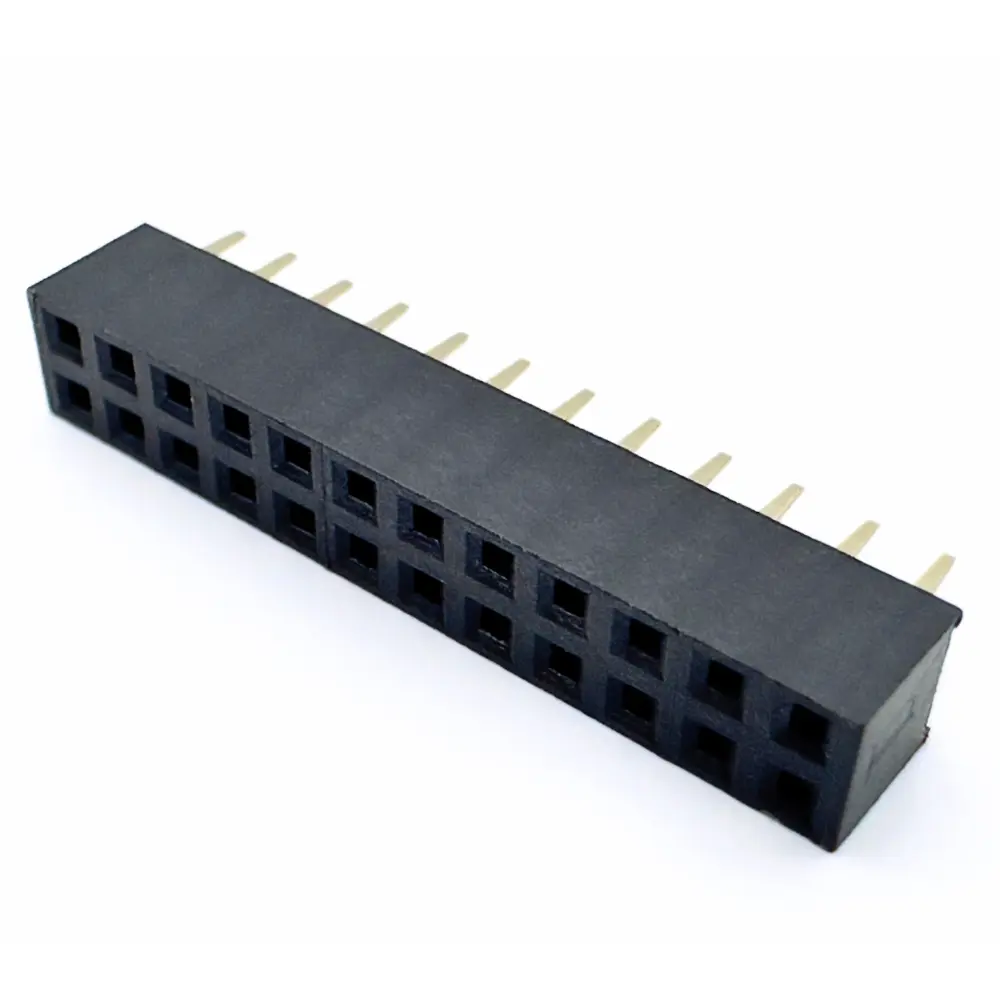

2.00 mm Dual-Row Female Header, Vertical THT (DW-FH-2200509WVNP) This female header designed for board-to-board interconnects. It features a vertical (WV, 180°) orientation with through-hole posts for robust PCB anchoring. The series supports per-row pin counts from 2 to 40 (resulting in 2×N total ways).
Highlights: 2.00 mm fine pitch dual-row; vertical THT posts for strong retention; Au plating options (flash–30 µin); wide range 2×2 to 2×40; −40~+105 °C; RoHS/REACH.
Applications: Industrial controllers, communication modules, embedded boards, consumer electronics, I/O daughtercards.
2.00 mm dual-row female header, vertical THT DW-FH-2200509WVNP-XXTP-01 is a fine-pitch board connector for compact board-to-board links that need strong mechanical retention and stable solder joints.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2200509WVNP-XXTP-01 | Description | 2.0 mm Female Header, Dual Row, Vertical/Right Angle DIP Type. |
| Application | Board-to-Board, Signal/Power | Component Type | Female Header |
| Product Name | Female Header 2.0mm Dual Row | UPC | _ |
| Electrical | |||
| Current – Maximum per Contact | 2A | Voltage – Maximum | AC 500V |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Physical | |||
| Circuits (Loaded) | up to 40 (per PN) | Circuits (Maximum) | 40 |
| Color – Resin | Natural | Flammability | UL94V-0 |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Au 0.5–0.8 µ” over Ni 30–50 µ” |
| Material – Plating Termination | Gold/Tin options | Material – Resin | PA6T UL94V-0 |
| Net Weight | _ | Number of Rows | Dual Row (2) |
| Orientation | Vertical / 90° RA | Packaging Type | Tray |
| PC Tail Length | 3.68 mm | Pitch – Mating Interface | 2.00 mm |
| Plating min – Mating | As per code (e.g., 0.5 µ”–30 µ”) | Plating min – Termination | Gold/Tin |
| Polarized to PCB | _ | Temperature Range – Operating | -40 °C ~ +105 °C |
| Termination Interface Style | Through Hole | ||
| Solder Process Data | |||
| Max-Duration | 5000 | Lead-Free Process Capability | Wave |
| Max-Cycle | 5000 | Max-Temp | 260 °C ±5 °C, 105 MAX |
