2.00mm pitch dual row right angle SMT pin header with pegs 20 pin for compact PCB interconnection, designed with a dual row contact layout, surface-mount right angle structure, and locating pegs for stable placement during assembly. Based on the drawing, this pin header supports 2A current rating, AC 500V withstand voltage, and uses a PA6T+30%GF UL94V-0 housing for dependable use in industrial and electronic applications.
• Applications: Embedded systems, industrial control boards, communication equipment, instrumentation, automation electronics, compact PCB modules, internal board-to-board connection, consumer electronic assemblies.
• Highlights: 2.00mm pitch pin header; dual row design; right angle SMT type; with locating pegs; 20-pin version shown; 2A current rating; 20mΩ max contact resistance; 1000MΩ min insulation resistance; AC 500V withstand voltage; PA6T+30%GF UL94V-0 housing

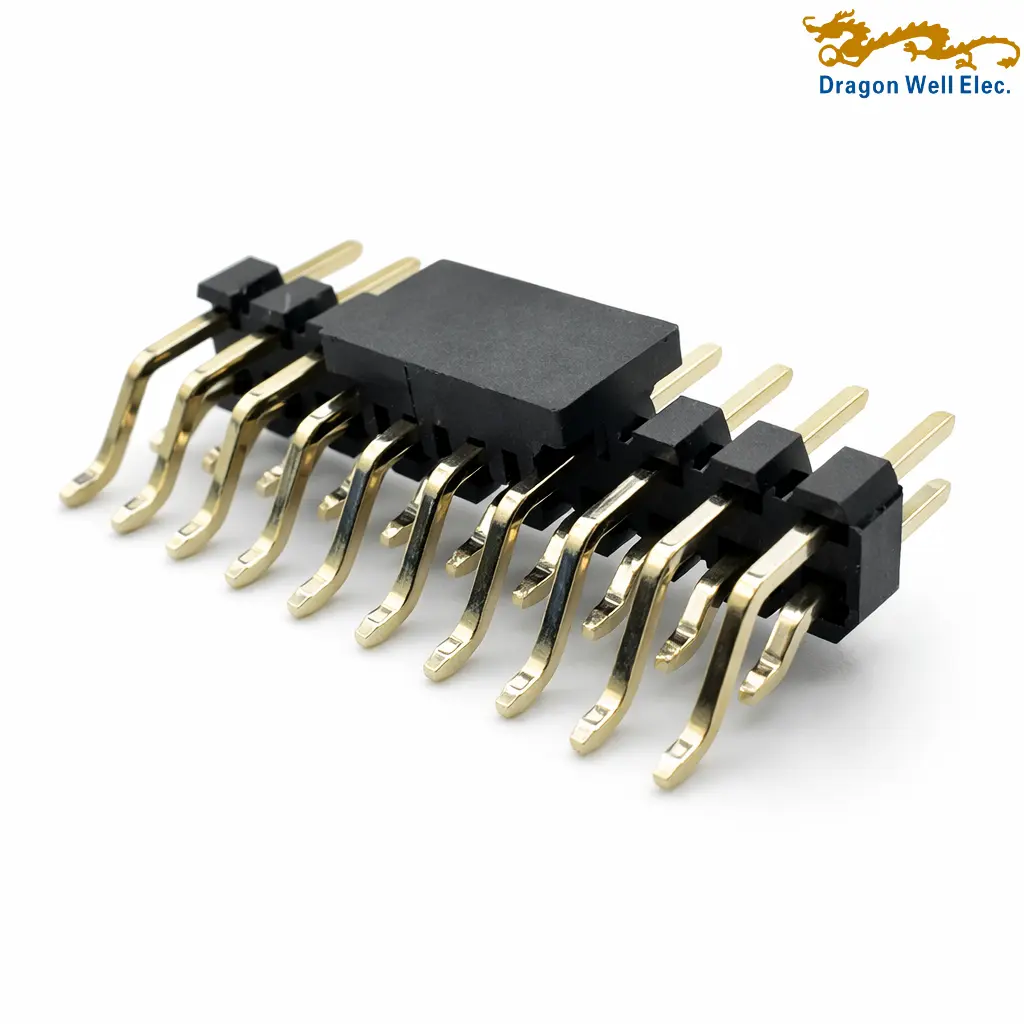

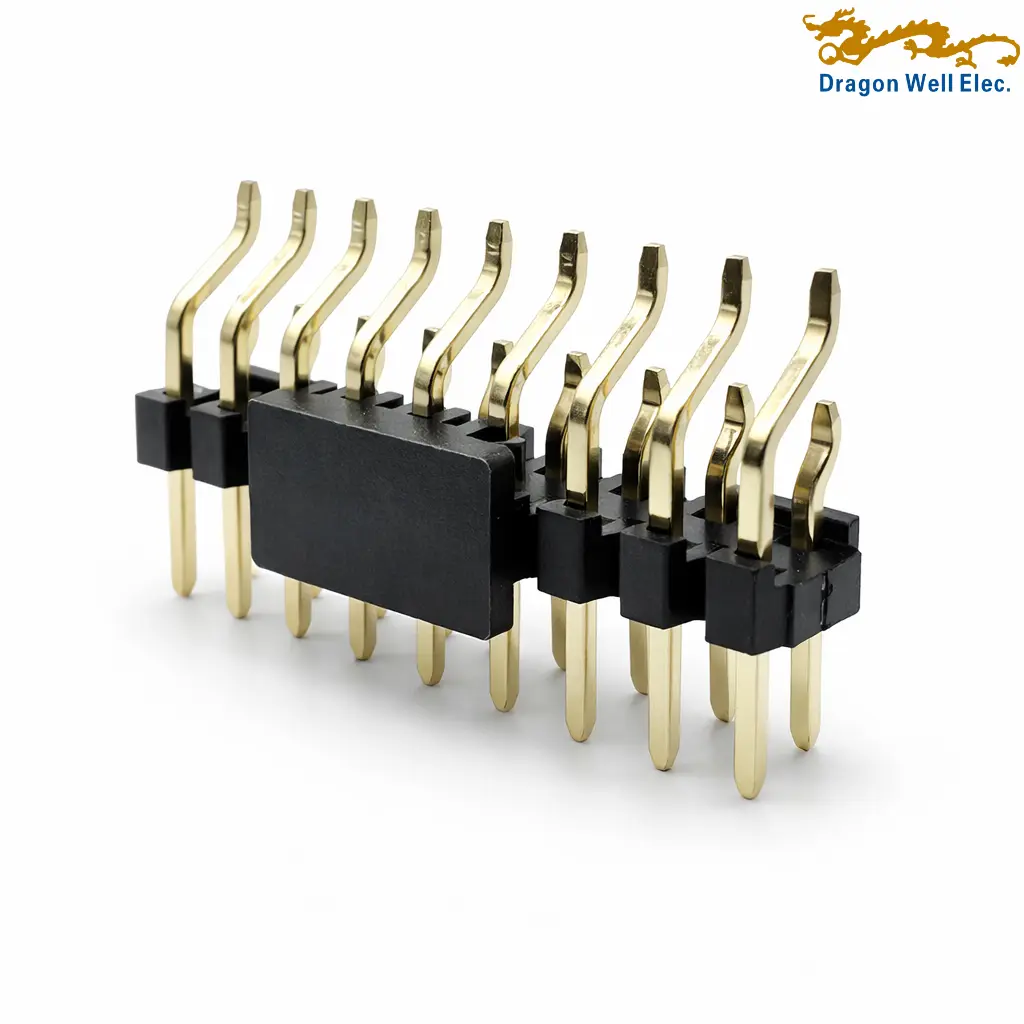

2.00mm pitch dual row right angle SMT pin header with pegs 20 pin is a compact board-level connector designed for reliable PCB interconnection in embedded systems, industrial electronics, communication equipment, and control modules. Based on the drawing, this product is a 2.00mm pitch dual row pin header with a right angle SMT structure, 20-pin version shown, and plastic locating pegs that help provide stable positioning during PCB assembly. The drawing also indicates this is part of a broader series with multiple pin-count options.
This 2.00mm pitch dual row right angle SMT pin header with pegs 20 pin is designed for dependable electrical and mechanical performance in compact electronic designs. According to the specification section in the drawing, the connector has a current rating of 2A, contact resistance of 20mΩ max, insulation resistance of 1000MΩ min, and withstanding voltage of AC 500V per minute. The operating temperature range is listed as -40°C to +105°C, making it suitable for demanding PCB applications across a wide range of environments.
With its 2.00mm pitch, dual row arrangement, right angle SMT mounting, and positioning pegs, this pin header connector is suitable for board-to-board and PCB interconnection where compact footprint, stable mounting, and automated assembly support are important. The drawing also confirms RoHS compliance.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2200851WR20P-XXTR-01 | Description | 2.00 Pitch Pin Header Dual Row Right Angle SMT with Pegs |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 2.00 Pin Header, Dual Row Pin Header, Right Angle SMT Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 2.0A |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | AC 500V/Minute | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | Variable (nP) |
| Circuits (Maximum) | N/A | Color – Housing | Black |
| Durability (Mating Cycles) | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | Gold plating over all; 30u” min nickel underplating over all |
| Material – Plating Solder | N/A | Material – Resin | PA6T+30%GF, UL94V-0 |
| Metal Shape and Form | 0.50 SQ | Number of Rows | 2 |
| Connector Orientation | Right Angle | Packaging Type | Tape Reel |
| PCB Locator | Pegs, Ø1.00 | PCB Retention | With Pegs |
| PC Tail Length | N/A | Pitch – Mating Interface | 2.00mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Surface Mount |
| Square Terminal Post | 0.50 SQ | PCB Mount Retention | With Pegs |
| PCB Mount Alignment | Pegs | Connector Mounting | Surface Mount |
| PCB Thickness (Recommended) | N/A | Row-to-Row Pitch | 2.00mm |
| Height of Connector | 5.00mm | Recommended PCB Hole Dia. | Ø1.20mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | N/A |
