Dragon Well’s 2.00mm pitch single-row pin header features vertical DIP through-hole mounting, brass contacts, gold-flash plating, and a PA6T+30%GF UL94V-0 insulator. The series drawing covers 2–40 pins for compact PCB interconnection.
Applications:
Highlights:

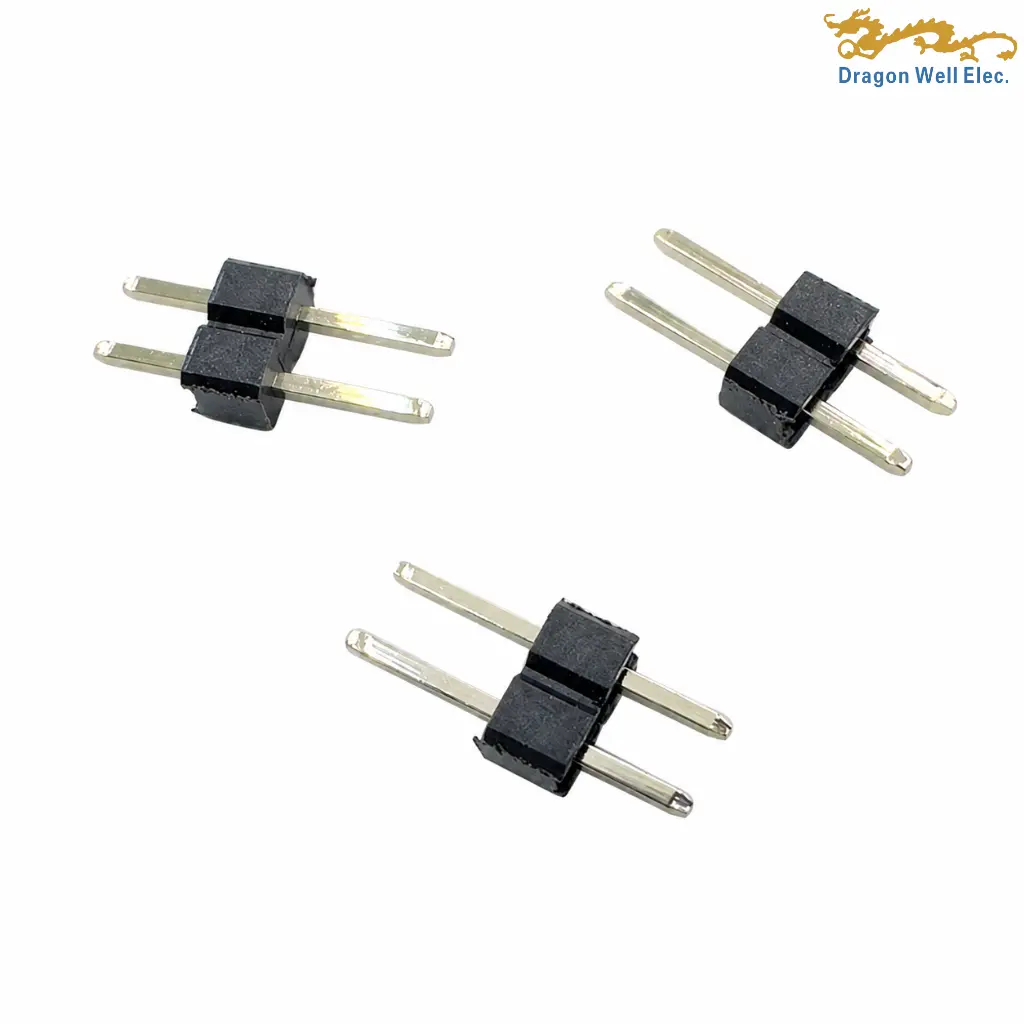

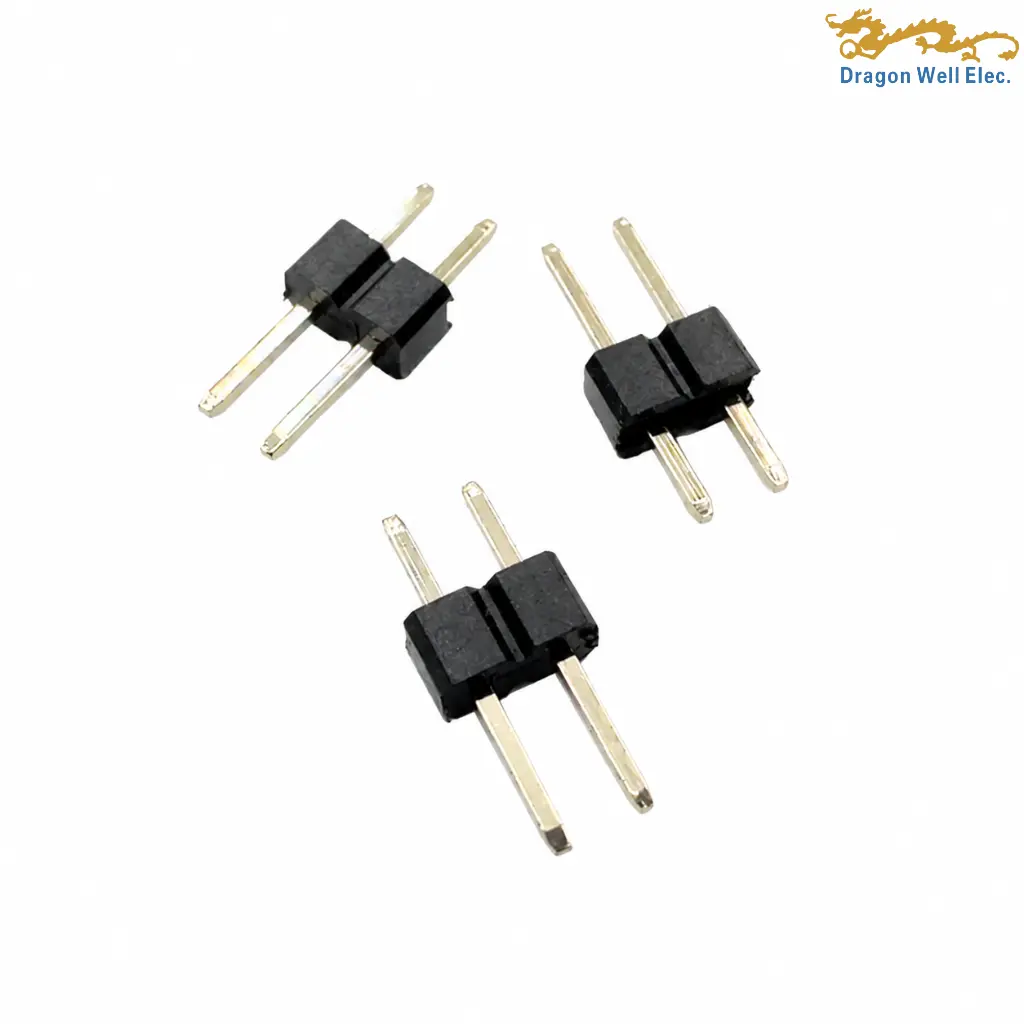

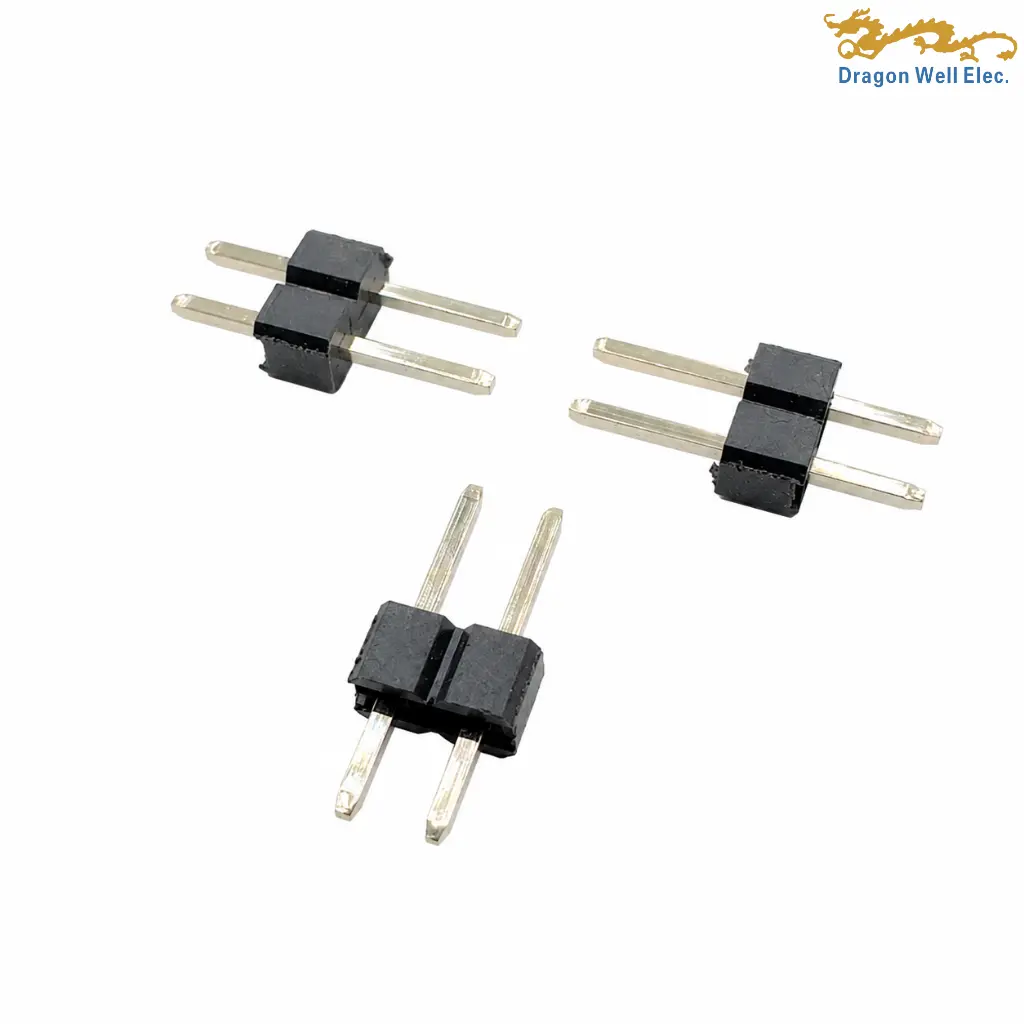

2.00mm pitch single-row pin header (DW-PH-1200256WVnP-XPE-01) is a vertical, through-hole PCB connector designed to provide reliable electrical connections between printed circuit boards and compatible electronic components. The Dragon Well drawing specifies a 2.00mm pitch, a single-row configuration, and a DIP mounting design. The illustrated product is a two-pin version, while the drawing’s dimensional table covers configurations from 2 to 40 pins.
The connector features a PA6T housing reinforced with 30% glass fiber and specified to UL94V-0. Its contacts are made of brass, with nickel underplating and a gold-flash finish identified by the model’s -01 plating code. The straight 180° pin arrangement supports vertical PCB mounting.
2.00mm pitch single-row pin header can be considered for control boards, embedded electronics, industrial equipment, and general electronic assemblies that require compact through-hole interconnections. The appropriate pin count depends on the circuit design and available PCB space.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-1200256WVnP-XXPE-01 | Description | 2.00 mm Pitch Pin Header, Single Row, DIP Type, Base Height 2.00 mm |
| Application | N/A | Component Type | Pin Header |
| PCB Connector Type | PCB Mount Header | Product Name | 2.00 mm Pitch Single Row DIP Pin Header |
| Keywords | 2.00 mm Pin Header, Single Row Pin Header, DIP Header, Through-Hole Header, Vertical Pin Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 2:00 AM |
| Contact Resistance | 30 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstand | 500 V AC | Norm | EIA-364C; RoHS Compliant |
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | Variable, 02P–40P |
| Circuits Maximum | 40P | Color – Housing | N/A |
| Durability / Mating Cycles | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | See part-number plating code; drawing lists Ni (30–50 µin) + Au (0.5–0.8 µin) under metal treatment |
| Material – Plating Solder | N/A | Material – Resin | PA6T + 30% GF, UL94V-0 |
| Metal Shape and Form | SQ0.50 (square post, 0.50 ±0.02 mm) | Number of Rows | 1 |
| Connector Orientation | Vertical / 180° | Packaging Type | PE Bag |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | 2.70 ±0.35 mm | Pitch – Mating Interface | 2.00 mm |
| Plating Min – Mating | See part-number plating code | Plating Min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Through Hole |
| Square Terminal Post | SQ0.50 (0.50 ±0.02 mm) | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Through Hole / DIP |
| PCB Thickness Recommended | N/A | Row-to-Row Pitch | N/A (Single row) |
| Height of Connector | 8.70 mm nominal (derived; overall tolerance not specified) | Recommended PCB Hole Dia. | Ø0.90 mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 3 s Max. |
| Lead-Free Process Compatible | N/A | Max-Temp | 260°C ±5°C |
