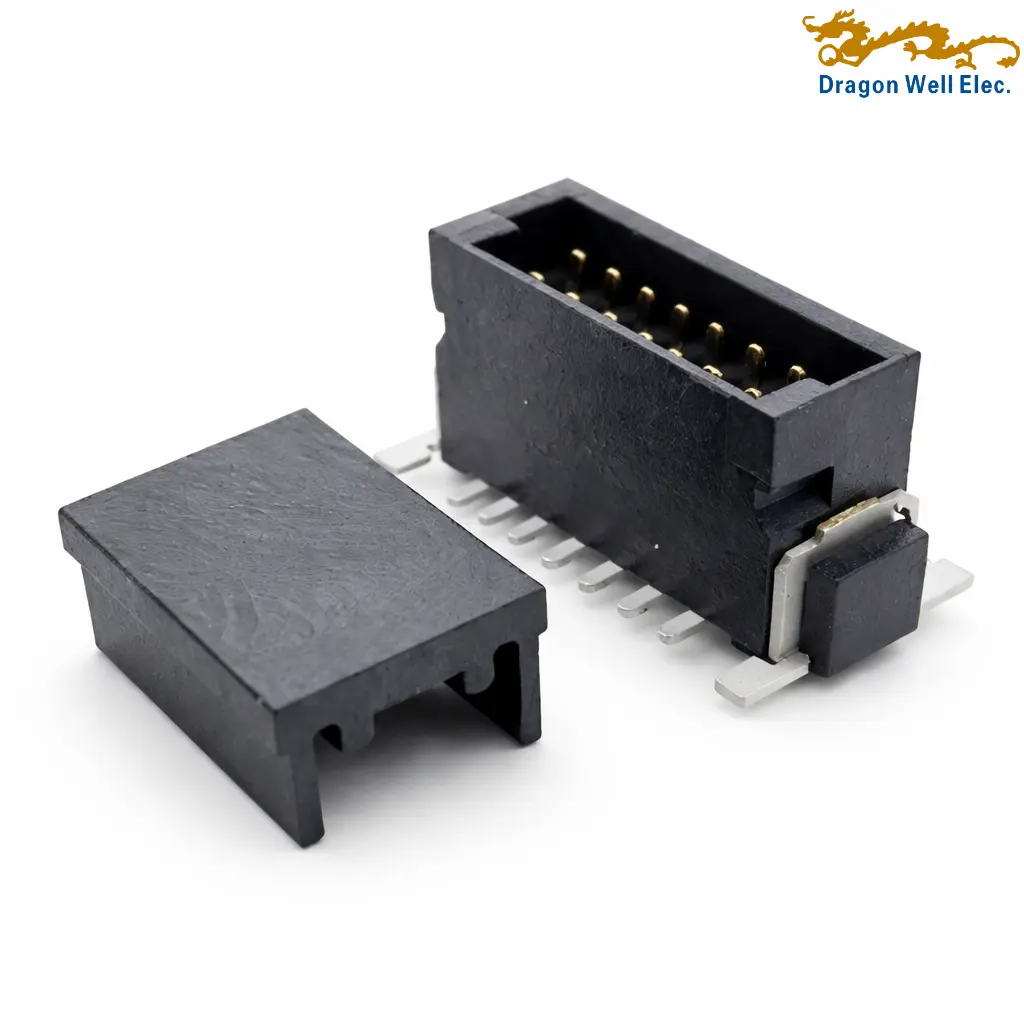

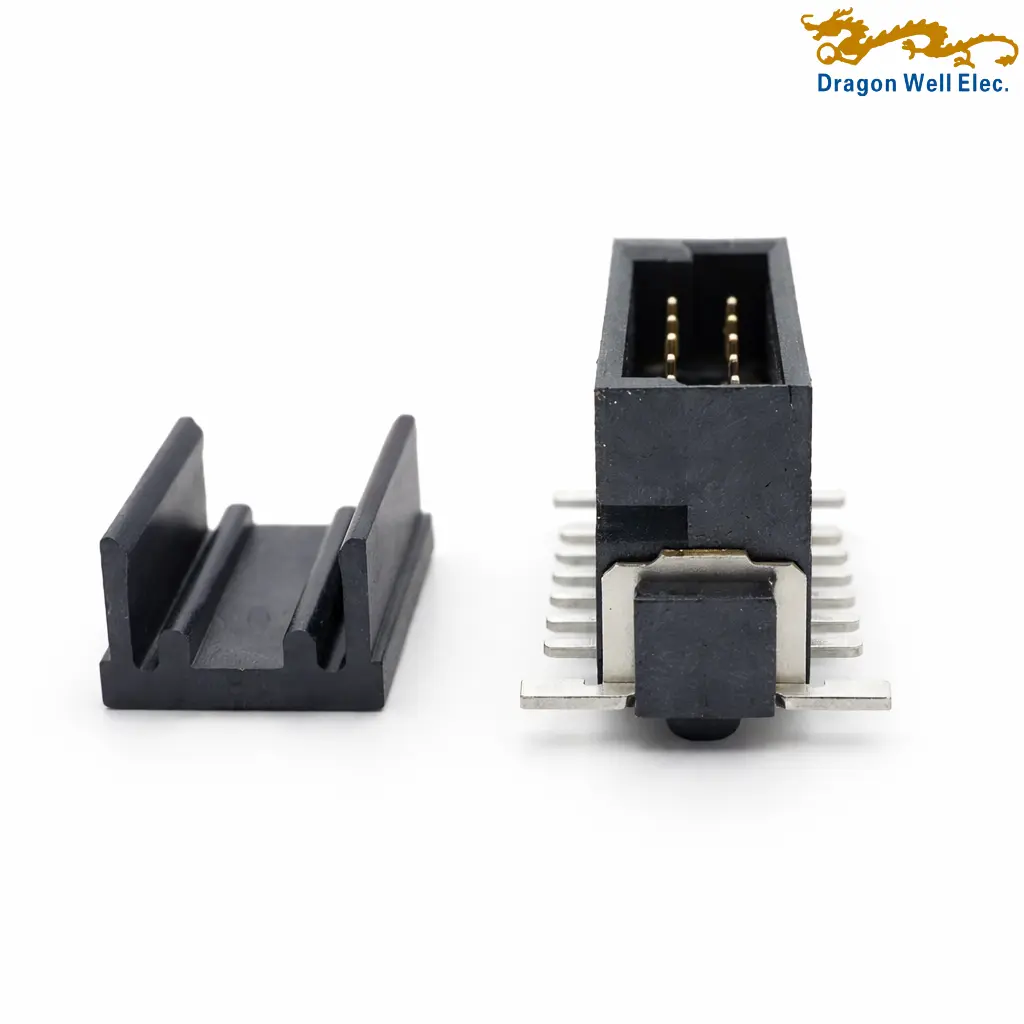

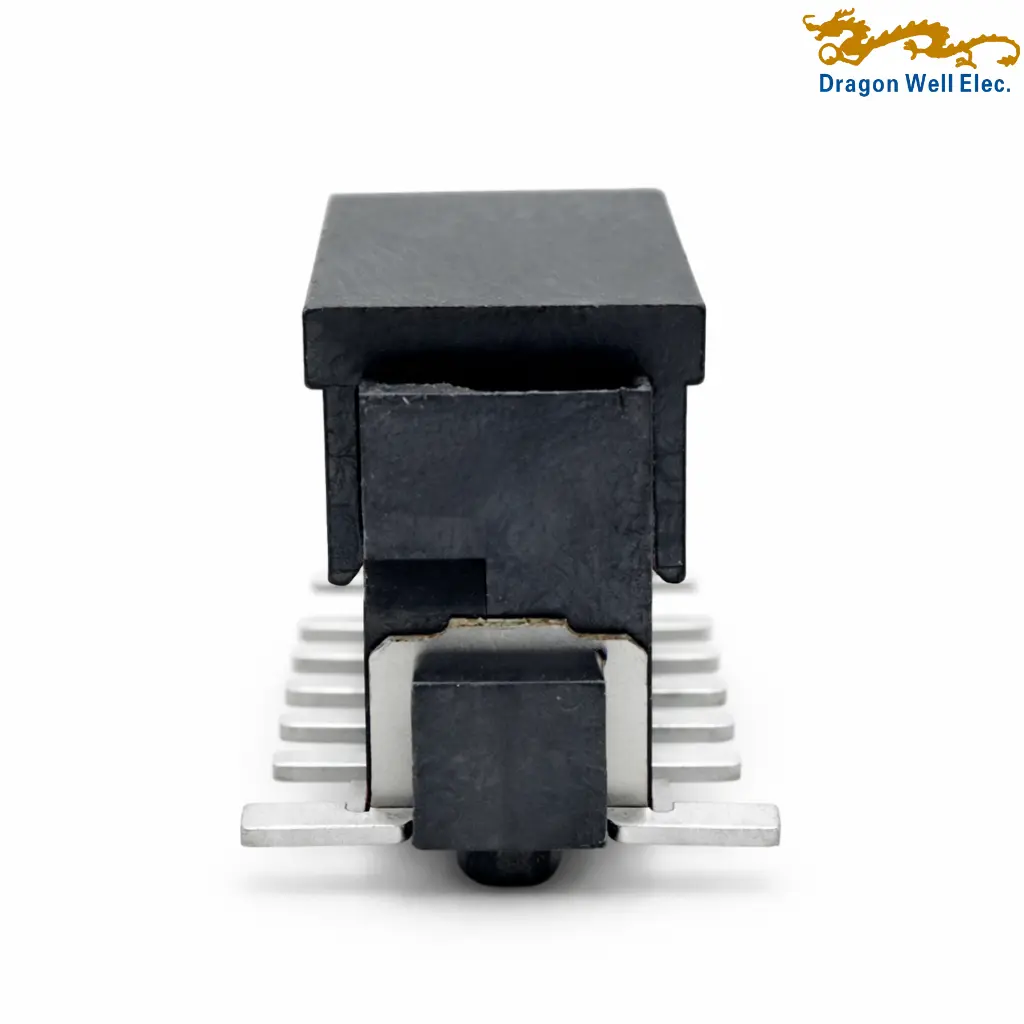

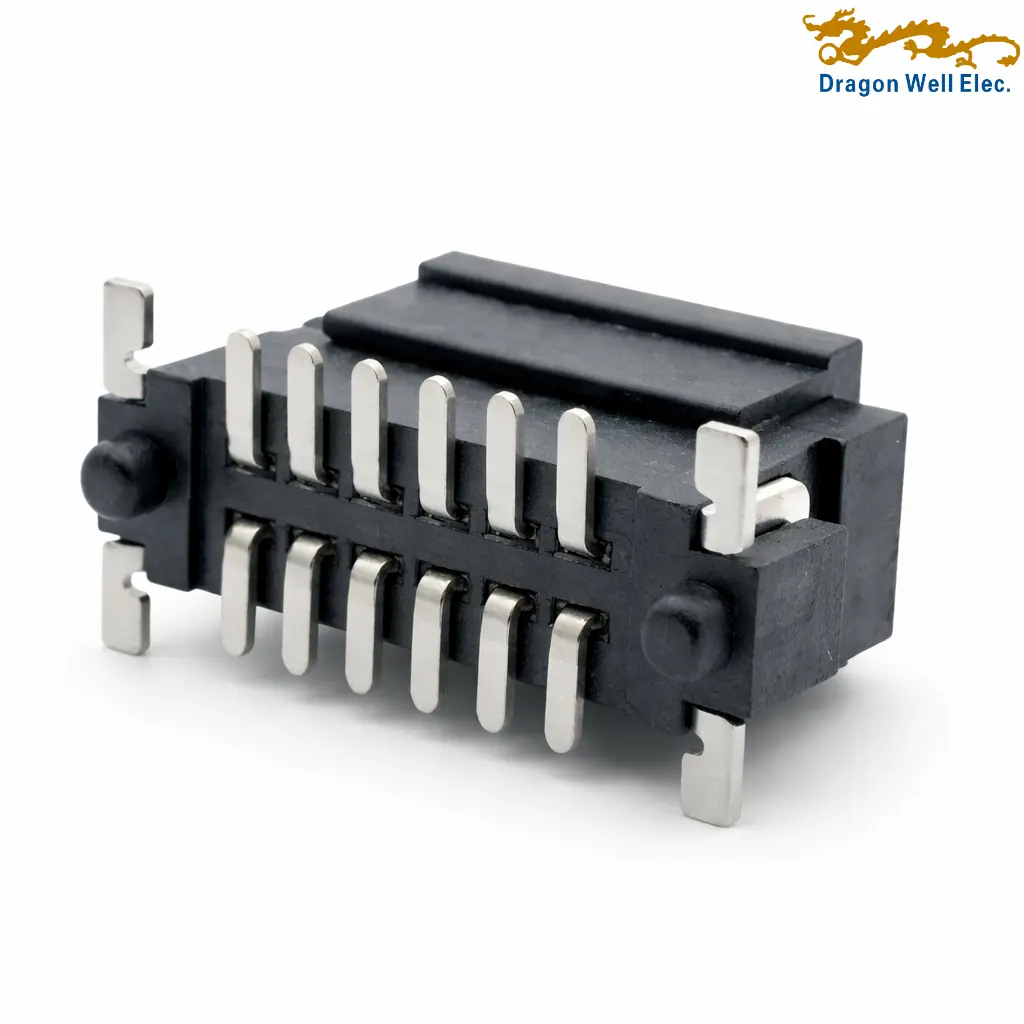

1.27mm E-Type SMT Male Connector with dual-row pin header design, vertical 180° orientation, H=6.7mm height, phosphor bronze contacts, Sn and Au over Ni plating, LCP UL94V-0 housing, 1.0A current rating, 500V rated voltage, and tape reel packaging with plastic cap. Available in variable pin counts from 10 to 100 pins.
Applications:
• Board-to-board signal connection
• Industrial control boards
• Communication equipment
• Embedded PCB modules
• Automation electronics
• Compact electronic devices
• Signal interface boards
• Instrumentation and control systems
• High-density PCB assemblies
Highlights:
• 1.27mm pitch E-type SMT male connector
• Dual-row pin header structure
• Vertical 180° orientation
• Surface mount termination
• H=6.7mm connector height
• Variable pin options: 10–100 pins
• Phosphor bronze contact material
• Sn and Au over Ni contact plating
• Sn over Ni tail plating
• LCP UL94V-0 main body and cover
• Rated current: 1.0A
• Rated voltage: 500V
• Contact resistance: 25mΩ max.
• Insulation resistance: 1000MΩ min.
• Operating temperature: -55°C to +125°C
• Recommended PCB hole diameter: Ø1.6mm
• Tape reel packaging with plastic cap
• RoHS compliant
1.27mm E-Type SMT Male Connector is a dual-row surface mount PCB connector designed for compact board-to-board signal applications where reliable electrical contact, stable PCB mounting, and high-density layout performance are required. Based on the drawing, this connector is an E-type SMT male connector with 1.27mm pitch, dual-row pin header structure, vertical 180° orientation, and H=6.7mm connector height.
The drawing identifies this series as DW-PH-2127730WVNP-XXTR-01, with variable total pin options from 10 pins to 100 pins. The part number structure indicates DW-PH pin header series, dual row, 1.27mm pitch, WV vertical 180° orientation, selectable total pins, selectable plating code, and TR tape reel packaging with plastic cap. This makes the connector suitable for automated SMT assembly and compact PCB designs requiring precise positioning.
This 1.27mm E-Type SMT Male Connector uses phosphor bronze contact and tail material. The contact plating is Sn and Au over Ni, while the tail plating is Sn over Ni, supporting dependable conductivity and soldering performance. The main body and cover material are LCP UL94V-0, suitable for high-temperature SMT processing. The drawing specifies a maximum processing temperature of 230°C for 30–60 seconds or 260°C for 10 seconds.
Electrical performance includes 1.0A rated current, 500V rated voltage, 25mΩ maximum contact resistance, 1000MΩ minimum insulation resistance, and an operating temperature range of -55°C to +125°C. With RoHS compliance, dual-row construction, surface mount termination, and multiple pin-count options, this connector is suitable for industrial control boards, communication modules, embedded systems, signal boards, and compact board-to-board PCB interconnection.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2127730WVNP-XXTR-01 | Description | 1.27mm E-type SMT Connector Npin H6.7 Male |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | SMT Connector CONN |
| Keywords | 1.27mm SMT Connector, Dual Row, E-type, Male, Surface Mount | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | 500V | Current Rating | 1.0A |
| Contact Resistance | 25mΩ Max | Insulation Resistance | 1000MΩ Min |
| Dielectric Withstand | 500V | Norm | N/A |
| Operation Temperature | -55°C to +125°C | ||
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | Variable (Npin) |
| Circuits Maximum | N/A | Color – Housing | Black |
| Durability / Mating Cycles | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Phosphor Bronze | Material – Plating | Sn and Au over Ni |
| Material – Plating Solder | Sn over Ni | Material – Resin | LCP UL94V0 |
| Metal Shape and Form | Rectangular | Number of Rows | Dual Row |
| Connector Orientation | Vertical | Packaging Type | Tape Reel |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | 0.8mm | Pitch – Mating Interface | 1.27mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | 0.12-0.15mm depending on pin count |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | N/A | Stackable | N/A |
| Termination Interface | Surface Mount | PCB Mount Retention | N/A |
| Connector Mounting | Surface Mount | Row-to-Row Pitch | 2.54mm standard? (based on drawing; confirm) |
| Height of Connector | 6.7mm | Recommended PCB Hole Dia. | Ø1.5mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process | N/A | Max-Temp | 230°C for 30–60s (260°C for 10s) |
