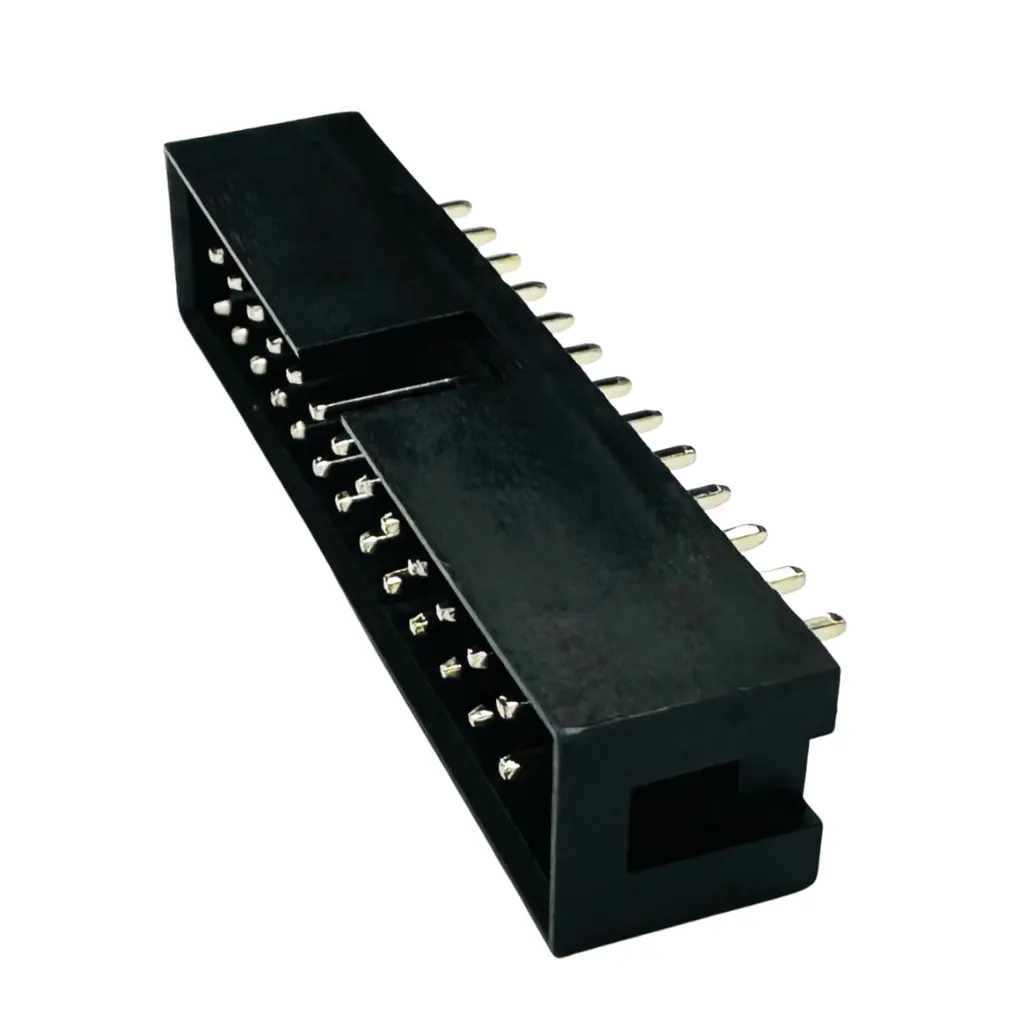

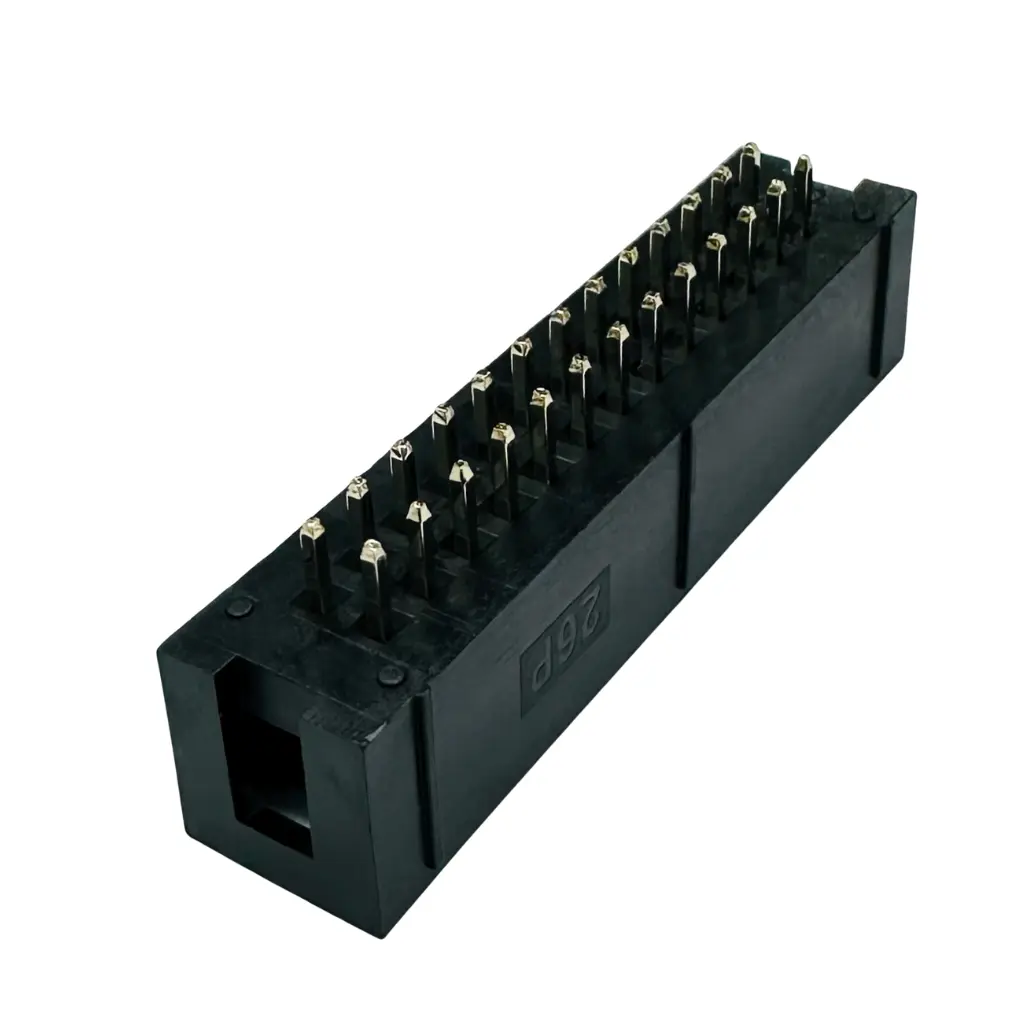

The 2.54mm DIP box header connector is a dual-row, vertical 180° boxed header for 2.54mm (.100″) PCBs, offering 3A per contact, gold-over-nickel plated brass terminals and a UL 94V-0 glass-filled nylon housing, ideal for robust board-level signal and low-power interconnects.
Applications:
Industrial control equipment and PLC I/O boards
Consumer electronics and PC motherboards
Embedded system expansion headers and I/O connectors
Add-on cards and PCBs using 2.54mm box header mating
Designs requiring secure mating retention and precise pin alignment
Highlights:
2.54mm DIP box header connector with vertical 180° orientation
Dual-row configuration supporting 6–64 positions
3A per contact, 500V AC rating with ≥1000MΩ insulation resistance
Brass terminals with Ni (30–50µ”) + Au (0.5–0.8µ”) plating for low contact resistance
Glass-filled nylon UL 94V-0 housing for thermal and mechanical stability
DIP through-hole tails suitable for wave soldering up to 260°C
Boxed shroud with polarizing slots to prevent mis-mating
2.54mm DIP box header connector is a vertical 180° through-hole header designed for high-reliability board-to-board and wire-to-board signal interfaces. This 2.54mm DIP box header connector uses a dual-row configuration with contact spacing of 2.54mm (.100″) between pins and rows, supporting standard pin counts from 6 up to 64 positions. The boxed shroud and polarizing slots ensure correct mating with matching ribbon cable or socket connectors, helping prevent misalignment in dense PCB layouts.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-BH-225430WVnP-01TP | Description | 2.54mm Pitch Box Header, 30 Positions, Through-Hole, Vertical, Gold Flash Plating |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Box Header, Through-hole Header, PCB Mount Connector, Straight Header, 2.54mm Header, Male Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Current – Maximum per Contact | 3.0A | Voltage – Maximum | AC 500V |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 06-64 |
| Circuits (Maximum) | 100 (series range) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Au 0.5µm over Ni |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | Glass-filled Nylon (UL94V-0) |
| Metal Shape & Form | Square | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tray |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 3.3mm ±0.2 | Pitch – Mating Interface | 2.54mm |
| Plating min – Mating | 0.5µm | Plating min – Termination | 0.5µm |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Shrouded | Yes | Stackable | No |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.64mm (.025in) | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm (.062in) | Row-to-Row pitch | 2.54mm |
| Height of connector above PCB | 9.00mm | ||
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
