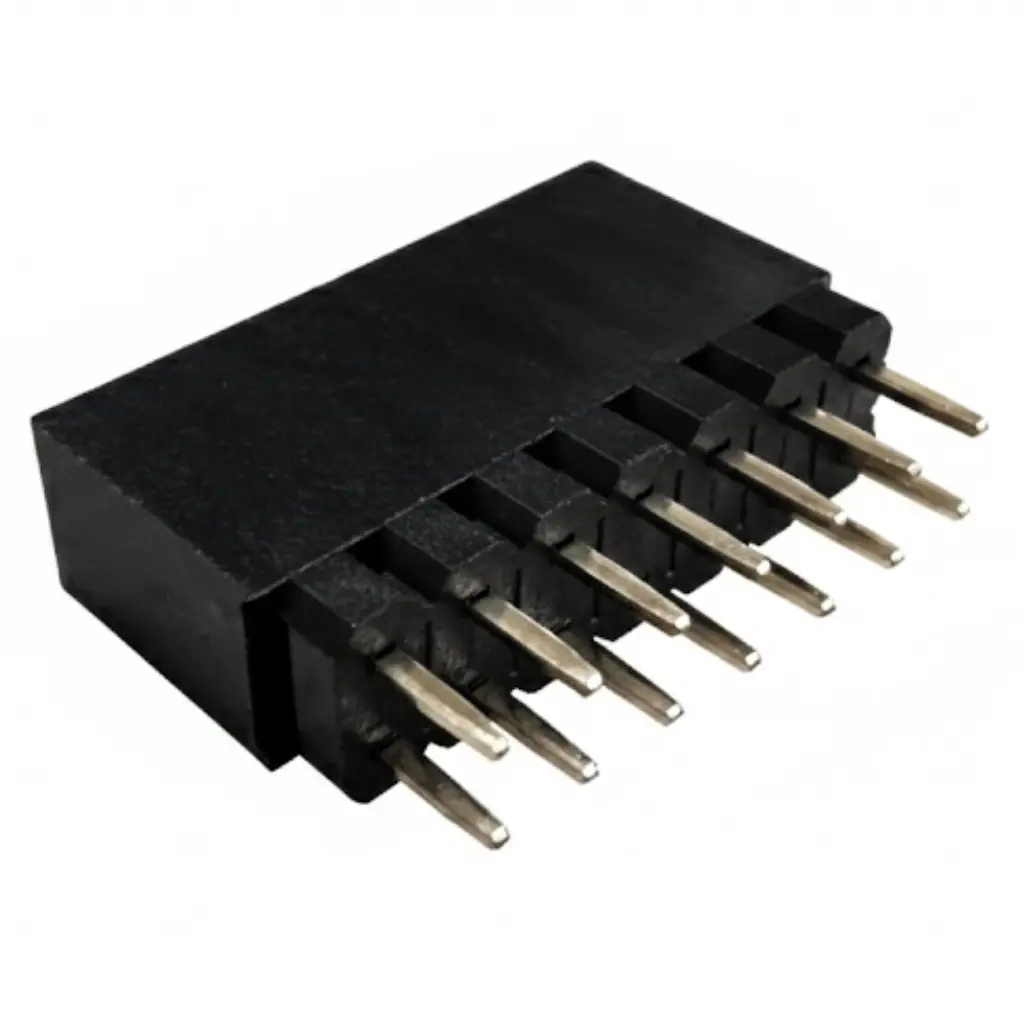

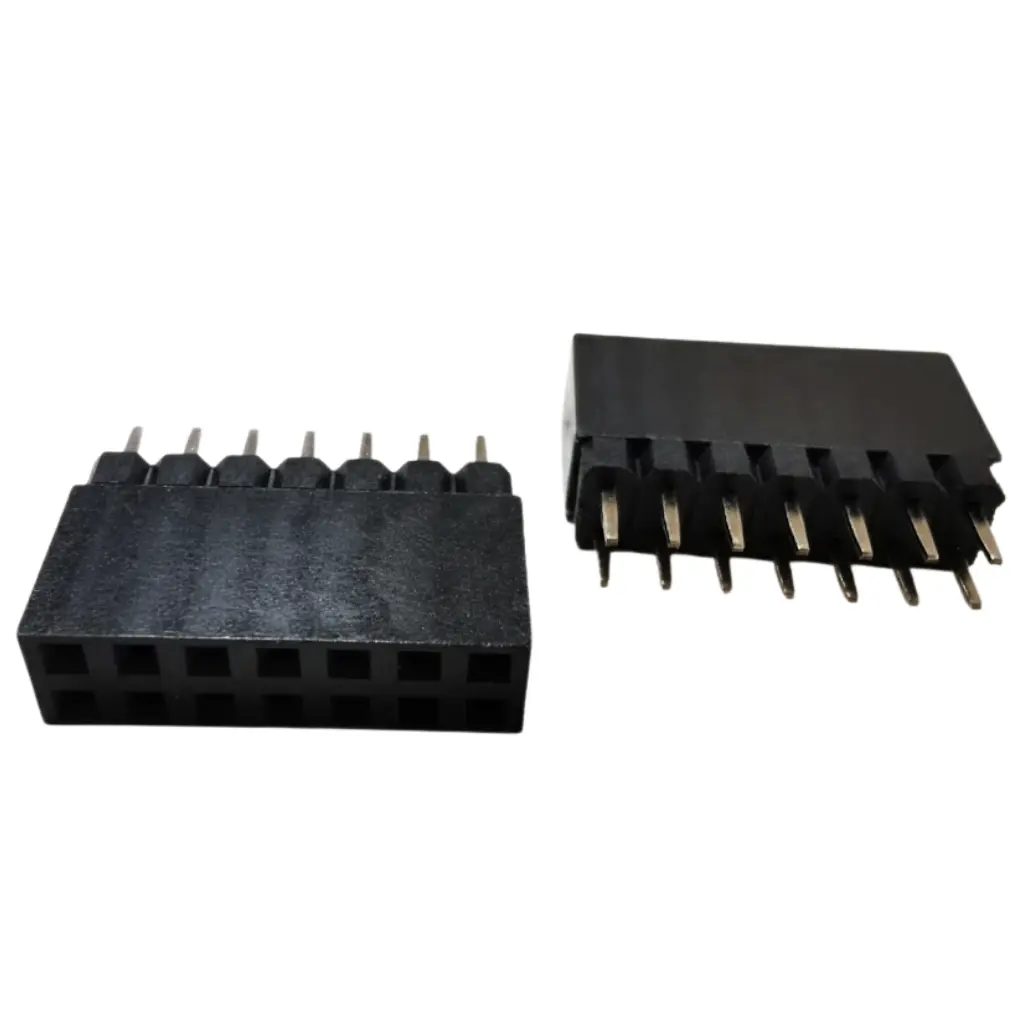

The 2.54mm dual row SMT female header 10.5H is a vertical 180° socket with phosphor bronze, gold-over-nickel contacts and a PA6T + 30% GF UL94V-0 housing, providing 1 A per pin, AC 500 V rating and compact dual-row mating for 2.54mm PCB headers in high-density control and interface boards.
Applications:
PCB interface headers in consumer and industrial electronics
Vertical board-to-board signal sockets with 2.54mm pitch
Control modules and embedded systems requiring dual-row female connectors
Compact devices that need low-profile, high-reliability 2.54mm sockets
Highlights:
2.54mm dual row SMT female header with vertical 180° orientation (WV code)
SMT-type base with 10.5 mm body height for compact stacking
Phosphor bronze contacts with 0.5–0.8 μm gold over 30–50 μm nickel plating
Electrical ratings: 1 A/contact, AC 500 V, ≥1000 MΩ insulation, ≤20 mΩ contact resistance
PA6T + 30% glass fiber UL94V-0 housing; soldering up to 260°C
RoHS, REACH SVHC and low-halogen compliant
2.54mm dual row SMT female header is a vertical 180° socket connector designed for reliable board-to-board signal interfaces on standard 2.54mm (.100″) pitch PCBs. This 2.54mm dual row SMT female header uses two parallel rows of receptacles arranged on a 2.54mm grid, with each square socket measuring 0.64 × 0.40 mm to mate securely with matching posts. The SMT-type base has a nominal body height of 10.5 mm, providing a compact profile while still allowing adequate clearance for adjacent components.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2254160WV16P-01TP-01 | Description | 2.54mm Pitch Dual Row Female Header, SMT Type, 10.5mm Base Height, Gold Plated Contacts, Tray Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, PCB Mount Header, Female Header, Header connector, SMT Pin Header, Dual Row Pin Header, Straight Pin Header, Through-hole Pin Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 1.0A |
| Contact Resistance | ≤20mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 16 |
| Circuits (Maximum) | 80 (series option) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Gold (Au) 0.5~0.8μ over Ni |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | PA6T+30%GF |
| Metal Shape & Form | Square Pin | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tray |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 3.5mm ±0.30 | Pitch – Mating Interface | 2.54mm |
| Plating min – Mating | 0.76μm (30μ”) | Plating min – Termination | 0.76μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40° to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.64mm (.025in) | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm (.062in) | Row-to-Row pitch | 2.54mm |
| Net Weight | — | Height of connector above PCB | 10.5mm |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
