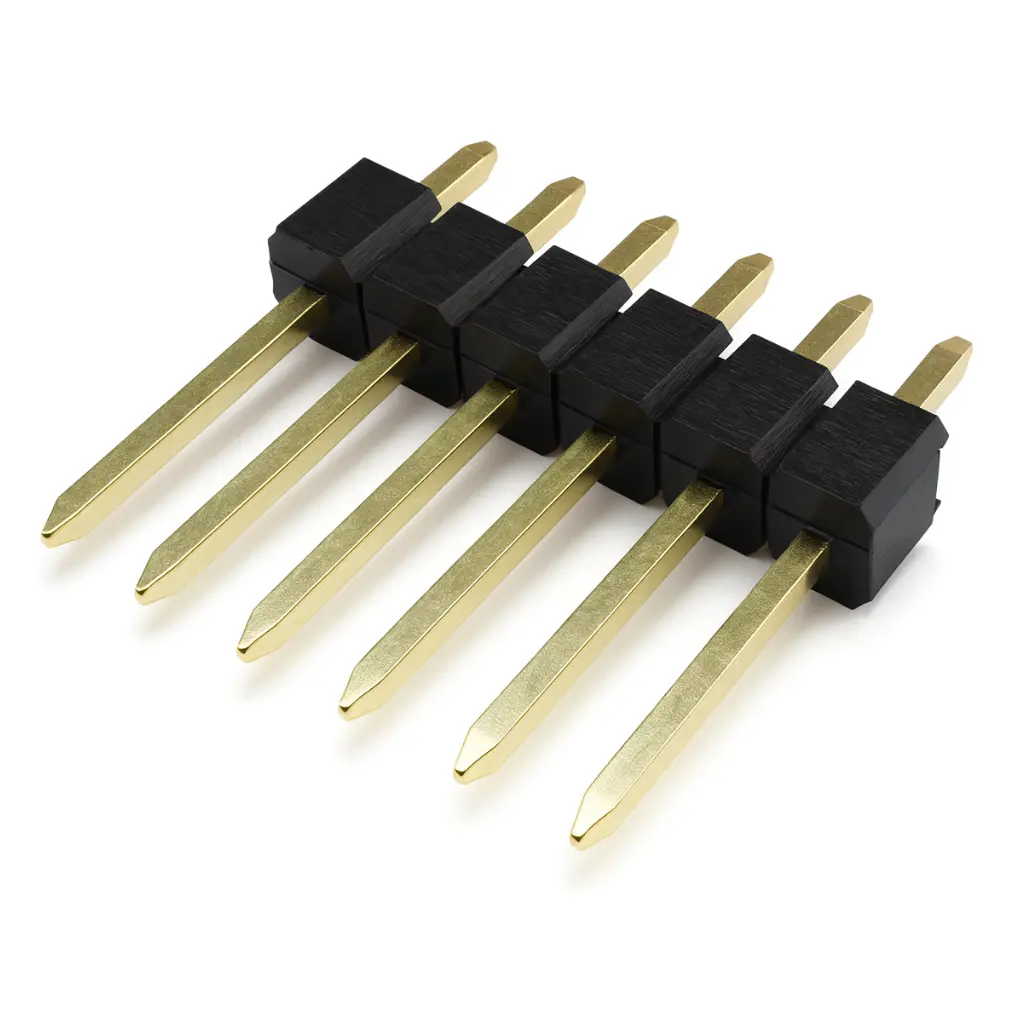

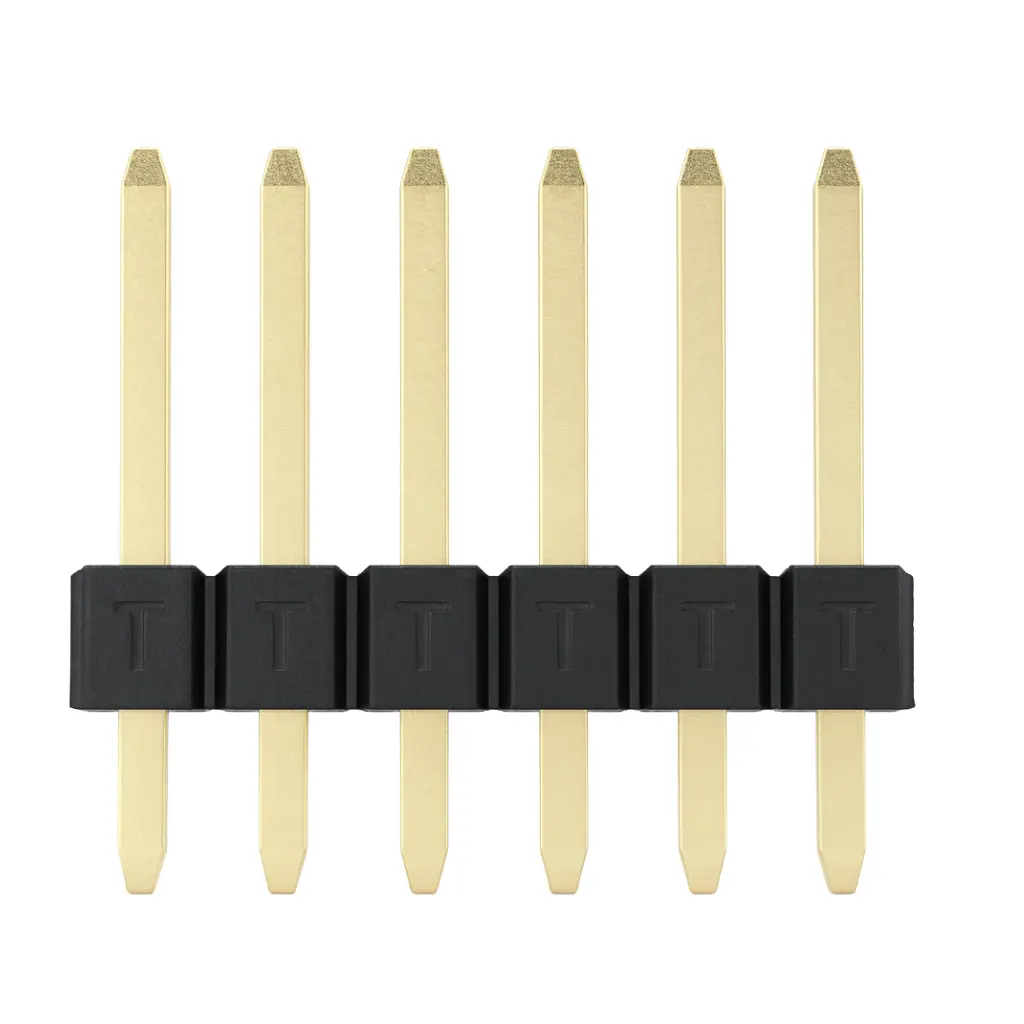

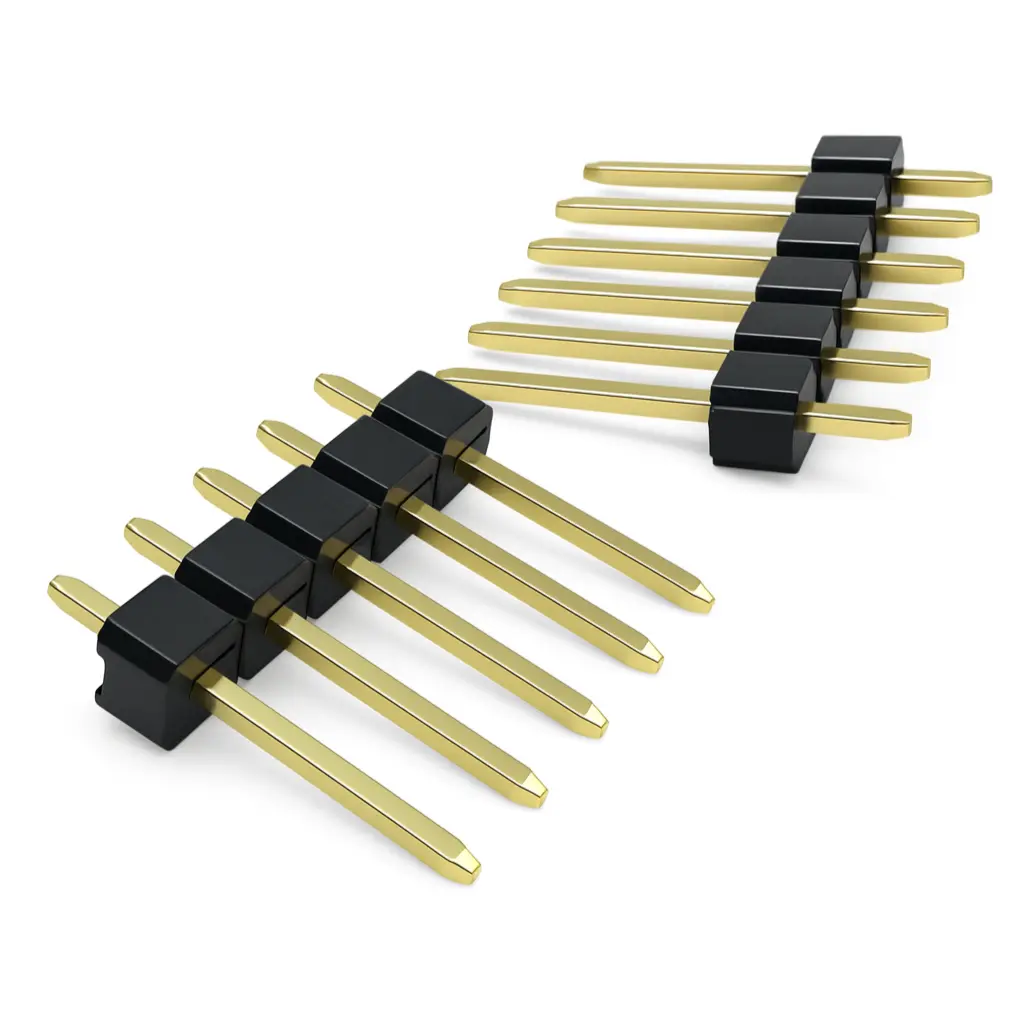

The 2.54mm pin header single row DIP type base 2.54H is a 3A-rated through-hole connector with 0.64mm square brass pins, gold-over-nickel plating and a PA6T + 30% GF UL94V-0 housing, delivering reliable single-row 2.54mm PCB interconnections for embedded and control electronics.
Applications:
Arduino, Raspberry Pi and other development or expansion boards
Consumer and industrial control modules and I/O headers
Embedded processor or power boards needing single-row 2.54mm signal/power pins
General-purpose wire-to-board or board-to-board interfaces on 0.1″ grids
Highlights:
2.54mm pin header, single row DIP type base 2.54H
0.64mm square brass pins at 2.54mm pitch; 7.49mm overall pin length
Electrical ratings: 3A/contact, AC 500V, ≥1000MΩ insulation, ≤30mΩ contact resistance
Plating: Ni(30–50µ”) + Au(0.5–0.8µ”) for long-term conductivity
PA6T + 30% GF UL94V-0 housing; operating temperature -40°C to +105°C
Wave-solder compatible up to 260°C ±5°C / 10s; RoHS and REACH compliant
2-54mm pin header single row DIP type base 2-54H is a standard 2.54mm pitch through-hole connector for reliable PCB interconnections in industrial, commercial and consumer electronics. This 2.54mm pin header single row DIP type base 2.54H uses a single row of square pins with a cross-section of 0.64mm × 0.64mm, spaced at 2.54mm centers to match common 0.1″ grid layouts.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-1254183WV06P-01PE-01 | Description | 2.54mm Pitch Single Row Pin Header, DIP Type, 2.54mm Base Height, Gold Plated Contacts, PE Bag Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, Pin Header, Header connector, DIP Pin Header, Single Row Pin Header, Through-hole Pin Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 3.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 8 |
| Circuits (Maximum) | 40 (series option) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Gold (Au) 0.5~0.8μ over Ni |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | PA6T+30%GF |
| Metal Shape & Form | Square Pin | Number of Rows | 1 |
| Connector Orientation | Vertical / Straight | Packaging Type | PE Bag |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 7.49mm ±0.30 | Pitch – Mating Interface | 2.54mm |
| Plating min – Mating | 0.76μm (30μ”) | Plating min – Termination | 0.76μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40° to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.64mm | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | — |
| Net Weight | — | Height of connector above PCB | 2.54mm |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
