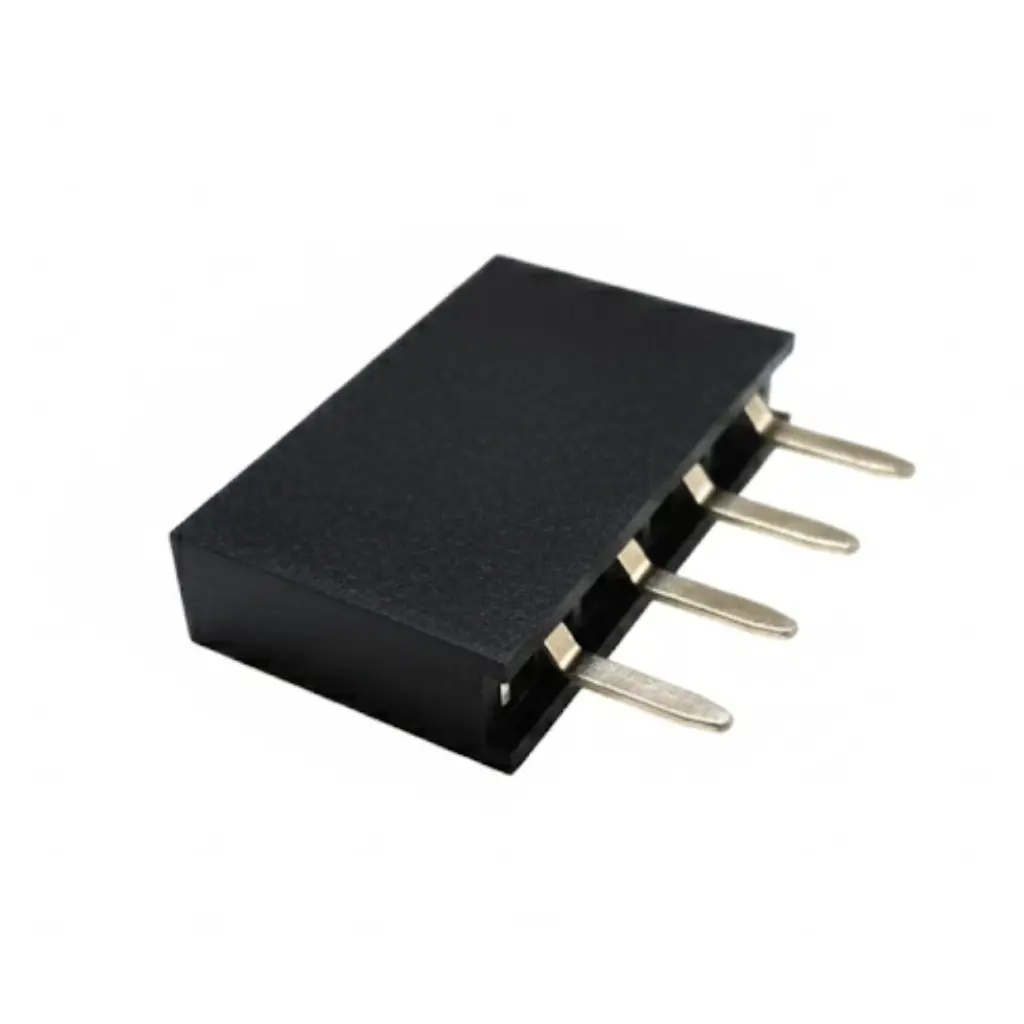

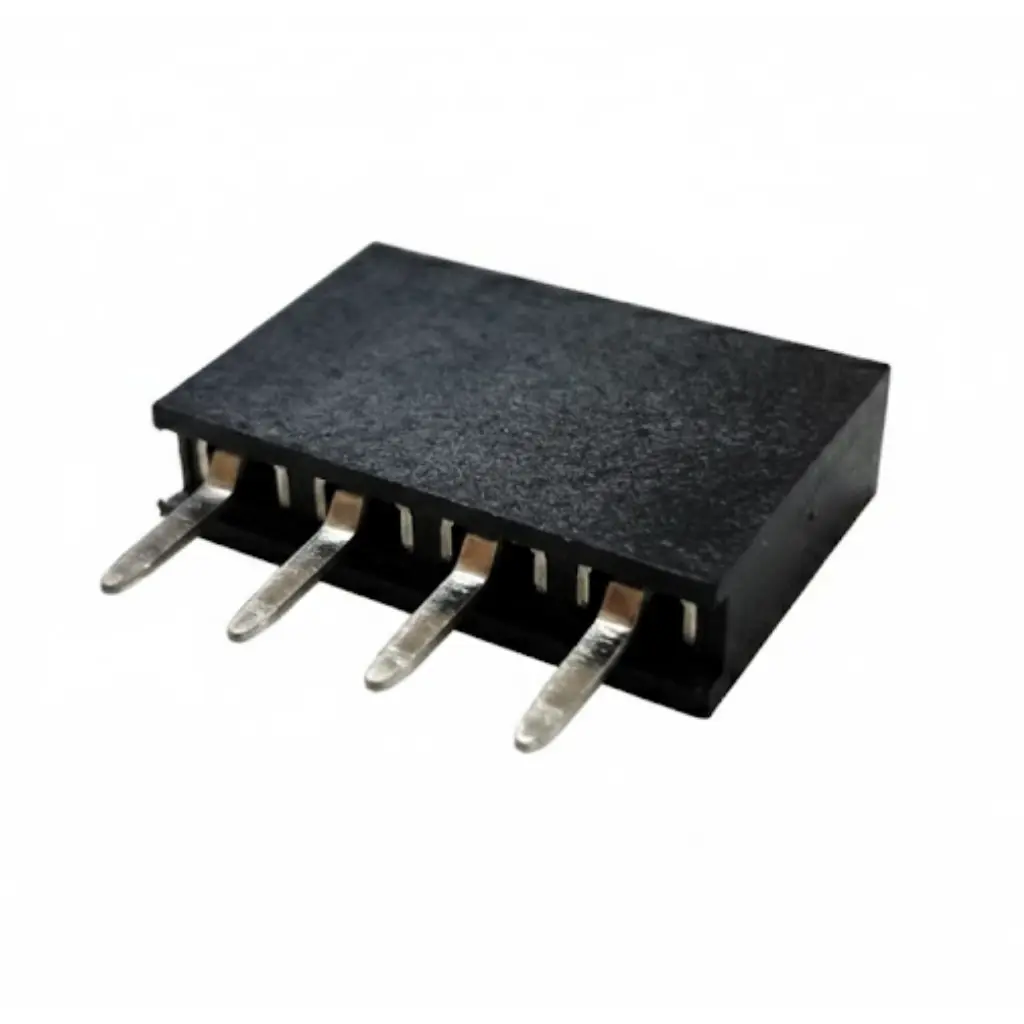

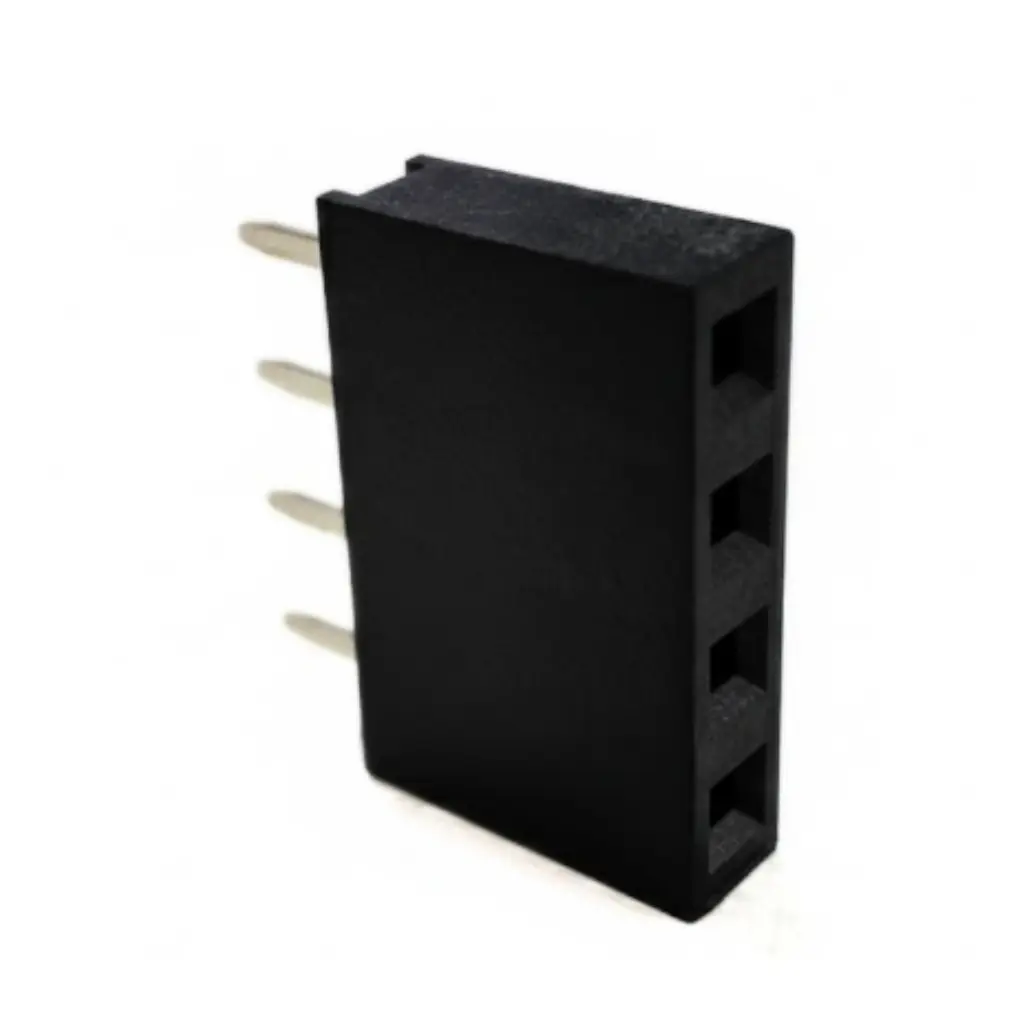

The 2.54mm single row DIP female header is a vertical through-hole socket with gold-plated copper alloy contacts and a PA6T UL94V-0 housing, delivering 3A per contact, high heat resistance and reliable single-row mating for standard 2.54mm PCB headers.
Applications:
Signal socketing in embedded systems and controller boards
Arduino-style or other microcontroller development boards
Industrial modules with vertical plug-in headers
General-purpose prototyping and production PCBs requiring single-row female headers
Highlights:
2.54mm single row DIP female header with vertical 180° orientation
Single line of sockets with 0.6mm × 0.25mm holes at 2.54mm pitch
3A per contact, ≤30mΩ contact resistance, ≥1000MΩ insulation resistance
Gold (0.5–0.8μm) over nickel (30–50μm) plated copper alloy contacts for superior signal quality
PA6T UL94V-0 flame-retardant housing supports wave soldering up to 260°C
Compact 7.10mm overall height for space-constrained designs
RoHS, REACH SVHC and low-halogen compliant
2.54mm single row DIP female header is a compact through-hole socket solution designed for simple, reliable board-to-board and signal interconnections on standard 2.54mm (.100″) PCBs. This 2.54mm single row DIP female header uses a single line of contacts, making it ideal where pin count is modest but vertical mating and easy probing are required, such as microcontroller boards, industrial modules, and prototyping platforms.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-1254523WV4P-XXTP-01 | Description | 2.54mm Pitch Single Row Female Header, DIP Type, Gold Plated Contacts, Tray Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, PCB Connector, Female Header, Header connector, DIP Pin Header, Single Row Pin Header, Straight Pin Header, Through-hole Pin Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 3.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 8 |
| Circuits (Maximum) | 40 (series option) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Copper Alloy | Material – Plating Mating | Gold (Au) |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | PA6T UL94V-0 |
| Metal Shape & Form | Square Pin | Number of Rows | 1 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tray |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 3.2mm ±0.30 | Pitch – Mating Interface | 2.54mm |
| Plating min – Mating | 0.76μm (30μ”) | Plating min – Termination | 0.76μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40° to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.64mm (.025in) | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm (.062in) | Row-to-Row pitch | N/A |
| Net Weight | — | Height of connector above PCB | _ |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
