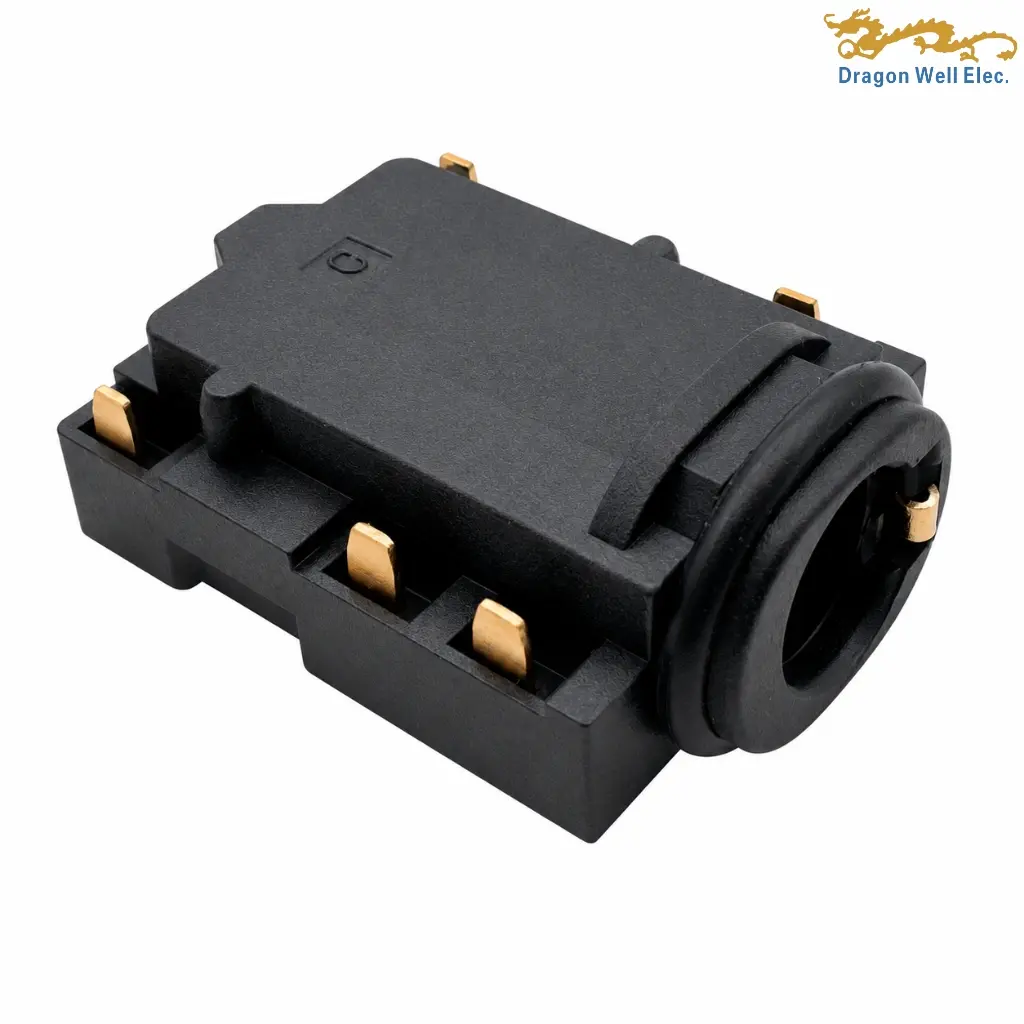

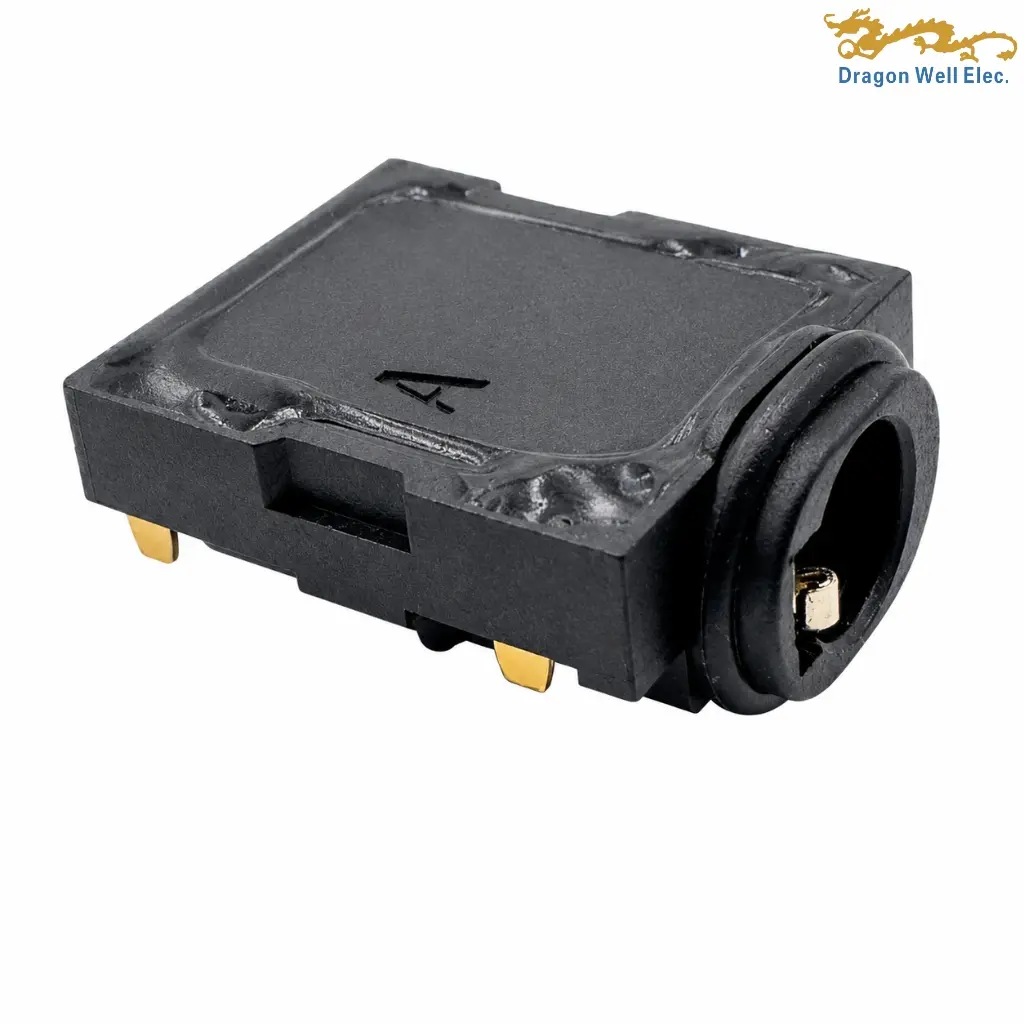

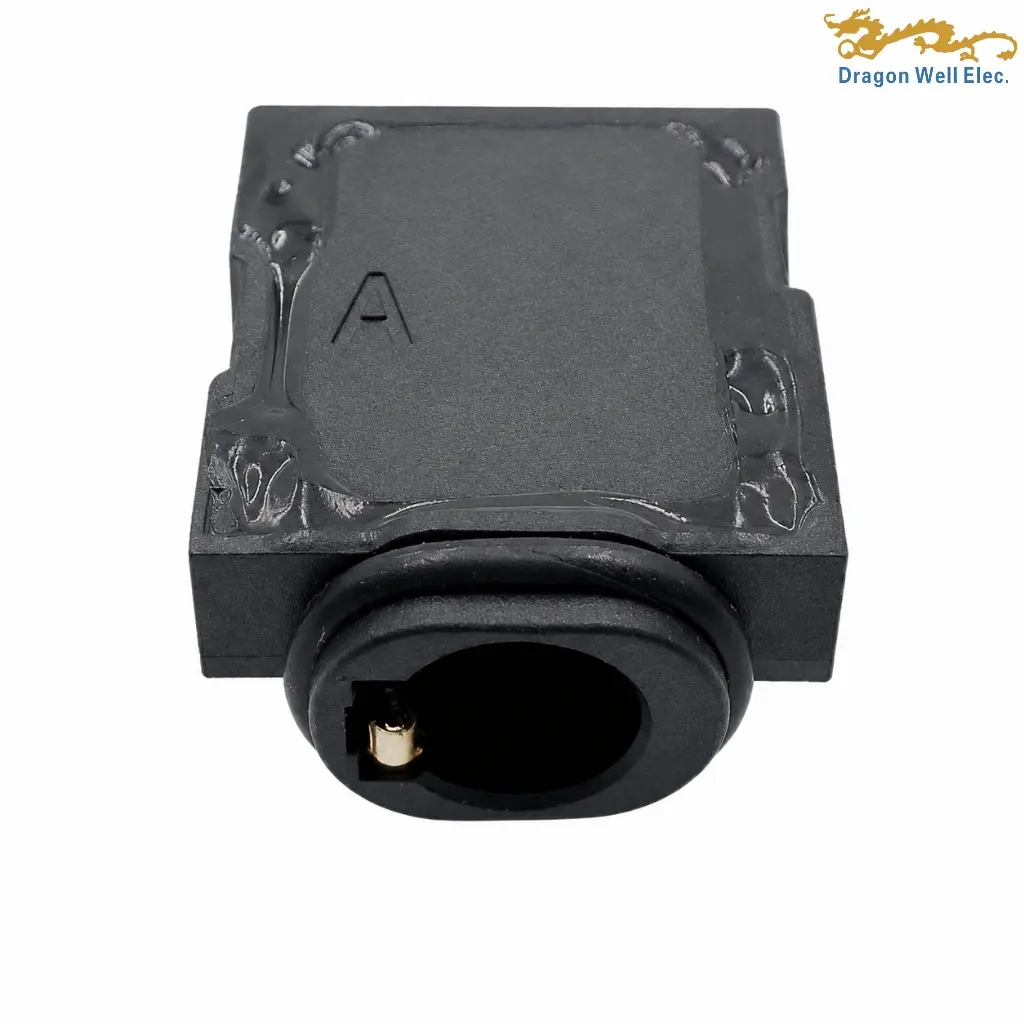

3.5mm Waterproof Phone Jack PCB Mount Audio Connector is a compact right-angle audio jack designed for reliable PCB integration. Featuring IPX7 protection, gold-plated copper alloy contacts, and durable construction, it provides stable audio connection performance in demanding applications.
3.5mm Waterproof Phone Jack PCB Mount Audio Connector is a reliable audio interface solution designed for electronic devices requiring compact size, stable signal transmission, and enhanced environmental protection. The DW-PJ-D38095 features a Ø3.5mm phone jack design with PCB mounting capability and an IPX7 waterproof structure, providing dependable performance for applications where moisture resistance and durability are required.
This 3.5mm phone jack connector is manufactured with a durable black housing structure and copper alloy terminals to ensure mechanical strength and consistent electrical connection. The contacts feature gold plating to improve conductivity, corrosion resistance, and long-term connection reliability. Designed for PCB integration, this audio connector provides a compact right-angle configuration suitable for space-limited electronic assemblies.
The DW-PJ-D38095 supports a voltage rating of 12V AC RMS and a current rating of 1A. It provides low contact resistance of 30mΩ maximum initially, with insulation resistance reaching 1000MΩ minimum. The connector also supports 500V AC RMS withstand voltage performance, ensuring reliable electrical safety during operation.
With a minimum operating life of 5000 cycles, this waterproof 3.5mm phone jack is designed for repeated plugging and unplugging operations. Its IPX7 protection design makes it suitable for applications requiring additional resistance against water exposure.
The DW-PJ-D38095 can be applied in audio equipment, portable electronics, industrial devices, communication terminals, and other electronic products requiring a reliable headphone or audio connection interface. Dragon Well Electronics provides customized audio jack solutions with different structures, mounting options, plating requirements, and specifications for OEM and ODM applications.
| 1. General | |||
| Status | Active | Category | Audio / Phone Jack |
| Model No. | DW-PJ-D38095 | Description | Ø3.5 mm Waterproof Right-Angle Phone Jack Receptacle |
| Component Type | Receptacle | Product Name | 3.5 mm Waterproof Phone Jack |
| 2. Electrical | |||
| Current – Maximum per Contact | 1:00 AM | Voltage – Maximum | 12 VAC RMS |
| Shielded | — | Grounding to Panel | — |
| Contact Resistance (Max) | 30 mΩ Max. initial; 50 mΩ Max. after life test | Insulation Resistance (Min) | 1000 MΩ Min. at 500 VDC initial; 100 MΩ Min. at 500 VDC after humidity test |
| Withstand Voltage | 500 VAC RMS, 50/60 Hz, 1 minute | ||
| 3. Physical | |||
| Circuits (Loaded) | 5 (Terminals 1–5) | Circuits (Maximum) | 5 |
| Gender | Female | Orientation | Right Angle |
| Termination Interface Style | THT / DIP | Ports | 1 |
| Material – Contact | Copper Alloy, T = 0.20 mm | Material – Resin / Housing | High-Temp Material, Black |
| Material – Plating Mating | Au Plated | Material – Plating Termination | Au Plated |
| Overall Underplating | — | Waterproof / Dustproof | IPX7 Waterproof; dust rating not specified |
| Panel Mount | — | PCB Thickness – Recommended | — |
| PCB Locator | — | Packaging Type | — |
| Polarized to Mating Part | — | Polarized to PCB | — |
| Pitch – Mating Interface | — | Wire Size (AWG) | — |
| Net Weight | — | Number of Rows | — |
| 4. Mechanical | |||
| Mating Force (Max) | 3.0 kgf Max. | Operating Temperature | -30°C to +80°C |
| Operating Life (Cycles) | 5000 cycles Min. | Unmating Force (Min) | 0.3 kgf Min. |
