3.5mm phone jack right-angle THT/DIP socket for PCB audio applications, designed with a horizontal plug entry, through-hole mounting, and switching contact structure. Based on the drawing, this connector supports DC 30V / 0.5A, uses a Ø3.5 mm mating interface, and is built with plated metal contacts, spring elements, and insulated housing materials for stable board-level audio connection. It is suitable for compact electronic products requiring a durable PCB-mount 3.5mm audio jack with switching function.
• Applications: Audio equipment, headphone jacks, portable electronics, multimedia devices, communication terminals, control boards, embedded systems, signal interface modules.
• Highlights: Ø3.5 mm phone jack; right-angle PCB mount; THT/DIP termination; switching contact design; DC 30V / 0.5A rating; 500VAC withstand voltage; insulation resistance >100MΩ; insertion/extraction force 3N~30N; minimum 5000 cycles; RoHS compliant; model DW-PJ-D3007GS1-X.

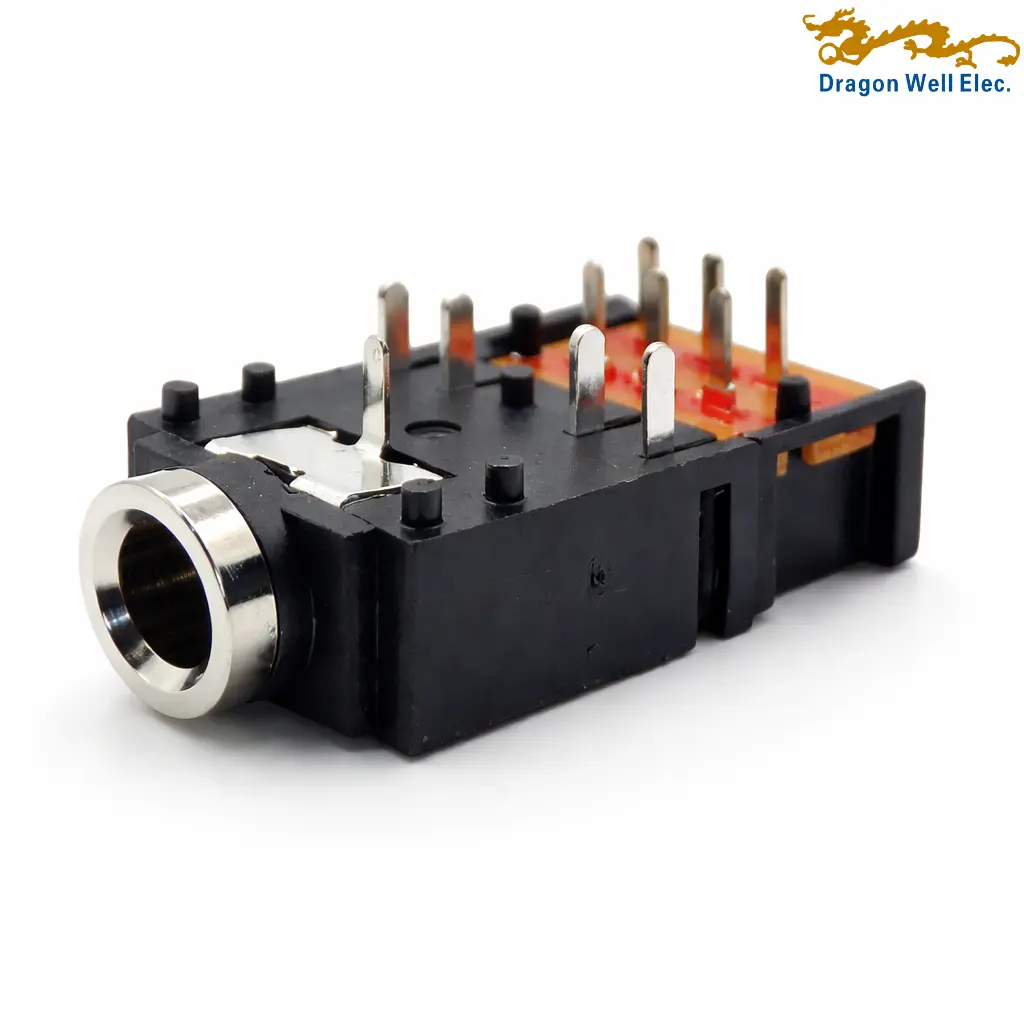

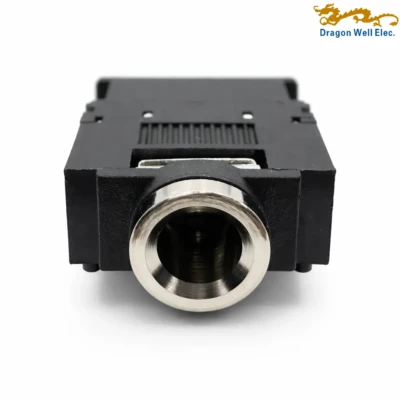

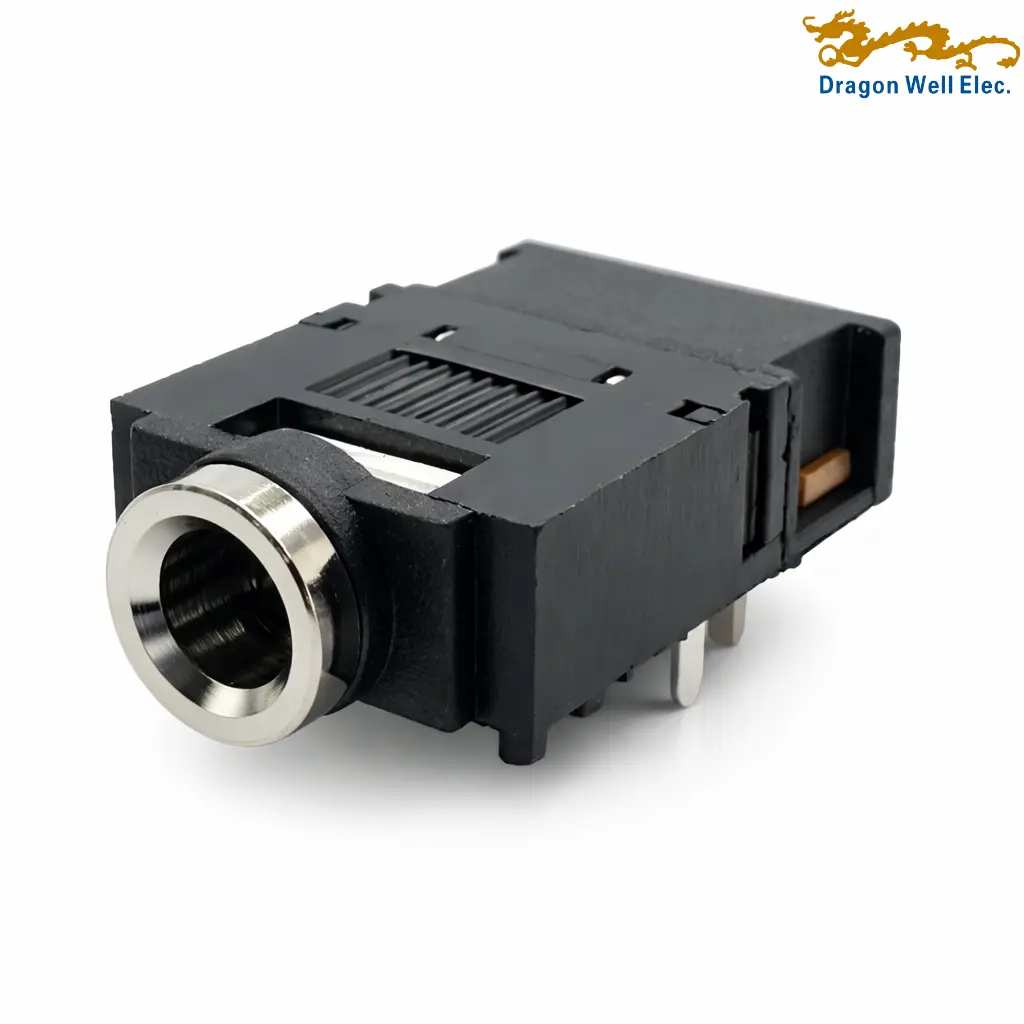

3.5mm phone jack right-angle THT/DIP connector is a compact PCB-mount audio socket designed for stable signal transmission in portable electronics, audio devices, and embedded control products. Based on the drawing, this connector is a Ø3.5 mm phone jack with right-angle through-hole mounting, a switching contact structure, and a matching plug interface for standard 3.5 mm plug insertion. It is offered under model DW-PJ-D3007GS1-X, with schematic variants shown as A, B, C, and D.
This 3.5mm phone jack right-angle THT/DIP connector is rated DC 30V, 0.5A and is designed for dependable PCB audio connection where compact size and mechanical retention are important. The specification in the drawing shows contact resistance ≤50mΩ for the front body contact path and ≤30mΩ for the switched body contact path, with higher allowable values after testing. The connector also provides insulation resistance >100MΩ at 500VDC and withstanding voltage of 500VAC, helping maintain electrical reliability in typical signal applications.
its recommended PCB layout, durable structure, and switched contact design, this 3.5mm PCB phone jack is suitable for audio input/output circuits, signal routing, headset interfaces, and compact electronic equipment. The drawing also marks the product as RoHS compliant.
| 1. General | |||
| Status | Active | Category | Audio / Phone Jack |
| Model No. | DW-PJ-D3007GS1-X | Description | 3.5mm Right-Angle Phone Jack Receptacle |
| Component Type | Receptacle | Product Name | 3.5mm Right-Angle Phone Jack |
| 2. Electrical | |||
| Current – Maximum per Contact | 0.5 A | Voltage – Maximum | DC 30 V |
| Shielded | — | Grounding to Panel | — |
| Contact Resistance (Max) | Front body (1#–5#): ≤50 mΩ initial, ≤100 mΩ after test; After body (a#–f#): ≤30 mΩ initial, ≤50 mΩ after test | Insulation Resistance (Min) | ≥100 MΩ (500 VDC) initial; after test: ≥50 MΩ |
| Withstand Voltage | 500 VAC | ||
| 3. Physical | |||
| Circuits (Loaded) | 5 (Terminals 1–5) | Circuits (Maximum) | 5 |
| Gender | Female | Orientation | Right Angle |
| Termination Interface Style | THT / DIP | Ports | 1 |
| Material – Contact | Brass / Stainless Steel | Material – Resin / Housing | PBT / PA66+15%GF / PF |
| Material – Plating Mating | Ag plating / Sn plating | Material – Plating Termination | Ag plating / Sn plating |
| Overall Underplating | — | Waterproof / Dustproof | — |
| Panel Mount | — | PCB Thickness – Recommended | — |
| PCB Locator | — | Packaging Type | — |
| Polarized to Mating Part | — | Polarized to PCB | — |
| Pitch – Mating Interface | — | Wire Size (AWG) | — |
| Net Weight | — | Number of Rows | — |
| 4. Mechanical | |||
| Mating Force (Max) | 30 N | Operating Temperature | -20 °C to +70 °C |
| Operating Life (Cycles) | 5000 cycles min | Unmating Force (Min) | 3 N |
