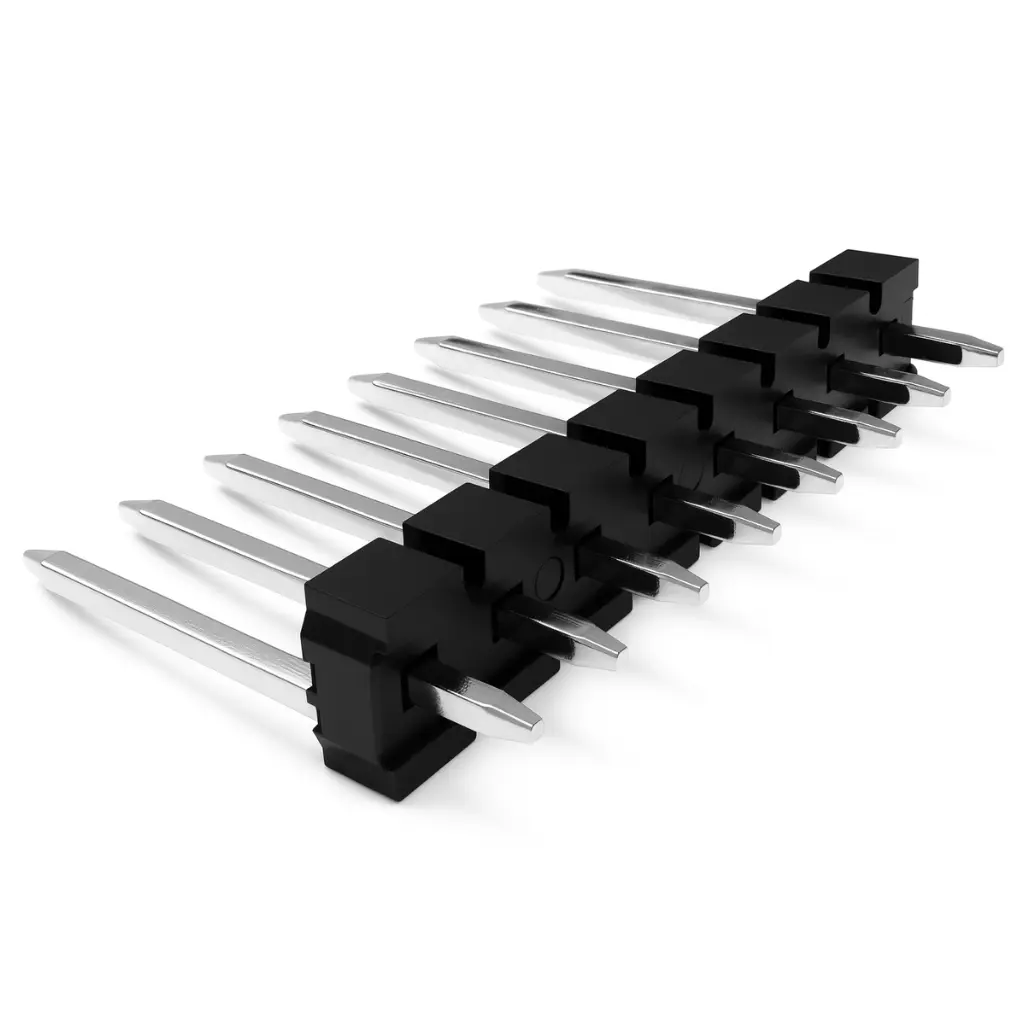

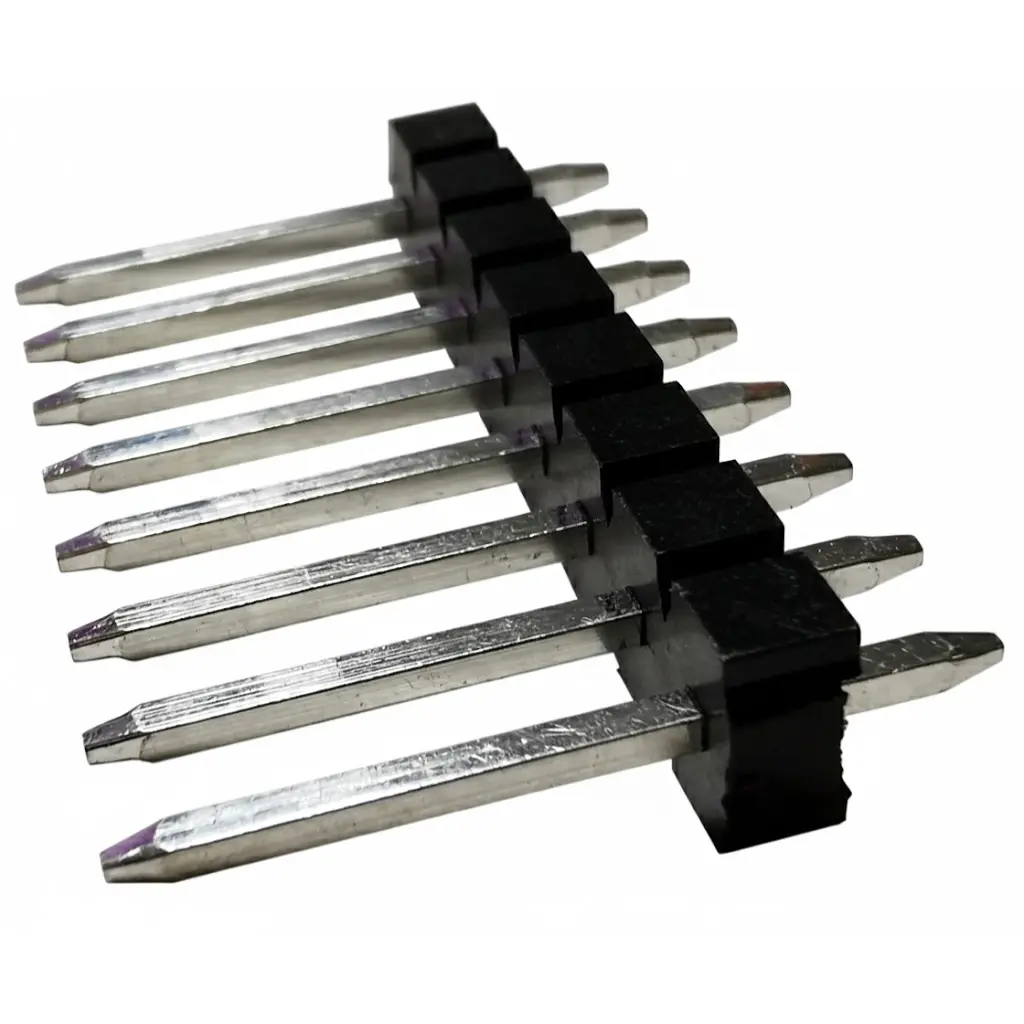

The 3.96mm single row DIP pin header base 3.20H is a vertical through-hole power header with 1.14mm square copper-alloy pins, heavy tin-over-nickel plating and a PA6T + 30% GF UL94V-0 housing, rated 3A per contact and AC 500V for robust 3.96mm-pitch PCB interconnects.
Applications:
High-current power distribution and bus boards
Industrial controllers, PLCs and HVAC control units
Power supply backplanes and rugged I/O modules
Pin-to-socket power interconnect systems on 3.96mm pitch
Highlights:
3.96mm single row DIP pin header, base height 3.20H, vertical 180° style
Large 1.14mm square pins on 3.96mm centers for power and high spacing
Electrical ratings: 3A/contact, AC 500V, ≥1000MΩ insulation, ≤30mΩ contact resistance
Copper-alloy terminals with 50µ” min nickel + 120µ” min tin plating for strong solderability
PA6T + 30% GF UL94V-0 housing; operating range -40°C to +105°C
Optimized for wave soldering to 260°C; RoHS, REACH SVHC and low-halogen compliant
3.96mm single row DIP pin header is a high-reliability through-hole connector designed for power and signal interconnects where generous creepage distance and strong mechanical retention are required. This 3.96mm single row DIP pin header follows the drawing title “3.96 PIN HEADER Single Row DIP TYPE BASE 3.20H”, using a single line of square posts on a 3.96mm pitch to provide robust spacing for higher currents and easier routing on thick copper PCBs.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-1396517WV08P-31PE-01 | Description | 3.96mm Pitch Single Row Pin Header, DIP Type, 3.20mm Base Height, Tin Plated Contacts, PE Bag Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, Pin Header, PCB Connector, Through-hole Pin Header, Header connector, Single Row Pin Header, Right Angle Pin Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 3.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 17 |
| Circuits (Maximum) | 20 (series range) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Copper Alloy | Material – Plating Mating | Tin over Nickel |
| Material – Plating Soldering Area | Sn/Ni | Material – Resin | PA6T+30%GF |
| Metal Shape & Form | Square Pin (1.14mm) | Number of Rows | 1 |
| Connector Orientation | Vertical / Straight | Packaging Type | PE Bag |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 14.30mm ±0.30 | Pitch – Mating Interface | 3.96mm |
| Plating min – Mating | 120μ” Tin over 50μ” Ni | Plating min – Termination | 120μ” Tin |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40° to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 1.14mm | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | — |
| Net Weight | — | Height of connector above PCB | 3.20mm |
| Solder Process Data | |||
| Max-Duration | 10 sec | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
