$0.27

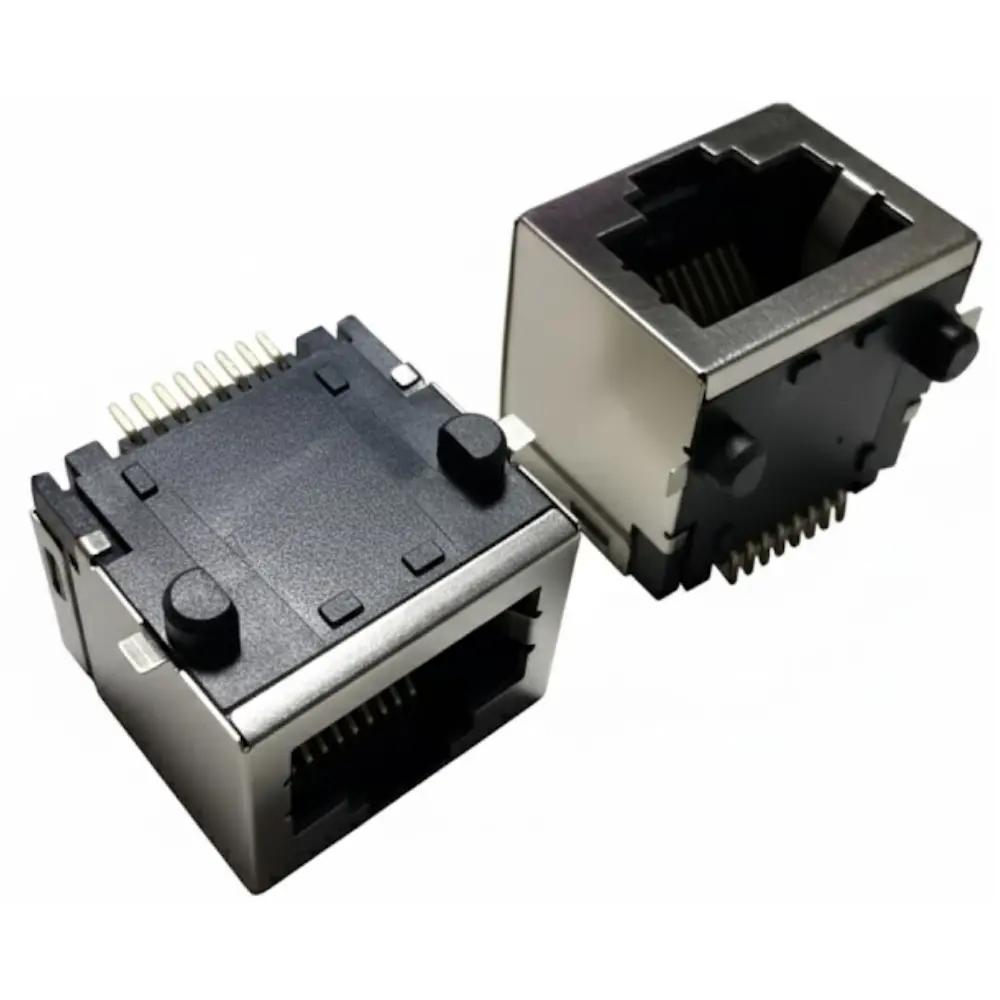

Compact RJ45 Connector 1×1 tab-up 8P8C single-port configuration and shielded enclosure, designed for through-hole (DIP) PCB mounting. With a compact housing width of 15.35mm and a pin pitch of 1.02mm, this connector is ideal for space-constrained PCB layouts.
Highlights : Compact single-port RJ45 with shielded enclosure, Optional 3μ” or 6μ” gold-plated contacts, High durability: 5000 mating cycles, LCP housing with, flame-retardant rating UL94V-0, RoHS 2.0 and Halogen-Free compliant
Applications: Suitable for Networking devices, routers, industrial controllers, consumer electronics, communication hubs, and other high-reliability Ethernet applications.
Compact RJ45 Connector, tab-up 8P8C, shielded rj45, single port, Surface mount RJ45-02ABK7AU06L-RH is a single-port right-angle connector engineered for stable Ethernet signal transmission in space-constrained PCB designs. Featuring a tab-up orientation and through-hole DIP mounting, it ensures secure mechanical retention and excellent solder joint reliability.
| 1. Basic Information | |||
| Status | Active | Category | Modular JACK |
| Part Number | RJ45-02ABK7AU06X L-RH | Description | RJ45 Jack, 1×1 port, with Shielded Shell, 8P8C, Tab-Up, SMT Type, Gold Flash Plating, RoHS 2.0 & Halogen-Free Compliant, Reel Packing |
| Product Name | RJ45 1-Port Shielded SMT | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 18.80 mm | Height | 13.40 mm |
| Length | 15.35 mm | Installed height | 15.00 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | 25N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation 方向 | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | No |
| Packaging | Reel Packing | Termination Interface | Surface mount |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 5000 | Material – Resin | LCP UL94V-0 Black |
| Jack Height | 13.40 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Shielded RJ45 Connector, SMT RJ45 Connector, Single Port RJ45 Jack, Vertical RJ45 Connector |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 500V AC | Operating Temperature | -30°C to +70°C |
| Insulation resistance | ≥50MΩ | Storage Temperature | -10°C to +40°C |
| Lead-Free Process Capability | Reflow | Classification temperature, T₍C₎ | 260°C |
