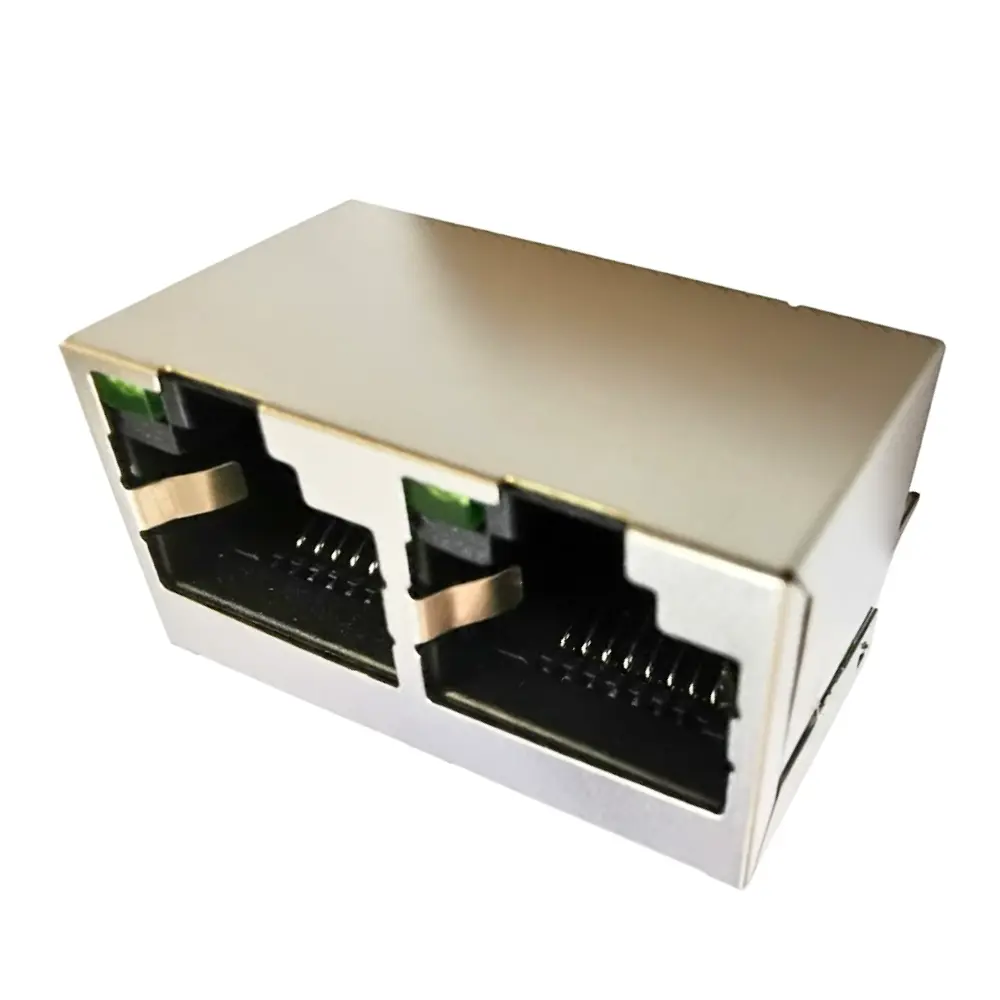

Dual-Port Modular RJ45 Jack 1×2 Tab-up DIP Type with LED It is equipped with tin-plated shield, a PA9T UL94V-0 black housing, and phosphor bronze terminals with gold plating options (6μ” to 30μ”). The connector features Mylar tape for pick-and-place automation, making it ideal for high-speed SMT assembly lines.
Highlights: MT 8P8C RJ45 modular jack with 180° entry,Tin-plated brass shielding for EMI protection,Compatible with automatic SMT pick-up via Mylar,Gold-plated terminals (6μ” to 30μ”) for long contact life, Wide temperature range: -30°C to +70°C
Applications: Engineered for networking switches, routers, IP cameras, telecom base stations, industrial control systems, and embedded Ethernet modules

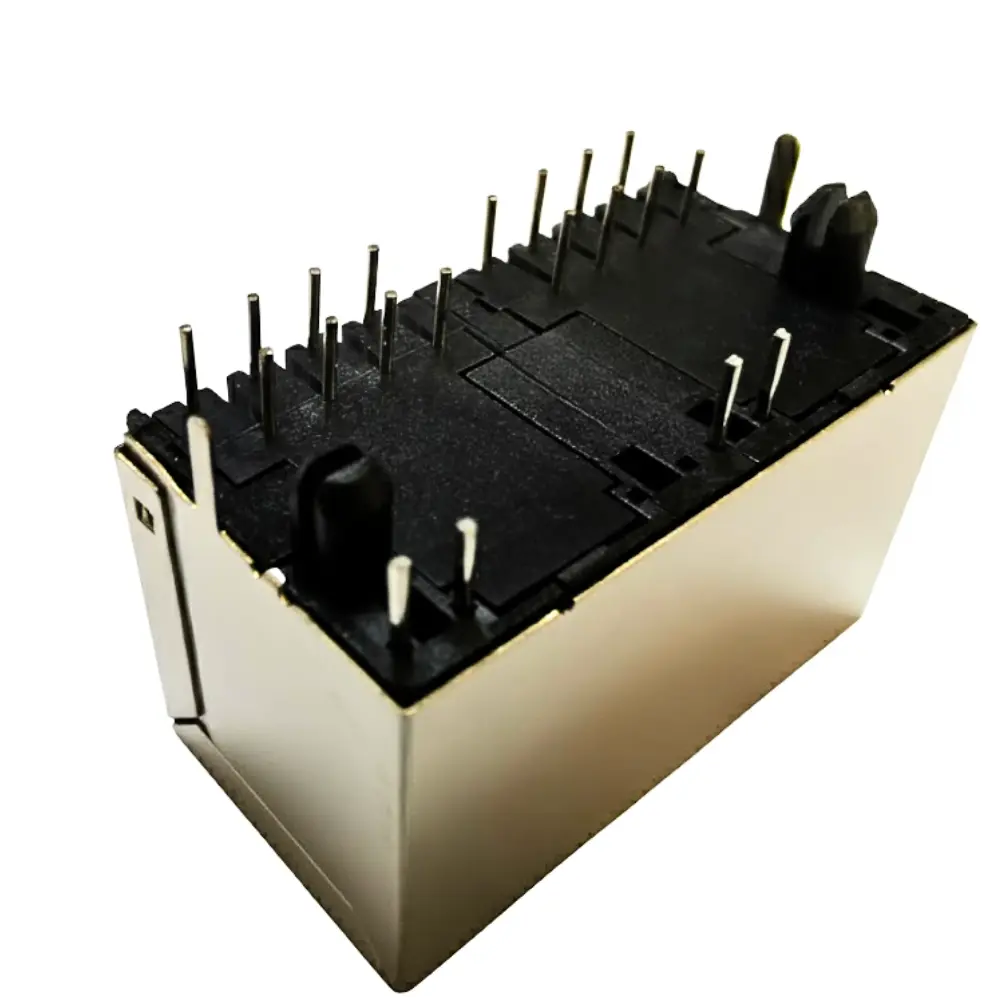

Dual-Port Modular RJ45 Jack 1×2 Tab-up DIP Type with LED connector designed for through-hole DIP mounting in high-performance Ethernet applications. Featuring a tab-up configuration and integrated bi-color LEDs (left: green, right: yellow), this connector provides clear network status indication while saving valuable PCB space.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00256-01TP-05 | Description | RJ45 Jack, 1×2 port, with Shielded and EMI Tabs, with LED (Green/Yellow), 8P8C, Tab-up, Vertical Type |
| Product Name | RJ45 2-Port with Left LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 28.60 mm | Height | 16.40 mm |
| Length | 15.60 mm | Installed height | 18.00 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | vertical |
| Positions / Loaded Contacts | 8P8C x2 | Lightpipes/LEDs | Yes – LEFT LED1 (Pins 11 & 12) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×2 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 600 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 16.40 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Shielded RJ45 Connector, RJ45 with LED, Through-Hole RJ45 Connector, Vertical RJ45 Jack |
| Pitch – Termination Interface | 1.27 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -0°C to +70°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
