$0.51

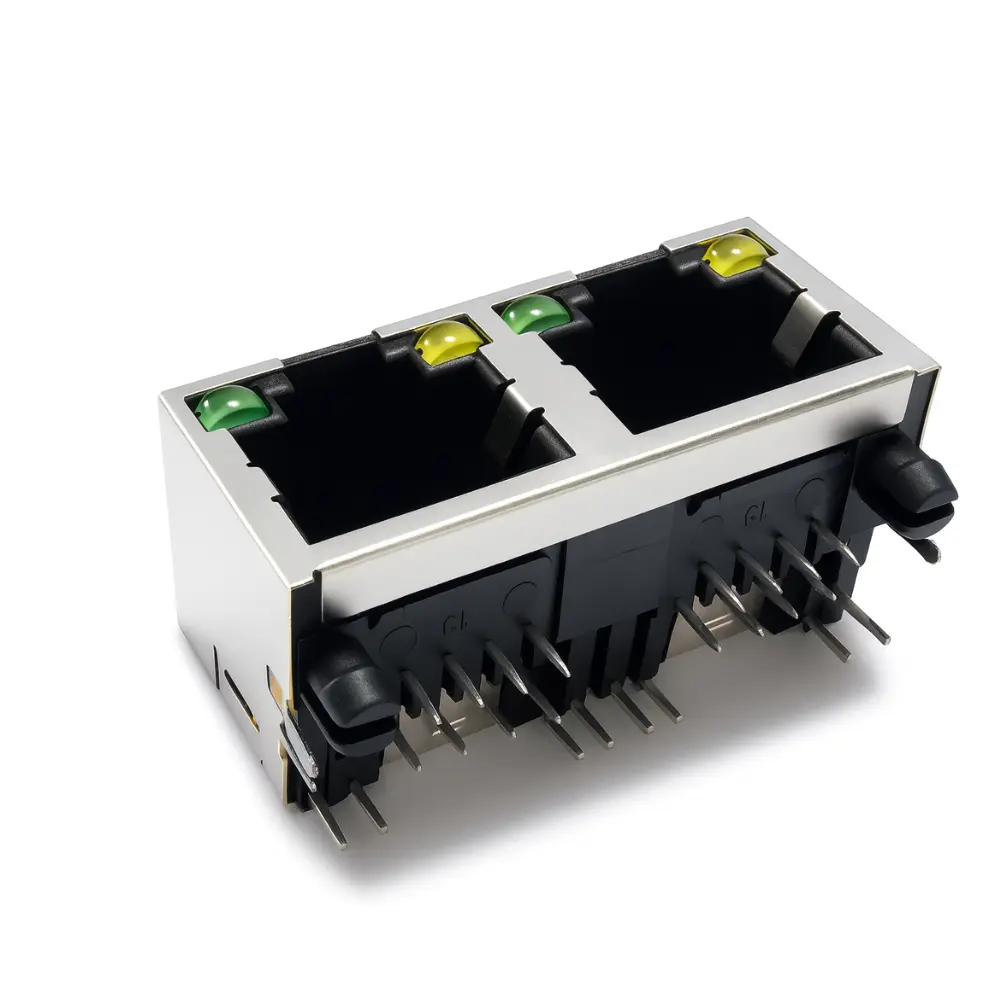

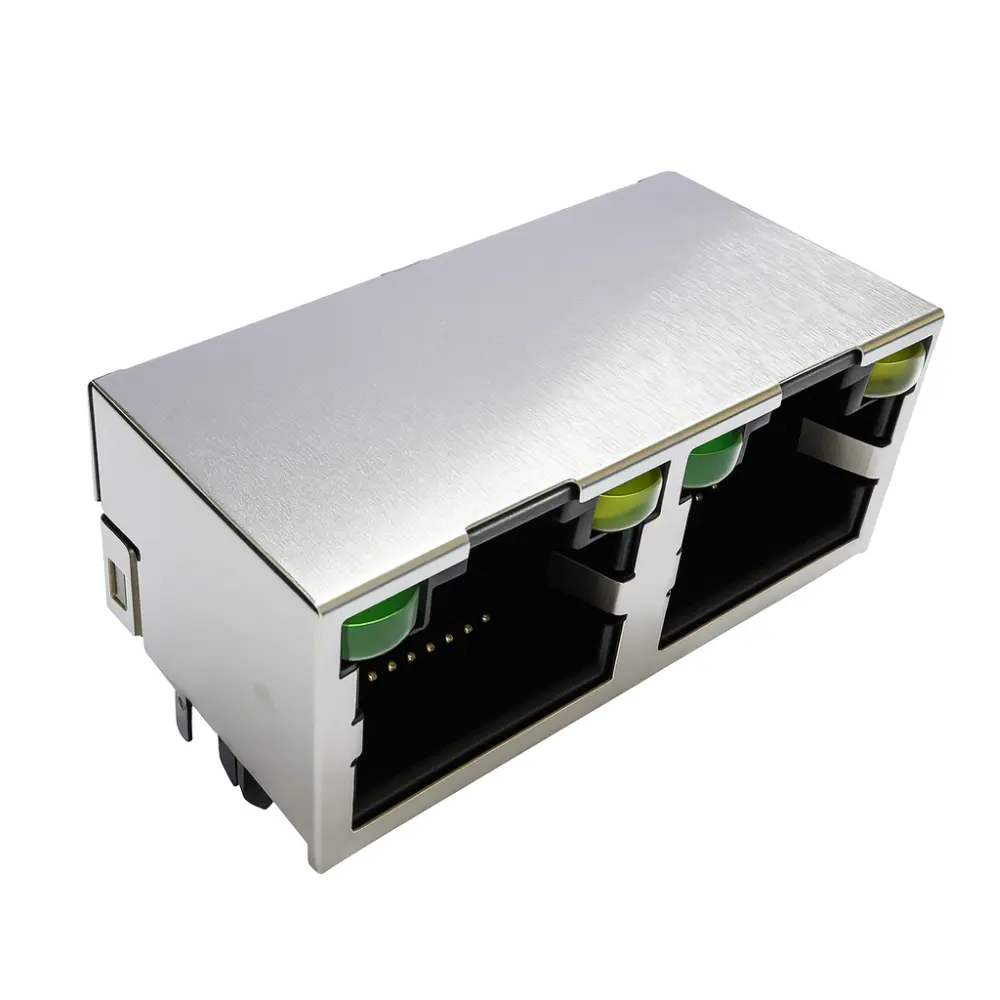

Dural Port RJ45 Connectors tab-Up with LEDs, DIP/THT designed in a tab-down orientation for DIP through-hole PCB mounting. The connector meets TIA-1096 and IEC-60603-7 specifications, offering reliable performance in Ethernet networking applications. It features a brass shield with 2.0mm thickness tin plating for effective EMI protection
Highlights: Dural Port RJ45 Connectors 8P8C; tab-Up orientation; integrated LED windows (optional positions); shielded nickel/tin-plated brass shell; phosphor-bronze contacts with selective gold; robust DIP/THT pins; 150 VAC/1.5 A; ≤20 mΩ contact R; ≥1000 MΩ insulation R; 1000/1500 V dielectric; –40 °C to +85 °C; ≥750 cycles; RoHS.
Applications: Routers and LAN switches, telecom/base-station gear, industrial control systems, embedded/networked devices needing dual RJ45 with LEDs.
Dural Port RJ45 Connectors tab-up with LEDs, DIP/THT is a compact dual-port 8P8C jack for Ethernet equipment that requires two shielded RJ45 connectors in a single footprint.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | E56C08032645 | Description | RJ45 Jack, 1×2 port, with Shielded and EMI, with Optional LEDs, 8P8C, Tab-up, DIP Type, S6 LED Configuration |
| Product Name | RJ45 2-Port Shielded with LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 32.25 mm | Height | 13.20 mm |
| Length | 15.75 mm | Installed height | 14.80 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Tin | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation 方向 | Right Angle |
| Positions / Loaded Contacts | 8P8C x2 | Lightpipes/LEDs | Optional (2 positions marked for LEDs) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×2 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PBT/PA66/PA46 LCP UL94V-0 |
| Jack Height | 13.20 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | _ |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Shielded RJ45 Connector, Multi-Port RJ45 Jack, Right Angle RJ45 Connector, RJ45 Connector with LED |
| Pitch – Termination Interface | _ | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 150V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 265°C (5~10s) |
