$0.65

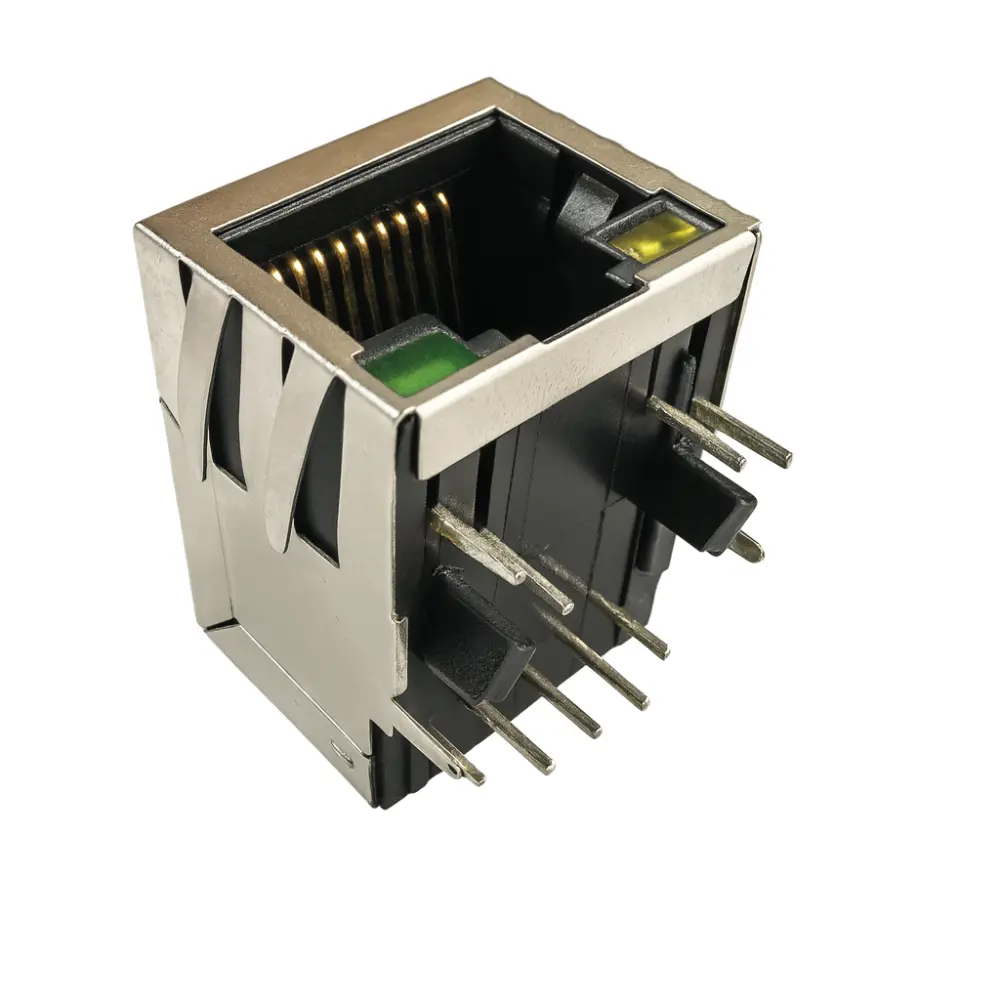

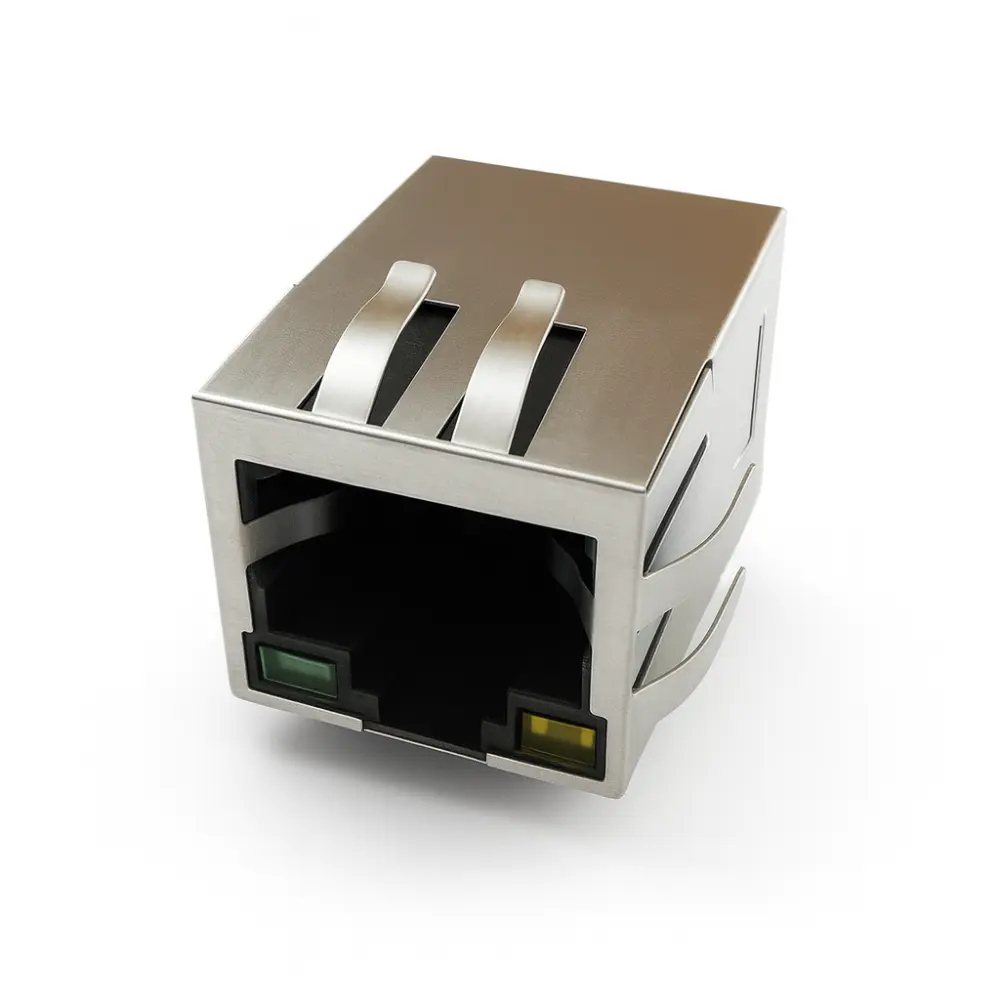

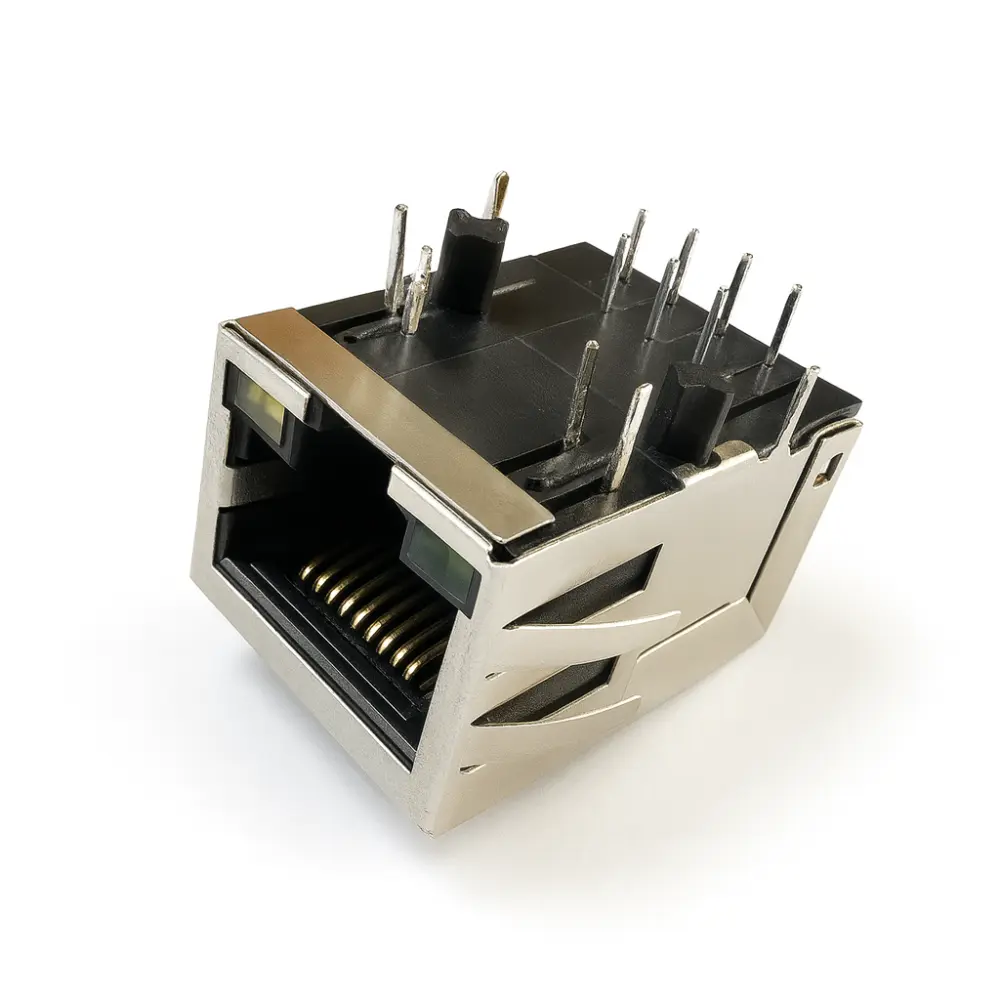

Magnetic RJ45 1×1 Tab-Down Jack 100BASE-T DIP with LEDs (left green/right yellow), nickel-plated shield, PBT UL94V-0 housing, phosphor-bronze contacts with 6/15/30 µin Au options; DIP tails for wave soldering and 1500 VAC isolation.
Key Features at a Glance
1×1 RJ45 8P8C, tab-down, through-hole DIP
Integrated transformer + CMC; OCL ≥350 µH
Green/Yellow LEDs for link/activity
Nickel-plated brass shield; PBT UL94V-0 housing
Phosphor bronze terminals; 6/15/30 µin Au options
−40~+85 °C, ≥750 cycles, RoHS
Highlights: Compact vertical layout, strong EMI suppression, clear diagnostics, and dependable wave-solder assembly with 1.27 mm pitch footprint.
Applications: Routers, IP cameras, embedded Ethernet modules, industrial controllers/PLCs, smart home gateways.
Magnetic RJ45 1×1 tab-down jack integrates transformer and common-mode choke for 100BASE-T Ethernet, delivering isolation and low EMI in a compact through-hole DIP package. The tab-down orientation suits vertical cards, and dual LEDs left green, right yellow provide instant link/activity status.
| 1.Basic Information | |||
| Status | Active | Category | RJ45 Jack |
| Part Number | DW-RJ45-DM01333-01TP-01 | Description | Magnetic Jack, 10/100Base, 1×1 port, with Shielded and EMI and LED, 8P8C, Tab-Down |
| Product Name | RJ45 Magnetic 10/100 Base Jack | Magnetic | Yes |
| Component Type | PCB Jack | Lead time | 7~15 days |
| Type | Socket | Height | 13.45 mm |
| Width | 16.00 mm | Installed height | 15.05 mm |
| Length | 21.10 mm | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface contact area top layer) | PHOSPHOR BRONZE C5210.T-0.35MM.6U” GOLD PLATING ON CONTACT AREA. | Material (Metal surface soldering area top layer) | Gold |
| Material (Metal surface soldering area) | Nickel | Retention Strength | – |
| Mating Force | 23N | Country of origin | CN |
| Customs tariff number | 85366930 | ||
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle, Through-Hole |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Green & Yellow) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PBT UL94V-0 |
| Jack Height | 13.45 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.6 mm | Key Words | RJ45 Connector, Magnetic RJ45 Connector, 10/100 Base, RJ45 Jack with LED, Shielded RJ45 Connector, DIP Type RJ45 Connector, Vertical RJ45 Jack, PCB Mount RJ45 Connector |
| Pitch – Termination Interface | 1.27 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 0.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | Wave | Classification temperature, T₍c₎ | 260°C |
High-reliability magnetic RJ45, 1×1 T, 100BASE-T.
Integrated magnetics and LEDs in a shielded DIP package optimized for low EMI, robust isolation, and plug-and-play interoperability with IEEE 802.3u PHYs.
