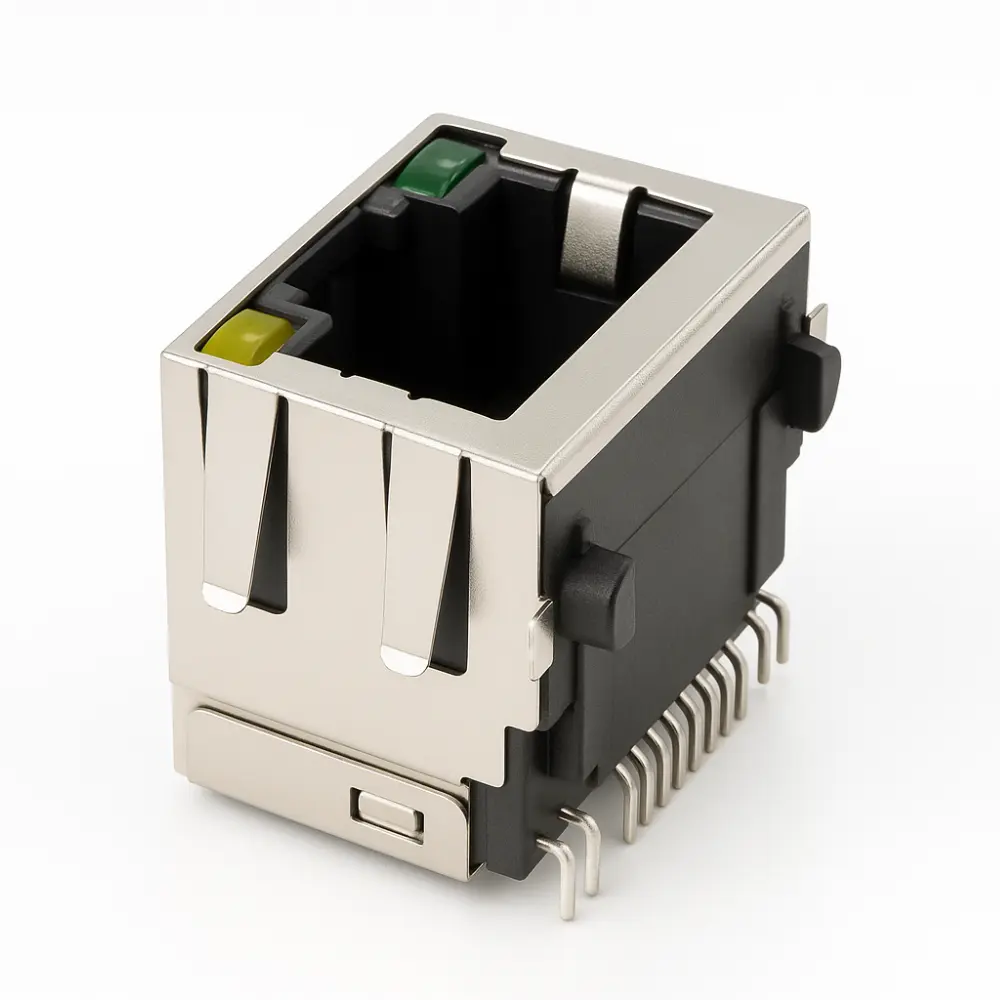

Modular RJ45 1×1 tab-up with LEDs, DIP/THT DW-RJ45-S001202-XXXX-XX compact single-port RJ45 modular jack featuring a tab-up orientation and DIP through-hole mount. It includes built-in bi-color LEDs (left: green, right: yellow) for Ethernet link and activity indication.
Highlights: Tab-up 1×1 8P8C jack; DIP/THT for strong retention; integrated green/yellow LEDs; nickel-plated shield; Au-over-Ni contacts; 125 V/1.5 A, 500 VAC withstand; ≥750 cycles; RoHS.
Applications: Ethernet networking, routers and LAN switches, industrial control, smart metering, communication terminals, embedded boards.
Modular RJ45 1×1 tab-up with LEDs, DIP/THT DW-RJ45-S001202-XXXX-XX is a compact single-port 8P8C jack for Ethernet I/O where the latch faces upward (tab-up) for side-entry panel designs. The connector uses a robust through-hole (DIP/THT) footprint for wave-solder assembly and strong board retention.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-S001202-XXXX-XX | Description | RJ45 Jack, 1×1 port, 8P8C, Shielded, Tab-Up, DIP Type, with Bi-Color LEDs (Green & Yellow), 125V AC Rated |
| Product Name | RJ45 Tab-Up Shielded w/ LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 18.80 mm | Height | 14.60mm |
| Length | 15.60 mm | Installed height | 16.20 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 25N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Green & Yellow LED) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | LCP UL94V-0 |
| Jack Height | 13.40 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Nickel | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Shielded RJ45 Connector, Vertical RJ45 Jack, Through-Hole RJ45 Connector |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 500V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
