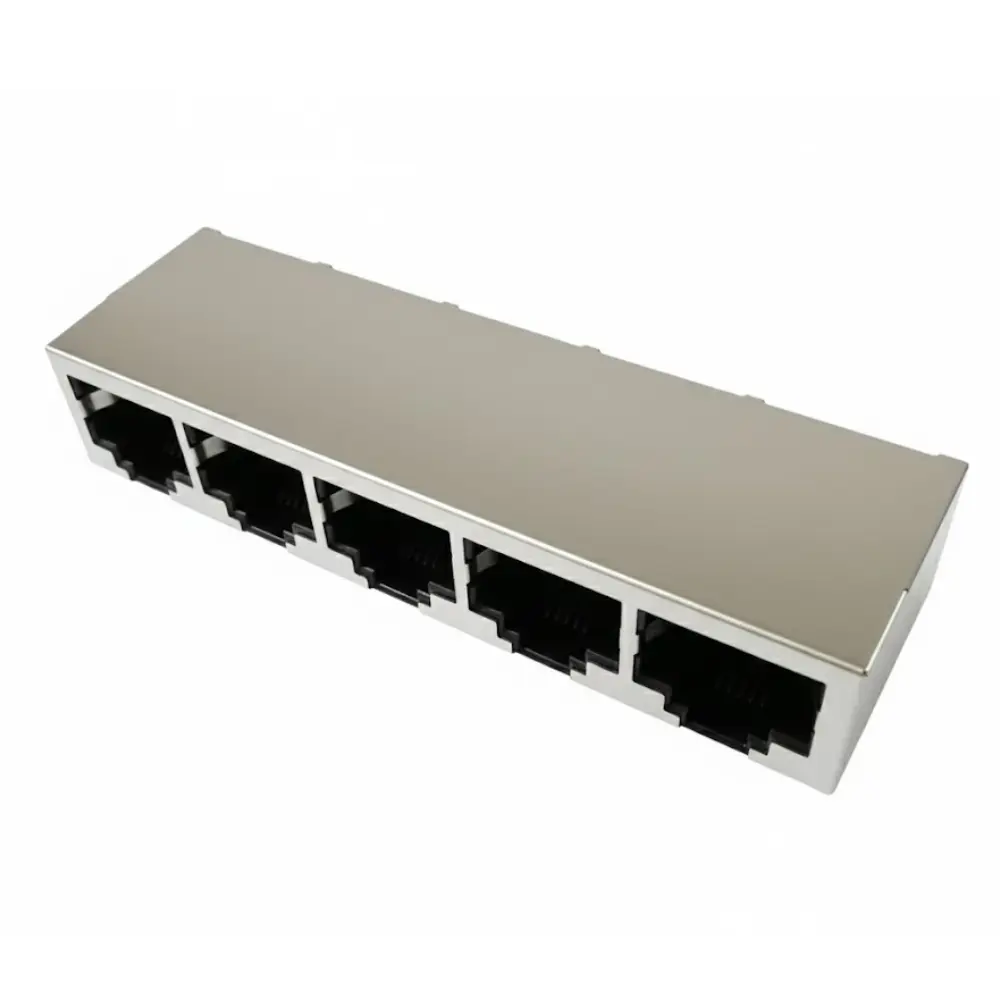

Modular RJ45 Jack 1×5 8P8C Tab-Down, DIP Shielded 5-port modular RJ45 connector with a tab-down design, built for through-hole DIP PCB mounting.
Highlights: 1×5 8P8C, tab-down, 180° entry; nickel-plated copper-alloy shield; PA46 UL94V-0 housing; phosphor-bronze contacts (t=0.35 mm) with gold-flash over Ni; 1.27 mm DIP pitch; ≤30 mΩ contact R; ≥500 MΩ insulation R; 1000 VAC withstand; 0~70 °C operation; ≥750 cycles; retention 50 N/60 s.
Applications: Network switches, industrial routers, access points, Ethernet hubs, and telecom transmission modules needing high-port-density, non-magnetic RJ45.

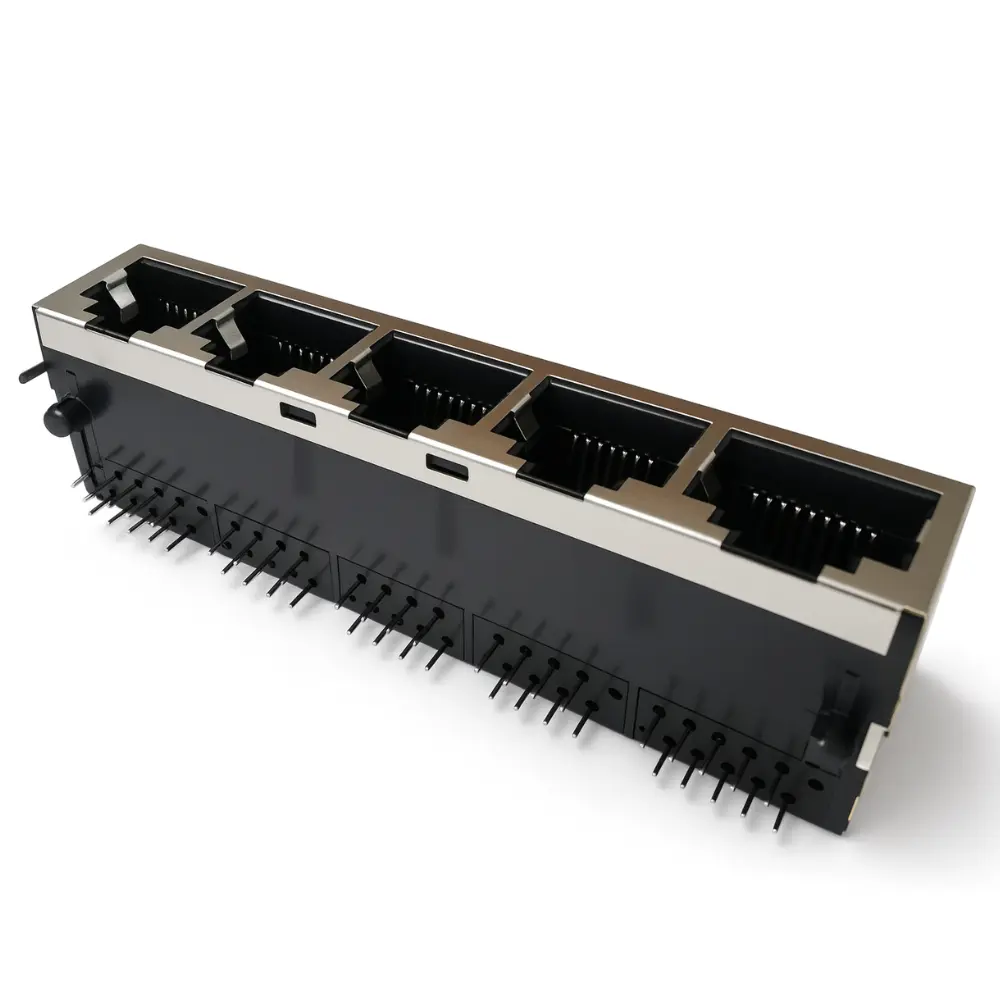

Modular RJ45 Jack 1×5 8P8C Tab-Down, DIP Shielded integrates five shielded RJ45 ports in a single through-hole assembly for high-density Ethernet front panels.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | 5922S-8P8C-1X5B | Description | RJ45 Jack, 1×5 Port, Right Angle, Shielded, Without LED, Through-Hole, 8P8C, Mounting, Wave Solder Compatible |
| Product Name | RJ45 5-Port side entry Shielded | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 73.03 mm | Height | 13.65 mm |
| Length | 21.00 mm | Installed height | 14.00 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | ≤30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C x5 | Lightpipes/LEDs | None |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×5 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 13.65 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Through-Hole RJ45 Connector, Shielded RJ45 Connector, Multi-Port RJ45 Jack, Right Angle RJ45 |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC RMS | Operating Temperature | 0°C to +70°C |
| Insulation resistance | ≥500MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 50 Hz, 1 min |
