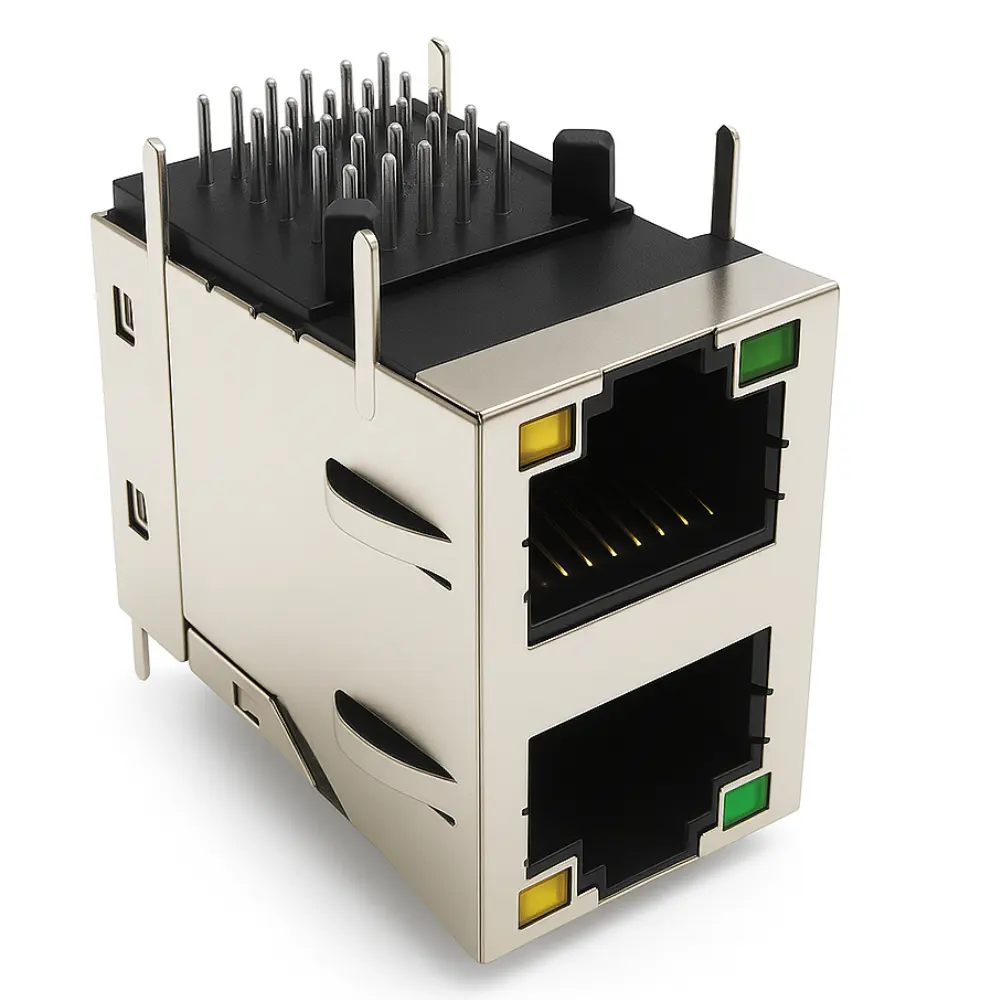

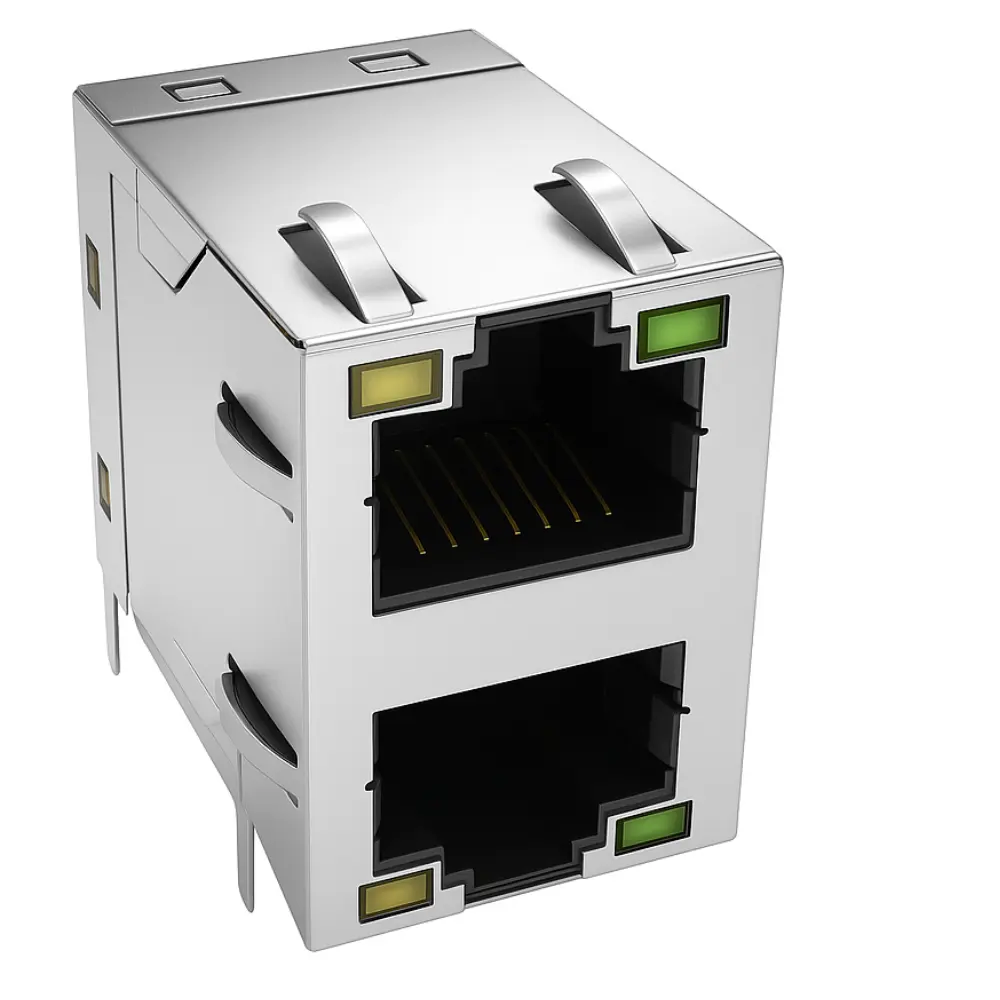

Modular RJ45 Multi-Port Stacked with LEDs, 10/100BASE, DIP (DW-RJ45-DM0261) vertically stacked 2×1 modular RJ45 jack designed for through-hole DIP mounting with a tab-down orientation. The connector features two shielded ports and built-in bi-color LEDs (green and yellow) for status indication.
Highlights: 2×1 stacked shielded RJ45; tab-down latch; DIP/THT pins; integrated green/yellow LEDs; C2680 Ni-plated shield; C5210 contacts with 6–30 µin Au options; ≥750 cycles; –40~+85 °C; RoHS.
Applications: Ethernet switches/routers, IP cameras, gateways, telecom systems, industrial control/PLC, embedded boards.
Modular RJ45 Multi-Port Stacked with LEDs, 10/100BASE, DIP DW-RJ45-DM0261-03TP-02 is a vertically stacked 2×1 shielded RJ45 jack for space-efficient Ethernet I/O. The tab-down latch orientation suits low-profile panel cutouts, while DIP/THT pins provide strong mechanical retention and wave-solder compatibility.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-DM0261-XXTP-XX | Description | RJ45 Jack, 2×1 stacked port, 8P10C, Shielded with EMI Tabs, Tab-Down, DIP Type, with LED Options (Green/Yellow), 100BASE-T Compliant |
| Product Name | RJ45 2-Port 100 Base | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 17.27 mm | Height | 25.83 mm |
| Length | 28.43 mm | Installed height | 27.43 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 23N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P10C x2 | Lightpipes/LEDs | Yes (2 LEDs per port) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 2×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PA66 UL94V-0 |
| Jack Height | 25.83 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Shielded RJ45 Connector, Dual-Port RJ45 Jack, Through-Hole RJ45 Connector, Tab-Up RJ45 Connector |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | 0°C to +70°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
