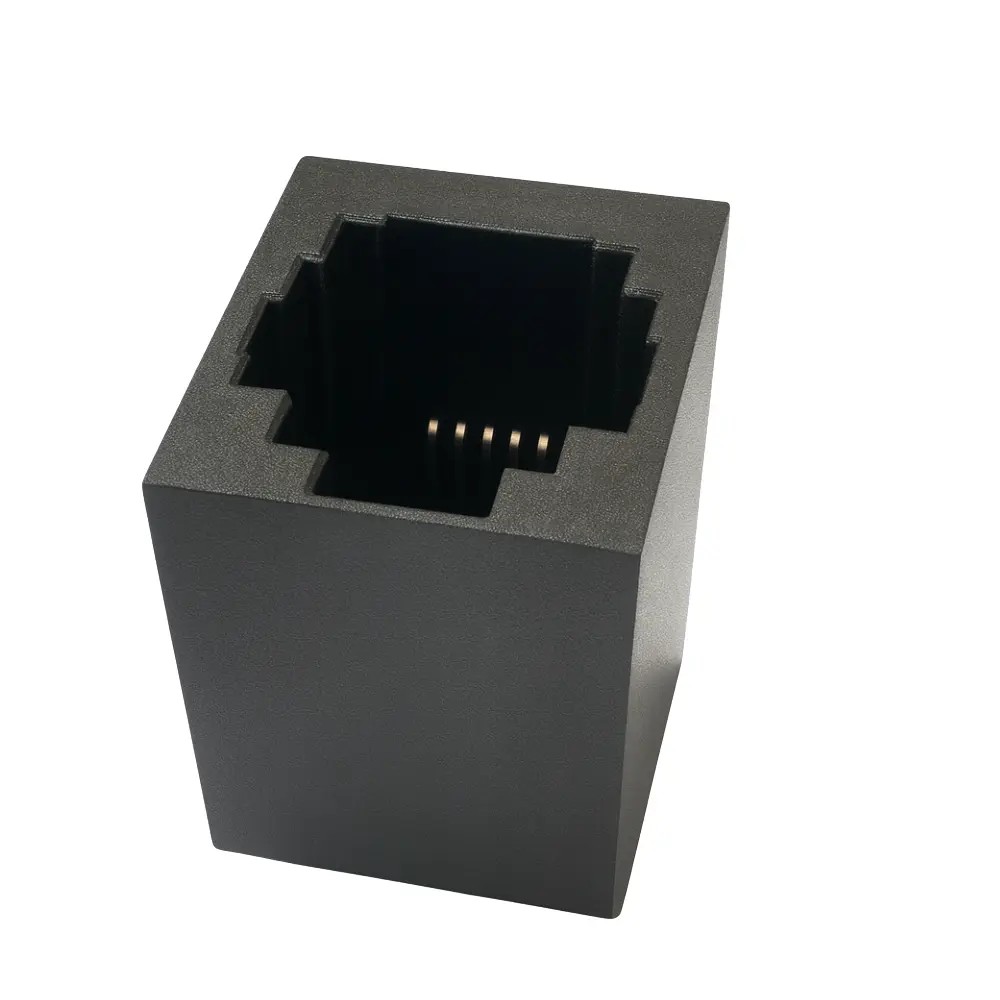

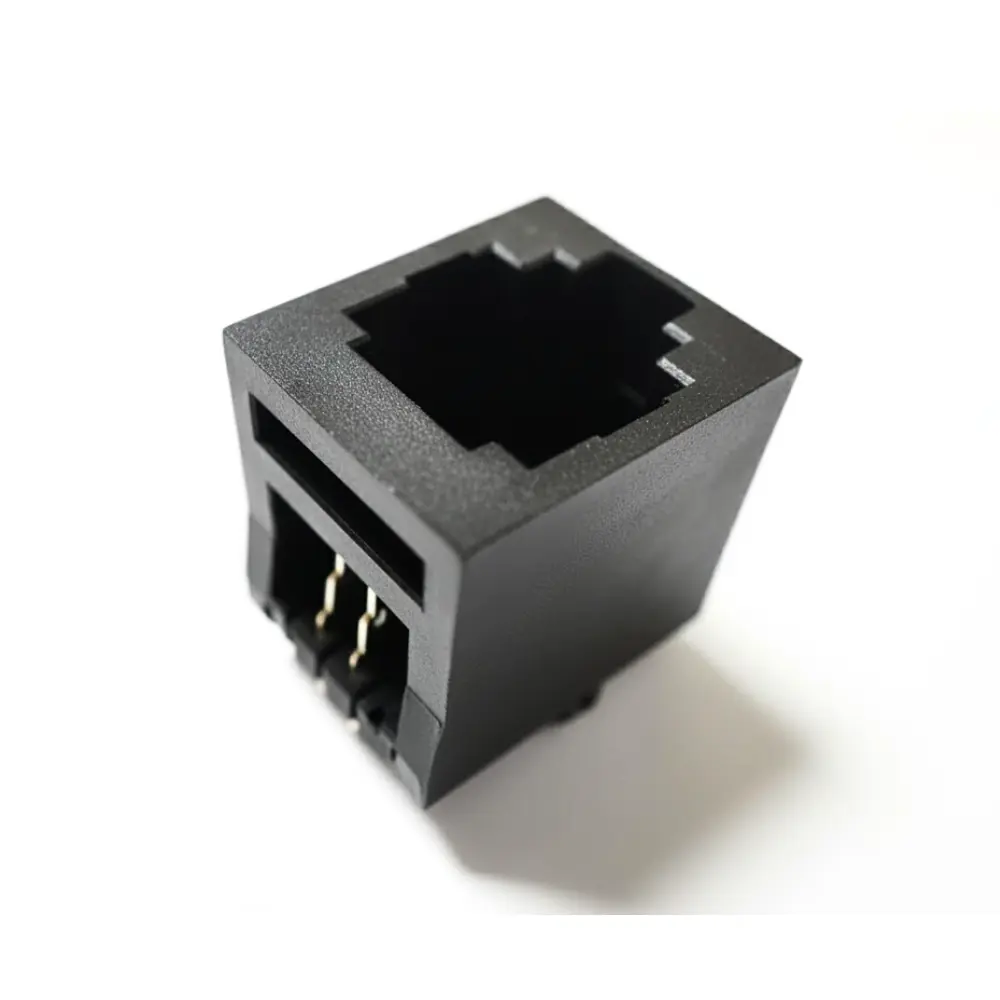

RJ11 Modular Jack, 6P4C, Right-Angle SMT, No-LED form for high-density boards. PBT UL94V-0 housing, phosphor-bronze contacts with 6 µin gold, 1.5 A / 125 VAC, –40~85 °C, ≥750 cycles. Ideal for phones, PBX, modems, and control panels. The combination of SMT assembly, gold-plated contacts, and a stable PBT housing delivers repeatable performance and long service life.
Product highlights:
Right-angle SMT for low profile and fast reflow assembly
6P4C layout; stable latch access at the panel
6 µin gold on contact area for consistent signal reliability
PBT UL94V-0 housing withstands thermal cyclin
≤30 mΩ initial contact resistance; ≥500 MΩ insulation
Dielectric 1000 VAC RMS (1 min) for safety margin
Retention pegs (Ø3.20, 10.16 mm apart) for strong board anchoring
RoHS / REACH / low-halogen compliant
Applications:
Landline handsets, base stations, PBX/KSU frames
Modems, fax machines, POS/terminal interfaces
Office communication equipment and VoIP adaptors
Industrial controllers, I/O panels, alarm/security gear
Embedded SBCs and custom telecom daughtercards
RJ11 Modular Jack, 6P4C, Right-Angle SMT, No-LED designed for compact telecom I/O where board space and assembly speed matter. this single-port modular connector uses a right-angle, surface-mount footprint to sit low on the PCB while keeping the latch accessible from the panel. This RJ11 6P4C right-angle SMT jack suits landline phones, PBX and modem ports.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ11-D001230-06TP-02 | Description | Modular Jack, 6P4C, 1×1 Port, Unshielded, SMT, Tab-Up, W/O LED |
| Product Name | RJ11 SMT Jack 6P4C | Magnetic | No |
| Component Type | PCB Jack | Lead time | 7~15 days |
| Type | Socket | Height | 16.55 mm |
| Width | 13.50 mm | Installed height | 16.55 mm |
| Length | 16.15 mm | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface soldering area top layer) | Tin |
| Material (Metal surface soldering area) | Nickel | PCB Retention | Yes |
| Mating Force | 2.2 KG.F Max | Country of origin | CN |
| Customs tariff number | 85366930 | ||
| 2. Product Properties / Physical | |||
| Field | Value | Field | Value |
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 6P4C | Lightpipes/LEDs | None |
| Packaging | Tray | Termination Interface | SMT |
| Port Configuration | 1×1 | Inverted / Top Latch | Yes |
| Durability (mating cycles max) | 750 | Material – Resin | PBT UL94V-0 (Black) |
| Jack Height | 16.55 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin over Nickel | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 2.54 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ11 JACK, Modular Jack, Surface-Mount RJ11, Right Angle RJ11, 6P4C, Unshielded |
| Pitch – Termination Interface | 2.54 mm | Latch / Tab orientation | Tab-Up |
| EMI | No | ||
| 3. Electrical | |||
| Field | Value | Field | Value |
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | No |
| Grounding to PCB | No | Shielded | No |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500 MΩ @ 500 VDC (initial) | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | REFLOW | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 60 Hz, 1 min | ||
