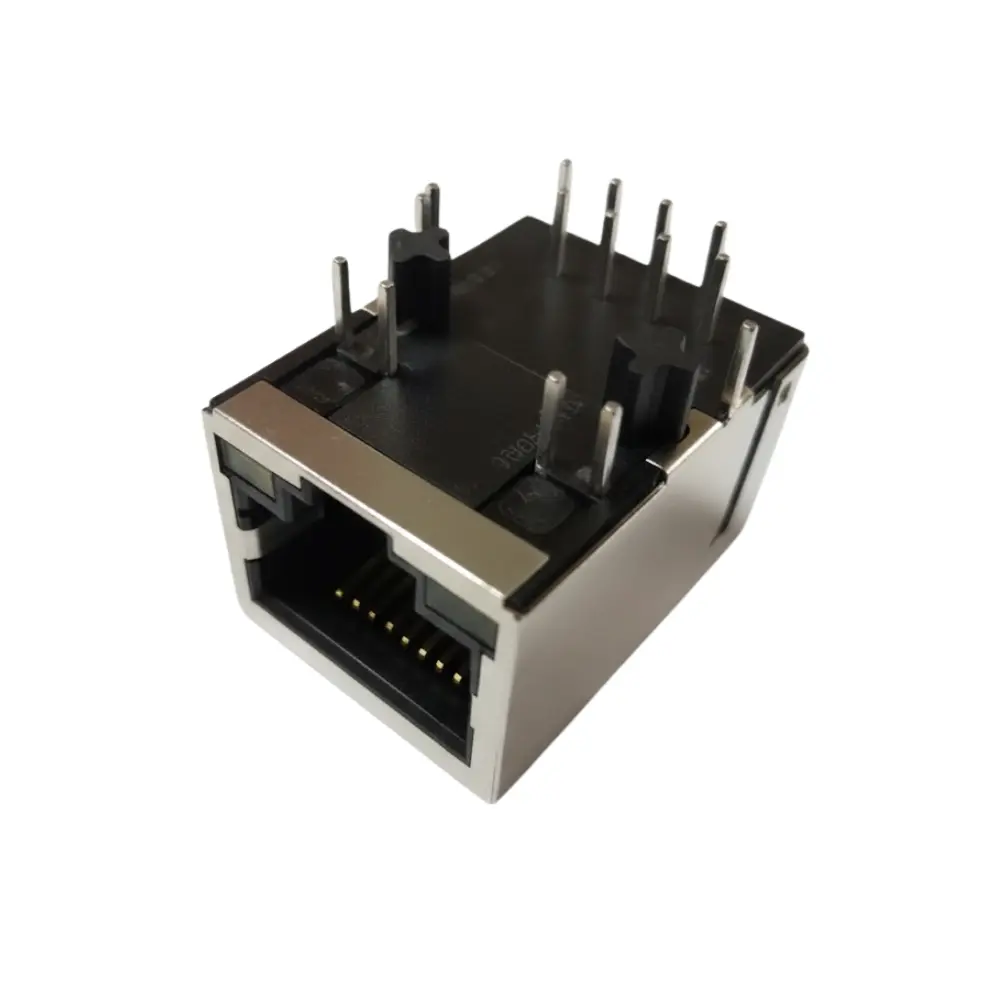

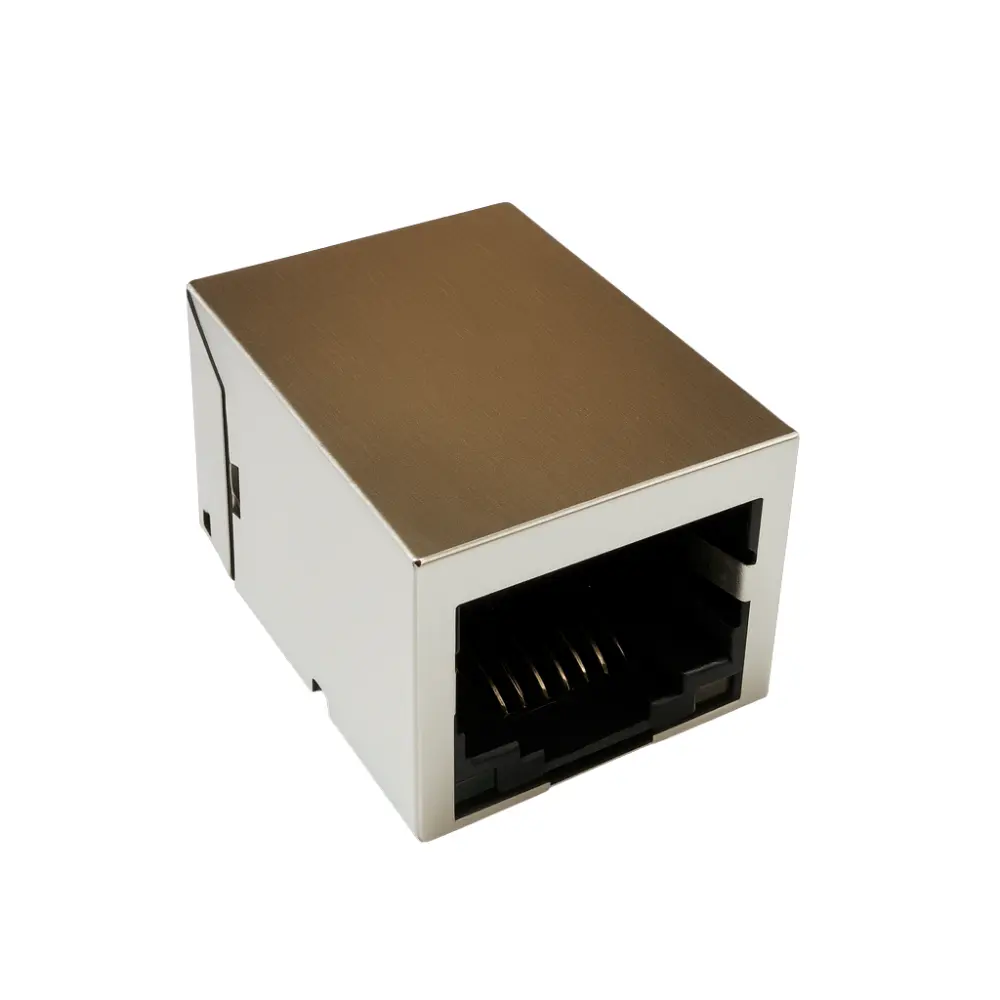

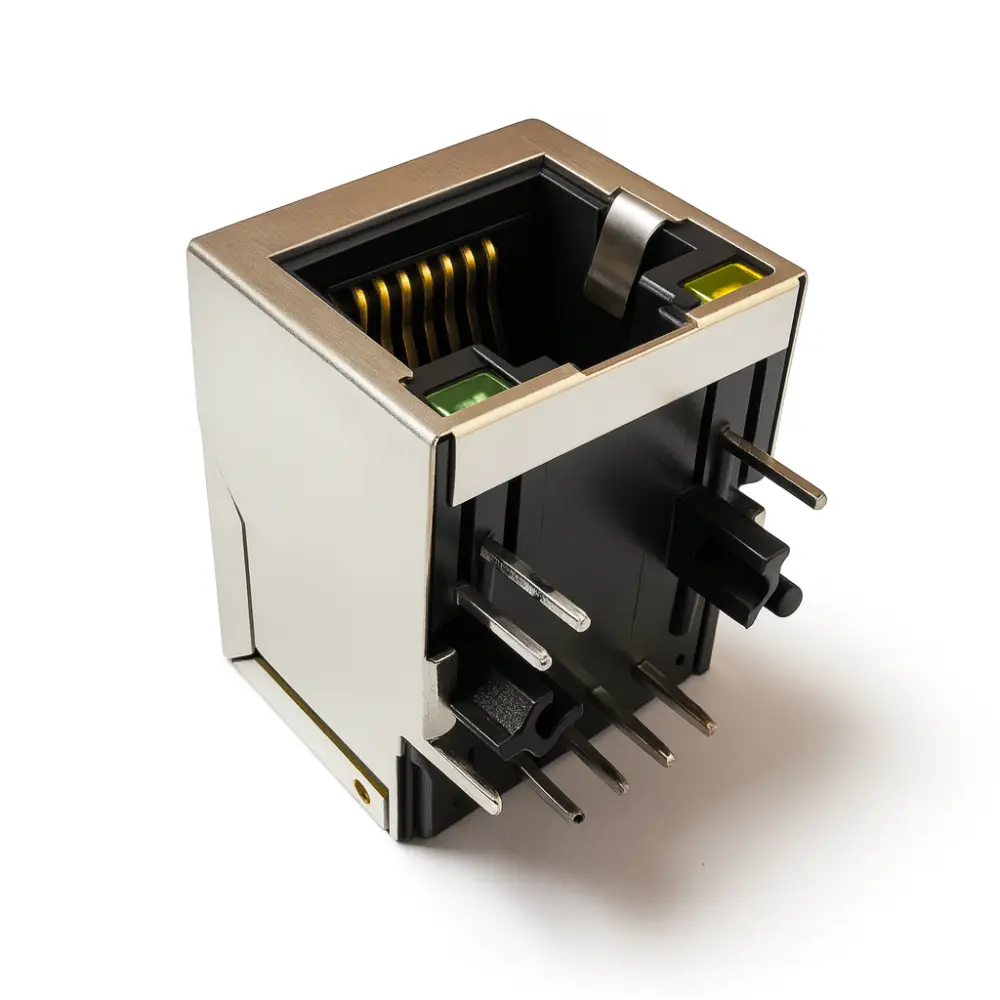

RJ45 Jack with Magnetics, 1×1 Tab-Down, 10/100BASE-T, Shielded, LED. A compact RJ45 jack with magnetics featuring a shielded 1×1 tab-down form factor, selectable gold plating, and dual LEDs for link/activity. Optimized for wave solder and −40 °C to +85 °C operation.
Highlights
10/100BASE-T integrated transformers & chokes (IEEE 802.3)
Shielded housing; through-hole DIP, 2.54 mm pitch
Dual status LEDs (G/Y or Y/G)
Dimensions: 16.00 W × 13.30 H × 21.30 D mm; 14.22 mm bezel-to-PCB
Contact plating options: 3/6/15/30 µin Au; PBT UL94V-0 housing
RoHS, REACH, low-halogen; −40 °C…+85 °C
Applications
Networking switches and SOHO/industrial routers
Media converters and embedded gateways
IP cameras and NVRs
PLCs, HMIs, and motion controllers
IoT nodes and single-board computers
RJ45 Jack with Magnetics, 1×1 Tab-Down, 10/100BASE-T, Shielded, LED. The connector integrates isolation transformers and common-mode chokes to meet IEEE 802.3 requirements for signal integrity, EMI suppression, and PHY protection. A fully shielded metal shell improves noise immunity in dense boards, while through-hole DIP tails ensure robust retention for wave solder.
| 1. Basic Information | |||
| Status | Active | Category | RJ45 Jack |
| Part Number | DW-RJ45-DM01108-01TP-02 | Description | Magnetic Jack, 10/100Base, 1×1 port, Shielded with EMI tabs, with LED (Left: Green / Right: Yellow), 8P8C, Tab-Down, DIP Type |
| Product Name | Magnetic RJ45 Jack 1×1 Tab-Down | Magnetic | Yes |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 16.00 mm | Height | 13.30 mm |
| Length | 21.30 mm | Installed height | 14.22 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | ≤30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | PBT Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Left Green / Right Yellow) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PBT UL94V-0 |
| Jack Height | 13.30 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin over Nickel | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 2.54 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Magnetic Jack, Through-Hole RJ45 Connector, RJ45 with LED, Right Angle RJ45, Single Port, Shielded RJ45, 10/100Base-T |
| Pitch – Termination Interface | 2.54 mm | Latch / Tab orientation | Tab-Down |
| EMI | Yes | ||
| 3. Electrical | |||
| Field | Value | Field | Value |
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125 VAC RMS | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500 MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 1 min | ||
