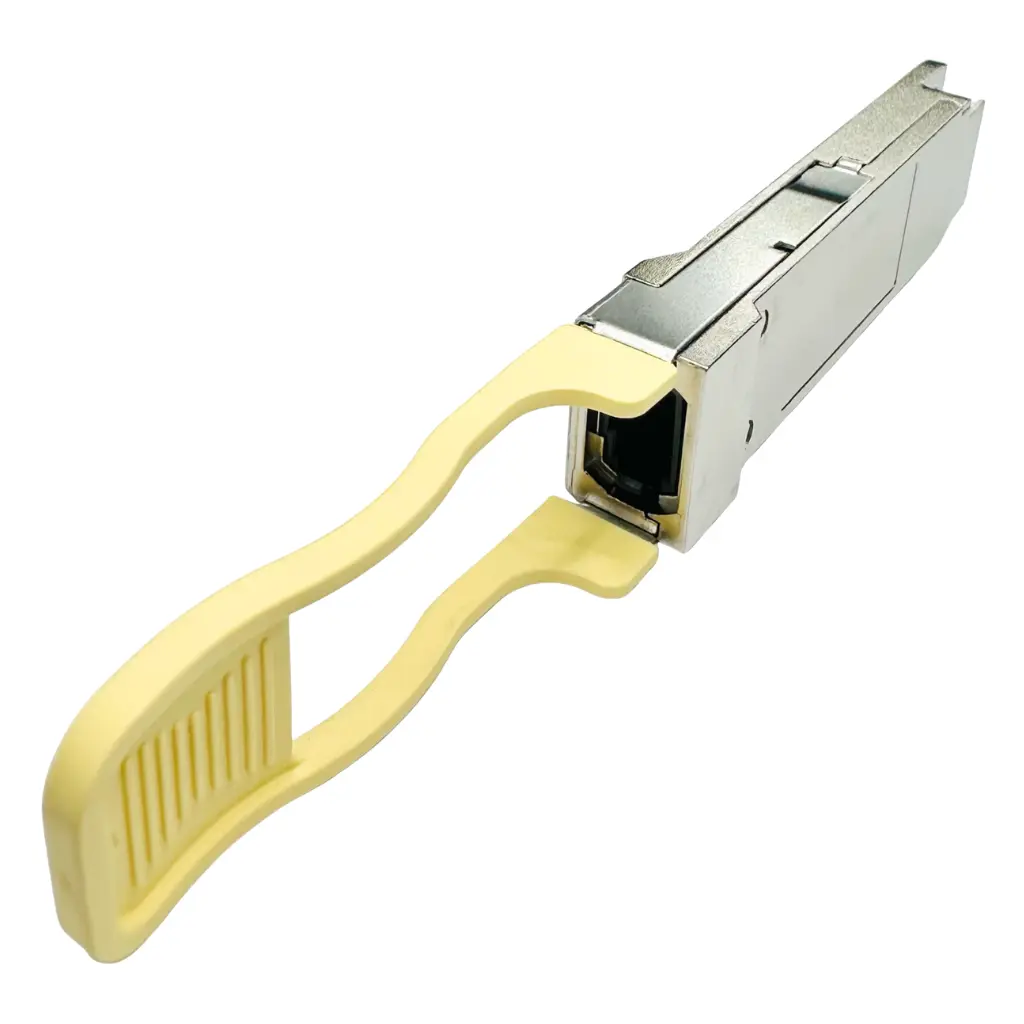

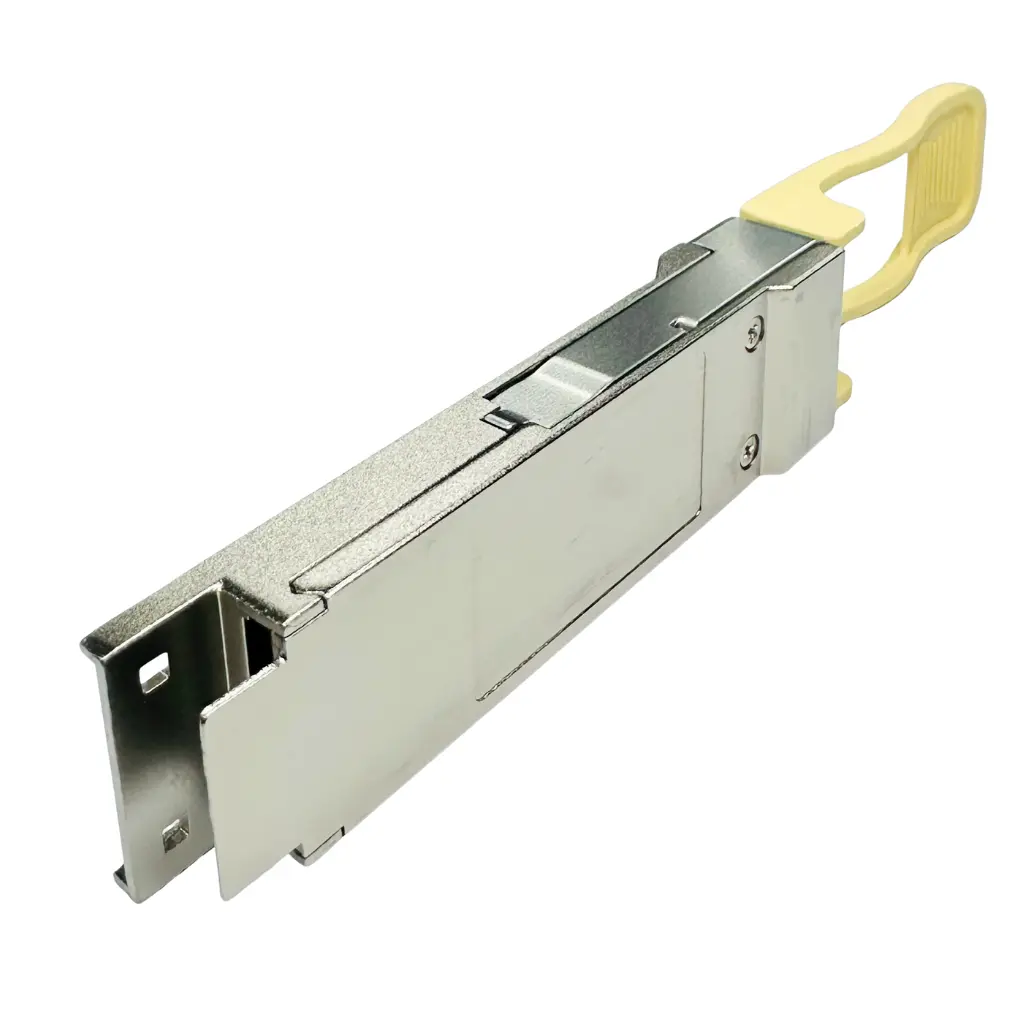

The SFP cage assembly with AOC port and stop gear is a 1×1 matte nickel-plated zinc housing that integrates a PEI1010 AOC port, TPV/SUS304 pull link and zinc stop gear to provide secure locking, precise fiber alignment and EMI shielding for high-speed AOC modules in demanding data center and telecom networks.
Applications:
SFP+ AOC (Active Optical Cable) modules
Data centers and optical fiber networks
High-speed Ethernet and Fiber Channel switches
Telecom transmission and access equipment
Systems requiring reliable fiber transceiver retention
Highlights:
SFP cage assembly with AOC port and stop gear for dedicated AOC module support
Matte nickel-plated 3M zinc cage for strong EMI shielding and mechanical strength
TPV + SUS304 pull link for secure locking and smooth module release
PEI1010 AOC port ensures precise fiber alignment and thermal stability
SUS304 screws and springs provide durable retention under vibration
RoHS, REACH SVHC and low-halogen compliant for carrier-grade deployments
SFP cage assembly with AOC port and stop gear is a dedicated 1×1 mechanical housing engineered for active optical cable (AOC) modules in high-speed data and telecom systems. This SFP cage assembly with AOC port and stop gear combines precise fiber alignment, durable retention and effective EMI shielding, making it suitable for 10G and higher-rate links in switches, transmission units and data center platforms.
The core structure uses a 3M zinc base and upper cover with matte nickel plating to provide robust electromagnetic shielding and mechanical strength. A molded AOC port manufactured from PEI1010 delivers accurate fiber positioning, thermal stability and consistent mating with multi-fiber connectors. The SFP cage assembly with AOC port and stop gear incorporates a TPV and SUS304 pull link that offers secure locking during operation while enabling smooth, tool-free module extraction for service.
| GENERAL | |||
| Status | Active | Category | SFP Plug Assembly Kit with Pull-Link, Tail Sleeve, Screws, and Metal Shell Plates |
| Part Number | DW-SFP-0050-01 | Description | Full mechanical SFP plug housing kit including pull-link, spring, and shell plates |
| Application | Module-to-Board | Component Type | Mechanical Assembly Kit |
| Product Name | SFP Plug Assembly | Sealable | Yes |
| Keywords | SFP Optical module, External Connector, SFP Cage | Features | Blue pull tab with rear spring and reinforced tail sleeve |
| Thermal Accessory Type Included | None | Lightpipe Style | Not Applicable |
| Number of Ports | 1 × 1 | ||
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| Not applicable (Mechanical Assembly Kit) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Full Metal Enclosure (Zinc alloy + SUS304) | Pluggable I/O Applications | SFP |
| Cage Material | 3# Zinc Alloy, SUS304, PA66, TPU | Orientation | Horizontal |
| Packaging Type | Kit with multiple components | Termination Interface Style | Mechanical Mounting |
| Rear Legs | None | Circuit Application | Mechanical Retention Only |
| Thermal Height | N/A | Light Pipes per Port | 0 |
| Included Lightpipe | No | Tail Length | N/A |
| Heat Sink Compatible | No | PCB Thickness (Recommended) | N/A |
| Operating Temperature Range | 55~85°C (based on material spec) | _ | _ |
