SFP+ Cage Assembly with Compression Ring and Release Plate – High-Reliability housing that combines a matte nickel-plated zinc cage, aluminum compression ring, SUS304 release mechanism and rubber sealing to deliver secure module retention, EMI shielding and cable protection in high-speed optical communication systems.
Applications:
SFP+ optical transceiver modules
Telecom switches and fiber routers
Data center optical hardware and line cards
Systems requiring compression-secured SFP+ locking
Highlights:
SFP cage assembly with compression ring and release plate for stable module retention

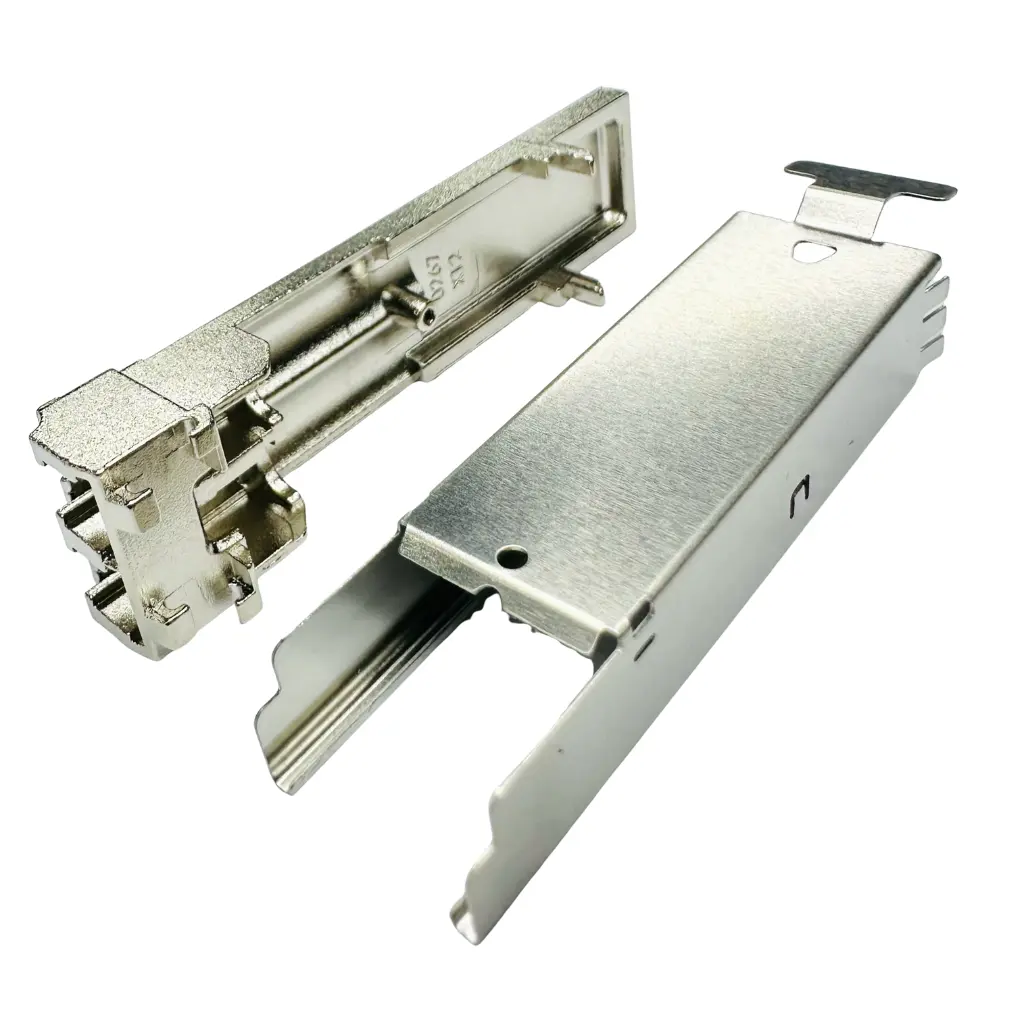

3# zinc cage with matte nickel finish for strong EMI shielding and rigidity

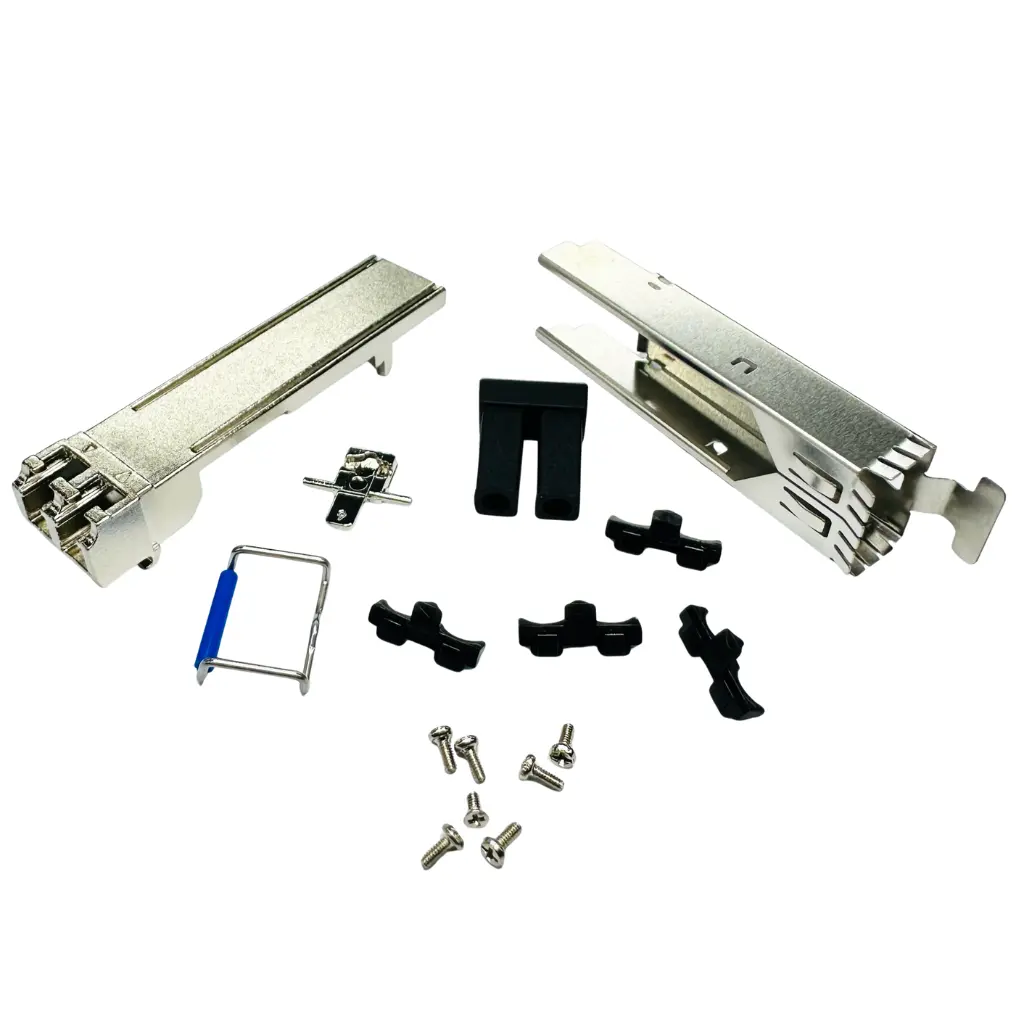

PA66 pull-link, SUS304 release plate, stop gear and spring for reliable locking
Aluminum compression ring and TPU tail sleeve help protect the cable interface
Rubber seal improves vibration damping and environmental sealing
SUS304 screws and metal plates enhance long-term durability
RoHS, REACH SVHC and low-halogen compliant design

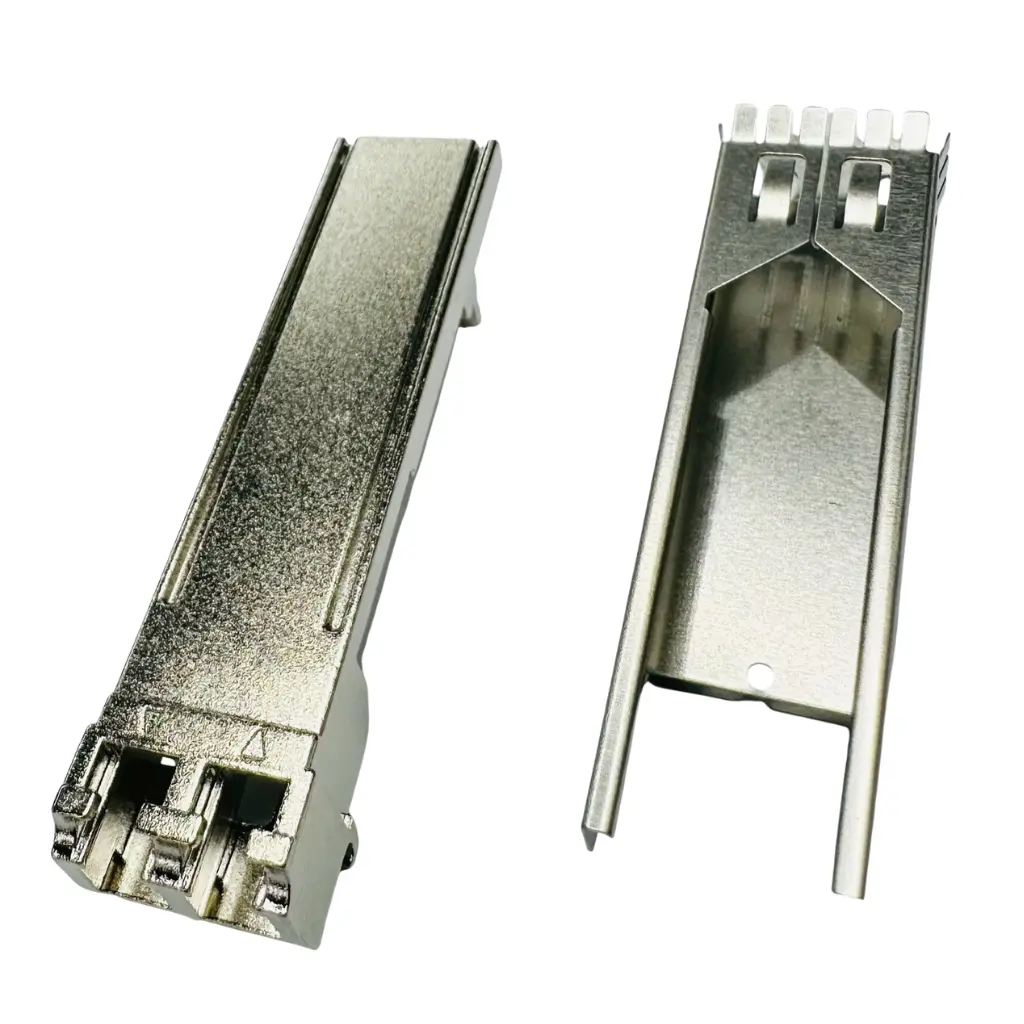

SFP cage assembly with compression ring and release plate is a 1×1 SFP+ housing engineered for high-speed optical transceiver modules in telecom and data center networks. This SFP cage assembly with compression ring and release plate uses a 3# zinc body with matte nickel plating to deliver robust mechanical strength and effective EMI shielding for 10G optical links. The zinc upper and lower cage form a rigid enclosure that maintains signal integrity while withstanding repeated hot-plug operations.
| GENERAL | |||
| Status | Active | Category | SFP mechanical assembly kit (pull-link, tail sleeve, compression ring, rubber seal) |
| Part Number | DW-SFP-0267-01 | Description | SFP plug mechanical assembly including pull-link, tail sleeve, rubber seal |
| Application | SFP assembly mechanical subcomponents | Component Type | Mechanical Assembly Kit (no electrical contacts) |
| Product Name | SFP Assembly | Sealable | Not specified |
| Keywords | SFP assembly, pull-link, SFP Optical module External Connector, SFP Cage | Features | Includes pull-link, tail sleeve, compression ring, metal plates, stop gear, release piece, screw, spring, and rubber seal; RoHS compliant |
| Thermal Accessory Type Included | None (mechanical-only assembly) | Lightpipe Style | Not applicable |
| Number of Ports | 1 × 1 | ||
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| Not applicable (Mechanical Assembly Kit) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Not specified (metal mechanical components: Aluminum, 3# Zinc, SUS304) | Pluggable I/O Applications | SFP |
| Cage Material | Aluminum, 3# Zinc, SUS304, PA66, Silicone rubber | Orientation | Not specified |
| Packaging Type | Assembly of multiple mechanical components | Termination Interface Style | Mechanical mounting |
| Rear Legs | None shown | Circuit Application | Mechanical retention only |
| Thermal Height | N/A | Light Pipes per Port | 0 |
| Included Lightpipe | No | Tail Length | Not specified |
| Heat Sink Compatible | Not specified | PCB Thickness (Recommended) | N/A |
| Operating Temperature Range | 55~85°C (based on material spec) | ||
