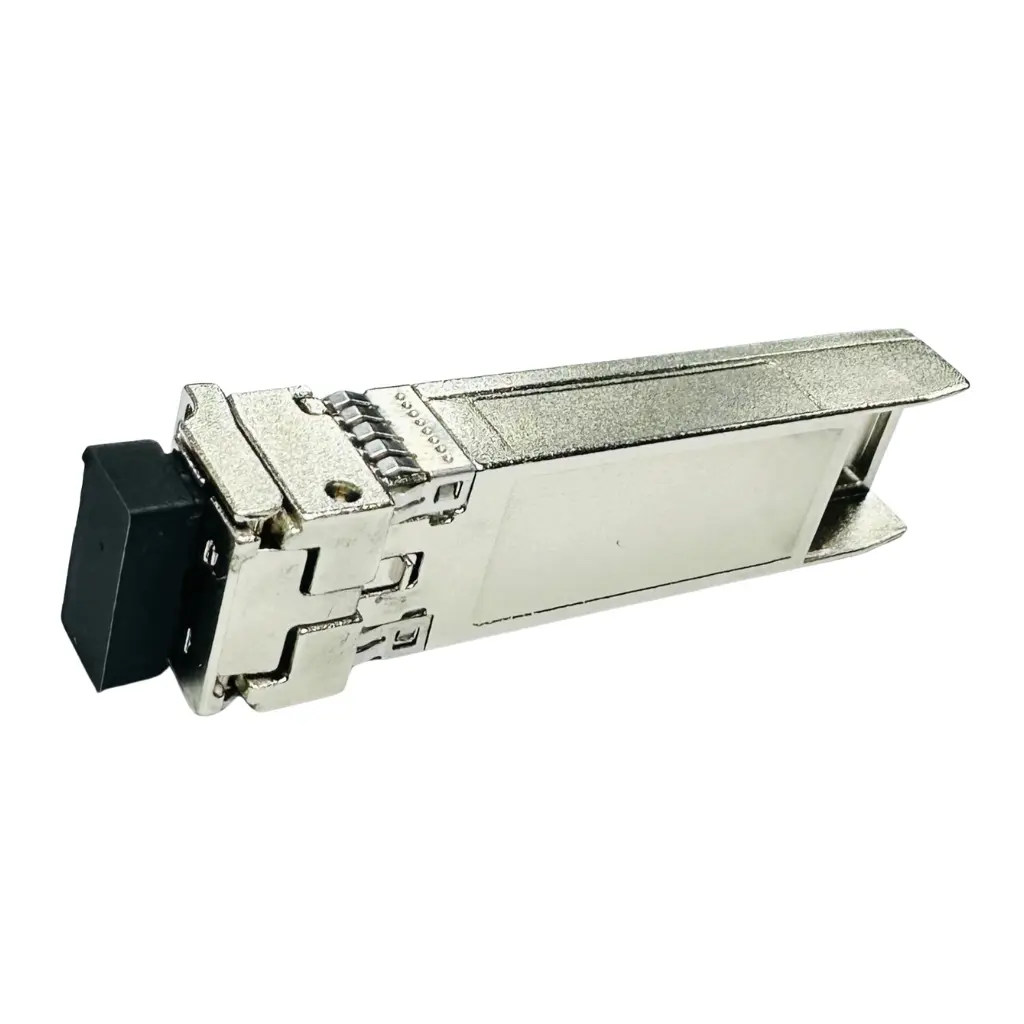

The SFP cage assembly with push-pull lock and rubber seal is a compact 1×1 SFP+ housing that pairs a matte nickel-plated zinc cage with a spring-loaded push-pull mechanism and PE rubber seal, providing secure retention, EMI shielding and vibration resistance for high-speed fiber transceiver modules.
Applications:
SFP+ optical transceiver modules
High-speed Ethernet switches and routers
Fiber optic communication systems and access equipment
Telecom and industrial networking devices
Highlights:
SFP cage assembly with push-pull lock and rubber seal for secure handling
3# zinc housing with matte nickel plating for strong EMI shielding
Integrated push-pull mechanism with zinc pull-link, metal plate and spring
PE rubber seal for anti-dust and anti-vibration protection
POM housing insert for precise module alignment
SUS304 screws and springs for long-term mechanical durability
RoHS, REACH SVHC and low-halogen compliant construction
SFP cage assembly with push-pull lock and rubber seal is a 1×1 SFP+ mechanical housing engineered for pluggable optical transceiver modules in high-speed fiber networks. This SFP cage assembly with push-pull lock and rubber seal combines robust EMI shielding, secure retention and service-friendly operation, making it ideal for switches, routers and telecom platforms that rely on hot-swappable SFP+ optics.
| GENERAL | |||
| Status | Active | Category | SFP Plug Assembly Kit with MPO Port, Push-Pull Tab, Rubber Seal, and Spring |
| Part Number | DW-SFP-0264-01 | Description | SFP mechanical plug with MPO port, metal housing, spring kit, and pull actuator |
| Application | Module-to-Board | Component Type | Mechanical Assembly Kit |
| Product Name | SFP Plug Assembly | Sealable | Yes |
| Keywords | SFP Optical module, External Connector, SFP Cage | Features | MPO port, push-pull latch, dual shell zinc housing |
| Thermal Accessory Type Included | Rubber Seal | Lightpipe Style | Not Applicable |
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| Not applicable (Mechanical Assembly Kit) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Full Metal Enclosure (Zinc alloy + SUS304) | Pluggable I/O Applications | SFP |
| Cage Material | 3# Zinc Alloy, SUS304, , Rubber | Orientation | Horizontal |
| Packaging Type | Kit with multiple components | Termination Interface Style | Mechanical Mounting |
| Rear Legs | None | Circuit Application | Mechanical Retention Only |
| Thermal Height | N/A | Light Pipes per Port | 0 |
| Included Lightpipe | No | Tail Length | N/A |
| Heat Sink Compatible | No | PCB Thickness (Recommended) | N/A |
| Operating Temperature Range | 55~85°C (based on material spec) | _ | _ |
