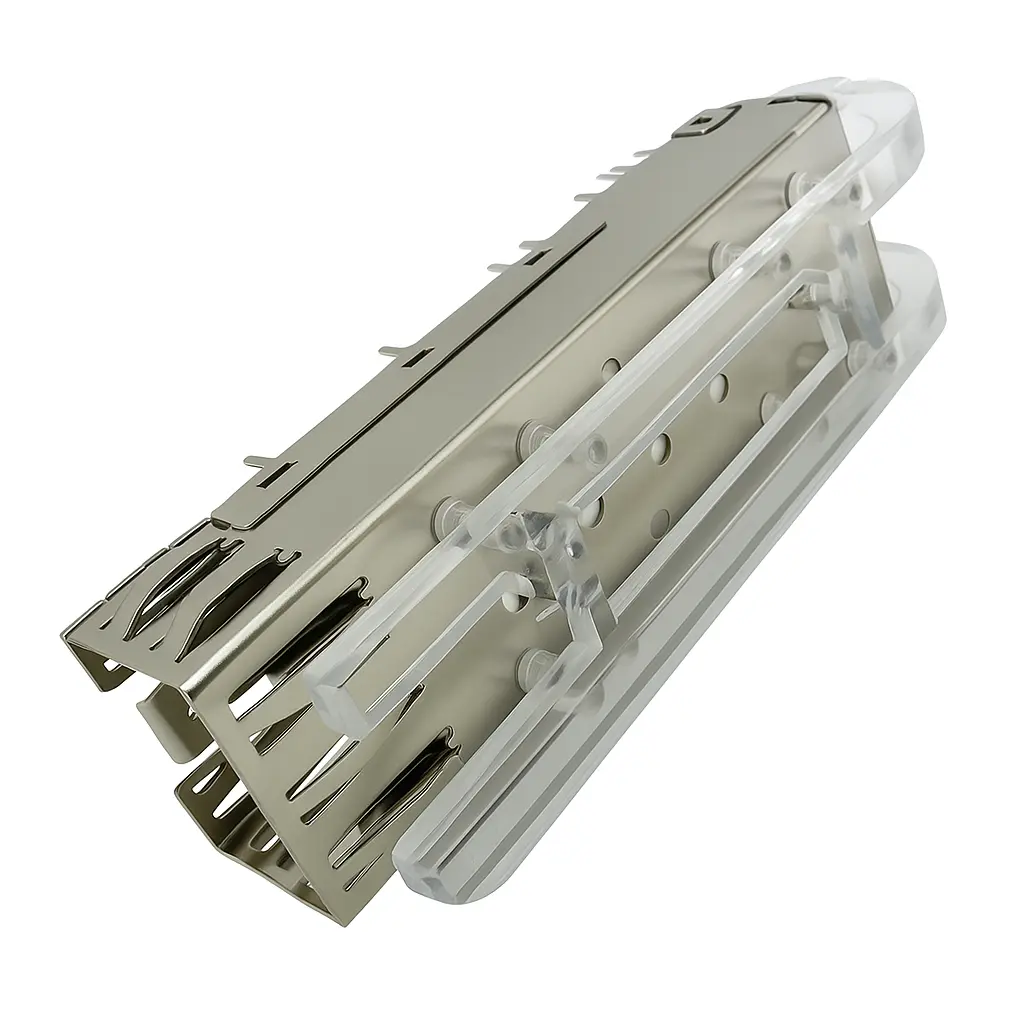

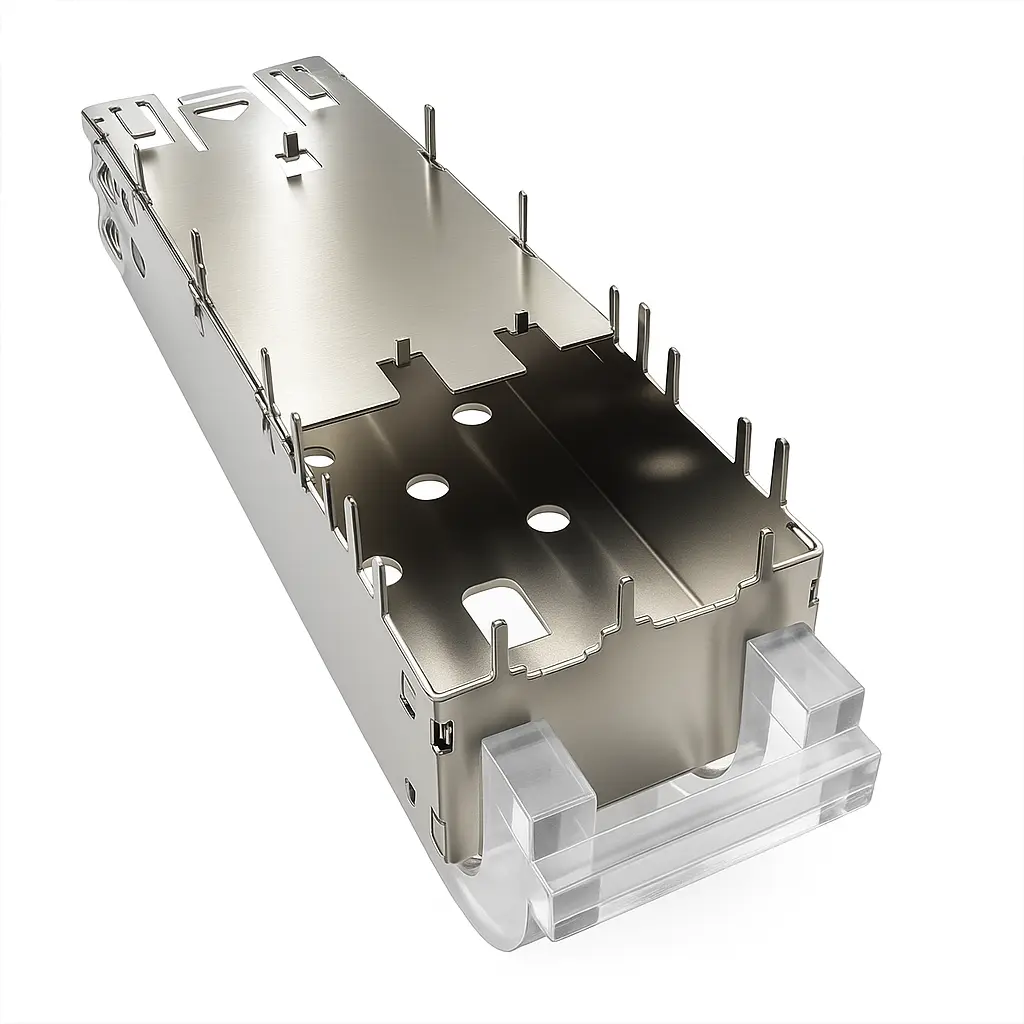

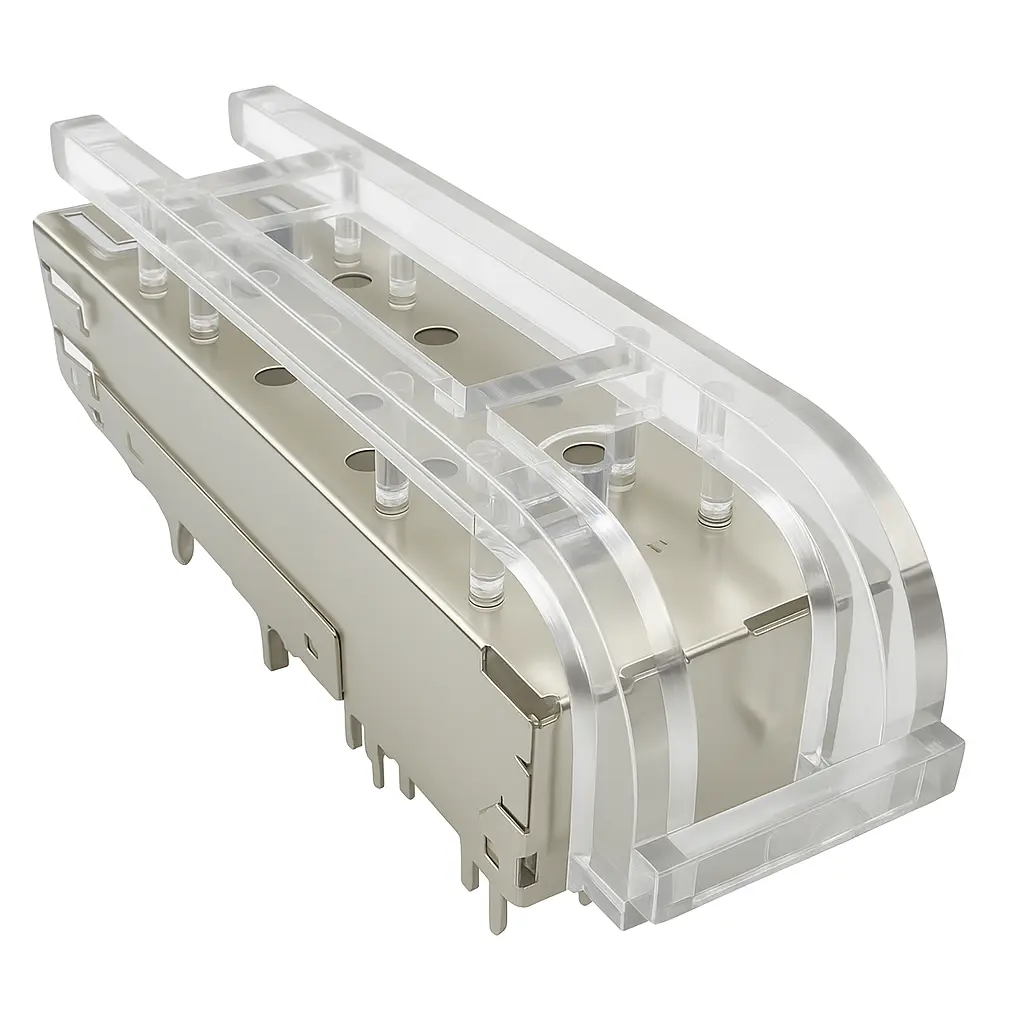

A rugged single-port SFP+ Cage 1×1 – High-Speed Thru-Hole, EMI-Shielded, with Light Pipe and full-nickel shielding. Through-hole pegs and board locks secure the cage to 3.0-mm PCBs, while the optical PC light pipe carries front-panel status LEDs. Compact 50.9 × 14.0 × 10.8 mm form factor, −40~+85 °C operation, and RoHS/REACH compliance make it a dependable choice for 10GbE switches, routers, and NICs where EMI control and serviceable panel alignment matter.
Key Features at a Glance
Single-port SFP/SFP+ cage for 10GbE and serial-link I/O
Thru-hole (THT/DIP) mounting with board locks for strong retention
Full nickel-plated copper-alloy cage for EMI shielding
Integrated clear PC light pipe for front-panel LED indication
Compact envelope: ~50.9 (L) × 14.0 (W) × 10.8 (H) mm; light pipe to ~15.5 mm
Fits 3.0-mm PCB; detailed keep-out and chassis-ground areas in drawing
Operating temperature: −40 °C to +85 °C; storage −55 °C to +105 °C
RoHS/REACH compliant
Highlights
Clean, EMI-tight panel integration with a built-in light pipe and rock-solid thru-hole anchoring. Designed for dense faceplates and consistent thermal/EMI performance.
Applications
NICs • Ethernet switches/routers • Access/aggregation platforms • Optical transport line cards • Industrial networking and edge servers
SFP+ Cage 1×1 is a single-port, high-speed cage engineered for SFP/SFP+ transceivers in 10GbE and other serial-link systems. The through-hole (THT/DIP) termination provides rigid PCB anchoring and low impedance grounding, while the fully nickel-plated copper-alloy cage delivers robust EMI shielding. An integrated clear PC light pipe routes front-panel status LEDs without adding assembly steps.
| GENERAL | |||
| Status | Active | Category | High-Speed EMI Cages |
| Part Number | DW-SFP-D0155TM-03 | Description | SFP 1×1 Cage Assembly with Light Pipe, Press-fit Pins, Through-Hole Mount |
| Application | Module-to-Board | Component Type | Cage Assembly |
| Product Name | SFP Cage | Sealable | No |
| Keywords | SFP Cage, SFP Optical module, External Connector | Features | SFP+ cage with light pipes |
| Thermal Accessory Type Included | Heat Sink | Lightpipe Style | Reduced Length |
| Number of Ports | 1 x 1 | ||
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| 56.0 Gbps (Industry standard for SFP-DD form factor) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Internal / External EMI Springs | Pluggable I/O Applications | SFP+ Enhanced |
| Cage Material | Copper Alloy | Orientation | Horizontal |
| Packaging Type | Tray | Termination Interface Style | Through Hole – Press-Fit |
| Rear Legs | Thermal Solutions | Light Pipe | |
| Thermal Height | 10.80 mm | Circuit Application | Signal |
| Included Lightpipe | Yes | Light Pipes per Port | 2 (Transparent PC Light Pipe) |
| Heat Sink Compatible | Yes | Tail Length | 2.05 mm [.081 in] |
| Operating Temperature Range | -40-85°C | PCB Thickness (Recommended) | 1.57 mm [.062 in] |
