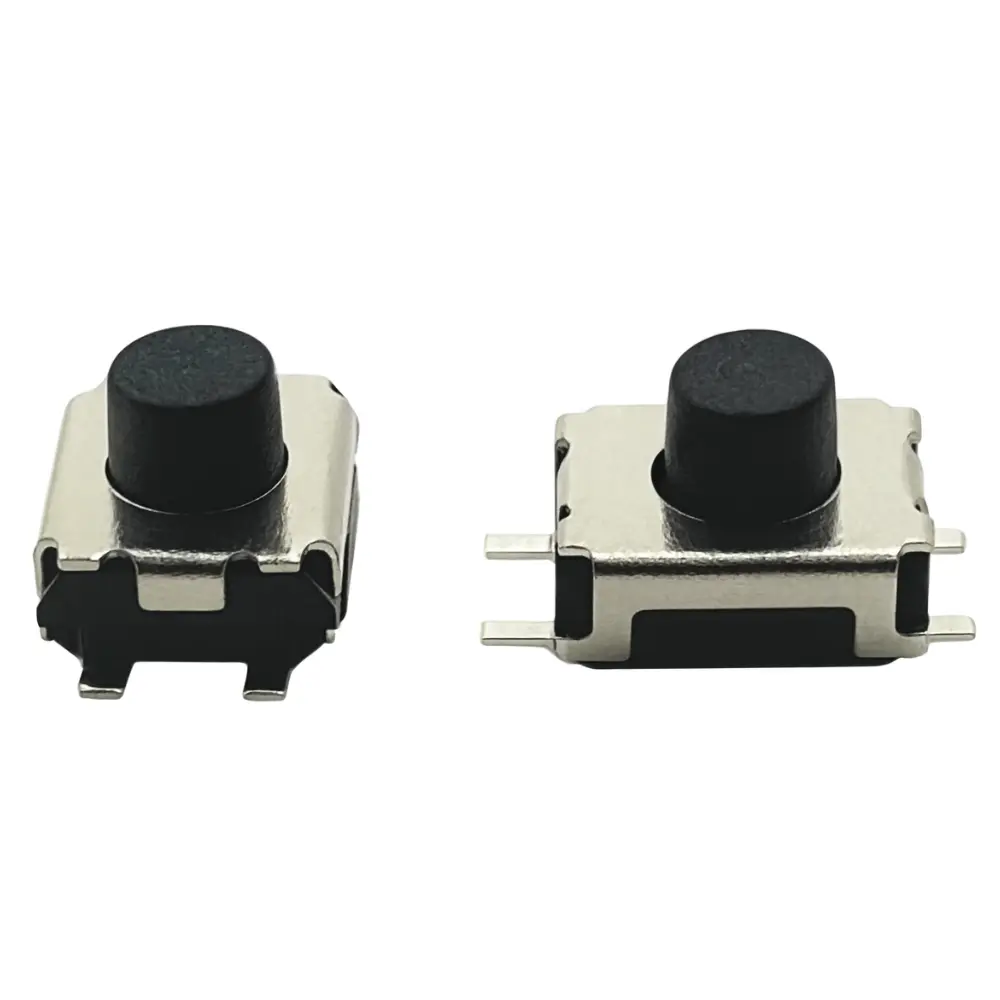

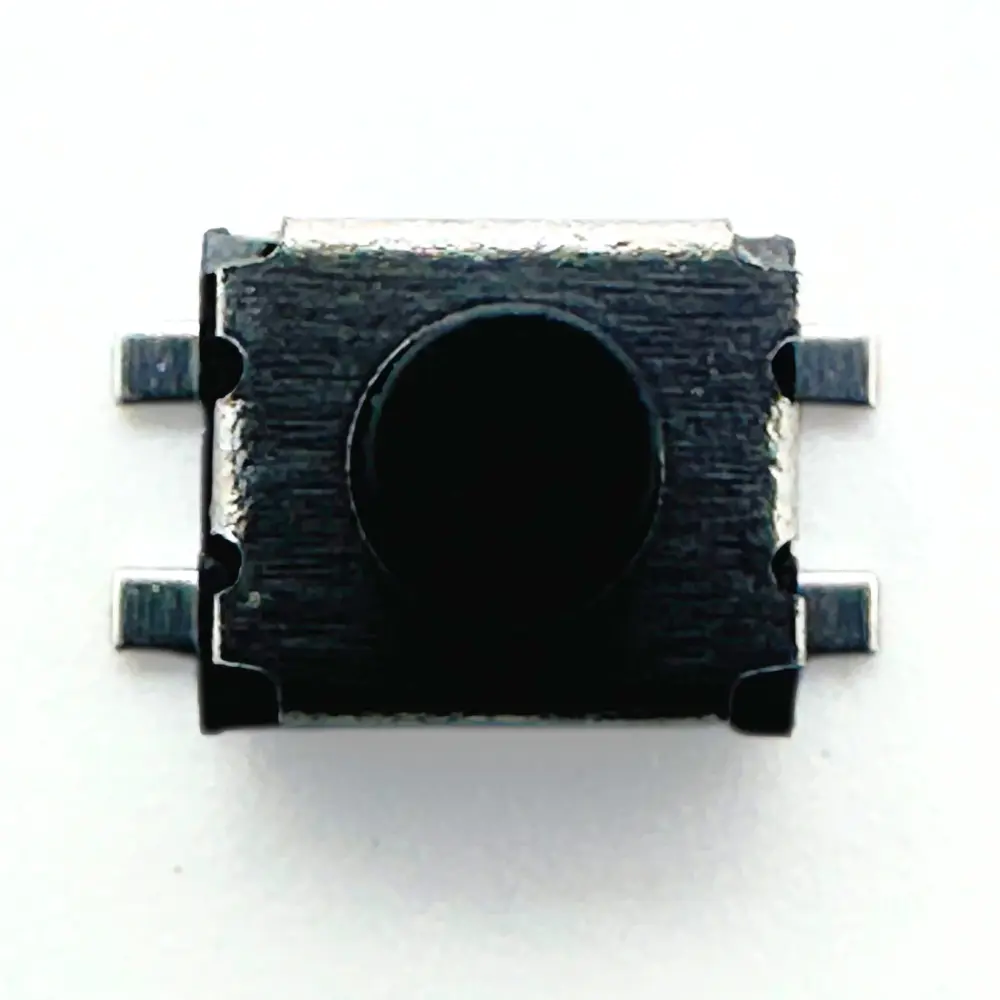

Tactile Switch 5×5 mm SMT DW-TS-S05570X-XXTR-01 is a compact, top-actuated SPST-NO tact switch for keypads and HMI inputs. It uses gull-wing SMT leads on a 5.0×5.0 mm footprint and a round plunger (Ø1.7±0.2 mm). The recommended land pattern is 5.00×2.80 mm with 0.70 mm pad width and 2.30 mm spacing.
Applications: Remote controls, wearables, IoT nodes, handheld instruments, consumer keypads, automotive accessories.
Highlights: 5×5 mm low-profile SMT footprint; top-actuated round plunger; 160/250 gf force options; 0.15 mm travel; 70k-cycle life; −40~+85 °C; SPST-NO; tape-and-reel.
Tactile Switch 5×5 mm SMT DW-TS-S05570C-02TR-01 is a compact, top-actuated momentary SPST-NO switch for keypad and HMI inputs where board space and feel consistency matter.
| 1. General | |||
| Part Number | DW-TS-S05570C-02TR-01 | Product Name | Tact switch |
| Description | Tact switch | Manufacturer | Dragon Well Electronics Co., Ltd |
| RoHS Compliant | Yes | Packaging | TR: Tape Reel |
| Series | 01–99 | Revision / Date | A-1: 2025.02.20 (Updated spec); A-0: 2025.02.06 (NEW) |
| Illuminated | No | Switch Feedback Type | Tactile |
| Switch Connection | SPST, normally open | Operating Function | Momentary |
| 2.Electrical | |||
| Operating Voltage | DC 12V | Rated Current | 50 mA |
| Contact Resistance | ≤100 mΩ | Insulation Resistance | ≥100 MΩ |
| Withstand Voltage | AC 250V / 1 min | Life Requirement | 70,000 cycles |
| Contact Current Rating | 50 mA | Switch Contact Plating | Ag Plating (per BOM) |
| Contact Base Material | SUS301 | ||
| 3. Physical | |||
| Actuator Force | 160±30 gf; 250±50 gf | Travel Distance | 0.15±0.1 mm |
| Actuator Material | LCP | Actuator Color | Black |
| Cover Material | SUS304 | Case Material | LCP |
| Case Color | Black | Base Material | LCP |
| Spring Material | SUS301 (Ag Plating) | Low Profile | |
| Process Sealed | Yes | ||
| Height (H) Options | A: 1.8 mm; B: 2.0 mm; C: 2.5 mm; D: 3.0 mm | H Tolerance | ±0.2 |
| Body Length (Top View) | 3.50 mm | Side Dimension | 1.40±0.2 mm |
| Vertical Dims (Side) | 1.50±0.1 mm; 0.50±0.05 mm | Mounting Length | 4.60±0.35 mm |
| Actuator Ø | ⌀1.7±0.2 mm | Thickness (T) | 0.15 mm |
| Pad Spacing (PCB) | 5.00 × 2.80 mm | Footprint Spacing | 0.70 mm; 2.30 mm |
| Operating Temp Range | −40 °C ~ +85 °C | ||
| 4. Solder Process Data | |||
| Termination Method | SMT | Recommended PCB Layout | Top View (Tolerance: ±0.05) |
