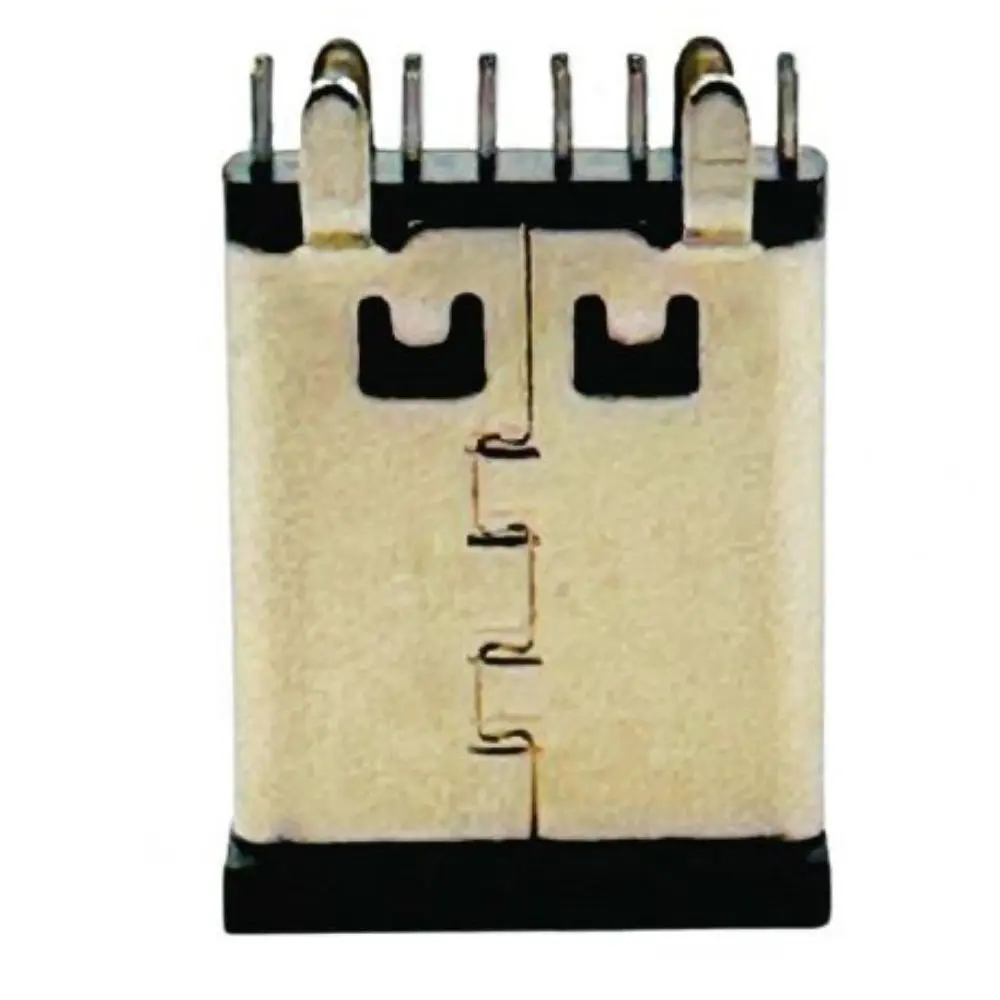

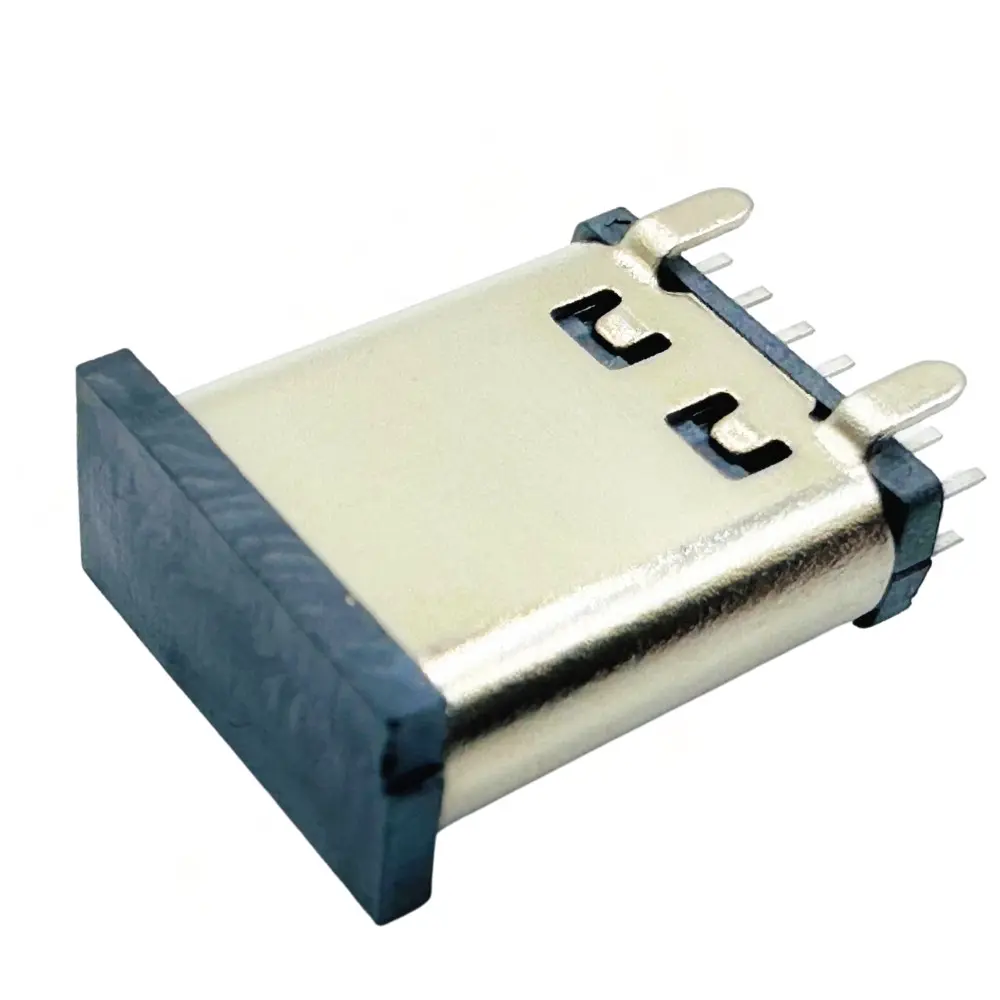

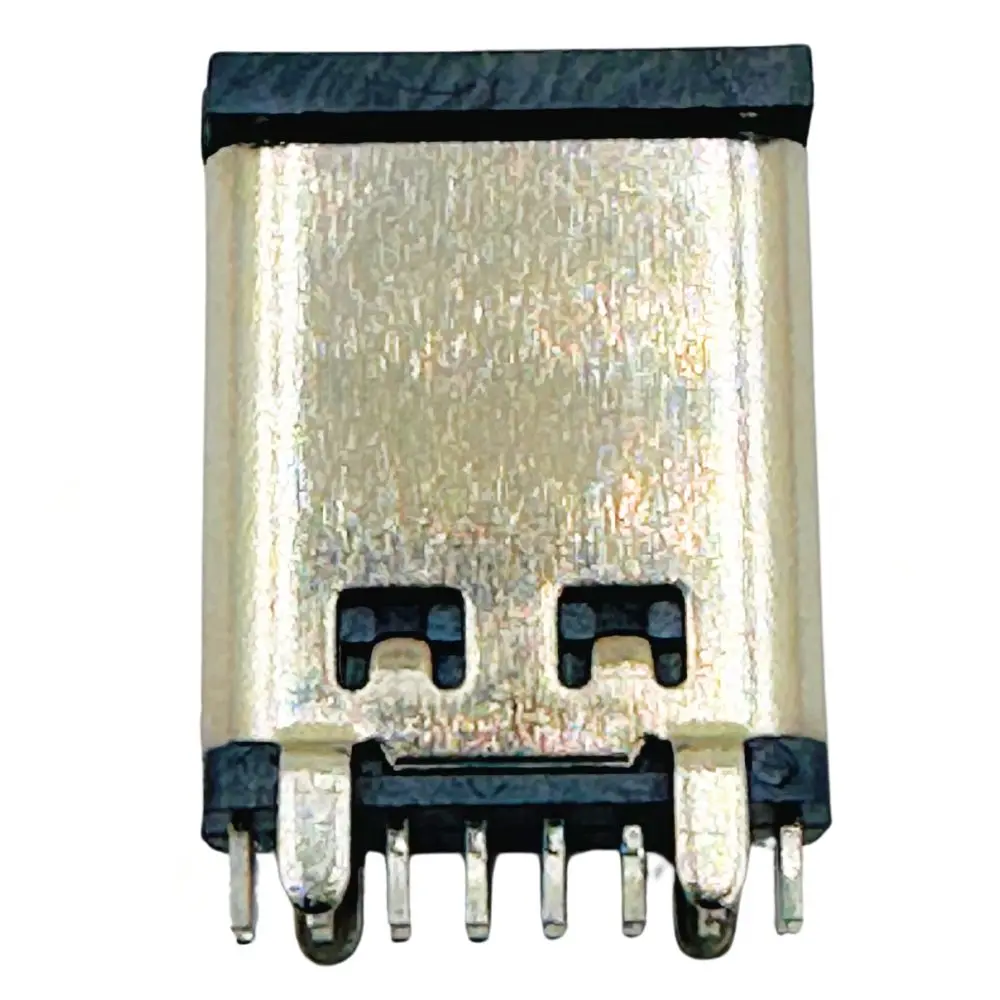

USB Type-C 16Pin connector with vertical tab-up configuration for through-hole PCB mounting.
Application: Power delivery and high-speed data communication in compact electronic devices.
Material: High-performance thermoplastic + copper alloy + stainless steel shell.
USB Type-C standard compliant with reversible plug design
16-pin configuration for full-featured USB-C functionality
Supports high-speed data and power delivery
Compact vertical structure saves board space
5000 mating cycles minimum for long-lasting durability
| General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MUB-CF016821-01TR-01 | Description | USB Type-C connector, 16PIN, Vertical Type, Height: 10.00mm, Through hole, Black Insulator |
| Application | Wire-to-Board / Cable-to-Board | Comments | IPX6 rated waterproof, suitable for harsh environments |
| Component Type | Receptacle | Product Name | USB Type-C Connector |
| USB Version | USB 2.0 Type-C | Type | Type-C |
| Keywords | USB Type-C Connector, TYPE-C USB Connector, Waterproof USB Type-C, Waterproof connector, Sealed Connector, I/O Connector, USB Connector | Circuit Application | Power & Signal |
| Electrical | |||
| Current – Maximum | 3.0A | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Full Shield |
| Voltage – Maximum | 30V | Contact Resistance | 30mΩ Max |
| Insulation Resistance | 100MΩ Min. | Dielectric Withstanding Voltage | 250V AC |
| Physical | |||
| Circuits (Loaded) | 16 | Circuits (Maximum) | 16P |
| Color-Housing | Black | Durability (Mating Cycles Max) | 5000 |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material – Contact | Copper Alloy | Plating on soldering area | Gold |
| Plating on contact area | Gold | Material – Housing | LCP UL94V-0 |
| Mounting Style | DIP (Through-Hole) | Connector Mounting Type | Board Mount |
| Number of Rows | 2 | Net Weight | – |
| Packaging Type | Tape and Reel | Orientation | Vertical |
| PCB Retention | Yes | Vacuum Pick-up Cap | Yes |
| Pitch – Termination Interface | 0.55 mm | Polarized to Mating Part | Yes |
| Ports | 1 | Temperature Range – Operating | -30°C to +80°C [ -22 – 176 °F ] |
| Termination Interface Style | Through-Hole | Waterproof / Dustproof | No |
| PCB Thickness (Recommended) | 8mm | Number of Mount legs | 4 |
