Original price was: $0.10.$0.08Current price is: $0.08.

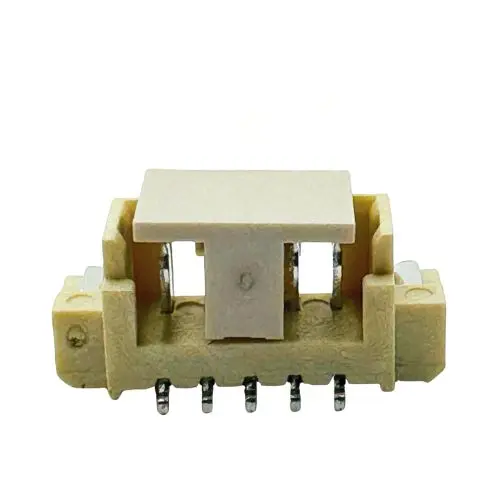

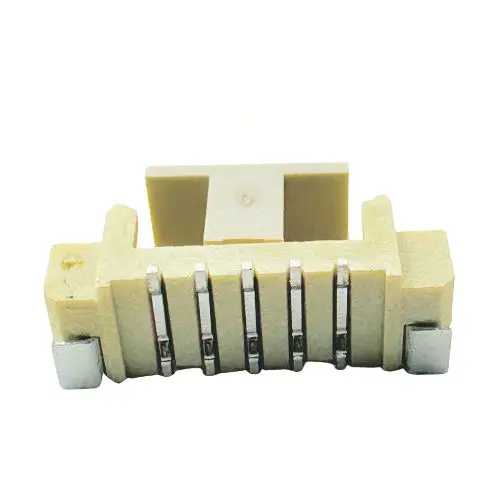

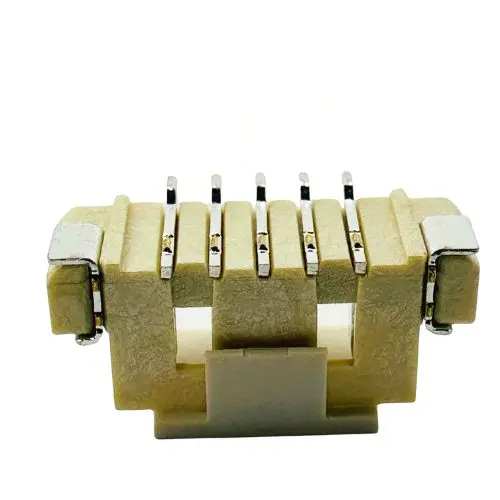

For compact harnesses, this 1.25 mm pitch SMT vertical header provides a single-row interface with end hold-down tabs for reliable reflow attachment. The insulator body height is 4.30 ± 0.25 mm, with 1.60 mm (min) standoff noted for paste clearance. Terminals and solder tabs are phosphor bronze, tin over nickel, and the housing is LCP UL94V-0 (natural color). The recommended PCB layout specifies 1.25 mm pad pitch with 0.80 mm pad width and anchor pads at both ends; dimensions scale by circuit count per the on-drawing table (2–10 poles). A lock configuration is defined by circuits: 2–3 pins = lock “1”; ≥4 pins = lock “2.”
Electrical ratings are 1.0 A AC/DC and 125 V AC/DC, with contact resistance ≤20 mΩ, insulation resistance ≥100 MΩ, and withstand voltage 500 VAC for 1 minute. Operating temperature is –25 °C to +85 °C. This header is RoHS compliant.
Overall, this PCB connector delivers a robust wire-to-board solution with proven materials, consistent plating stack, and a clear dimensional table to select the correct length by pole count.
Wire to Board connector; 1.25 mm single-row SMT vertical header with hold-down tabs.
| General | |||
| Status | Active | Category | Wire to board (WTB) connectors |
| Series | Wire-to-Board Header | Description | 1.25 mm SMT Wafer, Vertical (180°) 5-Pin |
| Part Number | DW-WF-1125225WV05P-31TR-05 | Comments | Lock configuration: 2–3 pins = 1 lock; ≥4 pins = 2 locks |
| Component Type | Wafer (SMT) | Product Name | Wafer Connector |
| Electrical | |||
| Current – Maximum per Contact | 1 A AC/DC | Voltage – Maximum | 125 V AC/DC |
| Insulation Resistance | 100 MΩ Min. | Withstanding Voltage | 500 V AC/minute |
| Contact Resistance | 20 mΩ Max. | ||
| Physical | |||
| Circuits (Loaded) | 2-10 poles | Circuits (maximum) | 10 |
| Color – Resin | Natural (LCP) | Durability (mating cycles max) | |
| Glow-Wire Capable | N/A | Lock to Mating Part | Yes |
| Mated Height | 3.38mm | Mated Width | 2.55mm |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Tin over Nickel |
| Material – Plating Termination | Tin over Nickel | Net Weight | |
| Number of Rows | 1 | Orientation | Vertical (180°) |
| Packaging Type | Tape & Reel (TR-05) | PCB Locator | |
| PCB Retention | Phosphor Bronze | Pitch – Mating Interface | 1.25 mm |
| Pitch – Termination Interface | SMT, gull-wing leads | Plating min – Mating | Tin over Nicke |
| Polarized to Mating Part | Yes | Polarized to PCB | No separate locating / peg shown |
| Temperature Range – Operating | −25 °C to +85 °C | Termination Interface Style | Surface Mount |
| Weight | 5.5 kg |
|---|---|
| Dimensions | 35 × 35 × 26 cm |
