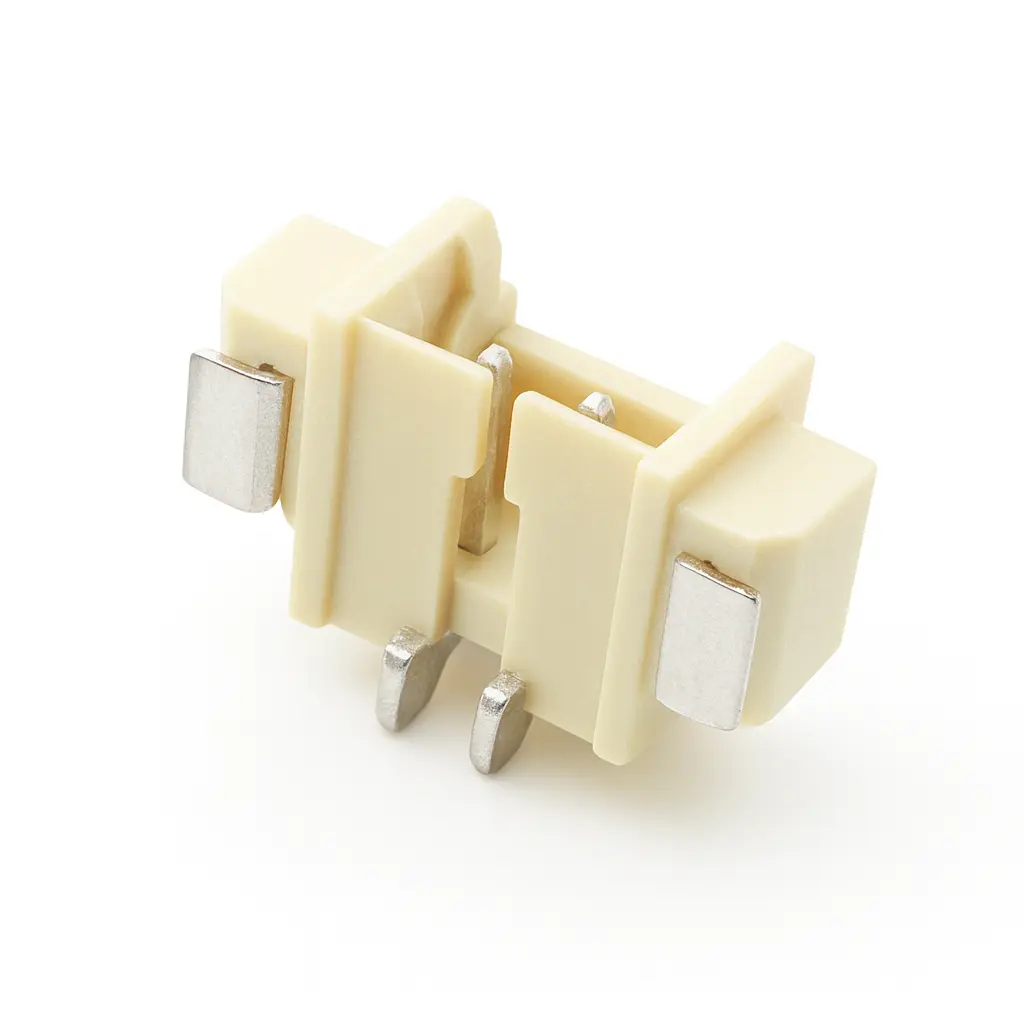

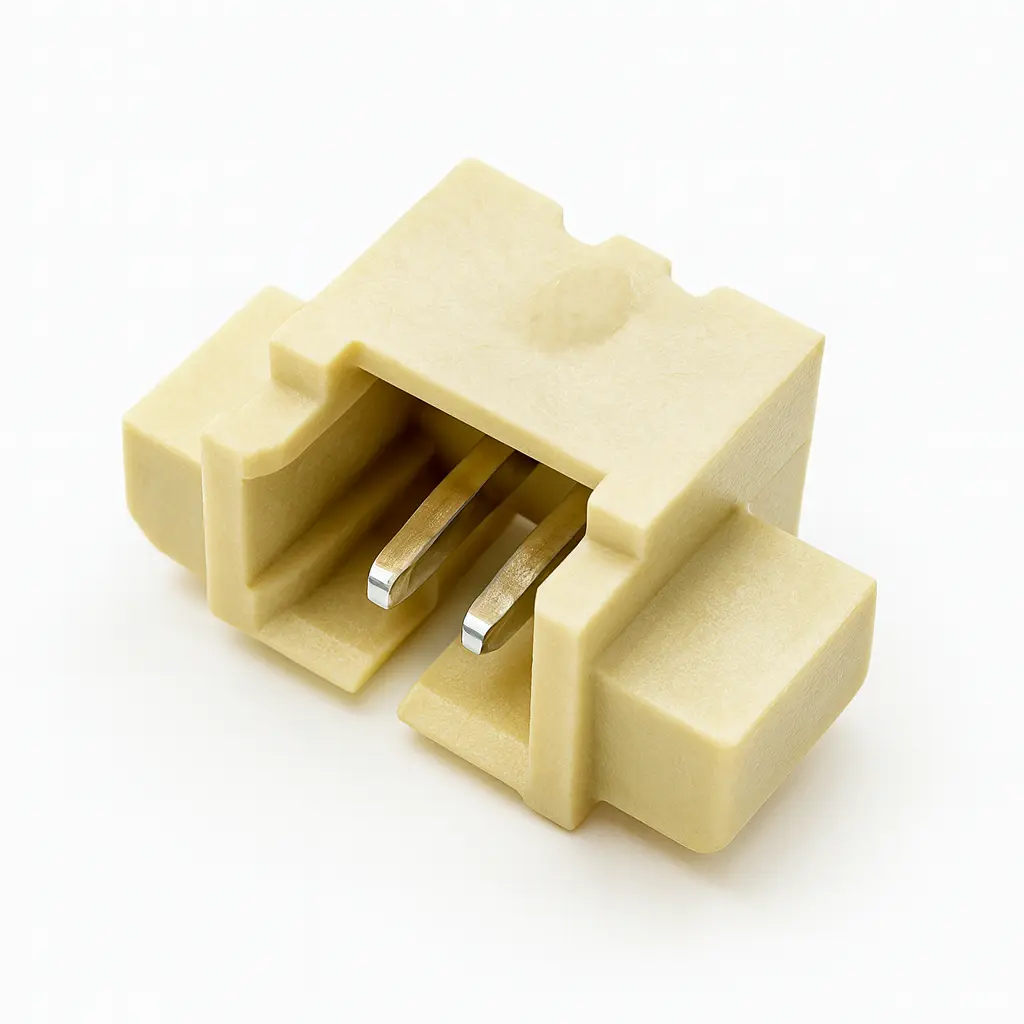

1.25mm pitch Wire-to-Board connector is engineered for reliable, low-profile power and signal transmission. The 2-position (2P), vertical, Surface Mount (SMT) design is ideal for high-density PCB applications where space is at a premium. It provides a secure and stable connection between a wire harness and a circuit board, making it an excellent choice for compact, modern electronic devices.
Application:
Product Highlight:
1.25mm Pitch Wire-to-Board Connector, 2P Single row Surface mount Vertical type Tin (Sn) Plating PCB Header
| General | |||
| Status | Active | Category | Wire to board (WTB) Connector |
| Series | Wire to Board connector 1.25mm Pitch Surface Mount | Description | 1.25mm Pitch Wire-to-Board Connector 2P Single row Surface mount Vertical type Tin (Sn) Plating |
| Part Number | DW-WF-112530WR02P-31TR-01 | Product Name | Wafer Connector |
| Component Type | PCB Header | Termination Method to PCB | Surface Mount |
| Electrical | |||
| Current – Maximum per Contact | 1A AC/DC | Voltage – Maximum | 125V AC/DC |
| Insulation Resistance | 100MΩ Min. | Withstanding Voltage | 250V AC/Minute |
| Contact Resistance | 20mΩ Max. | Temperature Range – Operating | -25°C to +85°C |
| Physical | |||
| Circuits (Loaded) | 2 | Circuits (maximum) | 40 |
| Color – Resin | Natural | Durability (mating cycles max) | 30 |
| Glow-Wire Capable | No | Lock to Mating Part | Yes |
| Mated Height | 8.5 | Mated Width | 3.05 |
| Material – Metal | Brass | Material – Plating Mating | Tin (Sn) |
| Material – Plating Termination | Tin (Sn) | Net Weight (g) | 0.123 |
| Number of Rows | 1 | Orientation | Right Angle |
| Packaging Type | Tape Reel | PCB Locator | No |
| PCB Retention | Yes | Pitch – Mating Interface | 1.25mm ( .049 in ) |
| Mating Entry Location | Side Entry | Plating min – Mating | 60u” |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Flammability | UL 94V-0 | Termination Interface Style | Surface Mount |
| Weight | 1 kg |
|---|---|
| Dimensions | 35 × 35 × 10 cm |
