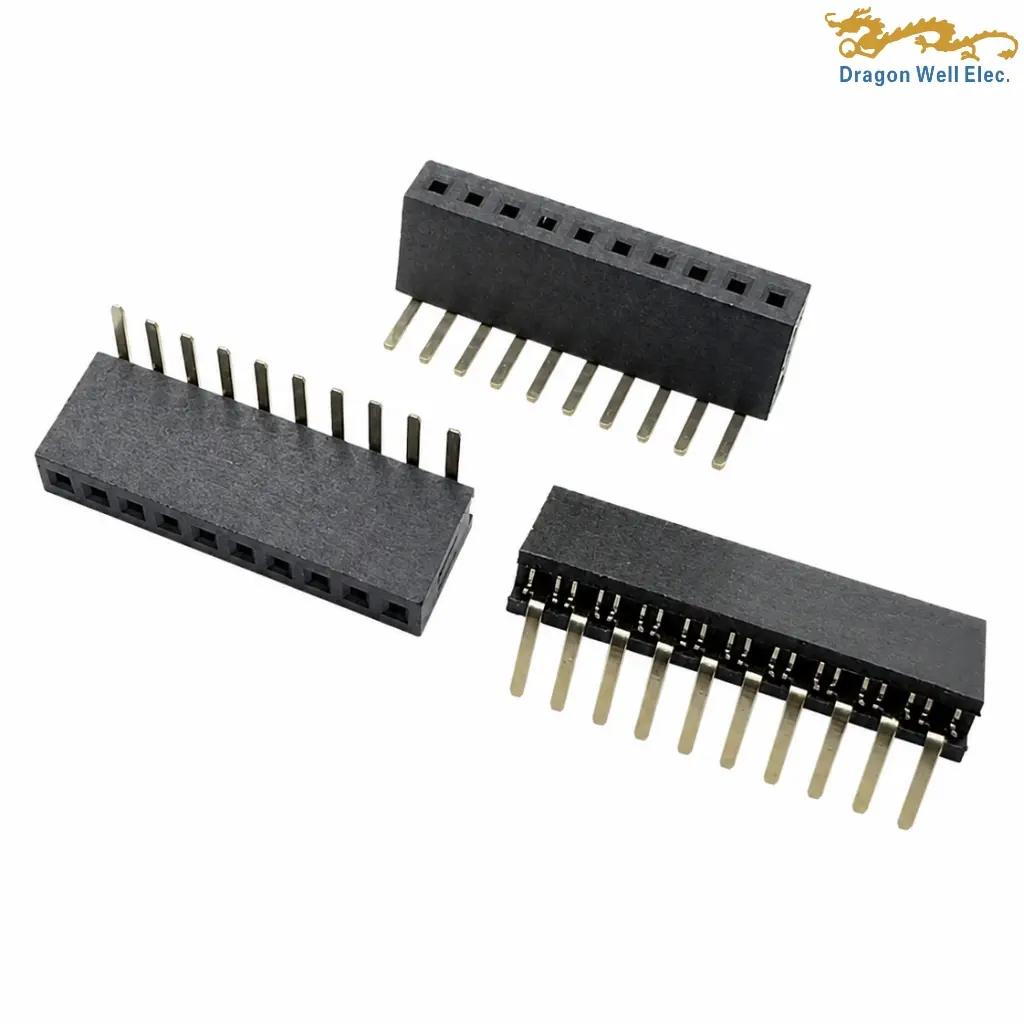

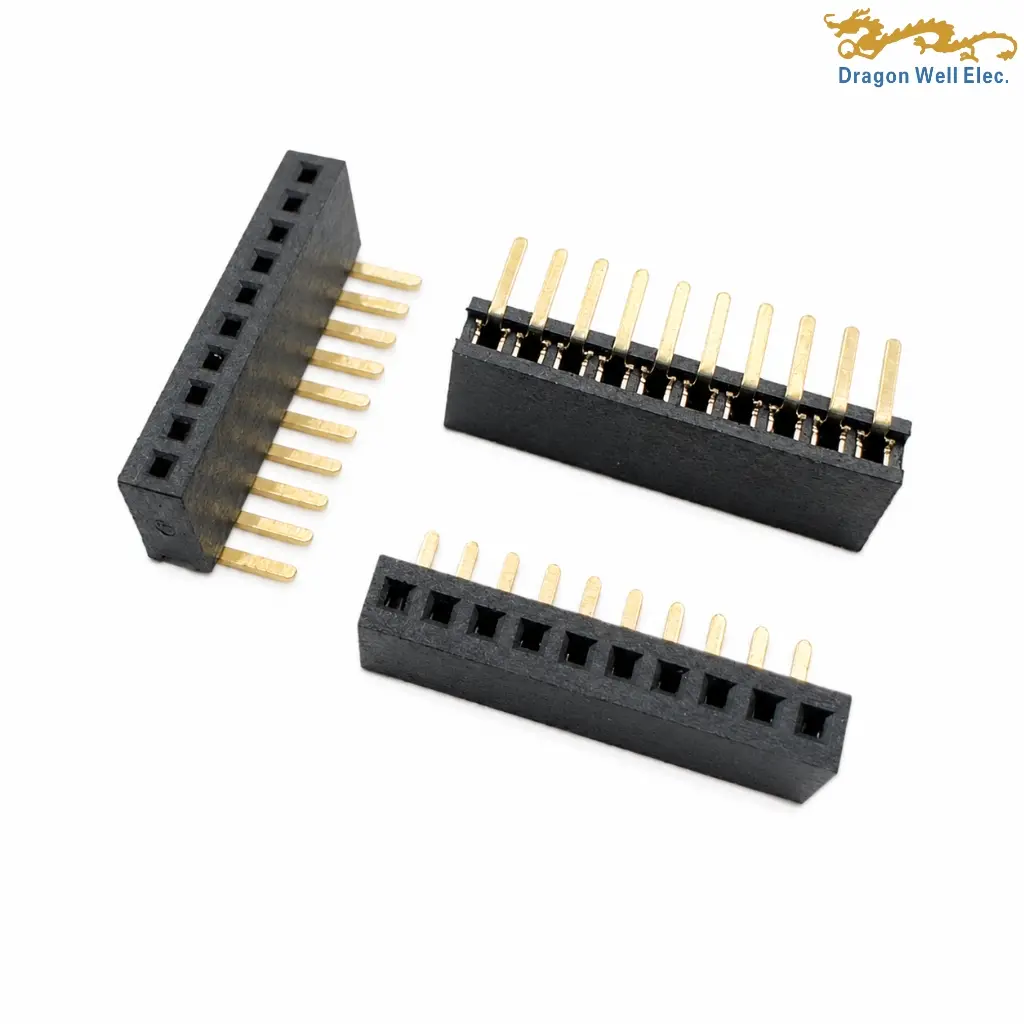

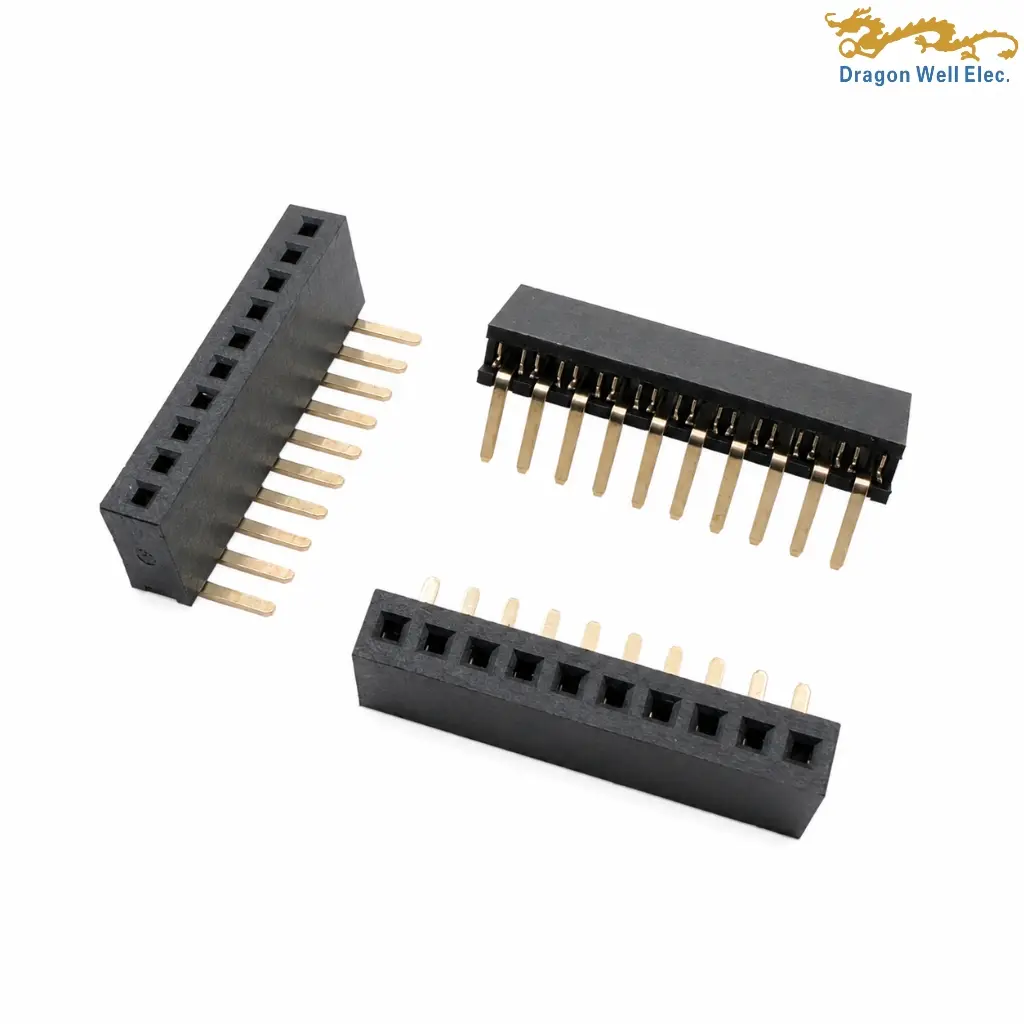

The 1.27mm right angle female header DW-FH-1127663WR10P-01PE-01 is a 10-position, single-row, 90° through-hole receptacle connector with a 1.27 mm pitch. It features a 1 A rating, phosphor-bronze contacts, gold-flash-over-nickel contact finish, PA6T UL 94V-0 housing, PE-bag packaging, and RoHS-compliant construction.
Applications: Board-to-board connections, daughtercards, embedded control boards, communication equipment, industrial electronics, instrumentation, consumer electronics, test equipment, and compact PCB assemblies.
Highlights: 1.27 mm pitch; 10 positions; single-row female header; 90° right-angle orientation; DIP/through-hole mounting; 1.0 A rated current; ≤20 mΩ contact resistance; ≥1000 MΩ insulation resistance; 500 V AC/DC withstand voltage; -40°C to +105°C operating temperature; phosphor-bronze contacts; gold flash over nickel; PA6T UL 94V-0 housing; 0.5 × 0.15 mm terminals; Ø0.6 mm recommended PCB holes; A = 11.43 mm; B = 12.70 mm; PE-bag packaging; RoHS compliant.
1.27mm right angle female header DW-FH-1127663WR10P-01PE-01 is a compact single-row, 90° DIP/through-hole receptacle connector designed for dense PCB interconnection. The attached Dragon Well drawing identifies the product family as a 1.27 mm pitch female header, single row, DIP type, 90°, while this specific product variant is 10 positions.
The connector is rated at 1.0 A and provides 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 500 V AC/DC withstand voltage. Its specified operating temperature range is -40°C to +105°C, making the connector suitable for a broad range of electronic assemblies.
This 1.27mm right angle female header uses phosphor-bronze contacts with gold over nickel plating and a PA6T insulator rated UL 94V-0. The drawing specifies a 1.27 ±0.1 mm contact pitch, 0.5 × 0.15 mm terminals, and recommended Ø0.6 mm PCB holes. For the 10-position configuration, the dimension table specifies A = 11.43 mm and B = 12.70 mm.
The part-number system provides several contact-plating options. For this specific 01 configuration, the drawing identifies gold flash plating, while PE specifies PE-bag packaging. The product is also marked RoHS compliant.
The 1.27mm right angle female header is suitable for compact board-to-board interconnection, daughtercards, embedded controllers, communication equipment, industrial electronics, instrumentation, and other PCB assemblies requiring a low-profile right-angle receptacle. Samtec similarly classifies 1.27 mm receptacle/socket products as female connectors available in right-angle and through-hole formats for board-to-board and wire-to-board interconnection.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-1127663WRNP-XXPE-01 | Description | 1.27 mm Female Header, Single Row, Right Angle 90°, DIP Type |
| Application | Board-to-Board, Signal/Power | Component Type | Female Header |
| Product Name | Female Header 1.27 mm Single Row Right Angle | UPC | N/A |
| Electrical | |||
| Current – Maximum per Contact | 1:00 AM | Voltage – Maximum | 500 V AC/DC |
| Contact Resistance | 20 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| Physical | |||
| Circuits (Loaded) | 2–50 positions (per part number) | Circuits (Maximum) | 50 |
| Color – Resin | N/A | Flammability | UL94V-0 |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Au over Ni; finish controlled by XX plating code |
| Material – Plating Termination | Per XX code: 01 Gold Flash; 03 3 µ″ Gold; 06 6 µ″ Gold; 10 10 µ″ Gold; 15 15 µ″ Gold; 30 30 µ″ Gold; 31 Sn; 32 Ni | Material – Resin | PA6T (UL94V-0) |
| Net Weight | N/A | Number of Rows | Single Row (1) |
| Orientation | Right Angle / 90° RA | Packaging Type | PE Bag |
| PC Tail Length | N/A | Pitch – Mating Interface | 1.27 mm |
| Plating min – Mating | Per XX plating code | Plating min – Termination | Per XX plating code |
| Polarized to PCB | N/A | Temperature Range – Operating | -40 °C to +105 °C |
| Termination Interface Style | Through Hole / DIP | ||
| Solder Process Data | |||
| Max-Duration | 5000 | Lead-Free Process Capability | Wave |
| Max-Cycle | 5000 | Max-Temp | 260 °C ±5 °C, 105 MAX |
