The 1.00mm 14 pin SMT female header is a low-profile 2 × 7 dual-row PCB receptacle with vertical surface-mount termination and a 2.10 ± 0.15 mm body height. It features phosphor-bronze contacts with gold plating over nickel, a 1 A current rating, and a -40°C to +105°C operating range. The PA6T glass-filled insulator is UL94 V-0 rated, and the connector is RoHS compliant.

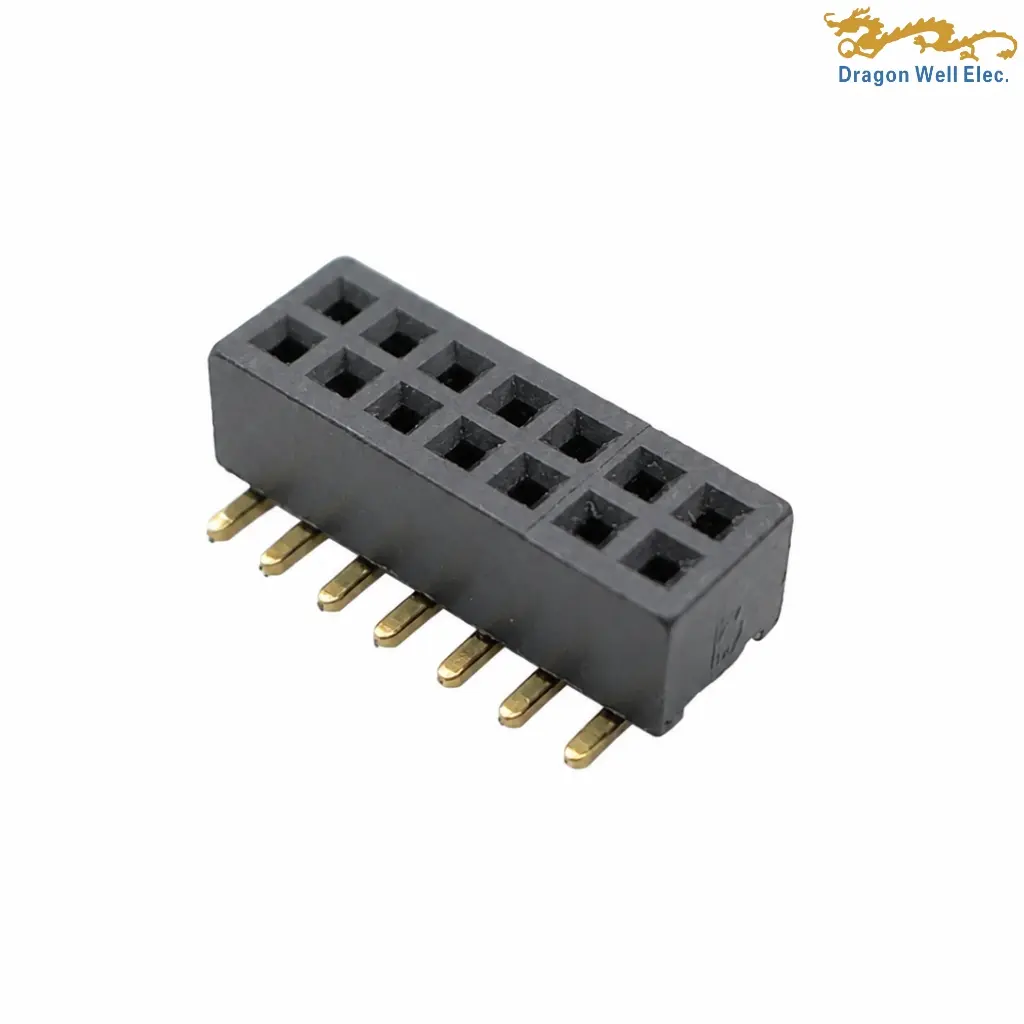

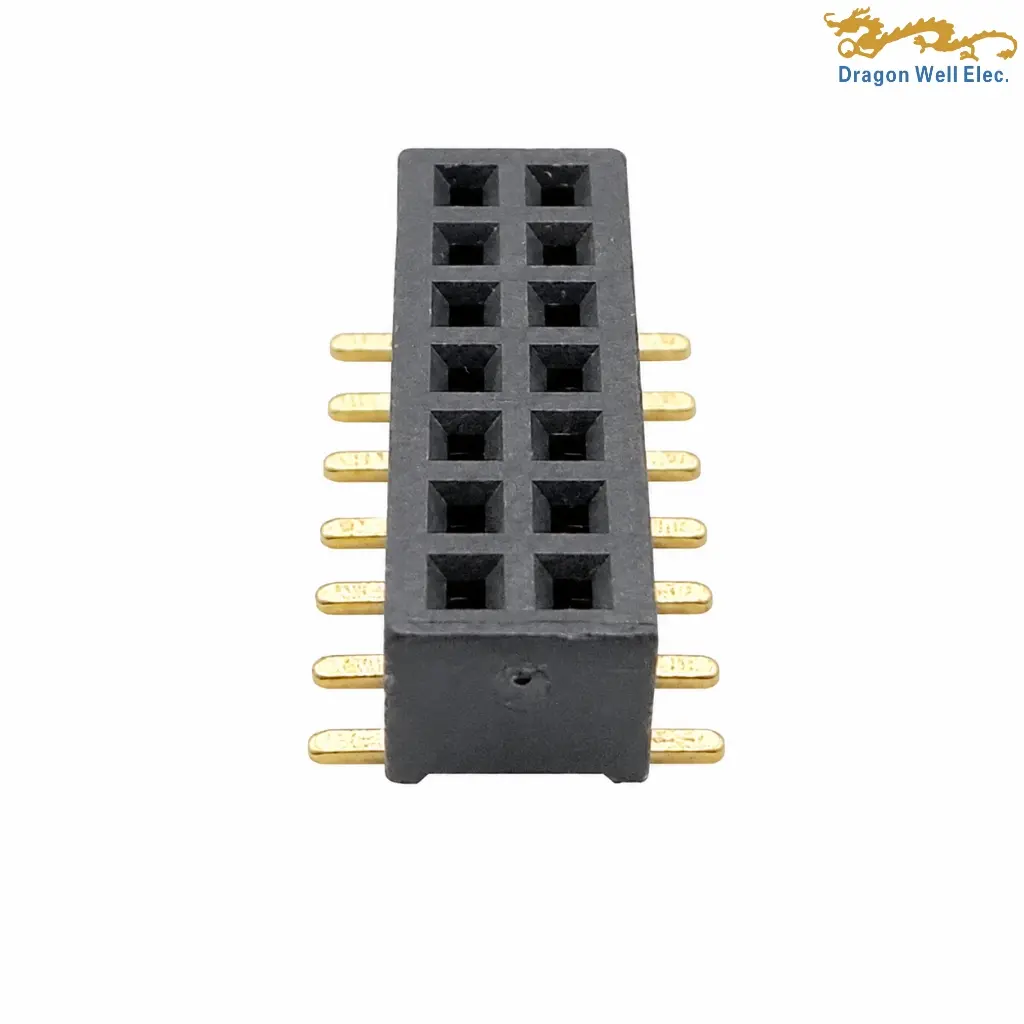

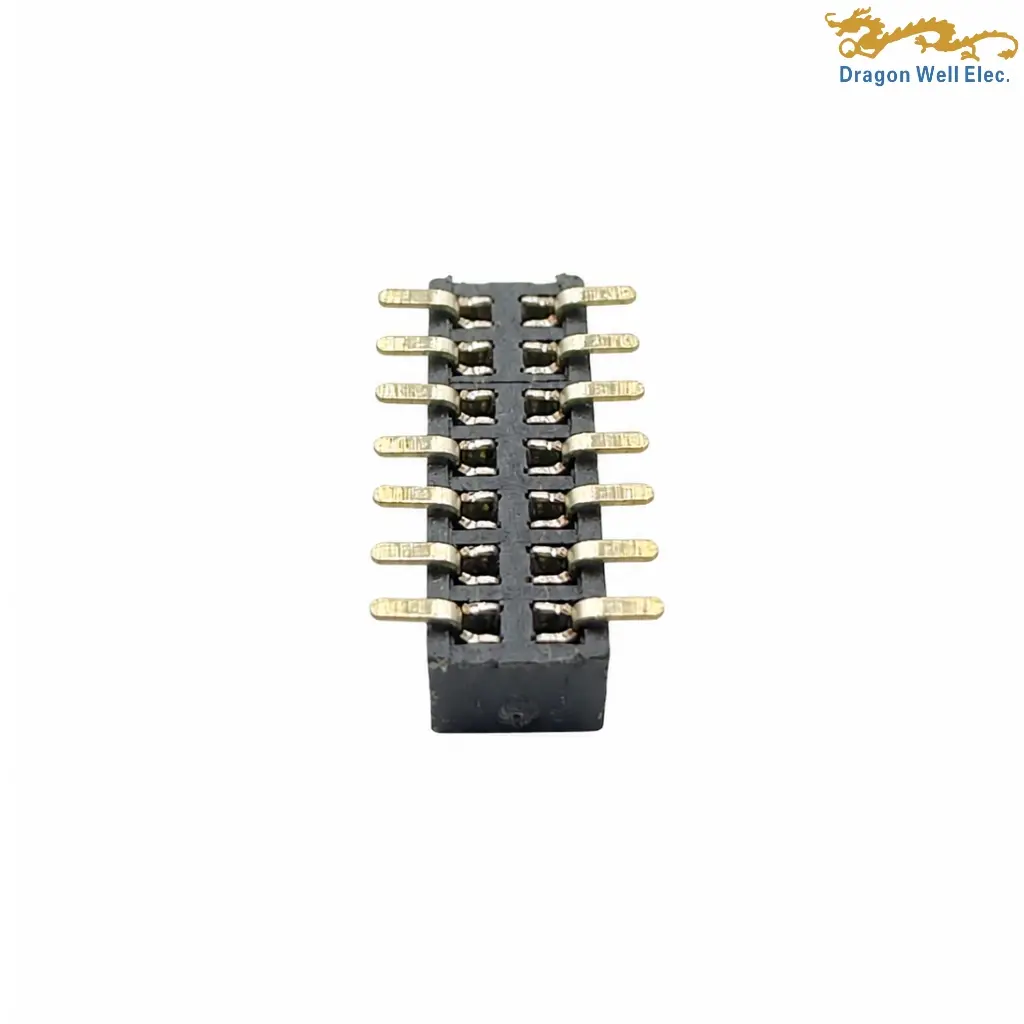

The 1.00mm 14 pin SMT female header is a compact dual-row PCB receptacle designed for vertical surface-mount interconnection. The supplied product photograph shows seven contact positions per row, confirming a 2 × 7 configuration with 14 total contacts. The engineering drawing identifies a 1.00 mm contact pitch, 1.00 ± 0.10 mm row spacing, vertical 180° orientation, and SMT termination.
For the 14-position version, the drawing table specifies a 6.00 ± 0.35 mm contact span, identified as DIM A, and a 7.40 ± 0.50 mm overall body length, identified as DIM B. The connector body is 2.50 ± 0.20 mm wide and 2.10 ± 0.15 mm high. Its phosphor-bronze contacts use a 30–50 µin nickel underplate with 0.5–0.8 µin gold plating.
The 1.00mm 14 pin SMT female header is rated for 1 A. Electrical performance includes 20 mΩ maximum contact resistance, 1,000 MΩ minimum insulation resistance, and AC 500 V voltage resistance. The specified operating-temperature range is -40°C to +105°C.
The black insulator is manufactured from PA6T reinforced with 30% glass fibre and carries a UL94 V-0 flammability classification. The drawing specifies soldering-temperature resistance of 260 ± 5°C for a maximum of 10 seconds and identifies the connector series as RoHS compliant and aligned with EIA-364C.
This 1.00mm 14 pin SMT female header is suitable for compact board-to-board and module-to-board connections in embedded controllers, communication modules, industrial electronics, test equipment, compact consumer devices, and other PCB assemblies.
| General | |||
| Status | N/A | Category | PCB Headers and Receptacles |
| Series | DW-FH-2100219WVnP-XXXX-01 | Description | 1.00mm Pitch Female Header, Dual Row, Vertical 180°, SMT Type, 2.10mm Base Height |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Receptacle / Female Header | Product Name | Female Header Connector |
| Keywords | 1.00mm Female Header, Dual Row Female Header, Vertical Female Header, SMT Female Header, 2.1H Female Header | Contact Type | Receptacle |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 1AMP |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | 4–80 Positions, Even Counts; See Dimension Table |
| Circuits Maximum | 80 | Color – Housing | N/A |
| Durability / Mating Cycles | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Phosphor Bronze | Material – Plating | Ni 30–50µin Underplate + Au 0.5–0.8µin; Selectable by Plating Code |
| Material – Plating Solder | N/A | Material – Resin | PA6T + 30% GF, UL94V-0 |
| Metal Shape and Form | Rectangular SMT Contact, 0.35 × 0.15±0.05mm | Number of Rows | 2 |
| Connector Orientation | Vertical / 180° | Packaging Type | TB: Tube Package / TR: Tape Reel, Selectable by Code |
| PCB Locator | None Shown | PCB Retention | None Shown |
| PC Tail Length | N/A | Pitch – Mating Interface | 1.00mm |
| Plating Min – Mating | 01: Gold Flash; 03: 3µin Gold; 06: 6µin Gold; 15: 15µin Gold; 30: 30µin Gold; 31: Sn; 32: Ni | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Surface Mount |
| Square Terminal Post | No; Rectangular Contact 0.35 × 0.15±0.05mm | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Surface Mount |
| PCB Thickness Recommended | N/A | Row-to-Row Pitch | 1.00±0.10mm |
| Height of Connector | Base Height: 2.10±0.15mm; Overall Height: 2.25±0.30mm | Recommended PCB Hole Dia. | N/A |
| PCB Layout Width | 4.80mm Overall Pad Span | PCB Pad Pitch | 1.00mm |
| PCB Pad Width | 0.60mm | PCB Pad Length | 1.80mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10s Max. |
| Lead-Free Process Compatible | Yes, RoHS Compliant | Max-Temp | 260°C ±5°C |
