2.00mm pitch dual row right angle SMT pin header with pegs 16 pin for compact PCB interconnection, designed with a dual row contact layout, surface-mount right angle structure, and locating pegs for stable placement. Based on the drawing, this pin header supports 2A current rating, AC 500V withstand voltage, and uses a PA6T+30%GF UL94V-0 housing for reliable assembly in industrial and electronic applications.
• Applications: Embedded systems, industrial control boards, communication equipment, compact PCB modules, instrumentation, internal board-to-board connection, automation electronics, consumer electronic assemblies.
• Highlights: 2.00mm pitch pin header; dual row design; right angle SMT type; with locating pegs; 16-pin version shown; 2A current rating; 20mΩ max contact resistance; 1000MΩ min insulation resistance; AC 500V withstand voltage; PA6T+30%GF UL94V-0 housing.

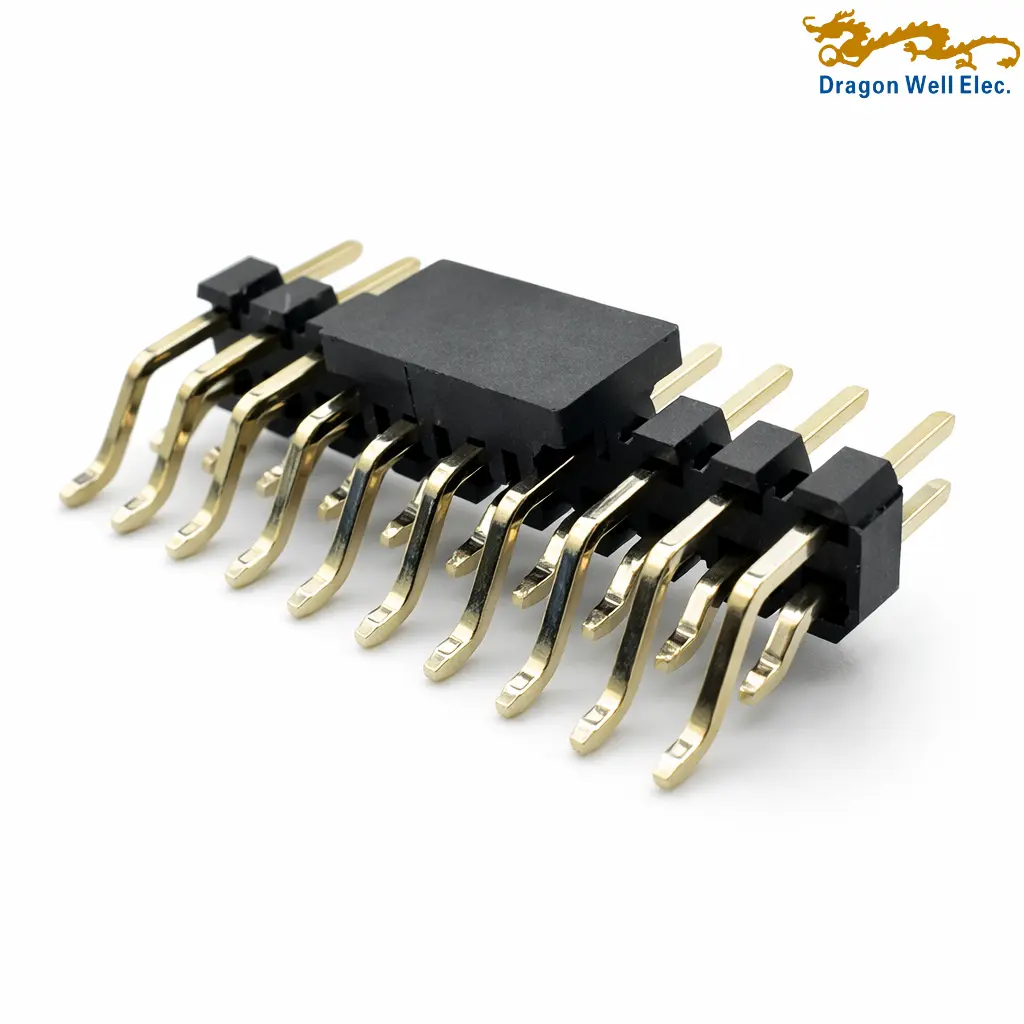

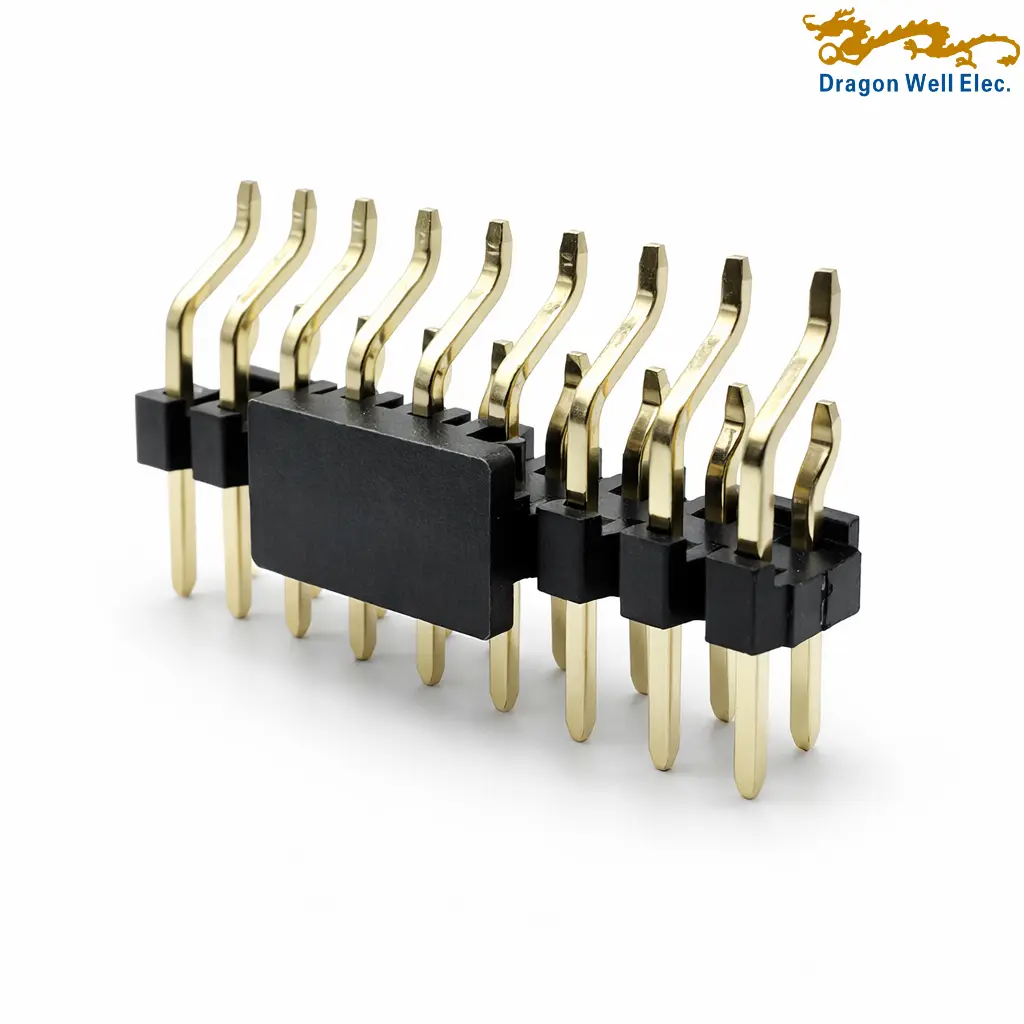

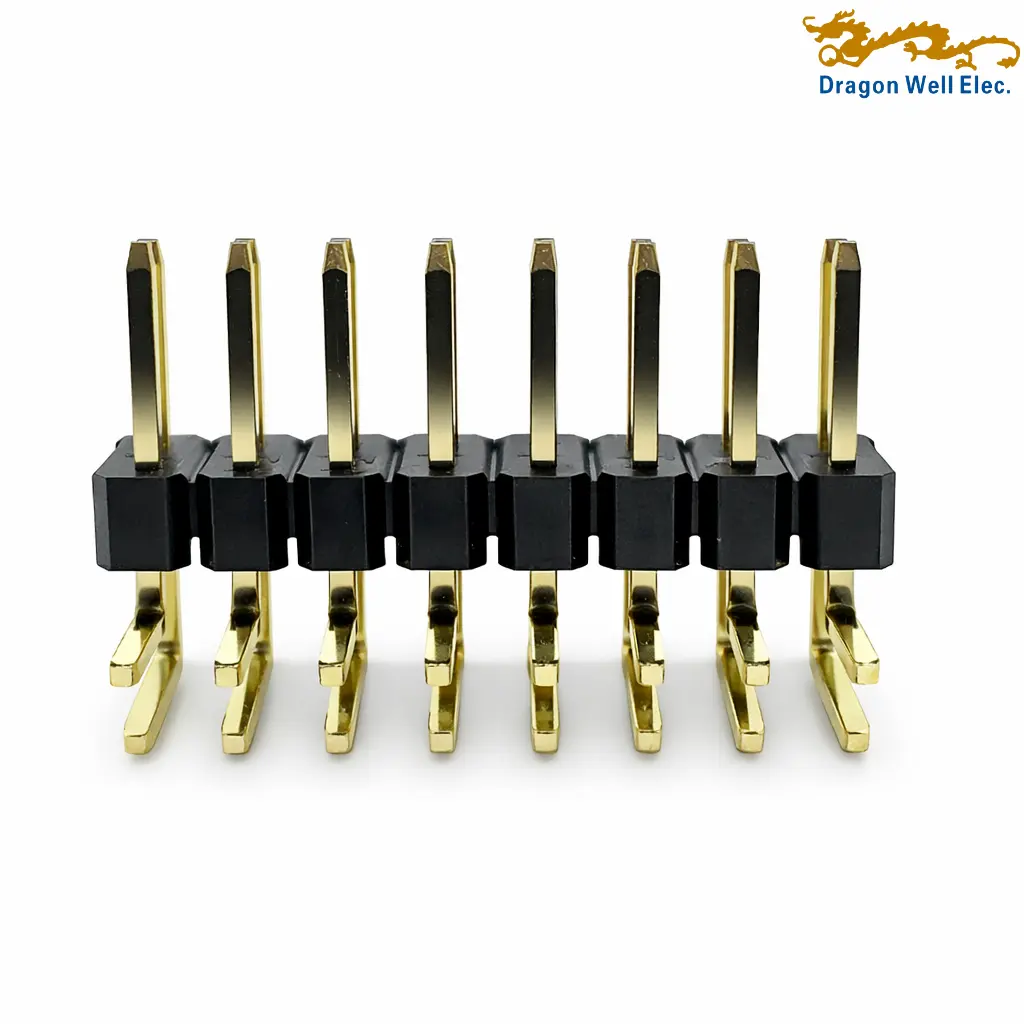

2.00mm pitch dual row right angle SMT pin header with pegs 16 pin is a compact board-level connector designed for reliable PCB interconnection in industrial electronics, embedded systems, control modules, and compact electronic assemblies. Based on the drawing, this product is a 2.00mm pitch dual row pin header with a right angle SMT structure, 16-pin version shown, and plastic locating pegs for stable PCB positioning during assembly. The drawing also indicates this series is available in multiple circuit counts.
This 2.00mm pitch dual row right angle SMT pin header with pegs 16 pin is built for dependable electrical and mechanical performance in compact PCB applications. According to the specification section in the drawing, the connector has a current rating of 2A, contact resistance of 20mΩ max, insulation resistance of 1000MΩ min, and withstanding voltage of AC 500V per minute. The operating temperature range is listed as -40°C to +105°C, supporting use in demanding environments.
With its 2.00mm pitch, dual row arrangement, right angle SMT mounting, and pegs for added positioning support, this pin header connector is suitable for compact electronic products where secure board connection and efficient automated assembly are important.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2200851WRnP-XXTR-01 | Description | 2.00 Pitch Pin Header Dual Row Right Angle SMT with Pegs |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 2.00 Pin Header, Dual Row Pin Header, Right Angle SMT Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 2.0A |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | AC 500V/Minute | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | Variable (nP) |
| Circuits (Maximum) | N/A | Color – Housing | Black |
| Durability (Mating Cycles) | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | Gold plating over all; 30u” min nickel underplating over all |
| Material – Plating Solder | N/A | Material – Resin | PA6T+30%GF, UL94V-0 |
| Metal Shape and Form | 0.50 SQ | Number of Rows | 2 |
| Connector Orientation | Right Angle | Packaging Type | Tape Reel |
| PCB Locator | Pegs, Ø1.00 | PCB Retention | With Pegs |
| PC Tail Length | N/A | Pitch – Mating Interface | 2.00mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Surface Mount |
| Square Terminal Post | 0.50 SQ | PCB Mount Retention | With Pegs |
| PCB Mount Alignment | Pegs | Connector Mounting | Surface Mount |
| PCB Thickness (Recommended) | N/A | Row-to-Row Pitch | 2.00mm |
| Height of Connector | 5.00mm | Recommended PCB Hole Dia. | Ø1.20mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | N/A |
